◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#20211) — 67 parça

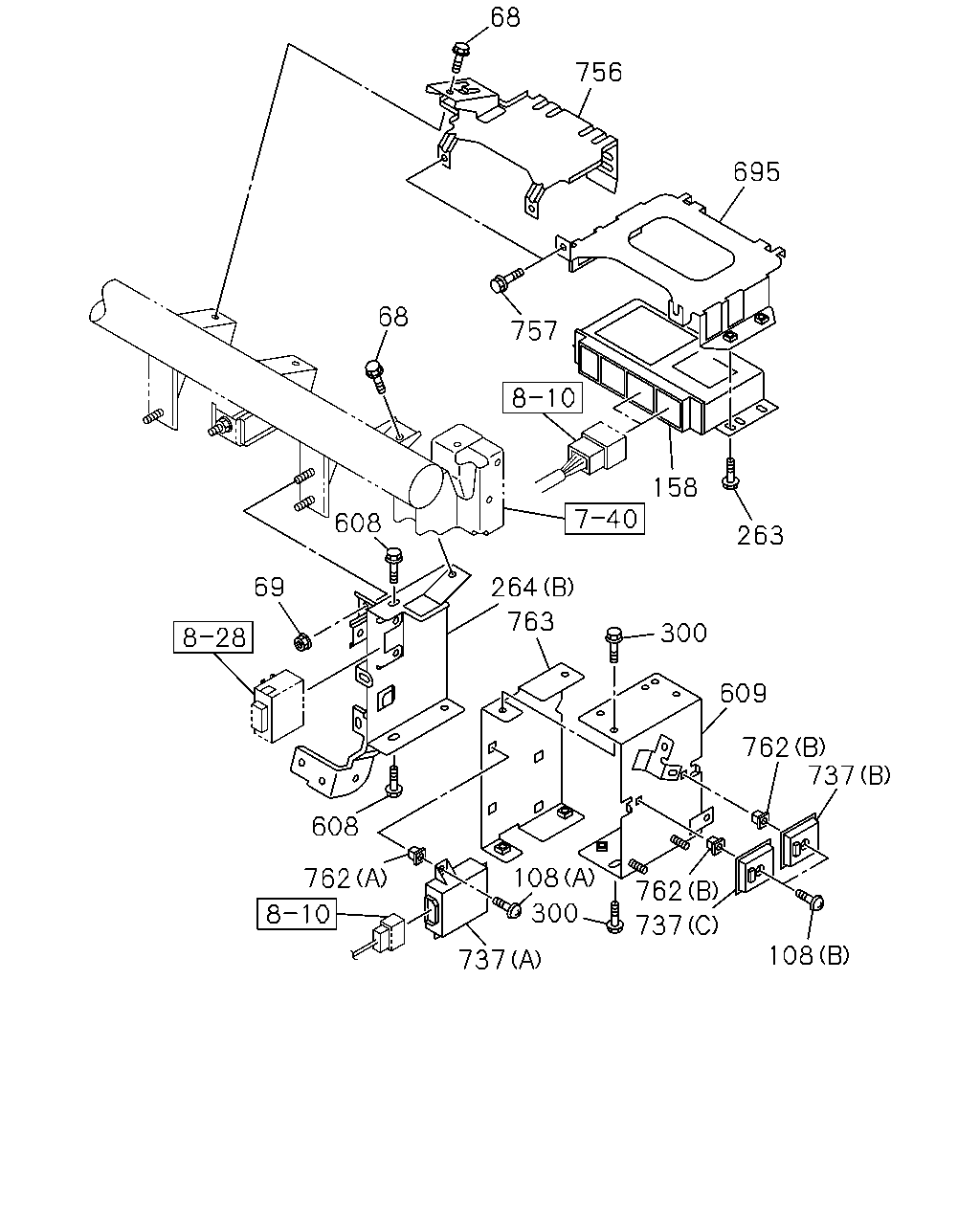

çizim 110225
68 756 695 68 757 158 608 263 69 264 763 300 609 762 737 608 108 762 762 300 737 108 737
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1206-
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1109-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1109-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1206-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING 		0-74160-425-0 02 1 1206-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> 		8-98220-159-0 01 1 1206-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> 		8-98170-648-0 01 1 1206-1206
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) EXC. VIN MODEL YEAR 2011<VZB> 		8-98170-648-0 01 1 1207-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) 		8-98170-648-0 01 1 1207-
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 1206-
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1505-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1109-1504
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1505-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1109-
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 1206-
608 BOLT; CONT UNIT,AIR SUS
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1109-1205
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 1206-
608 BOLT; CONT UNIT,AIR SUS
MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 1206-
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> 		8-98095-336-0 01 1 1109-1205
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98095-336-0 01 1 1206-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> 		8-98095-336-0 01 1 1206-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98226-231-1 01 1 1309-
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> 		8-98226-231-1 01 1 1309-
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 1206-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 1206-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 1206-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 1206-
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> 		8-98052-797-3 01 1 1206-
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 1206-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1206-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1206-
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 1206-

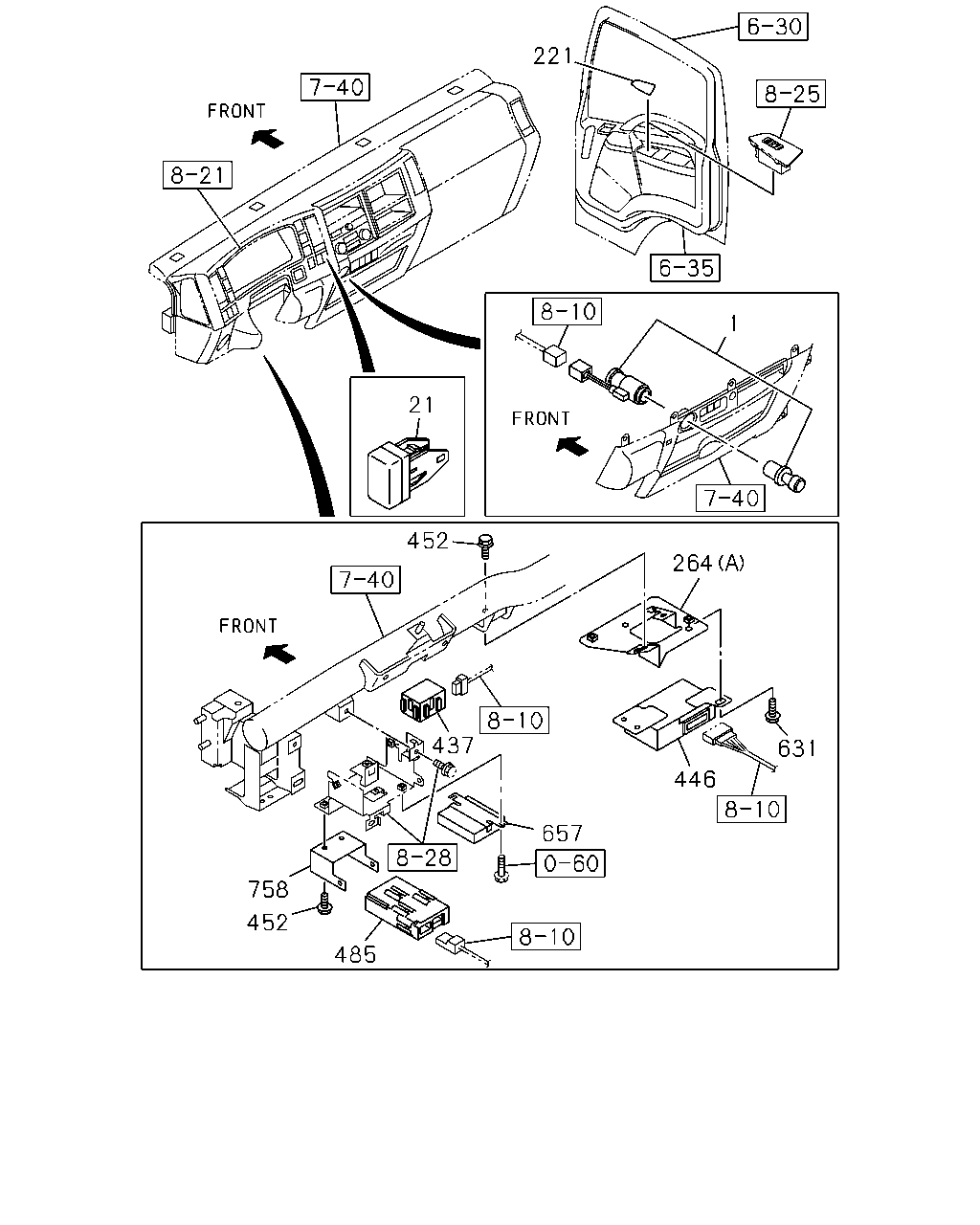

çizim 110226
221 21 452 758 452 485 657 446 631 437 1 264
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1109-
21 COVER; HOLE 8-98025-954-1 01 1 1109-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1109-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1109-
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1505-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1109-1504
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1505-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1109-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1109-
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-2 01 1 1109-
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 1109-
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1109-
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 1109-
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1109-
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1109-1401
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1402-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 1109-
çizim 110228
507
BalonParca AdiParca NoAdetTipApplied Date
507 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1109-1205
507 CONNECTOR
EXC. COLOMBIA EQUIPMENT(CB7),H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1206-

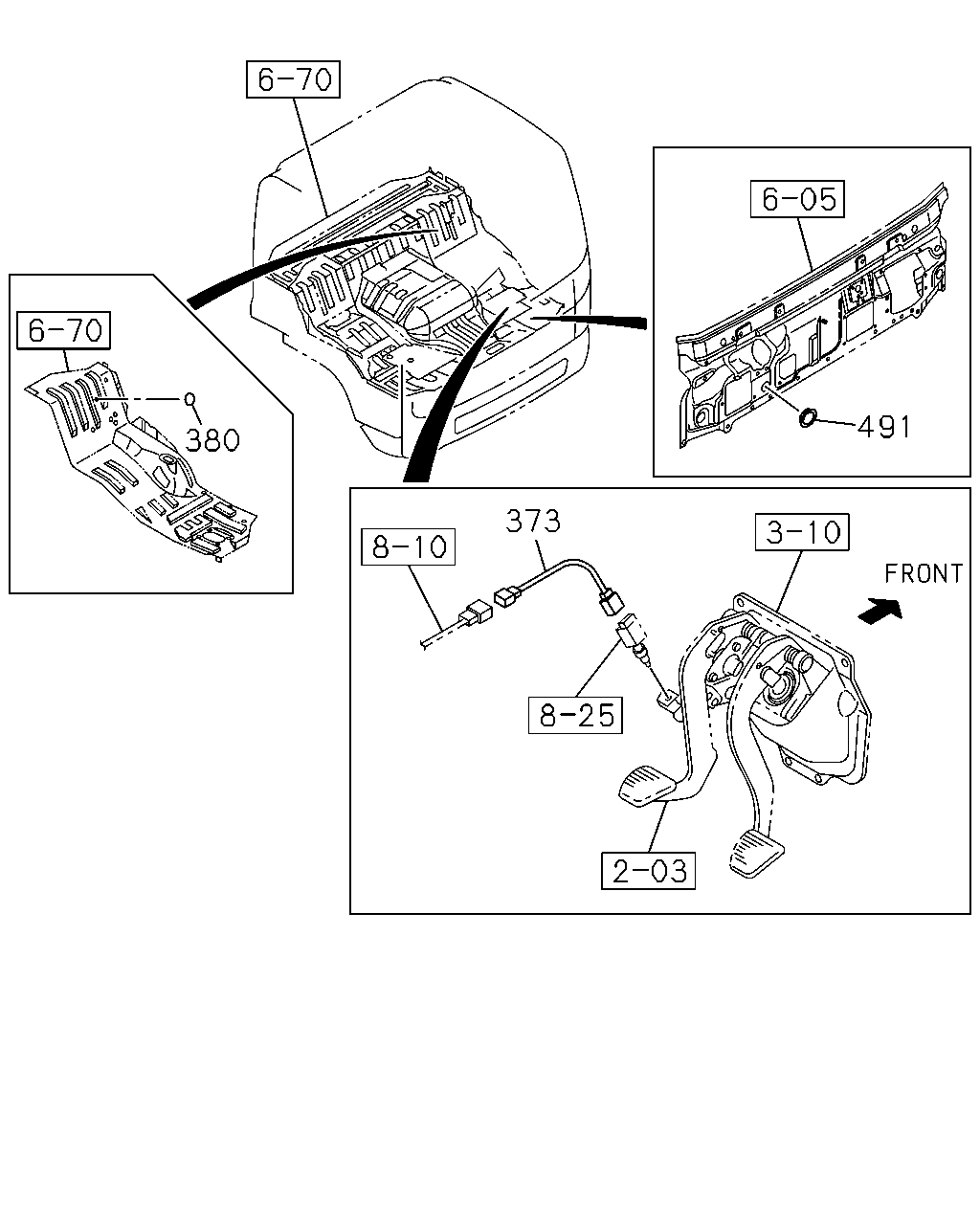

çizim 110235
491 380 373
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98110-722-0 01 1 1206-
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		8-98110-721-0 01 1 1206-
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 1109-1205
373 HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 1206-
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 1206-
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1109-1205
373 HARNESS; CLU SWITCH
EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1206-
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1206-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1109-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1109-

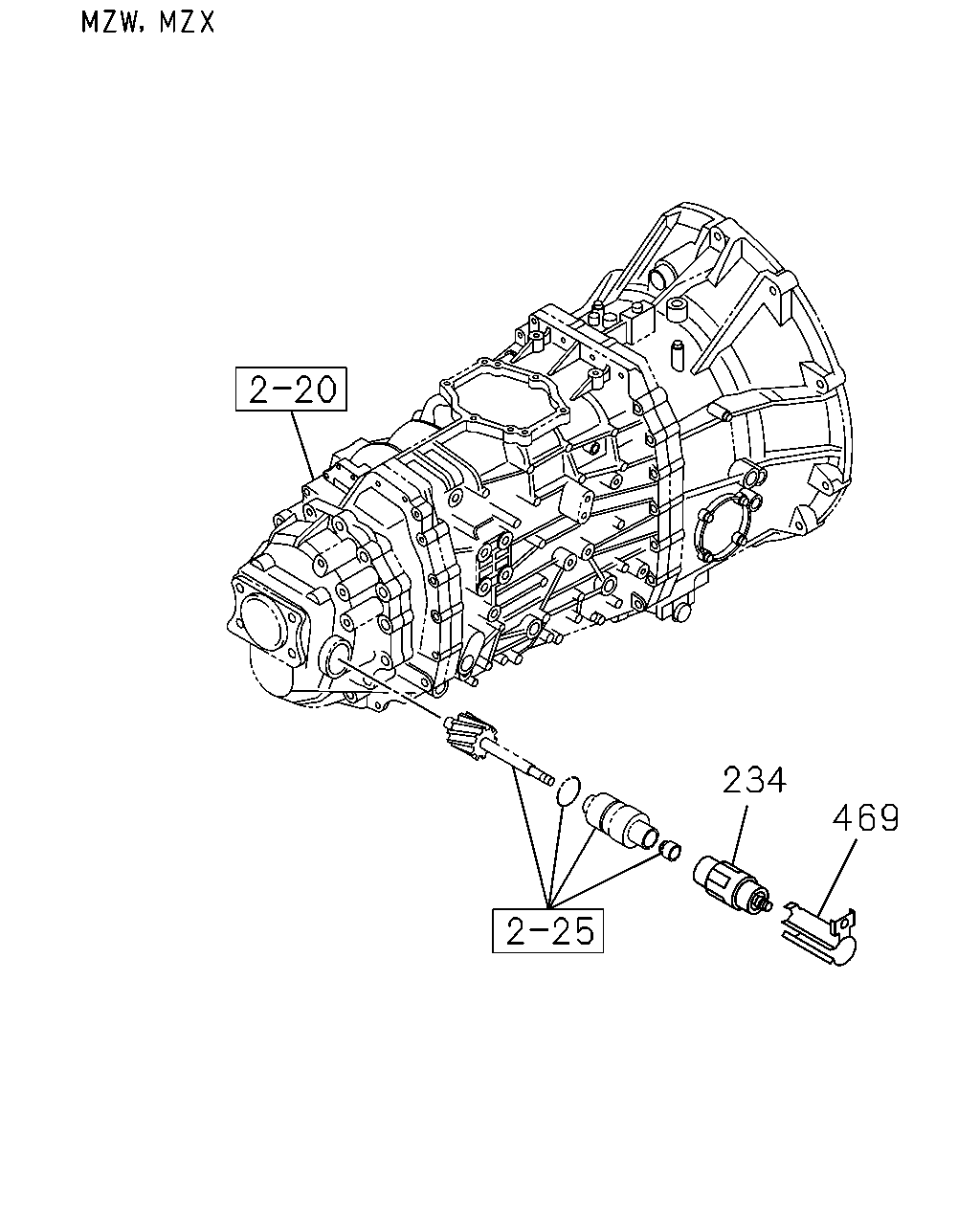

çizim 110247
234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
FULLER ES11109 DD M/T(Y5N) 25 PULSE 		1-83127-414-1 01 1 1206-
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1109-
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98119-901-0 01 1 1109-

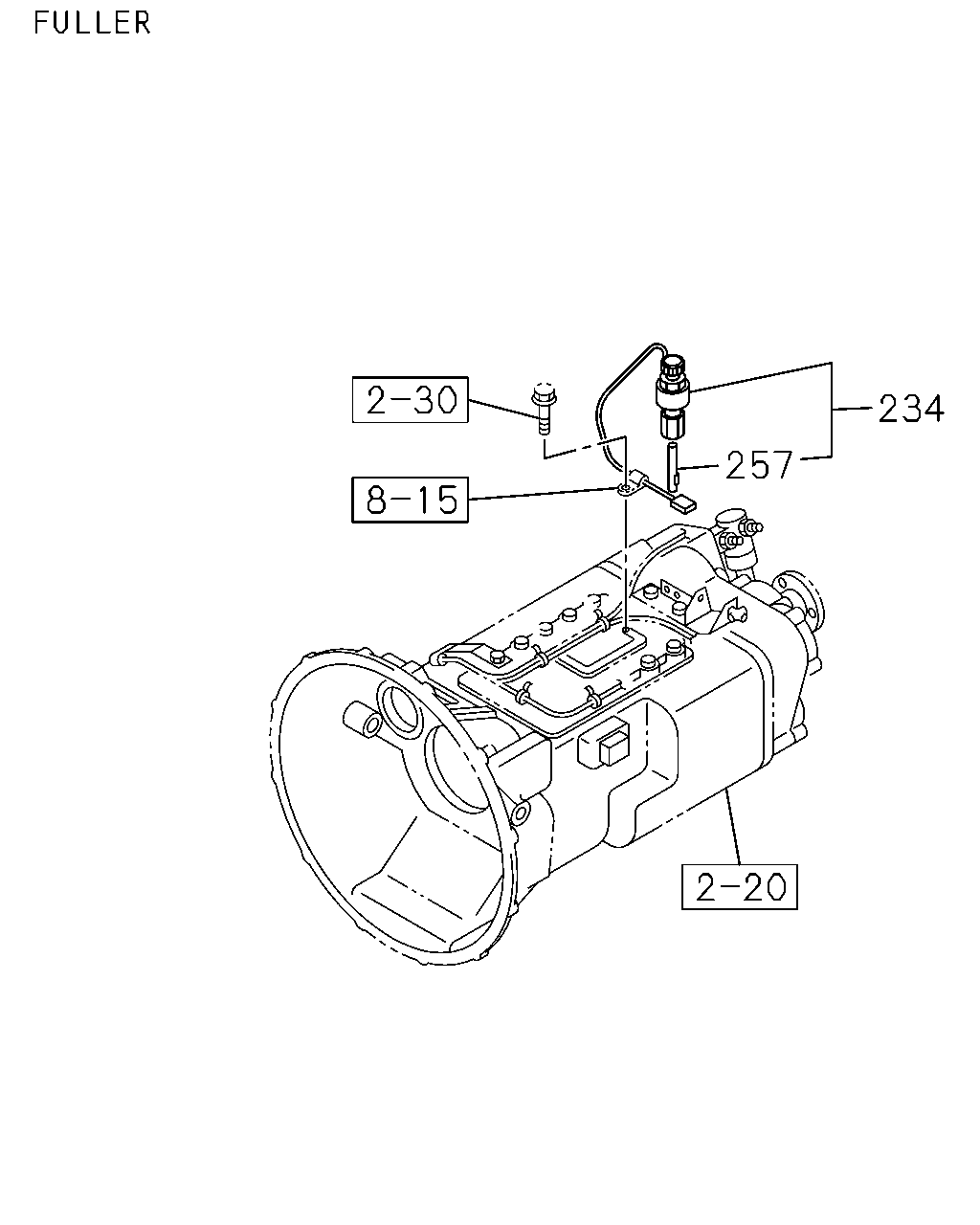

çizim 284326
234 257
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
FULLER ES11109 DD M/T(Y5N) 25 PULSE 		1-83127-414-1 01 1 1206-
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1109-
257 KEY; SPEED SENSOR
FULLER ES11109 DD M/T(Y5N) 		1-83129-073-0 01 1 1206-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
