0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#2021) — 96 parça

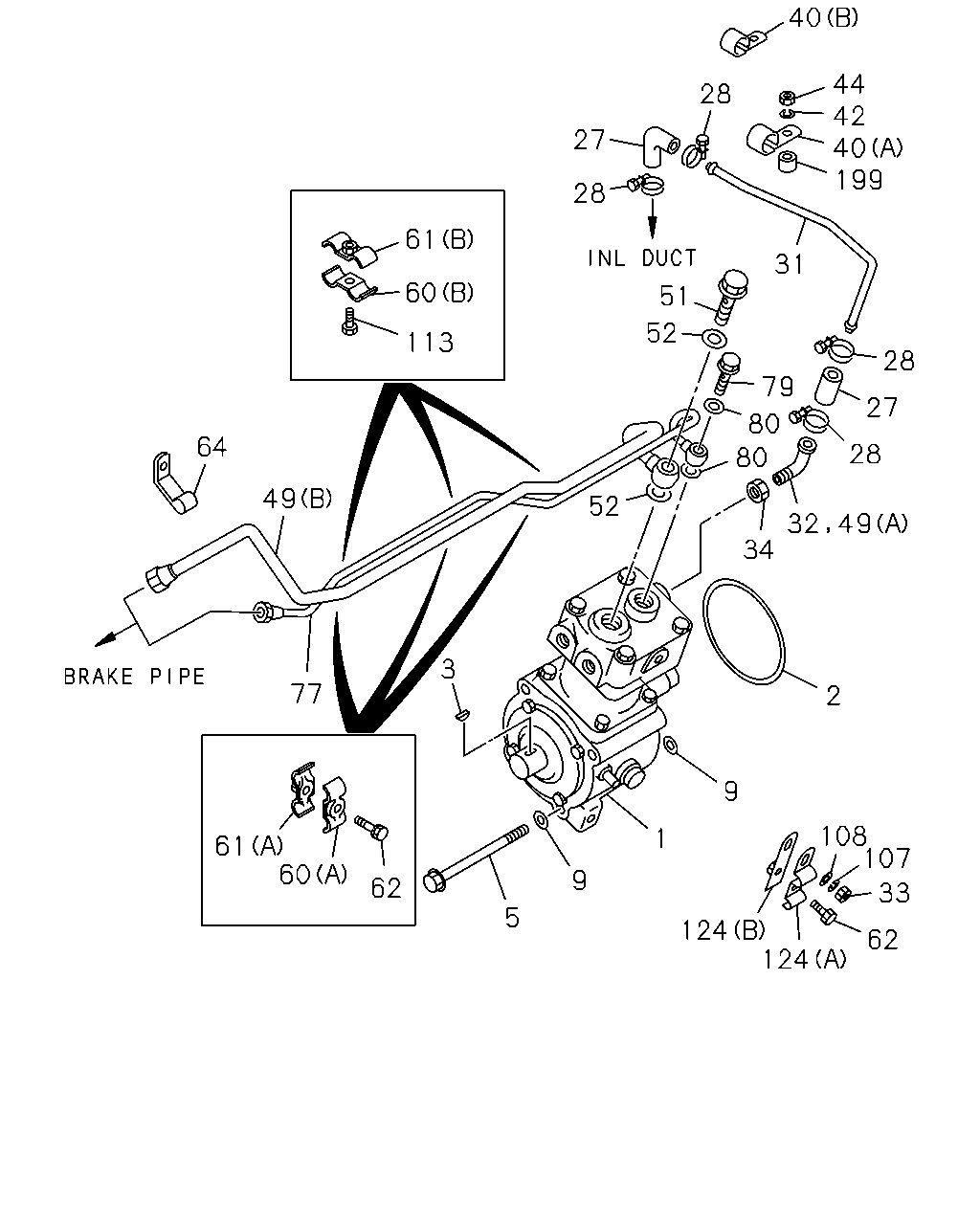

40 44 42 40 199 28 27 28 61 31 60 51 52 113 28 79 27 80 64 28 80 49 52 32 34 3 77 2 9 108 107 1 61 60 9 62 33 5 124 124 62 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-232-5	01	1	9001-	●	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=124.6	1-09623-468-0	01	1	9001-	●	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9001-	●	●	●	●
5	BOLT; AIR CMPR FIX M10X143	1-09044-025-2	04	1	9001-	●	●	●	●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	08	1	9001-	●	●	●	●
27	HOSE; AIR CMPR,SUCTION INDIA EQUIPMENT(WK3)	1-09360-590-0	01	1	9001-				●
27	HOSE; AIR CMPR,SUCTION EXC. INDIA EQUIPMENT(WK3) L=1500	1-09360-476-0	01	1	9001-				●
27	HOSE; AIR CMPR,SUCTION L=1500	1-09360-476-0	01	1	9001-	●	●
27	HOSE; AIR CMPR,SUCTION L=150 ELBOW	1-09360-373-0	01	1	9001-	●	●
27	HOSE; AIR CMPR,SUCTION L=65	9-09919-309-0	02	1	9101-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9001-		●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	04	1	9101-			●
31	PIPE; AIR,AIR CMPR SUCTION	1-19192-133-0	01	1	9101-9106			●
31	PIPE; AIR,AIR CMPR SUCTION	1-19192-229-0	01	1	9107-			●
32	PIPE; AIR,AIR CMPR	9-19119-032-0	01	1	9001-			●	●
33	NUT; PIPE FIX M8	9-09110-408-0	01	1	9001-	●	●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	01	1	9001-	●	●	●	●
40	CLIP; AIR PIPE (A) ID=19 L=25	1-09700-515-1	03	1	9101-			●
40	CLIP; AIR PIPE (B) ID=19 L=28	9-09525-856-0	01	1	9101-			●
42	WASHER; LK,CLIP ID=10.2	9-09150-510-0	01	1	9101-			●
44	NUT M10	9-09110-410-0	01	1	9101-			●
49	PIPE; AIR,CHARGE (B)	1-19191-323-2	01	1	9001-9212	●	●	●	●
49	PIPE; AIR,CHARGE (B)	1-19192-718-0	01	1	9301-	●	●	●	●
49	PIPE; AIR,CHARGE (A)	1-19191-158-0	01	1	9001-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9001-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9001-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9001-	●	●	●	●
60	CLIP; AIR PIPE (B) WO/NUT	1-09700-079-0	01	1	9001-	●	●		●
60	CLIP; AIR PIPE (A)	1-09700-051-0	01	1	9001-	●	●	●	●
60	CLIP; AIR PIPE (B) WO/NUT	1-09700-079-0	02	1	9101-			●
61	CLIP; AIR PIPE (B) W/NUT	1-09700-080-0	01	1	9001-	●	●		●
61	CLIP; AIR PIPE (A)	1-09700-052-0	01	1	9001-	●	●	●	●
61	CLIP; AIR PIPE (B) W/NUT	1-09700-080-0	02	1	9101-			●
62	BOLT; CLIP M6X25	9-01910-625-0	02	1	9001-9005				●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	02	1	9006-				●
62	BOLT; CLIP M6X25	9-01910-625-0	03	1	9001-9005	●	●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	03	1	9006-	●	●	●
62	BOLT; CLIP M6X25 W/LK WASHER	9-01900-625-0	01	1	9101-9204			●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-			●
64	CLIP; AIR PIPE	1-09700-056-1	01	1	9001-	●	●	●
77	PIPE; AIR,GOV	1-19192-156-0	01	1	9001-9212	●	●	●	●
77	PIPE; AIR,GOV	1-19192-719-0	01	1	9301-	●	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9001-	●	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9001-	●	●	●	●
107	WASHER; LK,CLIP,AIR PIPE ID=8.2	9-09150-508-0	01	1	9001-	●	●	●	●
108	WASHER; PL,AIR PIPE CLIP ID=8.4 OD=22	9-09160-708-0	01	1	9001-	●	●	●	●
113	BOLT; CLIP,AIR PIPE M6X12 W/LK WASHER	9-01910-612-0	01	1	9001-9005	●	●
113	BOLT; CLIP,AIR PIPE M6X12 W/LK WASHER	0-50040-612-0	01	1	9006-	●	●	●
124	CLIP; AIR PIPE (A)	1-09700-054-0	01	1	9001-	●	●	●
124	CLIP; AIR PIPE (B)	1-09700-055-0	01	1	9001-	●	●	●
199	COLLAR; DIST,SUCTION PIPE OD=19	9-51249-604-0	01	1	9101-9106			●
199	COLLAR; DIST,SUCTION PIPE OD=19	9-51249-604-0	02	1	9107-			●

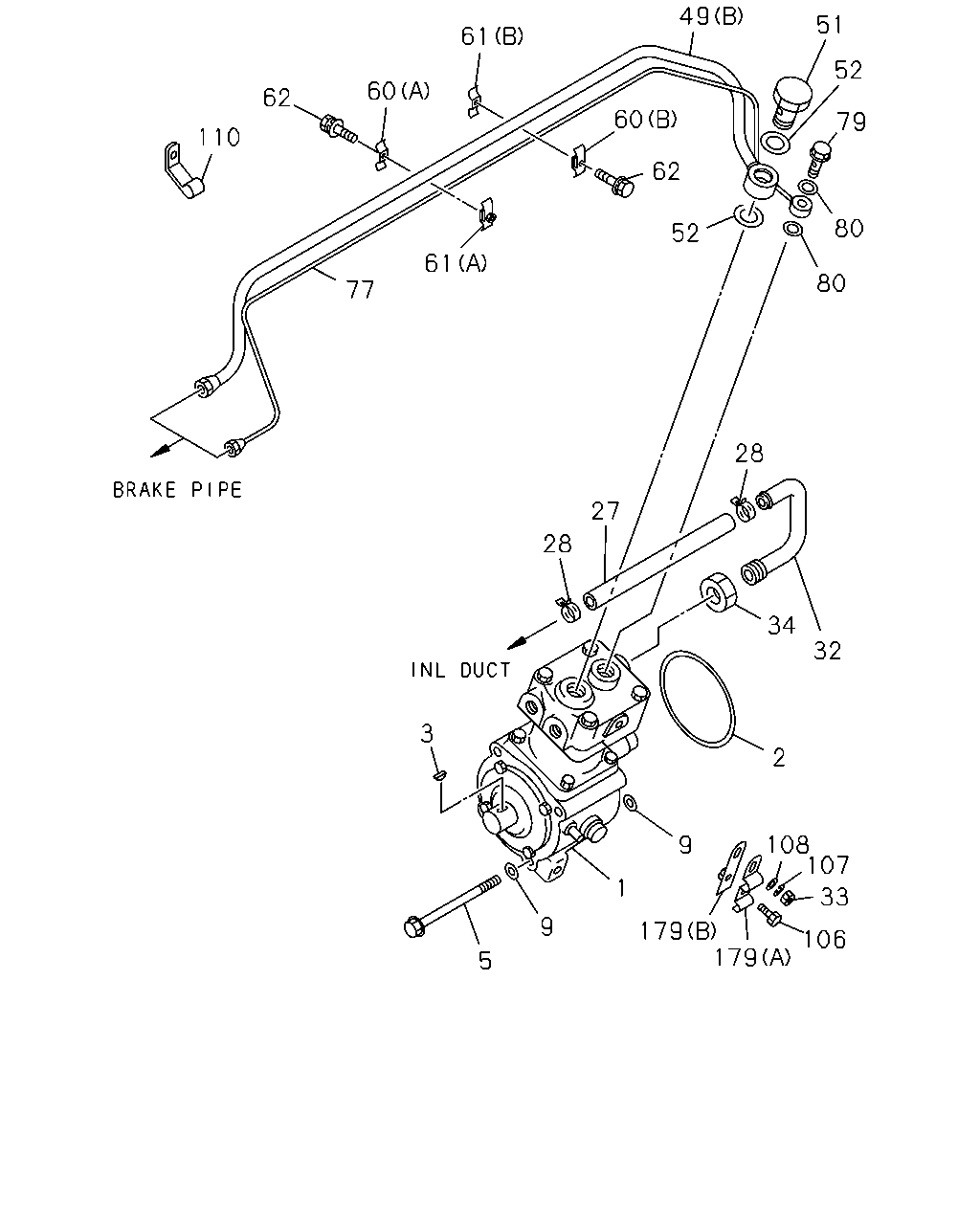

49 51 61 52 60 62 60 79 110 62 80 52 61 80 77 28 27 28 34 32 3 2 108 107 9 1 33 9 179 179 106 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-232-5	01	1	9001-	●	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=124.6	1-09623-468-0	01	1	9001-	●	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9001-	●	●	●	●
5	BOLT; AIR CMPR FIX M10X143	1-09044-025-2	04	1	9001-	●	●	●	●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	08	1	9001-	●	●	●	●
27	HOSE; AIR CMPR,SUCTION INDIA EQUIPMENT(WK3)	1-09360-590-0	01	1	9001-				●
27	HOSE; AIR CMPR,SUCTION EXC. INDIA EQUIPMENT(WK3) L=1500	1-09360-476-0	01	1	9001-				●
27	HOSE; AIR CMPR,SUCTION L=1500	1-09360-476-0	01	1	9001-	●	●
27	HOSE; AIR CMPR,SUCTION L=150 ELBOW	1-09360-373-0	01	1	9001-	●	●
27	HOSE; AIR CMPR,SUCTION L=65	9-09919-309-0	02	1	9101-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9001-		●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	04	1	9101-			●
32	PIPE; AIR,AIR CMPR	9-19119-032-0	01	1	9001-			●	●
33	NUT; PIPE FIX M8	9-09110-408-0	01	1	9001-	●	●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	01	1	9001-	●	●	●	●
49	PIPE; AIR,CHARGE (B)	1-19191-323-2	01	1	9001-9212	●	●	●	●
49	PIPE; AIR,CHARGE (B)	1-19192-718-0	01	1	9301-	●	●	●	●
49	PIPE; AIR,CHARGE (A)	1-19191-158-0	01	1	9001-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9001-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9001-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9001-	●	●	●	●
60	CLIP; AIR PIPE (B) WO/NUT	1-09700-079-0	01	1	9001-	●	●		●
60	CLIP; AIR PIPE (A)	1-09700-051-0	01	1	9001-	●	●	●	●
60	CLIP; AIR PIPE (B) WO/NUT	1-09700-079-0	02	1	9101-			●
61	CLIP; AIR PIPE (B) W/NUT	1-09700-080-0	01	1	9001-	●	●		●
61	CLIP; AIR PIPE (A)	1-09700-052-0	01	1	9001-	●	●	●	●
61	CLIP; AIR PIPE (B) W/NUT	1-09700-080-0	02	1	9101-			●
62	BOLT; CLIP M6X25	9-01910-625-0	02	1	9001-9005				●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	02	1	9006-				●
62	BOLT; CLIP M6X25	9-01910-625-0	03	1	9001-9005	●	●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	03	1	9006-	●	●	●
62	BOLT; CLIP M6X25 W/LK WASHER	9-01900-625-0	01	1	9101-9204			●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-			●
77	PIPE; AIR,GOV	1-19192-156-0	01	1	9001-9212	●	●	●	●
77	PIPE; AIR,GOV	1-19192-719-0	01	1	9301-	●	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9001-	●	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9001-	●	●	●	●
106	BOLT; CLIP M6X12 W/LK WASHER	9-01910-612-0	01	1	9001-9005				●
106	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9006-				●
107	WASHER; LK,CLIP,AIR PIPE ID=8.2	9-09150-508-0	01	1	9001-	●	●	●	●
108	WASHER; PL,AIR PIPE CLIP ID=8.4 OD=22	9-09160-708-0	01	1	9001-	●	●	●	●
110	CLIP; AIR PIPE	1-09700-050-1	01	1	9001-				●
179	CLIP; PIPE (A)	1-09700-054-0	01	1	9001-				●
179	CLIP; PIPE (B)	1-09700-055-0	01	1	9001-				●
