Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#20208) — 335 parça

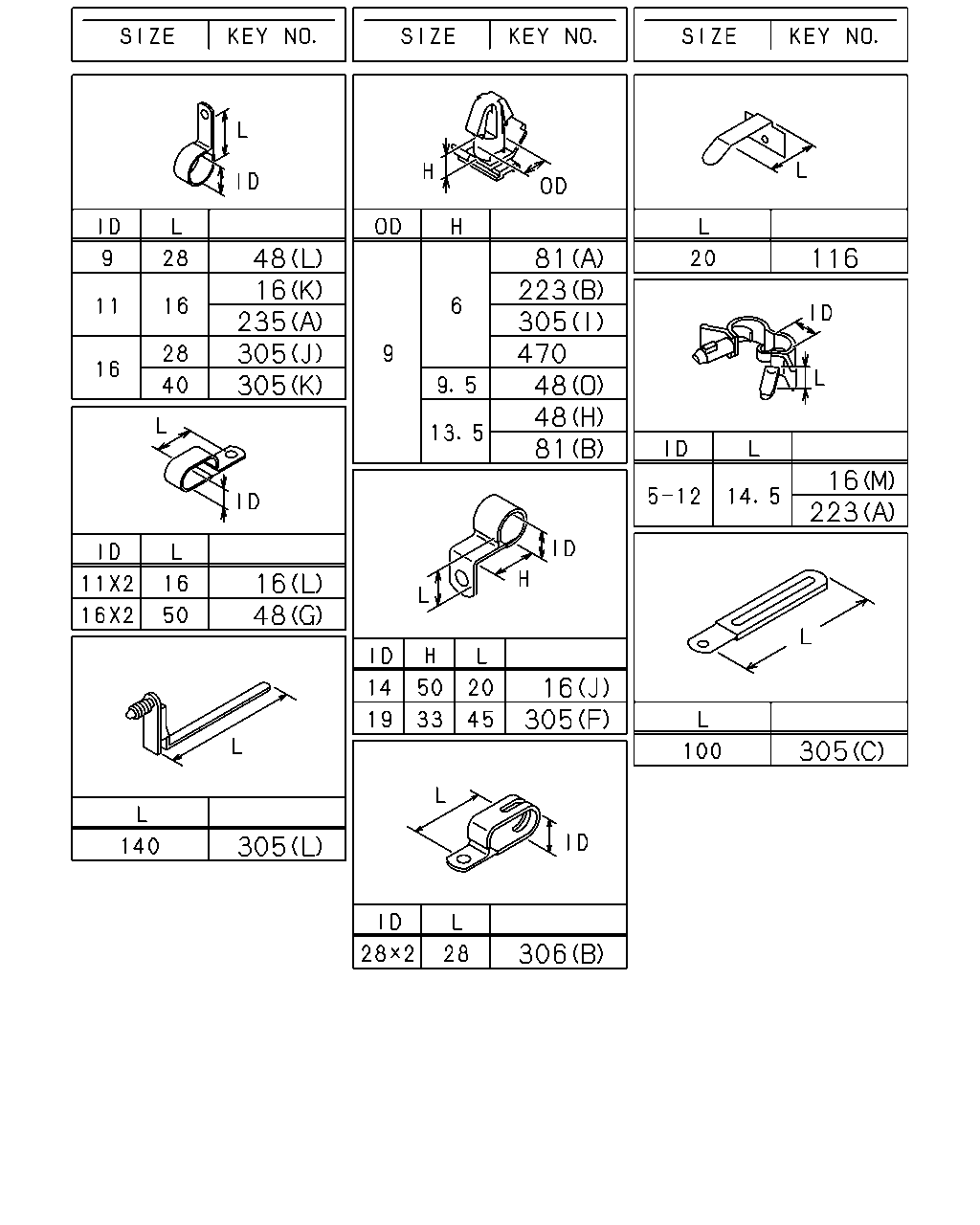

48 16 235 305 305 81 223 305 470 48 48 81 116 16 223 16 48 16 305 305 305 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=11X2 L=16	0-95325-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (N) L=140	5-09707-031-1	01	1	1206-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 400L<SDH> (H) ID=11 L=61	1-09700-484-0	02	1	1206-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (H) ID=11 L=61	1-09700-484-0	02	1	1206-
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	1109-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1109-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1109-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1109-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	1109-1205
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (D) ID=14 L=44	9-09917-427-0	03	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS FUEL TANK 400L<SDH> (H) ID=11 L=61	1-09700-484-0	01	1	1109-1205
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) FUEL TANK 400L<SDH> (H) ID=11 L=61	1-09700-484-0	01	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (D) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) (D) ID=33 L=83	1-09701-291-0	04	1	1206-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (L) ID=9 L=28	0-95234-855-0	02	1	1206-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (M) ID=14.5 L=20	1-09701-012-0	01	1	1206-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (N) L=180	1-09707-162-1	02	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) (D) ID=33 L=83	1-09701-291-0	03	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	05	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (K) ID=20 L=70	1-09700-485-0	09	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) EXC. CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	07	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) EXC. CHILE EQUIPMENT(KE1) (K) ID=20 L=70	1-09700-485-0	10	1	1206-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (O) OD=9 H=9.5	1-09709-179-0	01	1	1206-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1109-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1109-1205
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	02	1	1206-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1109-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	02	1	1109-1201
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	02	1	1202-1205
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=15 L=65	1-09700-466-0	04	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	04	1	1206-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	03	1	1109-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1109-
48	CLIP; FRAME HARNESS (J) ID=35 L=50	1-09701-214-0	01	1	1109-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	03	1	1109-1205
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1206-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1109-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	1109-1205
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	1206-
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) (C) ID=11 L=61	1-09700-484-0	01	1	1109-1205
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) (C) ID=11 L=61	1-09700-484-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=15 L=65	1-09700-466-0	12	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	12	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=15 L=65	1-09700-466-0	04	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	06	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	13	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	13	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	05	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	05	1	1206-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50	0-95325-586-0	01	1	1109-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40	1-09701-014-0	01	1	1109-
81	CLIP; HARNESS MZW6P M/T(RSZ) (A) OD=9 H=6	1-09709-178-0	01	1	1109-1205
81	CLIP; HARNESS MZW6P M/T(RSZ) EXC. COLOMBIA EQUIPMENT(CB7) (A) OD=9 H=6	1-09709-178-0	01	1	1206-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (B) OD=9 H=13.5	1-09709-180-0	01	1	1109-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (C) L=250	5-09707-030-1	01	1	1109-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1109-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1109-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1109-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	1206-
235	CLIP; HARNESS,SPD SENSOR,SSPS FULLER ES11109 DD M/T(Y5N) (B) L=250	5-09707-030-1	02	1	1206-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1109-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1109-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1109-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1109-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1109-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1109-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1109-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1109-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1109-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1109-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1109-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1109-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1109-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1109-

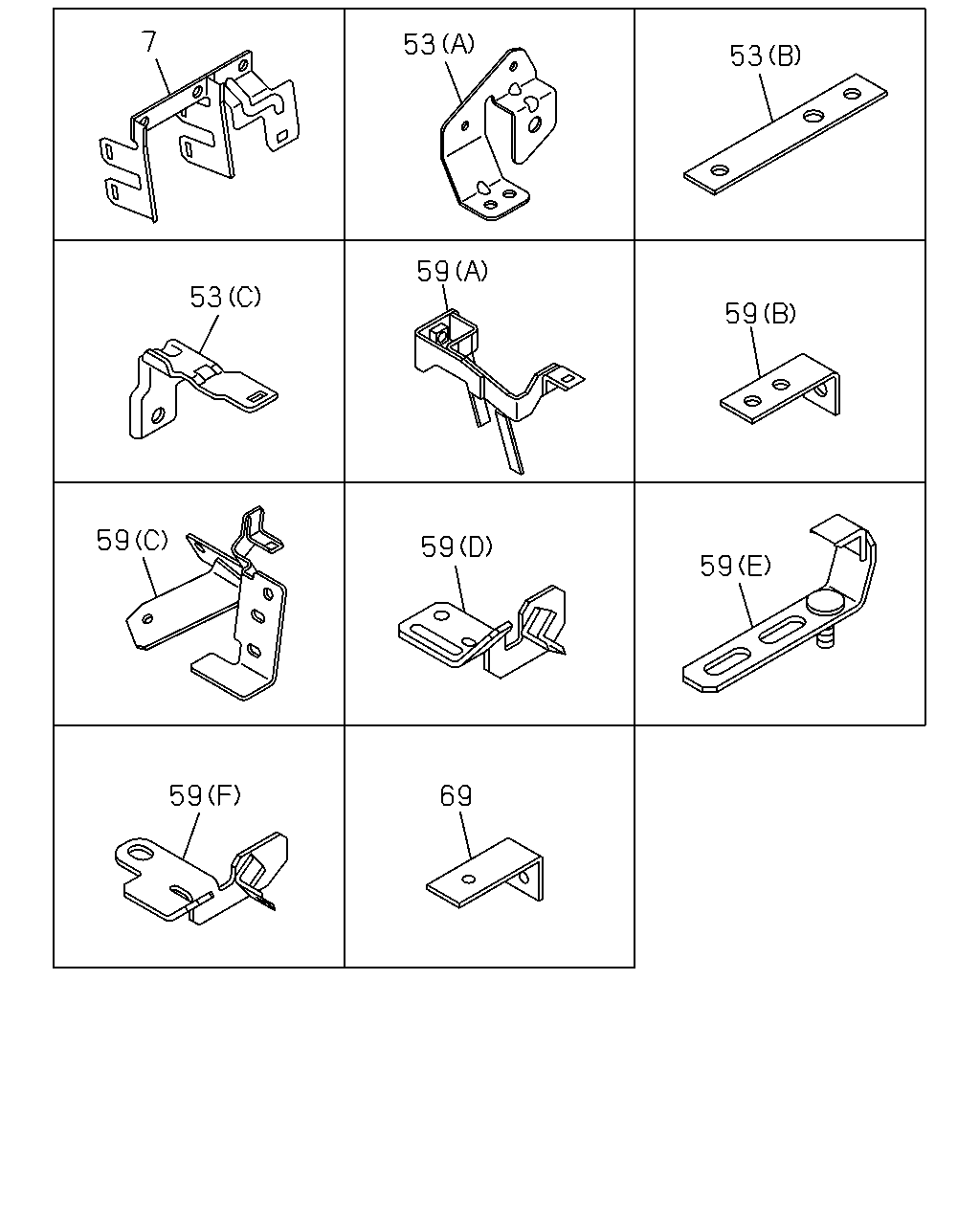

59 59 53 53 59 59 69 59 59 53 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1109-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	1109-
53	BRACKET; HARNESS FUEL TANK 400L<SDH> (B) L=170	1-47479-380-0	01	1	1109-1205
53	BRACKET; HARNESS CHILE EQUIPMENT(KE1) FUEL TANK 400L<SDH> (B) L=170	1-47479-380-0	01	1	1206-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1109-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1109-
59	BRACKET; FRAME HARNESS MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (A)	8-97609-264-2	01	1	1109-1205
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1206-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1109-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1109-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1109-
69	BRACKET; CLIP MZW6P M/T(RSZ) L=55	1-47475-304-0	01	1	1109-1205
69	BRACKET; CLIP MZW6P M/T(RSZ) EXC. COLOMBIA EQUIPMENT(CB7) L=55	1-47475-304-0	01	1	1206-

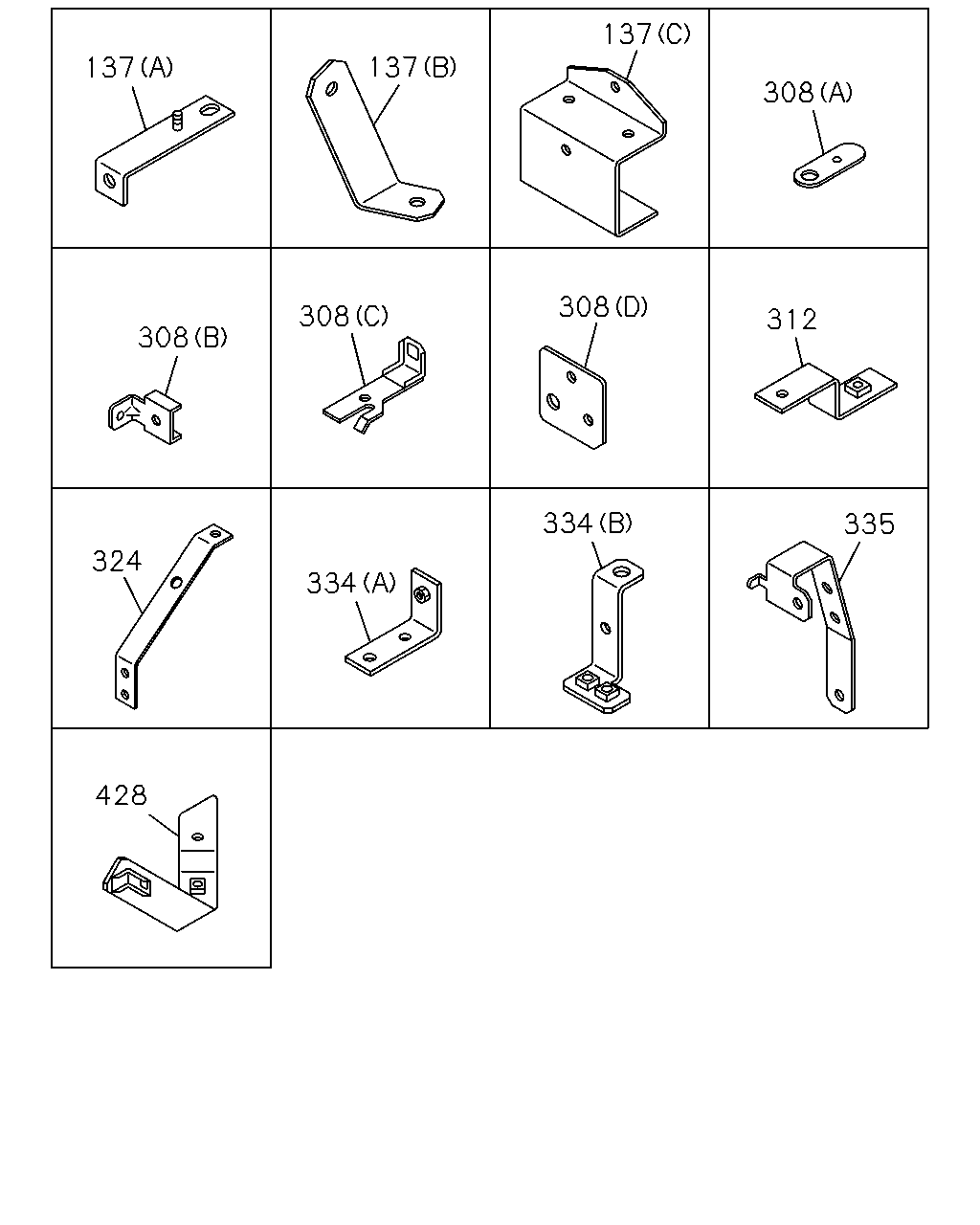

137 137 137 308 308 308 312 308 334 335 324 334 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (C)	8-97609-797-1	02	1	1206-
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	1109-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1109-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1109-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1109-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1109-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1109-
312	BRACKET; CLIP HARNESS	8-97609-110-1	01	1	1109-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	1-47479-430-0	02	1	1206-1211
324	BRACKET; CLIP COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1)	1-47479-430-0	02	1	1212-1212
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5> COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1)	1-47479-430-0	02	1	1212-
334	BRACKET FULLER ES11109 DD M/T(Y5N) (A)	1-82698-630-0	01	1	1206-
334	BRACKET FULLER ES11109 DD M/T(Y5N) (B)	8-98098-890-0	01	1	1206-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1109-
428	BRACKET	8-97620-514-0	01	1	1109-

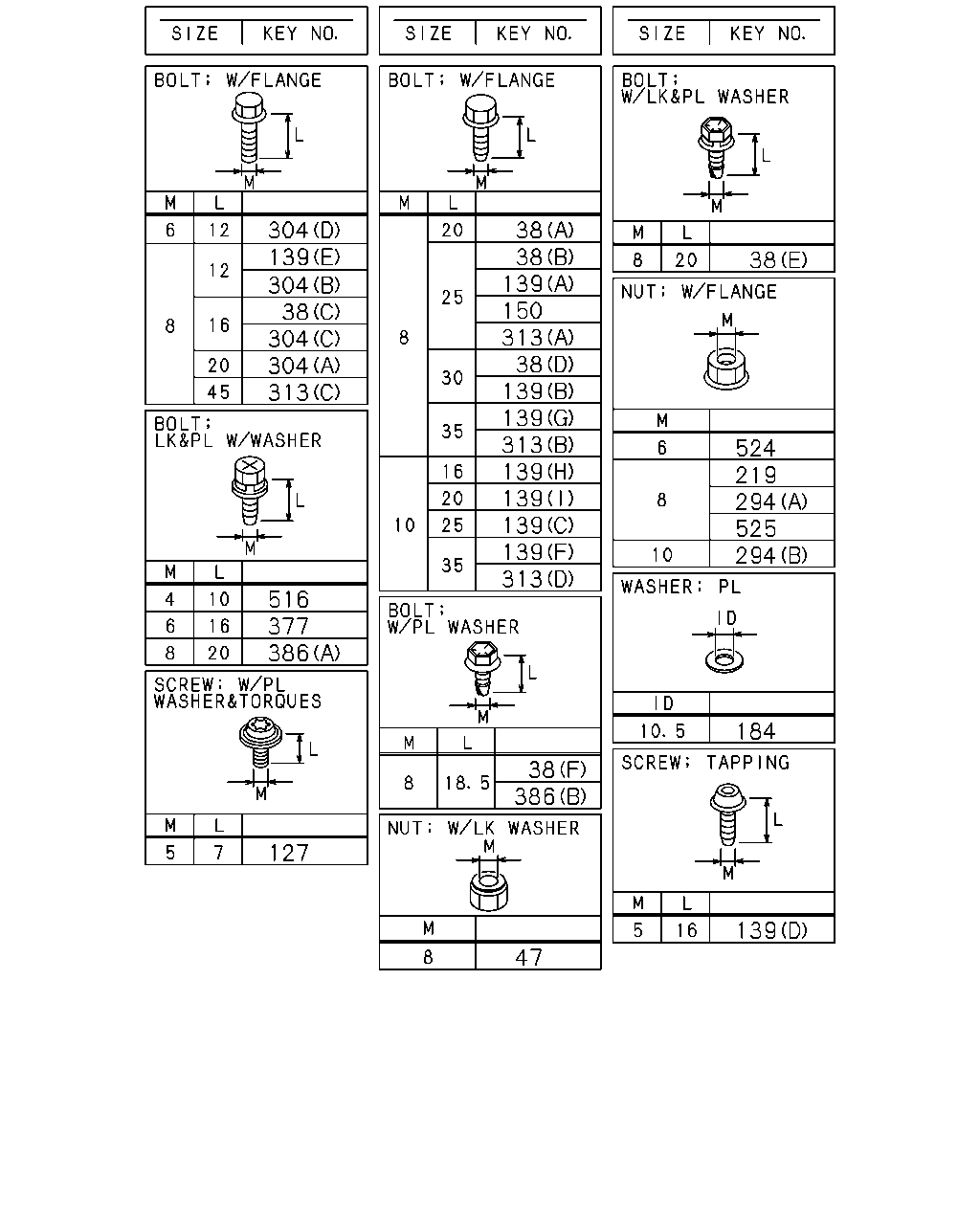

304 139 304 38 304 304 313 516 377 386 127 38 38 139 150 313 38 139 139 313 139 139 139 139 313 38 386 38 524 219 294 525 294 184 139 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1109-1205
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE	0-28650-830-0	02	1	1206-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1109-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1109-
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1109-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE	0-28050-816-0	02	1	1109-
38	BOLT; CLIP,HARNESS FULLER ES11109 DD M/T(Y5N) (C) M8X16 FLANGE	0-28050-816-0	03	1	1206-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1109-
139	BOLT; BRKT FULLER ES11109 DD M/T(Y5N) (H) M10X16 FLANGE	0-28151-016-0	01	1	1206-
139	BOLT; BRKT FULLER ES11109 DD M/T(Y5N) (I) M10X20 FLANGE	0-28651-020-0	01	1	1206-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1109-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-1205
139	BOLT; BRKT MZW6P M/T(RSZ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-1205
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1206-
139	BOLT; BRKT MZW6P M/T(RSZ) EXC. COLOMBIA EQUIPMENT(CB7) (A) M8X25 FLANGE	0-28650-825-0	01	1	1206-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1109-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	1206-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	04	1	1206-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	1109-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1109-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1109-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1109-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1109-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1109-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1206-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1206-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1109-1205
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	04	1	1206-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	1206-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	04	1	1206-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1109-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1109-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1109-
294	NUT FUEL TANK 400L<SDH> (B) M10 FLANGE	0-91180-210-0	01	1	1109-1205
294	NUT CHILE EQUIPMENT(KE1) FUEL TANK 400L<SDH> (B) M10 FLANGE	0-91180-210-0	01	1	1206-
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1109-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1109-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1109-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1109-
313	BOLT; BRKT (C) M8X45 FLANGE	0-28050-845-0	01	1	1109-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1109-
313	BOLT; BRKT FUEL TANK 400L<SDH> (D) M10X35 FLANGE	0-28651-035-0	01	1	1109-1205
313	BOLT; BRKT CHILE EQUIPMENT(KE1) FUEL TANK 400L<SDH> (D) M10X35 FLANGE	0-28651-035-0	01	1	1206-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1109-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1109-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1109-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1109-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1109-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1109-

14 16 48 14 16 81 183 206 217 225 235 48 14 14 1 1 538 178 178 178 503 530

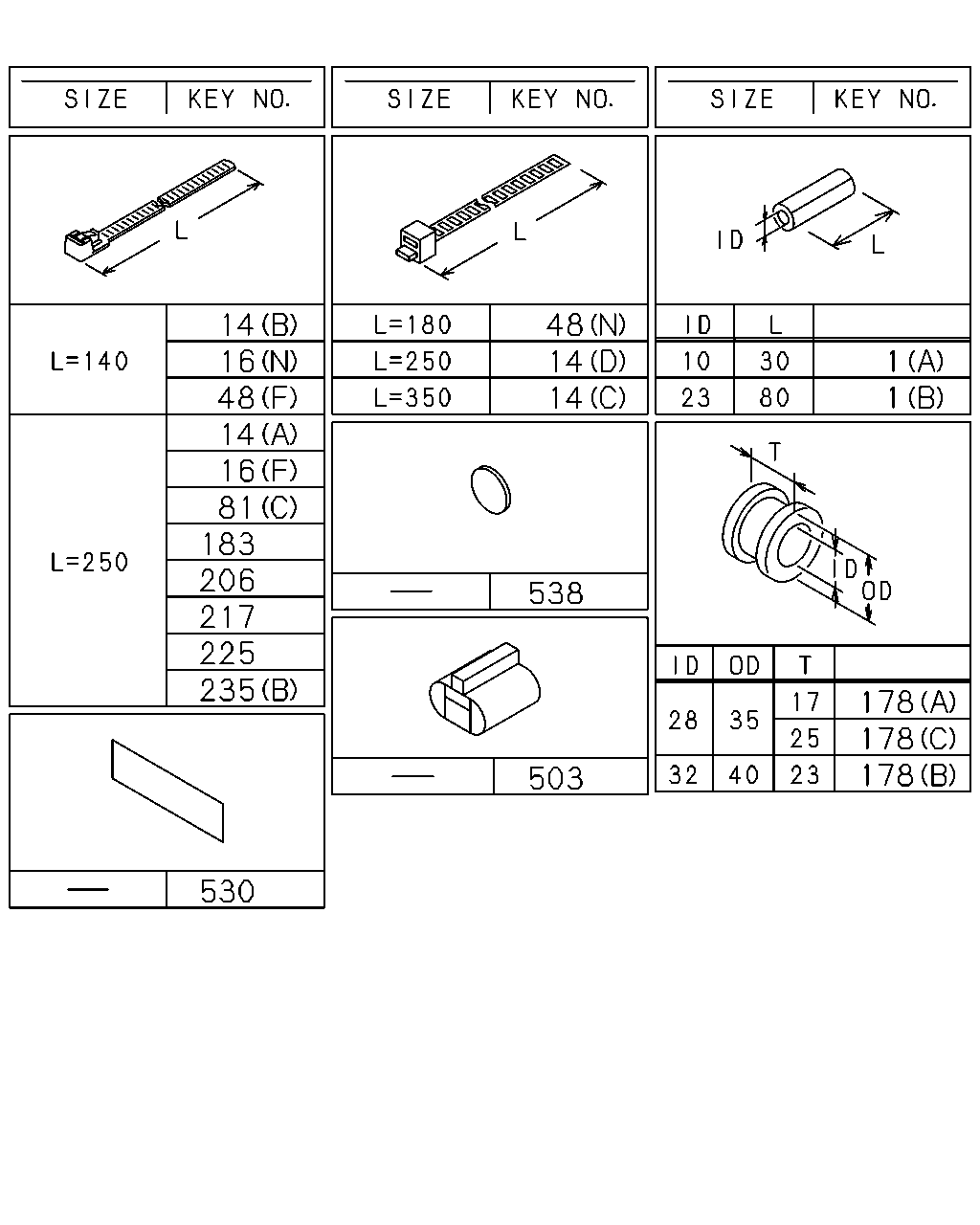

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1109-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1109-
14	CLIP; BAND,HARNESS ANTI LOCK BRAKE<JE5> (D) L=250	1-09707-126-0	02	1	1206-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1109-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	13	1	1109-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	1109-1109
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=11X2 L=16	0-95325-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (N) L=140	5-09707-031-1	01	1	1206-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 400L<SDH> (H) ID=11 L=61	1-09700-484-0	02	1	1206-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (H) ID=11 L=61	1-09700-484-0	02	1	1206-
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	1109-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1109-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1109-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1109-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	1109-1205
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (D) ID=14 L=44	9-09917-427-0	03	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS FUEL TANK 400L<SDH> (H) ID=11 L=61	1-09700-484-0	01	1	1109-1205
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) FUEL TANK 400L<SDH> (H) ID=11 L=61	1-09700-484-0	01	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (D) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) (D) ID=33 L=83	1-09701-291-0	04	1	1206-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (L) ID=9 L=28	0-95234-855-0	02	1	1206-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (M) ID=14.5 L=20	1-09701-012-0	01	1	1206-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (N) L=180	1-09707-162-1	02	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) (D) ID=33 L=83	1-09701-291-0	03	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	05	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (K) ID=20 L=70	1-09700-485-0	09	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) EXC. CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	07	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) EXC. CHILE EQUIPMENT(KE1) (K) ID=20 L=70	1-09700-485-0	10	1	1206-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (O) OD=9 H=9.5	1-09709-179-0	01	1	1206-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1109-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1109-1205
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	02	1	1206-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1109-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	02	1	1109-1201
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	02	1	1202-1205
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=15 L=65	1-09700-466-0	04	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	04	1	1206-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	03	1	1109-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1109-
48	CLIP; FRAME HARNESS (J) ID=35 L=50	1-09701-214-0	01	1	1109-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	03	1	1109-1205
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1206-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1109-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	1109-1205
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	1206-
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) (C) ID=11 L=61	1-09700-484-0	01	1	1109-1205
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) (C) ID=11 L=61	1-09700-484-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=15 L=65	1-09700-466-0	12	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	12	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=15 L=65	1-09700-466-0	04	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	06	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	13	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	13	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	05	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	05	1	1206-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50	0-95325-586-0	01	1	1109-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40	1-09701-014-0	01	1	1109-
81	CLIP; HARNESS MZW6P M/T(RSZ) (A) OD=9 H=6	1-09709-178-0	01	1	1109-1205
81	CLIP; HARNESS MZW6P M/T(RSZ) EXC. COLOMBIA EQUIPMENT(CB7) (A) OD=9 H=6	1-09709-178-0	01	1	1206-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (B) OD=9 H=13.5	1-09709-180-0	01	1	1109-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (C) L=250	5-09707-030-1	01	1	1109-
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1206-
178	GROMMET; HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1206-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	1109-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1109-1205
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1109-1205
178	GROMMET; HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1109-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1109-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1109-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	08	1	1109-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	1206-
235	CLIP; HARNESS,SPD SENSOR,SSPS FULLER ES11109 DD M/T(Y5N) (B) L=250	5-09707-030-1	02	1	1206-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1109-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1109-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1109-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1109-

305 48 48 305 305 306 48 16 305 16 48 213 581 16 48 16 48 48 48 48 305 305 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=11X2 L=16	0-95325-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (N) L=140	5-09707-031-1	01	1	1206-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 400L<SDH> (H) ID=11 L=61	1-09700-484-0	02	1	1206-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (H) ID=11 L=61	1-09700-484-0	02	1	1206-
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	1109-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1109-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1109-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1109-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	1109-1205
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (D) ID=14 L=44	9-09917-427-0	03	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS FUEL TANK 400L<SDH> (H) ID=11 L=61	1-09700-484-0	01	1	1109-1205
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) FUEL TANK 400L<SDH> (H) ID=11 L=61	1-09700-484-0	01	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (D) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) (D) ID=33 L=83	1-09701-291-0	04	1	1206-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (L) ID=9 L=28	0-95234-855-0	02	1	1206-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (M) ID=14.5 L=20	1-09701-012-0	01	1	1206-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (N) L=180	1-09707-162-1	02	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) (D) ID=33 L=83	1-09701-291-0	03	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	05	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (K) ID=20 L=70	1-09700-485-0	09	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) EXC. CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	07	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) EXC. CHILE EQUIPMENT(KE1) (K) ID=20 L=70	1-09700-485-0	10	1	1206-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (O) OD=9 H=9.5	1-09709-179-0	01	1	1206-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1109-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1109-1205
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	02	1	1206-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1109-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	02	1	1109-1201
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	02	1	1202-1205
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=15 L=65	1-09700-466-0	04	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	04	1	1206-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	03	1	1109-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1109-
48	CLIP; FRAME HARNESS (J) ID=35 L=50	1-09701-214-0	01	1	1109-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	03	1	1109-1205
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1206-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1109-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	1109-1205
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	1206-
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) (C) ID=11 L=61	1-09700-484-0	01	1	1109-1205
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) (C) ID=11 L=61	1-09700-484-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=15 L=65	1-09700-466-0	12	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	12	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=15 L=65	1-09700-466-0	04	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	06	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	13	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	13	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	05	1	1109-1205
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	05	1	1206-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50	0-95325-586-0	01	1	1109-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40	1-09701-014-0	01	1	1109-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1109-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1109-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1109-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1109-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1109-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1109-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1109-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1109-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1109-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1109-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1109-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1109-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1109-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1109-
581	CLIP; HARNESS,REAR SUSP ANTI LOCK BRAKE<JE5> ID=11 L=41	1-09700-403-0	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
