Sayfa 8-10 - Isuzu EPC

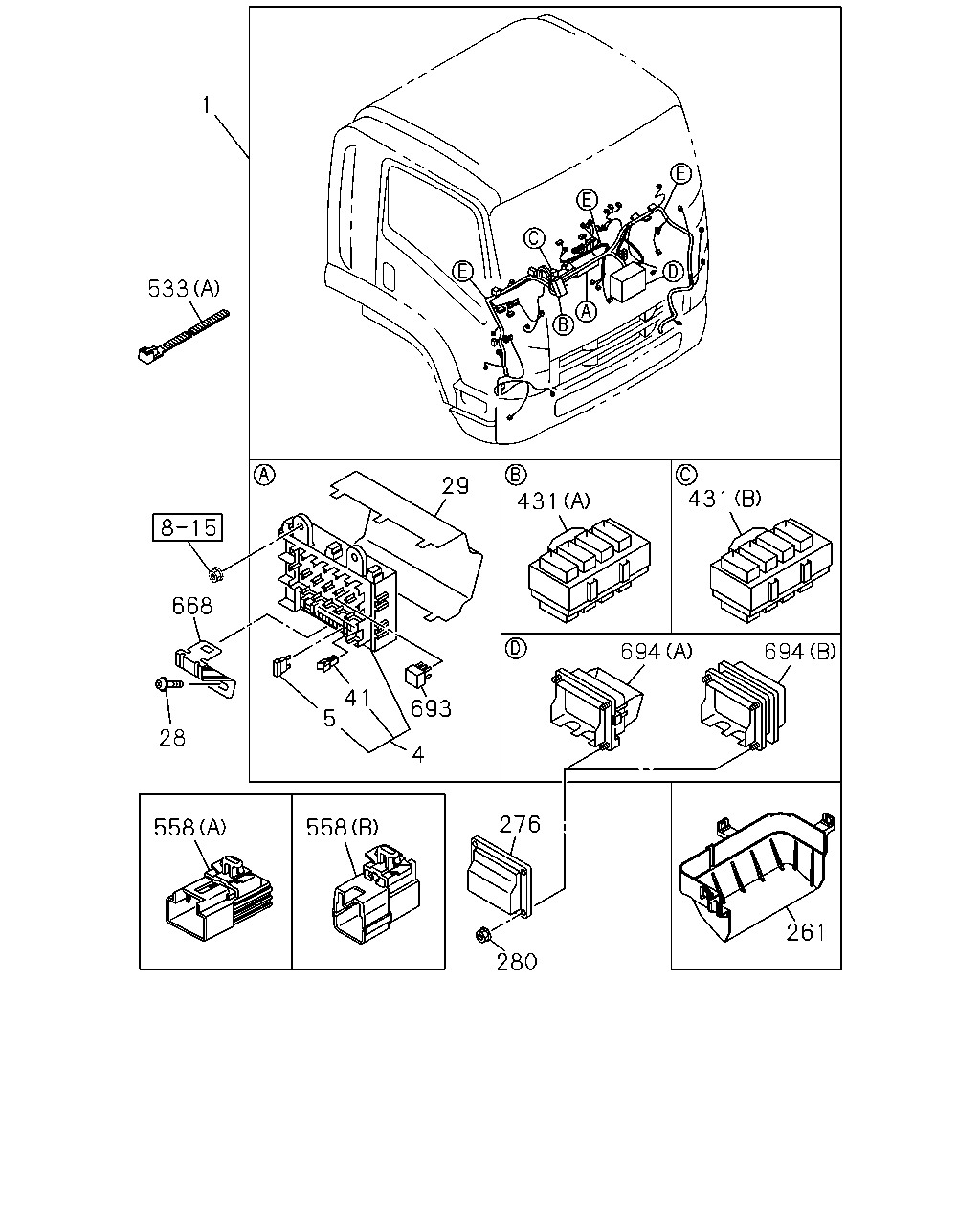

8-10 — WIRING HARNESS AND FUSE (#20207) — 365 parça

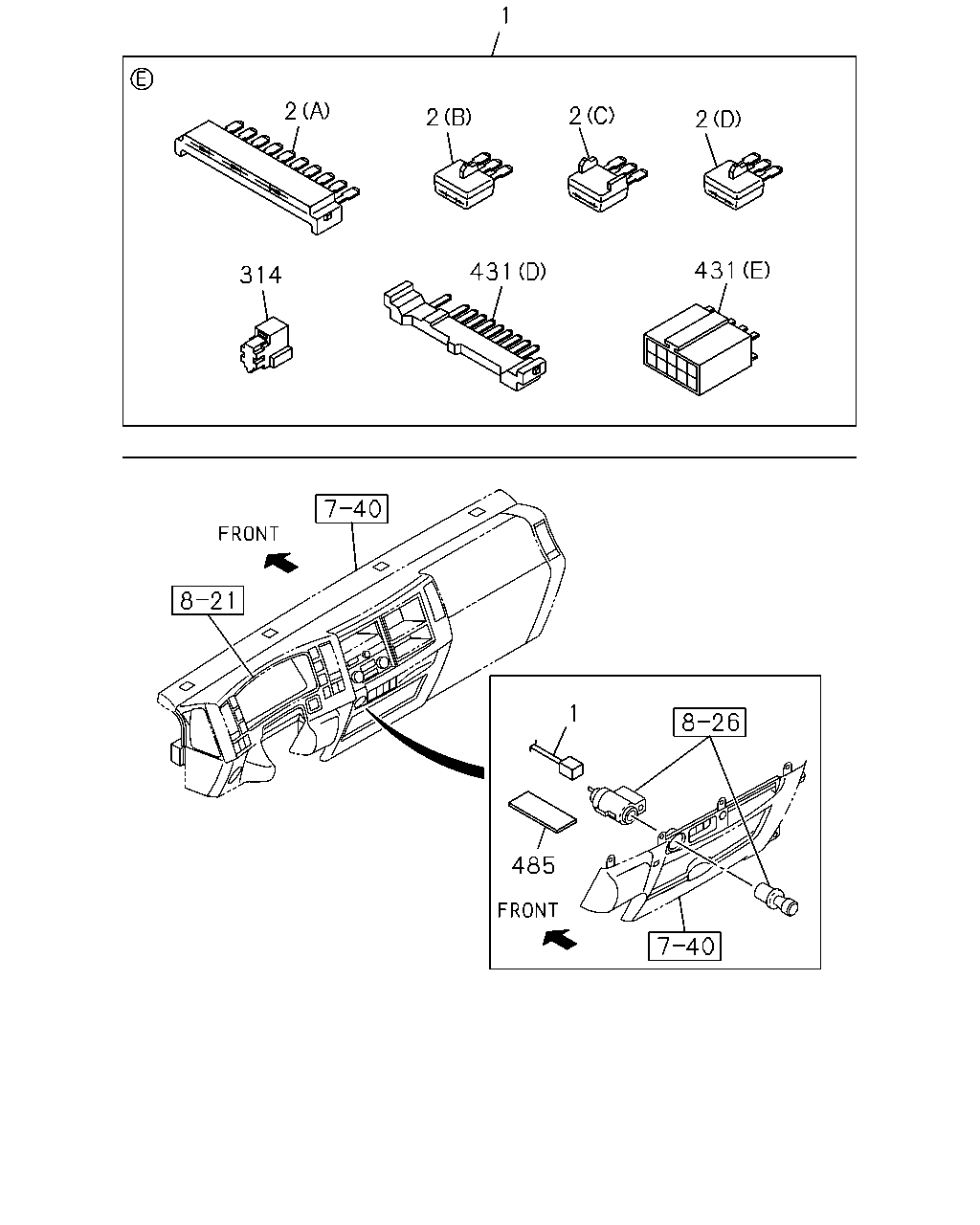

1 2 2 2 2 314 431 431 1 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>	8-98308-215-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-215-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF>	8-98188-111-0	01	1	1110-1203
1	HARNESS; CAB	8-98188-111-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>	8-98188-111-0	01	1	1206-1504
1	HARNESS; CAB ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98188-111-0	01	1	1206-1504
1	HARNESS; CAB MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>	8-98188-111-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98188-111-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5>	8-98188-101-0	01	1	1206-
1	HARNESS; CAB	8-98169-145-0	01	1	1109-1109
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. IN HOUSE PRODUCTION<TKF>	8-98169-145-0	01	1	1110-1203
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5> (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	1505-
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	1505-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5> (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	1505-
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	1505-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> (A) BLACK 10P	1-82699-703-0	01	1	1505-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> (A) BLACK 10P	1-82699-703-0	01	1	1505-
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (A) BLACK 10P	1-82699-703-0	01	1	1505-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1505-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1505-
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1505-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	1109-1504
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5> (A) BLACK 10P	1-82699-703-0	AR	1	1505-
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (A) BLACK 10P	1-82699-703-0	AR	1	1505-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1109-1504
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5> (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1505-
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1505-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1109-1504
314	RESISTOR; HARNESS MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> BLUE	1-82691-204-0	01	1	1505-
314	RESISTOR; HARNESS MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> BLUE	1-82691-204-0	01	1	1505-
314	RESISTOR; HARNESS ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> BLUE	1-82691-204-0	01	1	1505-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	01	1	1406-1504
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	01	1	1505-1506
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (F) 10P GREEN	1-82698-579-0	02	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (F) 10P GREEN	1-82698-579-0	02	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (F) 10P GREEN	1-82698-579-0	02	1	1301-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 10P BLUE	1-82699-598-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (C) 10P BLUE	1-82699-598-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (C) 10P BLUE	1-82699-598-0	04	1	1301-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) 10P GREEN	1-82699-599-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (G) 10P GREEN	1-82699-599-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (G) 10P GREEN	1-82699-599-0	04	1	1301-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 10P BROWN	1-82699-601-0	01	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	01	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	01	1	1301-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	1109-1504
431	CONNECTOR; JOINT MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	09	1	1505-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	09	1	1505-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (D) 10P BROWN	1-82699-601-0	09	1	1505-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1109-1504
431	CONNECTOR; JOINT MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> (E) 10P	8-97077-943-0	02	1	1505-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> (E) 10P	8-97077-943-0	02	1	1505-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (E) 10P	8-97077-943-0	02	1	1505-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1109-1205
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	02	1	1206-1405
431	CONNECTOR; JOINT MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	02	1	1406-1504
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (H) 6P BLACK	8-97616-194-0	02	1	1406-1504
431	CONNECTOR; JOINT MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	02	1	1505-1506
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	01	1	1507-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1109-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1109-
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	1109-

1 533 668 28 558 558 5 41 693 4 29 431 431 694 694 276 280 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>	8-98308-215-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-215-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF>	8-98188-111-0	01	1	1110-1203
1	HARNESS; CAB	8-98188-111-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>	8-98188-111-0	01	1	1206-1504
1	HARNESS; CAB ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98188-111-0	01	1	1206-1504
1	HARNESS; CAB MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>	8-98188-111-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98188-111-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5>	8-98188-101-0	01	1	1206-
1	HARNESS; CAB	8-98169-145-0	01	1	1109-1109
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. IN HOUSE PRODUCTION<TKF>	8-98169-145-0	01	1	1110-1203

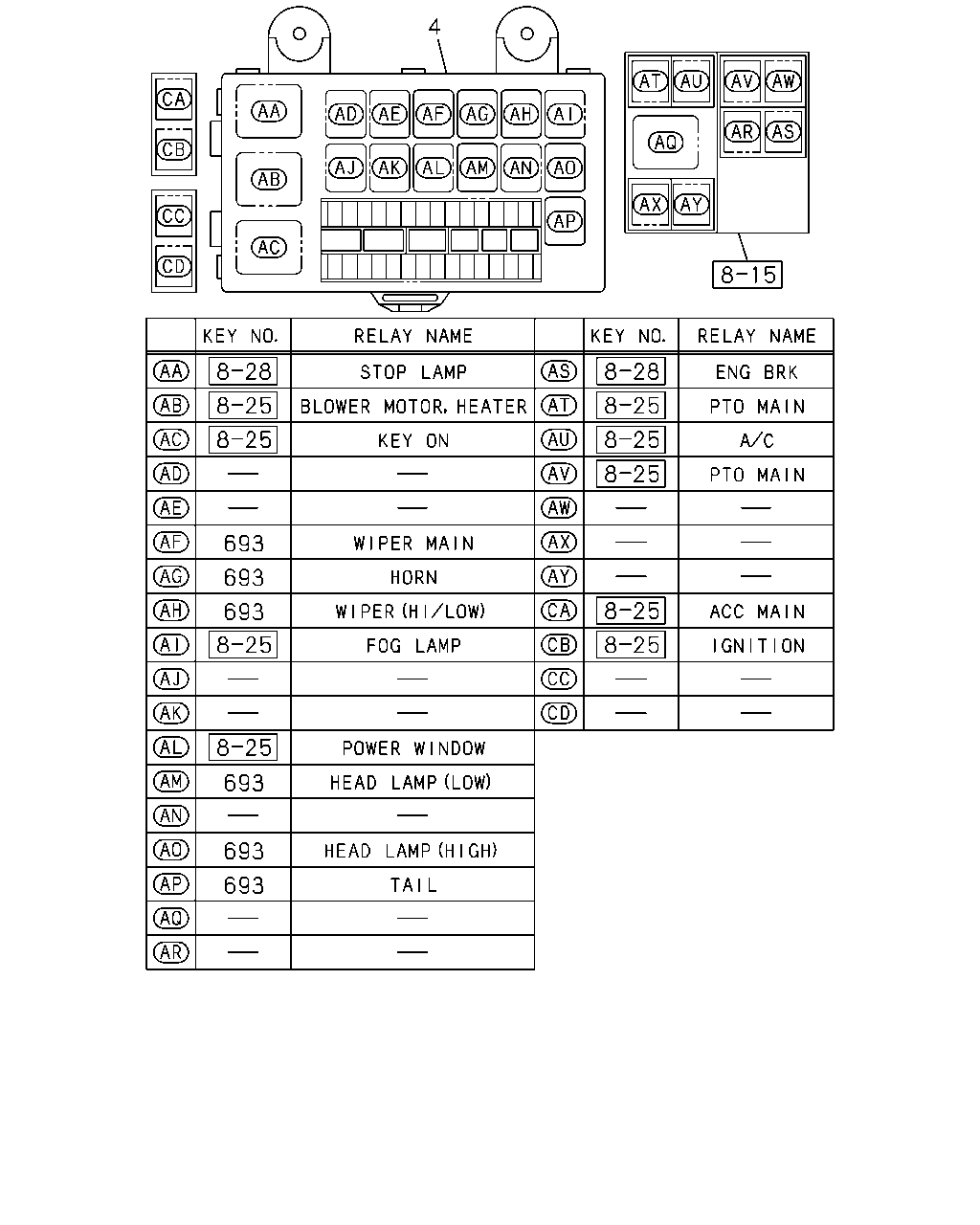

4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1109-
5	FUSE; FACIA HARNESS MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> 25A WHITE	8-98062-982-0	02	1	1505-
5	FUSE; FACIA HARNESS MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> 25A WHITE	8-98062-982-0	02	1	1505-
5	FUSE; FACIA HARNESS ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 25A WHITE	8-98062-982-0	02	1	1505-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1109-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1109-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1109-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	02	1	1109-1504
5	FUSE; FACIA HARNESS MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5> 25A WHITE	8-98062-982-0	AR	1	1505-
5	FUSE; FACIA HARNESS ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> 25A WHITE	8-98062-982-0	AR	1	1505-
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1109-
29	COVER; FUSE BOX	8-98056-968-0	01	1	1109-
41	PULLER; FUSE	8-98054-260-0	01	1	1109-
261	COVER; CONNECTOR BOX MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>	8-98065-986-1	01	1	1505-
261	COVER; CONNECTOR BOX ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98065-986-1	01	1	1505-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1109-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1109-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	01	1	1406-1504
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	01	1	1505-1506
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (F) 10P GREEN	1-82698-579-0	02	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (F) 10P GREEN	1-82698-579-0	02	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (F) 10P GREEN	1-82698-579-0	02	1	1301-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 10P BLUE	1-82699-598-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (C) 10P BLUE	1-82699-598-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (C) 10P BLUE	1-82699-598-0	04	1	1301-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) 10P GREEN	1-82699-599-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (G) 10P GREEN	1-82699-599-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (G) 10P GREEN	1-82699-599-0	04	1	1301-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 10P BROWN	1-82699-601-0	01	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	01	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	01	1	1301-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	1109-1504
431	CONNECTOR; JOINT MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	09	1	1505-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	09	1	1505-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (D) 10P BROWN	1-82699-601-0	09	1	1505-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1109-1504
431	CONNECTOR; JOINT MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> (E) 10P	8-97077-943-0	02	1	1505-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> (E) 10P	8-97077-943-0	02	1	1505-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (E) 10P	8-97077-943-0	02	1	1505-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1109-1205
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	02	1	1206-1405
431	CONNECTOR; JOINT MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	02	1	1406-1504
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (H) 6P BLACK	8-97616-194-0	02	1	1406-1504
431	CONNECTOR; JOINT MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	02	1	1505-1506
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	01	1	1507-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1109-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1109-
533	CLIP (B) L=180	1-09707-162-1	01	1	1109-1206
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180	1-09707-162-1	01	1	1207-
533	CLIP EXC. INTERMITTENT WIPER<C13> (A) L=100	5-09707-036-1	01	1	1109-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1109-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1109-
668	BRACKET; HARNESS	8-98095-653-2	01	1	1109-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-
694	BOX ASM; CONNECTOR MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5> (B)	8-98057-771-0	01	1	1505-
694	BOX ASM; CONNECTOR ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (B)	8-98057-771-0	01	1	1505-
694	BOX ASM; CONNECTOR (A)	8-98063-269-1	01	1	1109-1504
694	BOX ASM; CONNECTOR MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> (A)	8-98063-269-1	01	1	1505-
694	BOX ASM; CONNECTOR MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> (A)	8-98063-269-1	01	1	1505-
694	BOX ASM; CONNECTOR ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (A)	8-98063-269-1	01	1	1505-

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

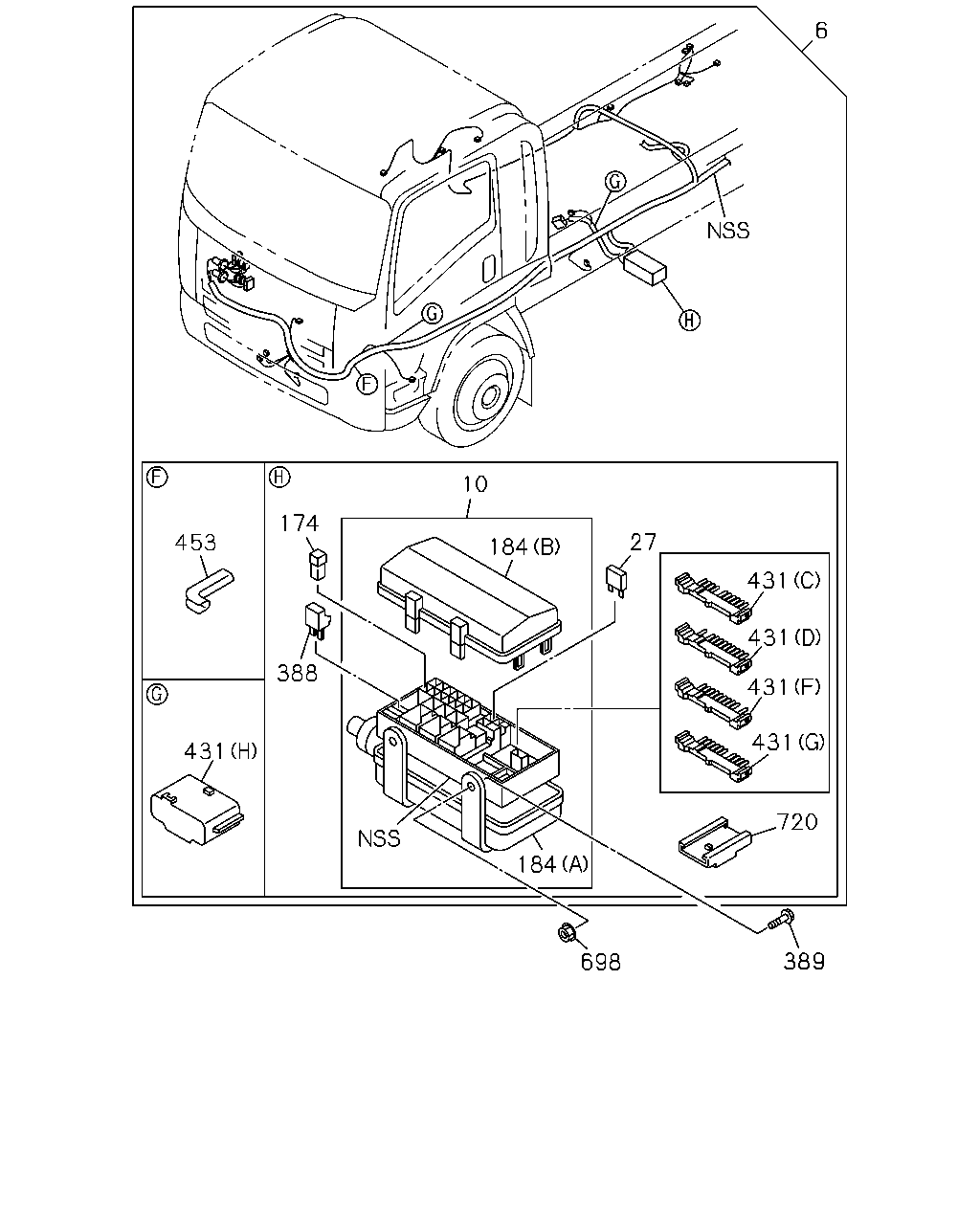

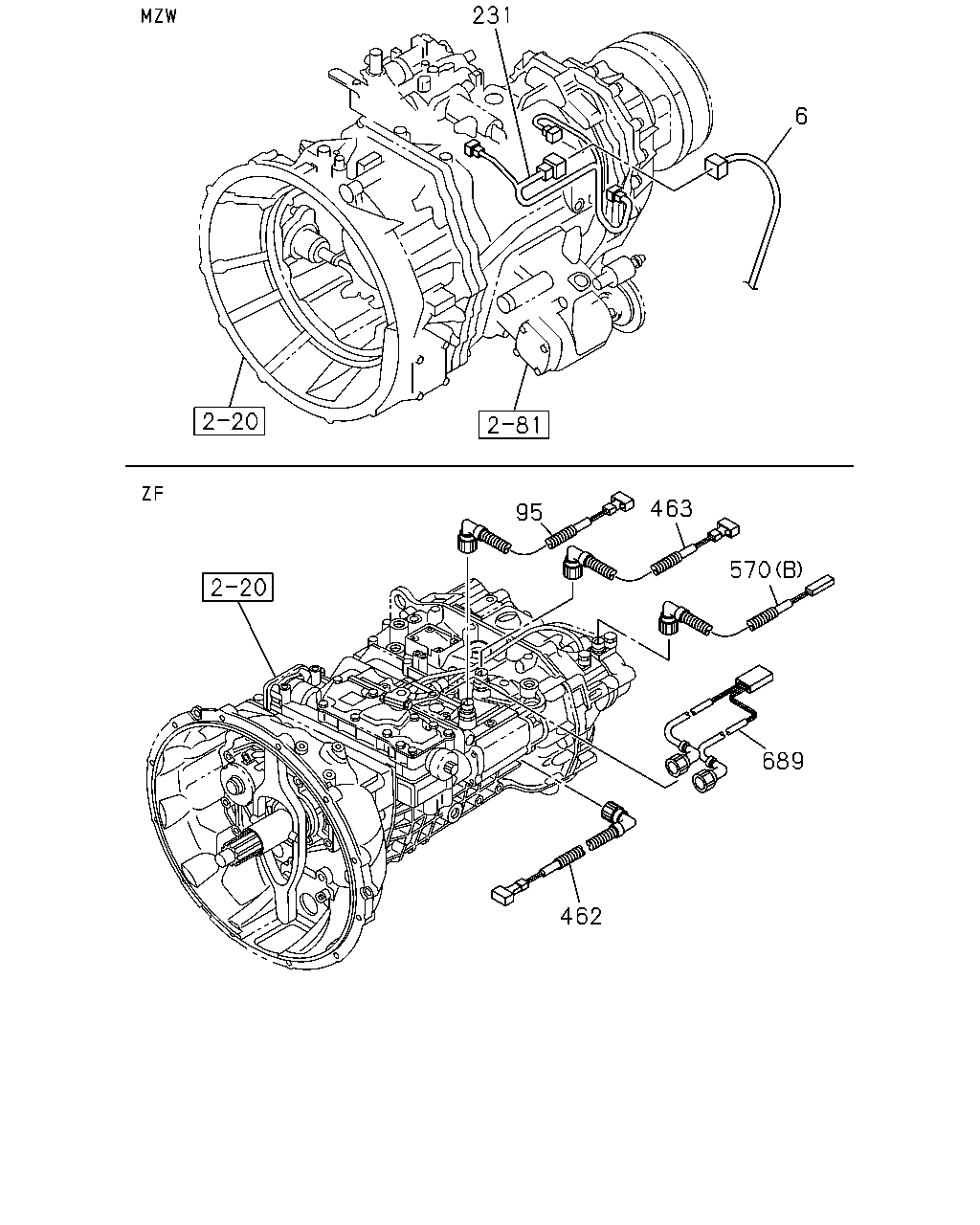

6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> BIO DIESEL FUEL B10<8NV>	8-98232-423-0	01	1	1301-
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	8-98208-058-0	01	1	1206-1212
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> EXC. BIO DIESEL FUEL B10<8NV>	8-98208-058-0	01	1	1301-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98177-565-2	01	1	1206-
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98208-059-0	01	1	1206-
6	HARNESS; FRAME MZW6P M/T(RSZ)	8-98177-564-2	01	1	1109-1205
6	HARNESS; FRAME MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5>	8-98177-564-2	01	1	1206-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98177-566-2	01	1	1109-1205
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98177-566-2	01	1	1206-

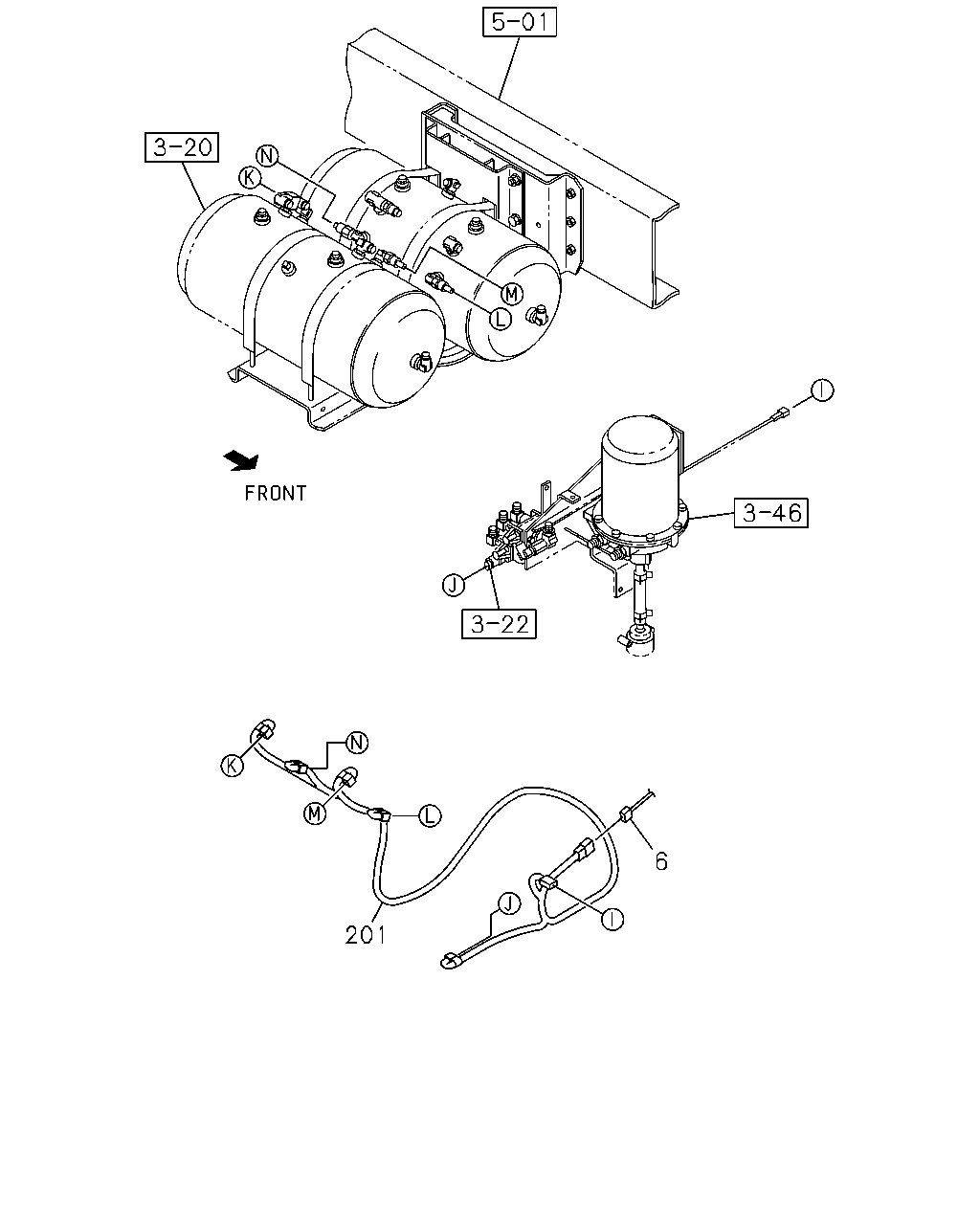

201	HARNESS; AIR TANK BRAKE REGULATION ADR(TDU)	8-98207-407-0	01	1	1206-1207
201	HARNESS; AIR TANK COLOMBIA EQUIPMENT(CB7) BRAKE REGULATION ADR(TDU)	8-98207-407-0	01	1	1208-
201	HARNESS; AIR TANK	8-98184-703-0	01	1	1109-1205
201	HARNESS; AIR TANK EXC. BRAKE REGULATION ADR(TDU)	8-98184-703-0	01	1	1206-

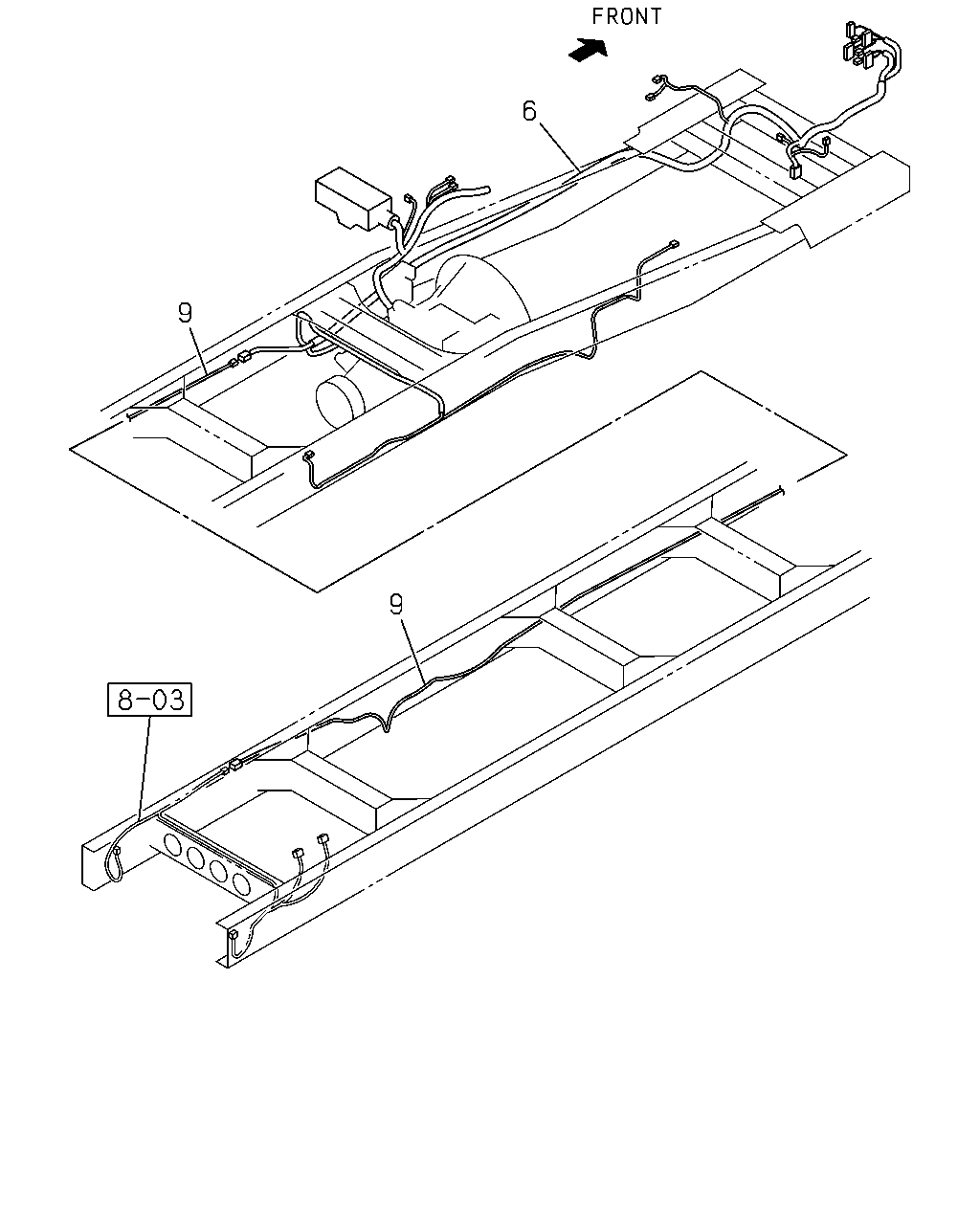

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> BIO DIESEL FUEL B10<8NV>	8-98232-423-0	01	1	1301-
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	8-98208-058-0	01	1	1206-1212
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> EXC. BIO DIESEL FUEL B10<8NV>	8-98208-058-0	01	1	1301-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98177-565-2	01	1	1206-
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98208-059-0	01	1	1206-
6	HARNESS; FRAME MZW6P M/T(RSZ)	8-98177-564-2	01	1	1109-1205
6	HARNESS; FRAME MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5>	8-98177-564-2	01	1	1206-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98177-566-2	01	1	1109-1205
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98177-566-2	01	1	1206-
9	HARNESS; FRAME,RR WHEEL BASE 3900MM(39W) ANTI LOCK BRAKE<JE5>	8-98168-635-0	01	1	1206-
9	HARNESS; FRAME,RR WHEEL BASE 3900MM(39W) EXC. ANTI LOCK BRAKE<JE5>	8-98168-636-0	01	1	1206-
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) ANTI LOCK BRAKE<JE5>	8-98168-641-0	01	1	1206-1208
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) ANTI LOCK BRAKE<JE5> EXC. CHILE EQUIPMENT(KE1)	8-98168-641-0	01	1	1206-1208
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) ANTI LOCK BRAKE<JE5> EXC. CHILE EQUIPMENT(KE1)	8-98168-641-0	01	1	1209-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE<JE5> EXC. CHILE EQUIPMENT(KE1)	8-98168-643-0	01	1	1206-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) EXC. ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1)	8-98168-644-0	01	1	1206-
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W)	8-98168-683-0	01	1	1109-1205
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>	8-98168-683-0	01	1	1206-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98168-684-0	01	1	1109-1205
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>	8-98168-684-0	01	1	1206-

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1109-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-

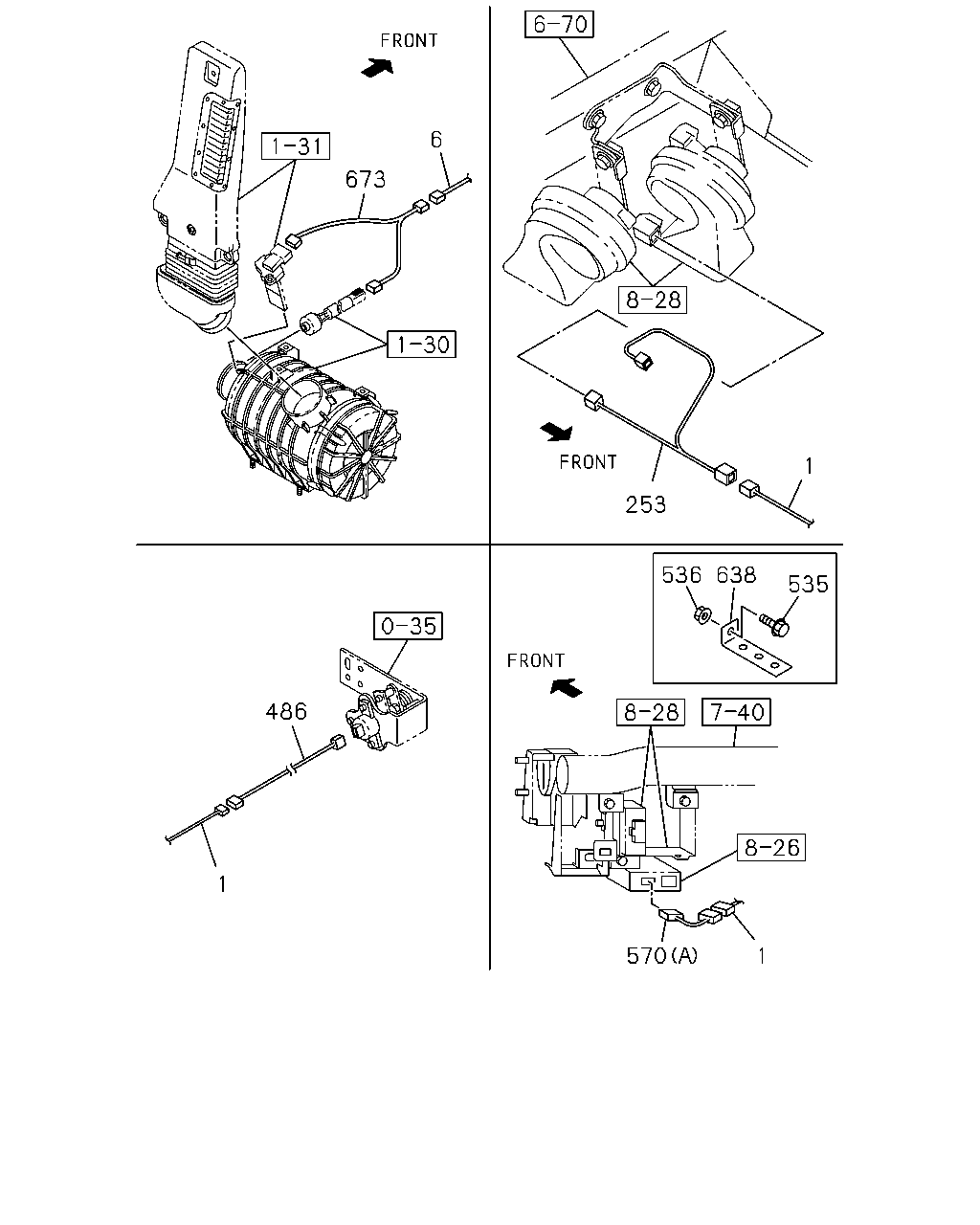

6 673 1 253 536 638 535 486 1 570 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZW6P M/T(RSZ) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>	8-98308-215-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ECE R29<EFE> CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98308-215-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF>	8-98188-111-0	01	1	1110-1203
1	HARNESS; CAB	8-98188-111-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>	8-98188-111-0	01	1	1206-1504
1	HARNESS; CAB ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98188-111-0	01	1	1206-1504
1	HARNESS; CAB MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>	8-98188-111-0	01	1	1505-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98188-111-0	01	1	1505-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5>	8-98188-101-0	01	1	1206-
1	HARNESS; CAB	8-98169-145-0	01	1	1109-1109
1	HARNESS; CAB MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. IN HOUSE PRODUCTION<TKF>	8-98169-145-0	01	1	1110-1203
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> BIO DIESEL FUEL B10<8NV>	8-98232-423-0	01	1	1301-
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	8-98208-058-0	01	1	1206-1212
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> EXC. BIO DIESEL FUEL B10<8NV>	8-98208-058-0	01	1	1301-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98177-565-2	01	1	1206-
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98208-059-0	01	1	1206-
6	HARNESS; FRAME MZW6P M/T(RSZ)	8-98177-564-2	01	1	1109-1205
6	HARNESS; FRAME MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5>	8-98177-564-2	01	1	1206-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98177-566-2	01	1	1109-1205
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98177-566-2	01	1	1206-
253	HARNESS; EXT,HORN DUAL HEAVY DUTY HORN<6KK>	8-98074-080-3	01	1	1109-
253	HARNESS; EXT,HORN EXC. DUAL HEAVY DUTY HORN<6KK>	8-98159-227-2	01	1	1109-
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1109-
535	BOLT; BRKT FIX ANTI LOCK BRAKE<JE5> M8X35 FLANGE	0-28650-835-0	01	1	1206-
536	NUT; BRKT FIX ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1206-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1109-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1109-
638	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5>	1-82698-167-0	01	1	1206-
673	HARNESS; EXT,SENSOR	8-98098-510-0	01	1	1109-

6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> BIO DIESEL FUEL B10<8NV>	8-98232-423-0	01	1	1301-
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	8-98208-058-0	01	1	1206-1212
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> EXC. BIO DIESEL FUEL B10<8NV>	8-98208-058-0	01	1	1301-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98177-565-2	01	1	1206-
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98208-059-0	01	1	1206-
6	HARNESS; FRAME MZW6P M/T(RSZ)	8-98177-564-2	01	1	1109-1205
6	HARNESS; FRAME MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5>	8-98177-564-2	01	1	1206-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98177-566-2	01	1	1109-1205
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98177-566-2	01	1	1206-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1109-1212
10	BOX; FUSE,HARNESS FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98030-762-0	01	1	1301-
10	BOX; FUSE,HARNESS MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	8-98030-762-0	01	1	1301-
10	BOX; FUSE,HARNESS MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>	8-98030-762-0	01	1	1301-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1109-1212
27	FUSE UNIT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> 10A RED	8-98054-257-0	01	1	1301-
27	FUSE UNIT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> 10A RED	8-98054-257-0	01	1	1301-
27	FUSE UNIT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> 10A RED	8-98054-257-0	01	1	1301-
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1109-1212
27	FUSE UNIT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> 15A BLUE	8-98054-258-0	02	1	1301-
27	FUSE UNIT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> 15A BLUE	8-98054-258-0	02	1	1301-
27	FUSE UNIT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> 15A BLUE	8-98054-258-0	02	1	1301-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1109-1212
174	FUSE; SLOW BLOW FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> 60A YELLOW	8-97219-407-0	01	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> 60A YELLOW	8-97219-407-0	01	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> 60A YELLOW	8-97219-407-0	01	1	1301-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1109-1212
174	FUSE; SLOW BLOW FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1301-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1109-1212
174	FUSE; SLOW BLOW FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> 30A PINK	8-98079-191-0	01	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> 30A PINK	8-98079-191-0	01	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> 30A PINK	8-98079-191-0	01	1	1301-
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1109-1212
174	FUSE; SLOW BLOW FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> 40A GREEN	8-98079-192-0	01	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> 40A GREEN	8-98079-192-0	01	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> 40A GREEN	8-98079-192-0	01	1	1301-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1109-1212
174	FUSE; SLOW BLOW FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> 50A RED	8-98079-193-0	03	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> 50A RED	8-98079-193-0	03	1	1301-
174	FUSE; SLOW BLOW MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> 50A RED	8-98079-193-0	03	1	1301-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1109-1212
184	COVER; RELAY & FUSE BOX FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98030-766-0	01	1	1301-
184	COVER; RELAY & FUSE BOX MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (A)	8-98030-766-0	01	1	1301-
184	COVER; RELAY & FUSE BOX MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (A)	8-98030-766-0	01	1	1301-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-0	01	1	1109-1212
184	COVER; RELAY & FUSE BOX FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98030-767-1	01	1	1301-
184	COVER; RELAY & FUSE BOX MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (B)	8-98030-767-1	01	1	1301-
184	COVER; RELAY & FUSE BOX MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (B)	8-98030-767-1	01	1	1301-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1109-1212
388	DIODE; RELAY BOX FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> BLACK 2P-1.5A	8-94422-639-1	01	1	1301-
388	DIODE; RELAY BOX MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> BLACK 2P-1.5A	8-94422-639-1	01	1	1301-
388	DIODE; RELAY BOX MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> BLACK 2P-1.5A	8-94422-639-1	01	1	1301-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1109-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	01	1	1406-1504
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	01	1	1505-1506
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (F) 10P GREEN	1-82698-579-0	02	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (F) 10P GREEN	1-82698-579-0	02	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (F) 10P GREEN	1-82698-579-0	02	1	1301-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 10P BLUE	1-82699-598-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (C) 10P BLUE	1-82699-598-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (C) 10P BLUE	1-82699-598-0	04	1	1301-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (G) 10P GREEN	1-82699-599-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (G) 10P GREEN	1-82699-599-0	04	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (G) 10P GREEN	1-82699-599-0	04	1	1301-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1109-1212
431	CONNECTOR; JOINT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 10P BROWN	1-82699-601-0	01	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	01	1	1301-
431	CONNECTOR; JOINT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	01	1	1301-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	1109-1504
431	CONNECTOR; JOINT MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	09	1	1505-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> (D) 10P BROWN	1-82699-601-0	09	1	1505-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (D) 10P BROWN	1-82699-601-0	09	1	1505-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1109-1504
431	CONNECTOR; JOINT MZW6P M/T(RSZ),FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> (E) 10P	8-97077-943-0	02	1	1505-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5> (E) 10P	8-97077-943-0	02	1	1505-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EXC. ECE R29<EFE>,ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (E) 10P	8-97077-943-0	02	1	1505-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1109-1205
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	02	1	1206-1405
431	CONNECTOR; JOINT MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	02	1	1406-1504
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> (H) 6P BLACK	8-97616-194-0	02	1	1406-1504
431	CONNECTOR; JOINT MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	02	1	1505-1506
431	CONNECTOR; JOINT EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK	8-97616-194-0	01	1	1507-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1109-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1109-
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1109-1212
453	PROTECTOR; HARNESS FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-82699-709-0	01	1	1301-
453	PROTECTOR; HARNESS MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	1-82699-709-0	01	1	1301-
453	PROTECTOR; HARNESS MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>	1-82699-709-0	01	1	1301-
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	1109-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1109-1212
720	ATTACHMENT; CONNECTOR FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-82699-688-0	03	1	1301-
720	ATTACHMENT; CONNECTOR MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	1-82699-688-0	03	1	1301-
720	ATTACHMENT; CONNECTOR MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>	1-82699-688-0	03	1	1301-

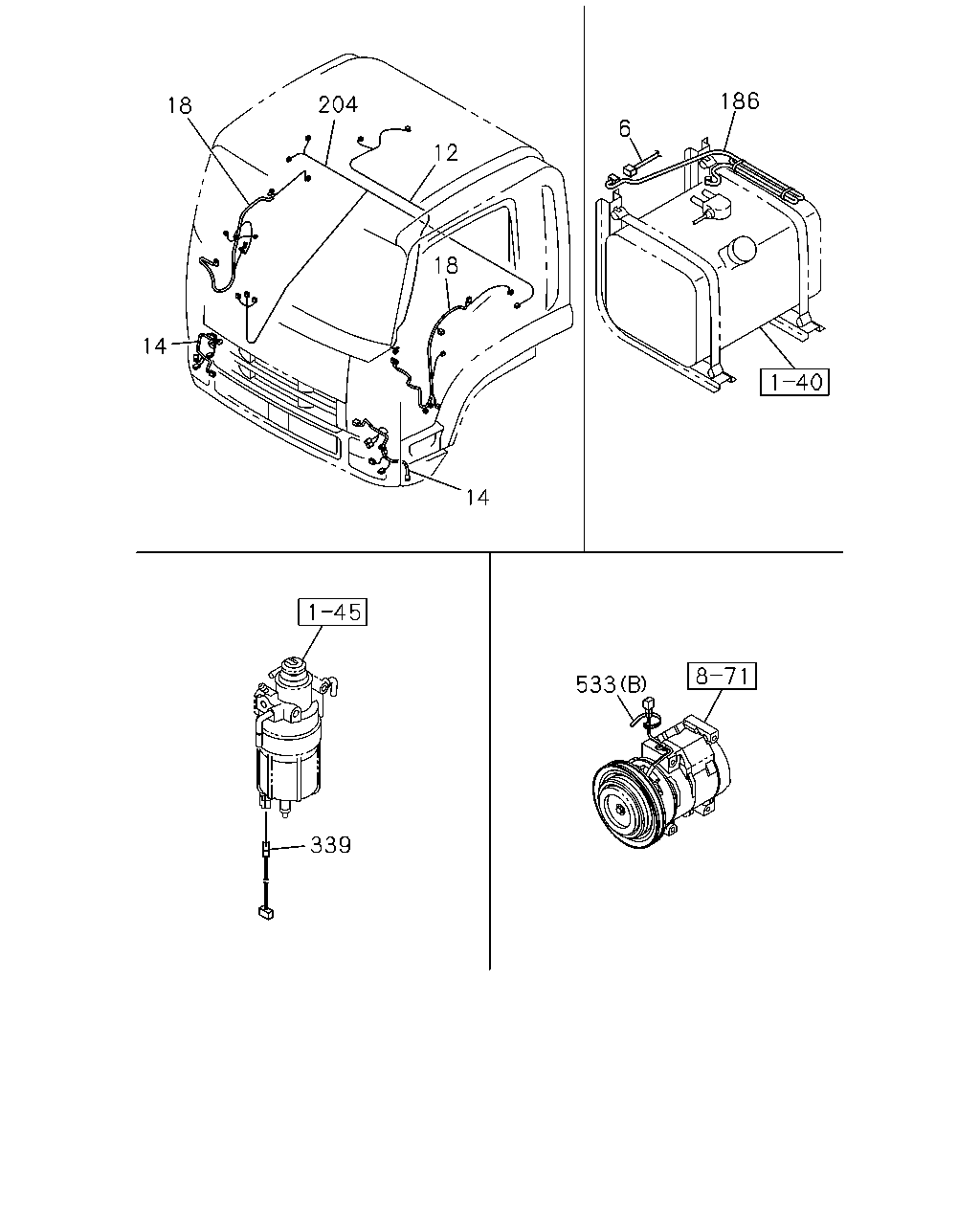

186 204 18 6 12 18 14 14 533 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> BIO DIESEL FUEL B10<8NV>	8-98232-423-0	01	1	1301-
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	8-98208-058-0	01	1	1206-1212
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> EXC. BIO DIESEL FUEL B10<8NV>	8-98208-058-0	01	1	1301-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98177-565-2	01	1	1206-
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98208-059-0	01	1	1206-
6	HARNESS; FRAME MZW6P M/T(RSZ)	8-98177-564-2	01	1	1109-1205
6	HARNESS; FRAME MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5>	8-98177-564-2	01	1	1206-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98177-566-2	01	1	1109-1205
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98177-566-2	01	1	1206-
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98071-442-0	01	1	1109-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98085-335-1	01	1	1109-
14	HARNESS; HEADLAMP EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-94270-986-0	02	1	1307-
14	HARNESS; HEADLAMP	8-98069-166-0	02	1	1109-1306
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98069-166-1	02	1	1307-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98080-127-3	01	1	1109-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98178-803-0	01	1	1203-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98080-128-3	01	1	1109-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98178-804-0	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-285-2	01	1	1109-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98178-801-0	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-290-2	01	1	1109-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98178-802-0	01	1	1203-
186	HARNESS; FUEL TANK FUEL TANK 400L<SDH>	8-98099-650-0	01	1	1109-
204	HARNESS; CABLE,FLOOR	8-98085-307-1	01	1	1109-
339	HARNESS; EXT,FUEL WHEEL BASE 3900MM(39W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 400L<SDH>	8-98216-134-0	01	1	1206-
339	HARNESS; EXT,FUEL WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) COLOMBIA EQUIPMENT(CB7)	8-98216-134-0	01	1	1206-
339	HARNESS; EXT,FUEL FUEL TANK 200L FRAME SIDE<N20>	8-98177-842-0	01	1	1109-1205
339	HARNESS; EXT,FUEL WHEEL BASE 3900MM(39W) COLOMBIA EQUIPMENT(CB7) EXC. FUEL TANK 400L<SDH>	8-98177-842-0	01	1	1206-
339	HARNESS; EXT,FUEL CHILE EQUIPMENT(KE1) FUEL TANK 200L FRAME SIDE<N20>	8-98177-842-0	01	1	1206-
339	HARNESS; EXT,FUEL FUEL TANK 400L<SDH>	8-98177-843-0	01	1	1109-1205
339	HARNESS; EXT,FUEL CHILE EQUIPMENT(KE1) FUEL TANK 400L<SDH>	8-98177-843-0	01	1	1206-
533	CLIP (B) L=180	1-09707-162-1	01	1	1109-1206
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180	1-09707-162-1	01	1	1207-
533	CLIP EXC. INTERMITTENT WIPER<C13> (A) L=100	5-09707-036-1	01	1	1109-

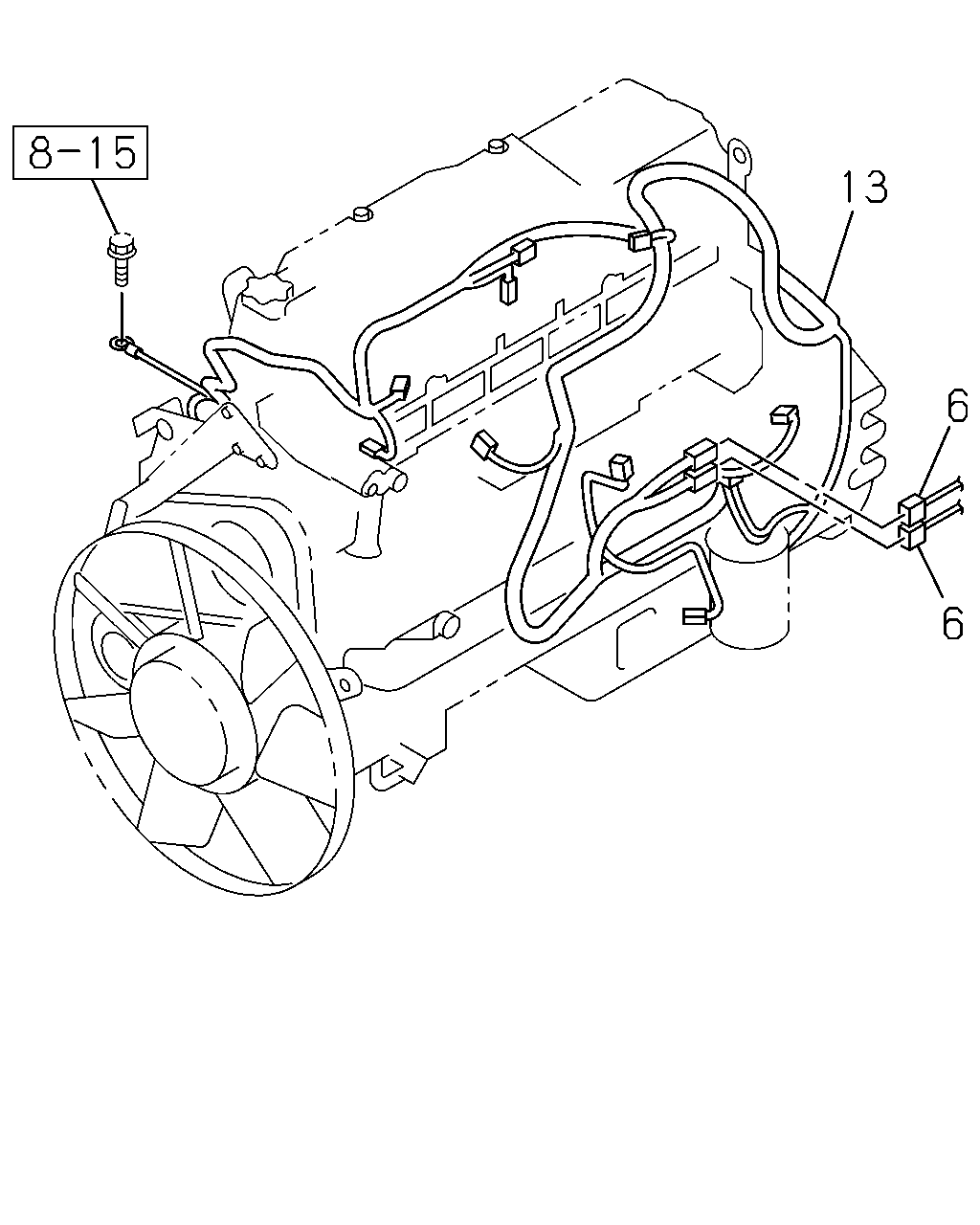

13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> BIO DIESEL FUEL B10<8NV>	8-98232-423-0	01	1	1301-
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	8-98208-058-0	01	1	1206-1212
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> EXC. BIO DIESEL FUEL B10<8NV>	8-98208-058-0	01	1	1301-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98177-565-2	01	1	1206-
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98208-059-0	01	1	1206-
6	HARNESS; FRAME MZW6P M/T(RSZ)	8-98177-564-2	01	1	1109-1205
6	HARNESS; FRAME MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5>	8-98177-564-2	01	1	1206-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98177-566-2	01	1	1109-1205
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98177-566-2	01	1	1206-
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98177-208-1	01	1	1109-
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-209-1	01	1	1109-

231 6 463 95 570 689 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> BIO DIESEL FUEL B10<8NV>	8-98232-423-0	01	1	1301-
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5>	8-98208-058-0	01	1	1206-1212
6	HARNESS; FRAME MZW6P M/T(RSZ) ANTI LOCK BRAKE<JE5> EXC. BIO DIESEL FUEL B10<8NV>	8-98208-058-0	01	1	1301-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ANTI LOCK BRAKE<JE5>	8-98177-565-2	01	1	1206-
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98208-059-0	01	1	1206-
6	HARNESS; FRAME MZW6P M/T(RSZ)	8-98177-564-2	01	1	1109-1205
6	HARNESS; FRAME MZW6P M/T(RSZ) EXC. ANTI LOCK BRAKE<JE5>	8-98177-564-2	01	1	1206-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98177-566-2	01	1	1109-1205
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>	8-98177-566-2	01	1	1206-
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-854-0	01	1	1206-
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) RED	8-98145-855-0	01	1	1109-1205
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-855-0	01	1	1206-
231	HARNESS; TRANS MZW6P M/T(RSZ)	8-97618-932-2	01	1	1109-
462	HARNESS; SW,RANGE ZF9S1110 M/T(Y5E) BLUE	8-98145-857-0	01	1	1109-
463	HARNESS; SW,BACK UP ZF9S1110 M/T(Y5E) BLACK	8-98145-856-0	01	1	1109-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1109-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1109-
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98148-603-0	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
