8-73 — BLOWER UNIT (#20200) — 19 parça

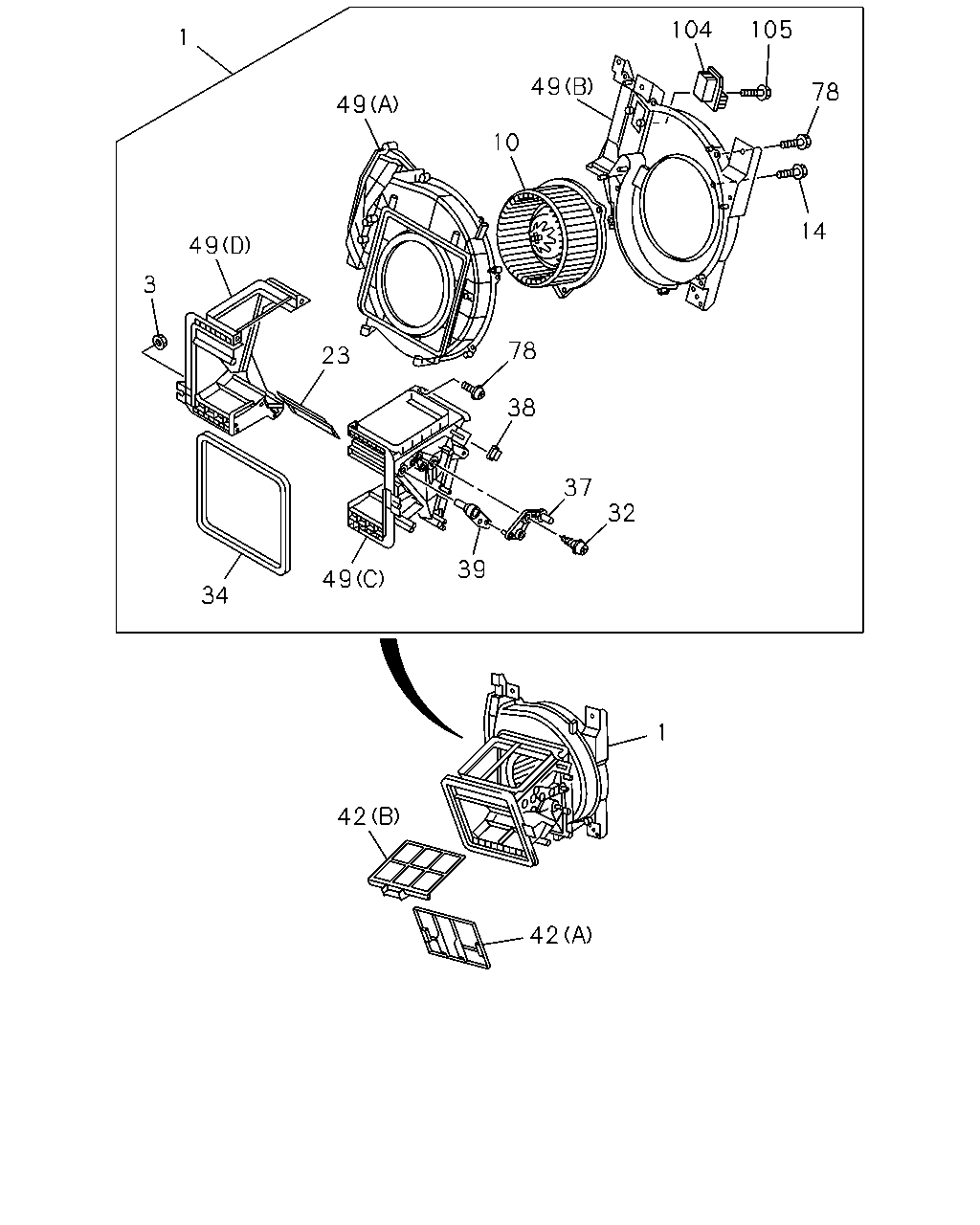

çizim 108401
1 49 10 78 38 37 32 1 42 42 49 39 23 34 3 49 49 104 105 78 14
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98171-720-0 01 1 1104-
3 NUT; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 		1-83539-354-0 02 1 1104-
10 MOTOR ASM; FAN,BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98183-924-0 01 1 1104-
14 SCREW; COVER TO CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 		8-98047-448-0 03 1 1104-
23 SHUTTER; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98171-863-0 01 1 1104-
32 SCREW; LEVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 		8-98047-416-0 01 1 1104-
34 LINING; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98096-453-0 01 1 1104-
37 LEVER; MODE LEVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-436-0 01 1 1104-
38 CLIP; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-417-0 01 1 1104-
39 LEVER; SHUTTER,BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-435-0 01 1 1104-
42 FILTER; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98025-006-1 01 1 1104-
42 FILTER; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98041-327-0 01 1 1104-
49 CASE; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98047-440-0 01 1 1104-
49 CASE; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98047-441-0 01 1 1104-
49 CASE; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D) 		8-98077-413-0 01 1 1104-
49 CASE; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) 		8-98077-414-0 01 1 1104-
78 SCREW; CASE TO CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING IDN 		8-97957-708-0 15 1 1104-
104 RESISTOR; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98074-113-0 01 1 1104-
105 SCREW; RESISTOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING IDN 		8-97957-708-0 02 1 1104-
