◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#2020) — 22 parça

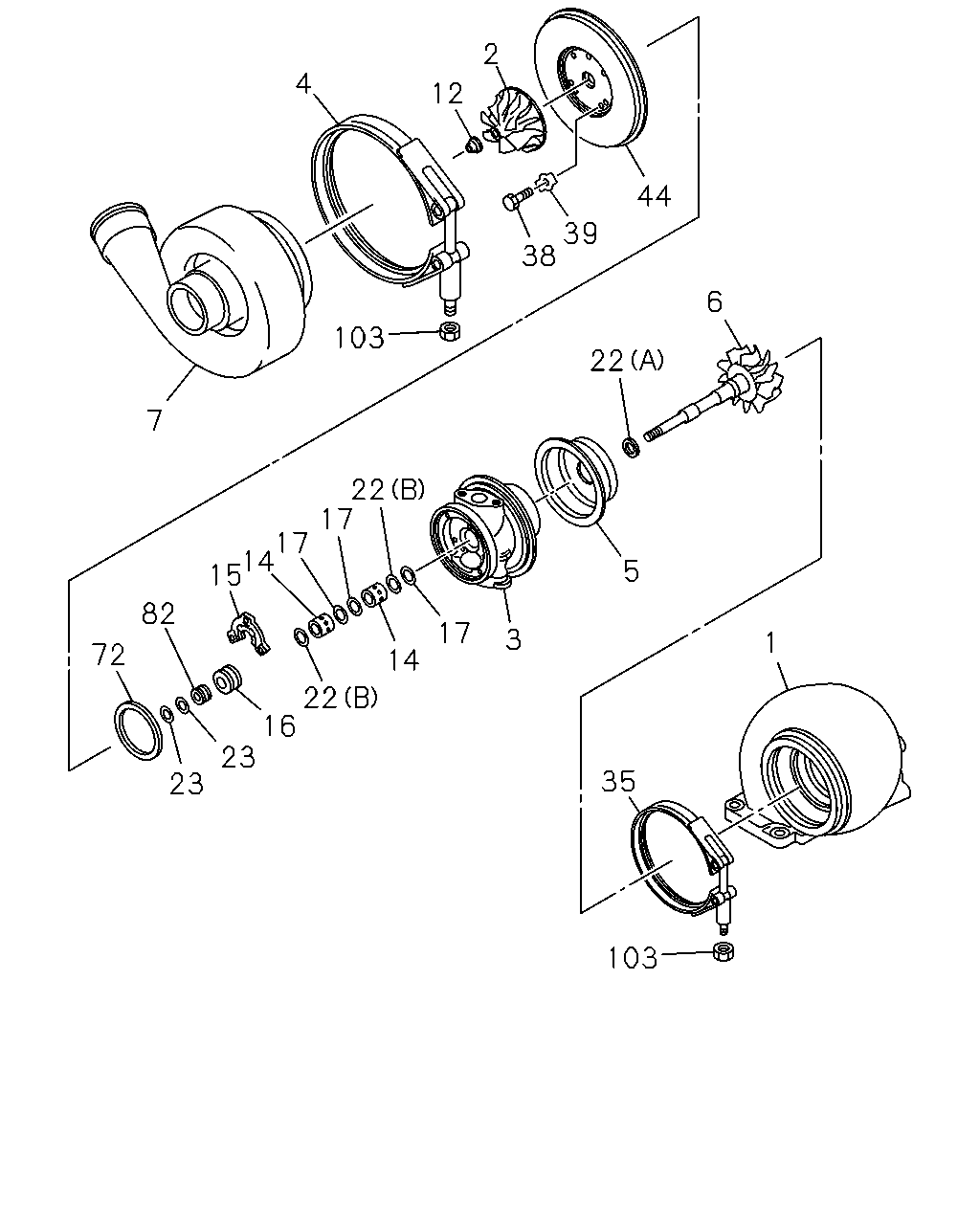

çizim 94471
2 4 12 44 39 38 6 103 22 7 22 17 17 14 15 5 82 17 3 1 72 14 22 16 23 35 23 103
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14415-084-0 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14452-014-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14411-016-0 01 1 -
4 CLAMP; BRG HSG,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14419-113-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14421-011-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14411-010-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14414-007-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-206-0 		1-14459-022-0 01 1 -
14 BEARING; JOURNAL,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14453-068-0 02 1 -
15 BEARING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14453-031-0 01 1 -
16 COLLAR; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14459-004-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14453-066-0 03 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(A) ASM PART: A = 1-14400-206-0 		1-14419-088-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(B) ASM PART: A = 1-14400-206-0 		1-14459-042-0 02 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14419-089-0 02 1 -
35 CLAMP; TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14419-064-0 01 1 -
38 BOLT; LK PLATE,BRG HSG,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14459-041-0 04 1 -
39 PLATE; LK,BRG HSG
ASM PART: A = 1-14400-206-0 		1-14419-114-0 04 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14421-021-0 01 1 -
72 GASKET; BRG HSG,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14429-059-0 01 1 -
82 SLEEVE; SPACER,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14459-040-0 01 1 -
103 NUT; CLAMP,TURBOCHARGER
ASM PART: A = 1-14400-206-0 		1-14459-025-0 02 1 -
