Isuzu WW
▶
TRUCKS
▶
FSR
▶
10625 - FSR-LHD
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶

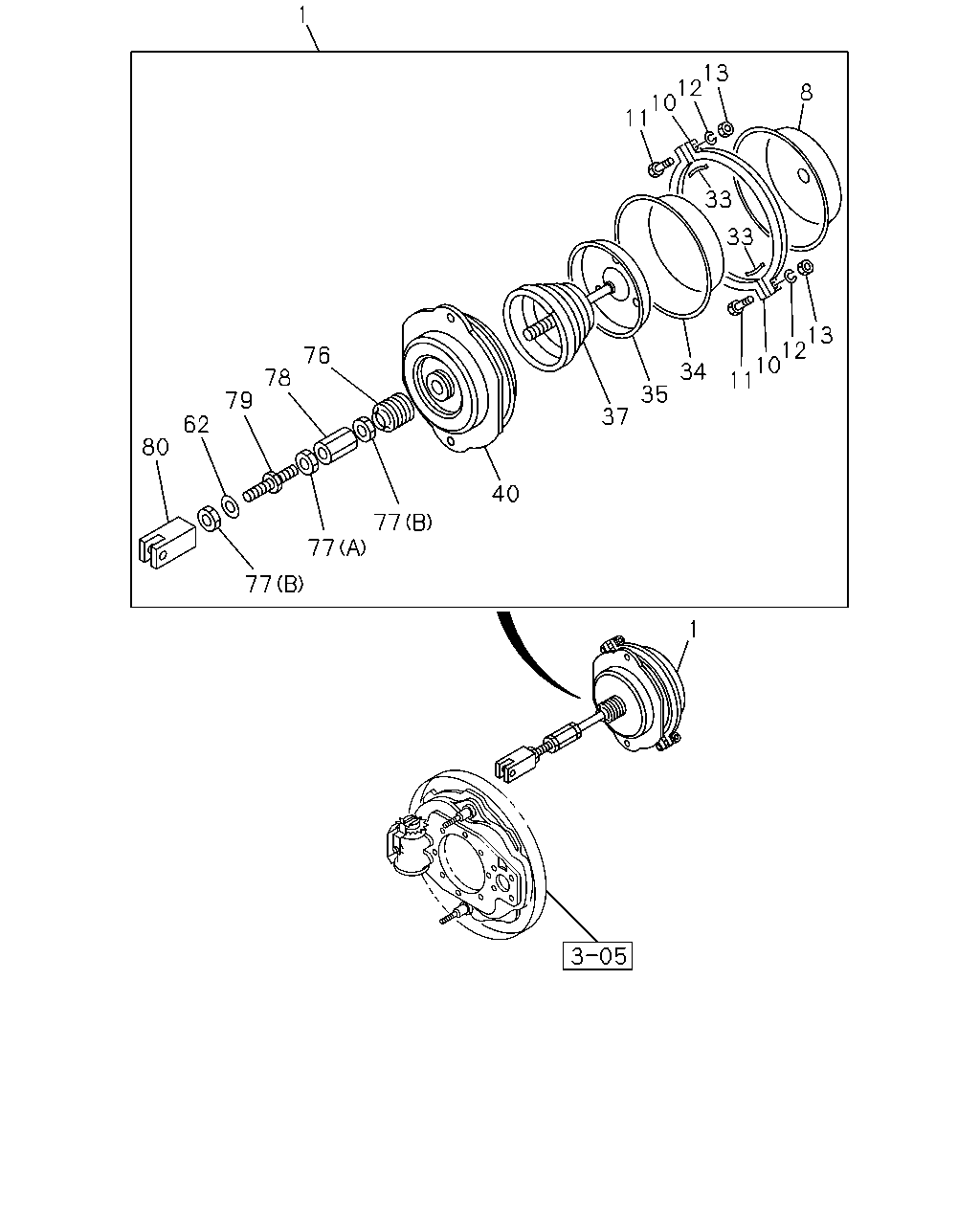

3-41 — REAR BRAKE POWER CHAMBER
(#202) — 21 parça
1
13
12
10
11
8
33
33
13
12
10
11
76
34
78
35
79
37
62
80
40
77
77
77
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-305-1
01
1
9212-
1
CHAMBER ASM; SPRING
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-304-1
01
1
9212-
1
CHAMBER ASM; SPRING
FINAL GEAR 15.5"<B2X>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-433-1
01
1
9212-
1
CHAMBER ASM; SPRING
FINAL GEAR 15.5"<B2X>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-432-1
01
1
9212-
8
SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-031-0
02
1
9212-
10
RING; CLAMP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48259-016-0
04
1
9212-
11
BOLT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48259-035-0
04
1
9212-
12
WASHER; LK,CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2
9-09150-510-0
04
1
9212-
13
NUT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10
9-09110-510-0
04
1
9212-
33
RETAINER; DIAPH
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48259-044-0
04
1
9212-
34
DIAPHRAGM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48252-026-0
02
1
9212-
35
PLATE; ROD END,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-024-0
02
1
9212-
37
SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48255-008-0
02
1
9212-
40
COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-032-0
02
1
9212-
76
GUARD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48259-096-0
02
1
9212-
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-48253-021-0
02
1
9212-
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
9-88510-432-0
04
1
9212-
78
TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-023-0
02
1
9212-
79
STUD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-027-0
02
1
9212-
80
CLEVIS; SPR CHAMBER BRK
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-026-0
02
1
9212-
80
CLEVIS; SPR CHAMBER BRK
FINAL GEAR 15.5"<B2X>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-038-0
02
1
9212-
