Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11393 - FVZ(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#20194) — 17 parça
◀
[826A] NO.1 (10 parça)
[826A] NO.2 (6 parça)
[826A] NO.3 (1 parça)
▶

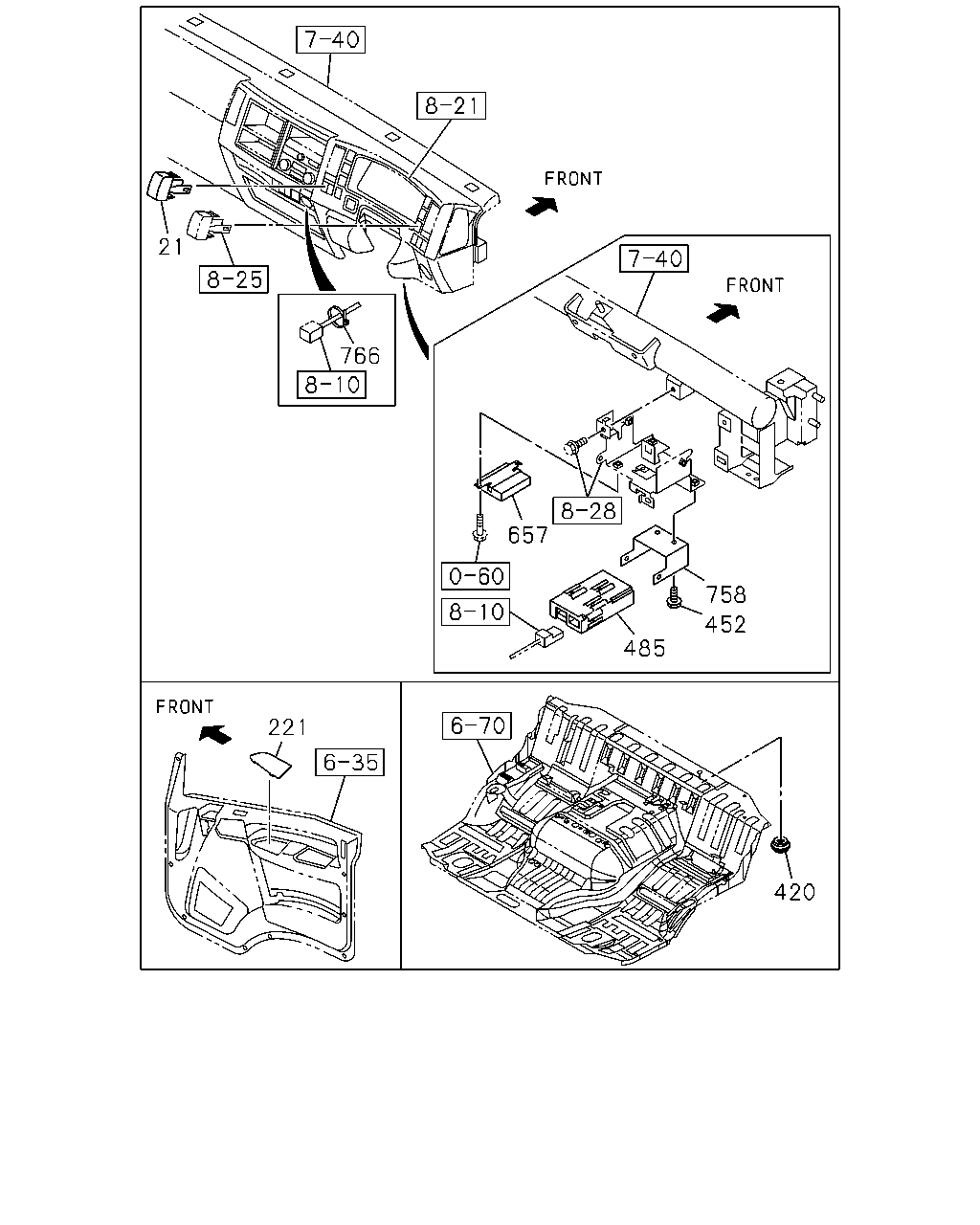

21
221
420
485
758
452
657
766
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
COVER; HOLE
8-98025-954-1
01
1
1104-
221
COVER; HOLE,DOOR LOCK SW
IDN
8-98029-915-2
01
1
1104-
221
COVER; HOLE,DOOR LOCK SW
IDN
8-98029-916-2
01
1
1104-
420
PLUG; SWITCH
OD=35 IDN
8-94122-971-0
01
1
1104-
452
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
02
1
1104-1212
485
CONTROL UNIT; SPEED SENSOR
1-80190-063-0
01
1
1104-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1104-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-0
01
1
1402-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
1104-1212
766
BAND; CLIP
L=140 IDN
5-09707-031-1
01
1
1104-

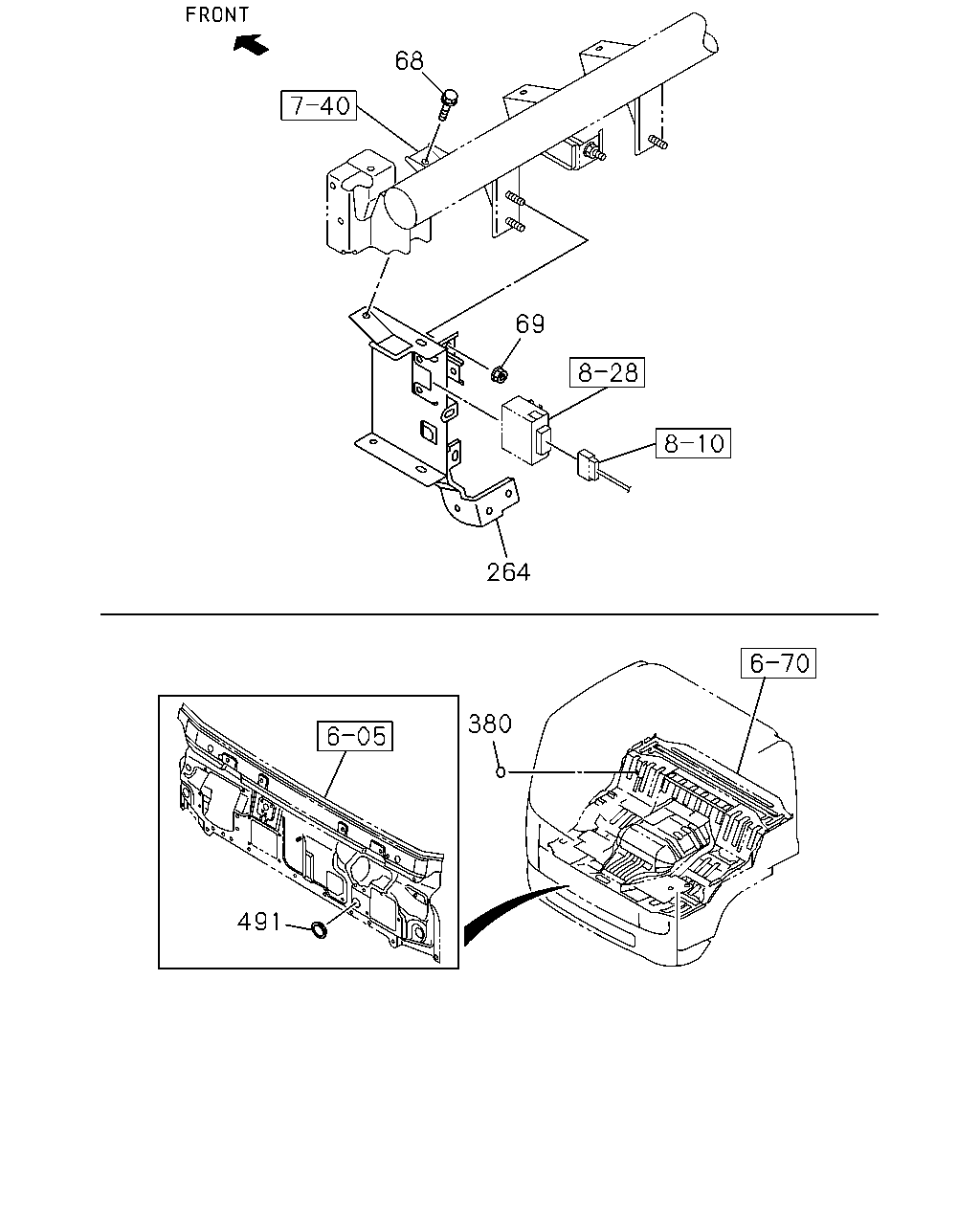

68
69
264
380
491
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1104-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1104-
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1104-1203
264
BRACKET; CONT UNIT
8-98180-453-0
01
1
1204-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1104-
491
PLUG; HOLE,CONT UNIT
OD=60 IDN
8-98054-651-0
01
1
1104-

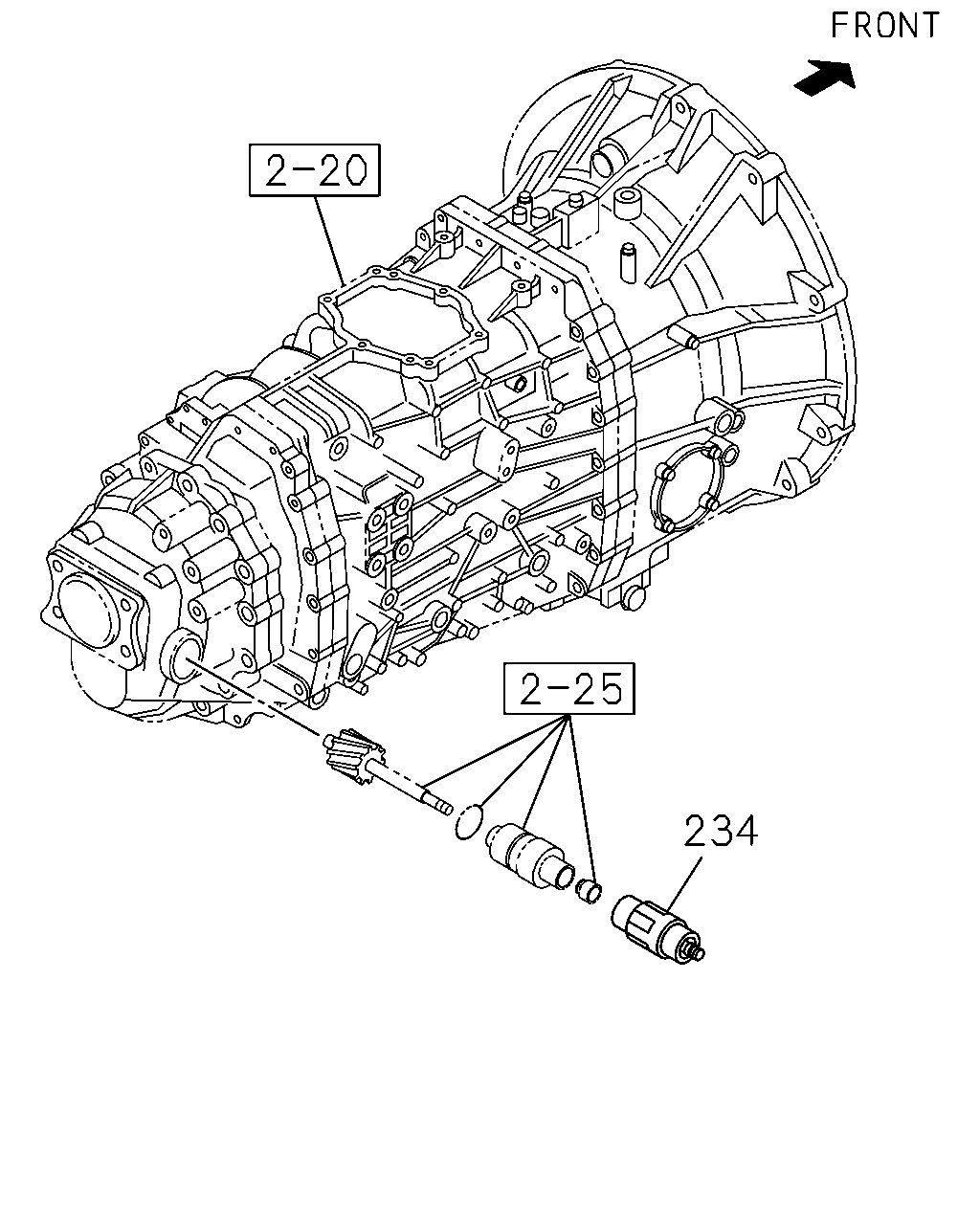

234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
FULLER ES11109 DD M/T(Y5N) 25 PULSE ALUMINUM
8-97328-058-1
01
1
1310-
