◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11393 - FVZ(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#20193) — 27 parça

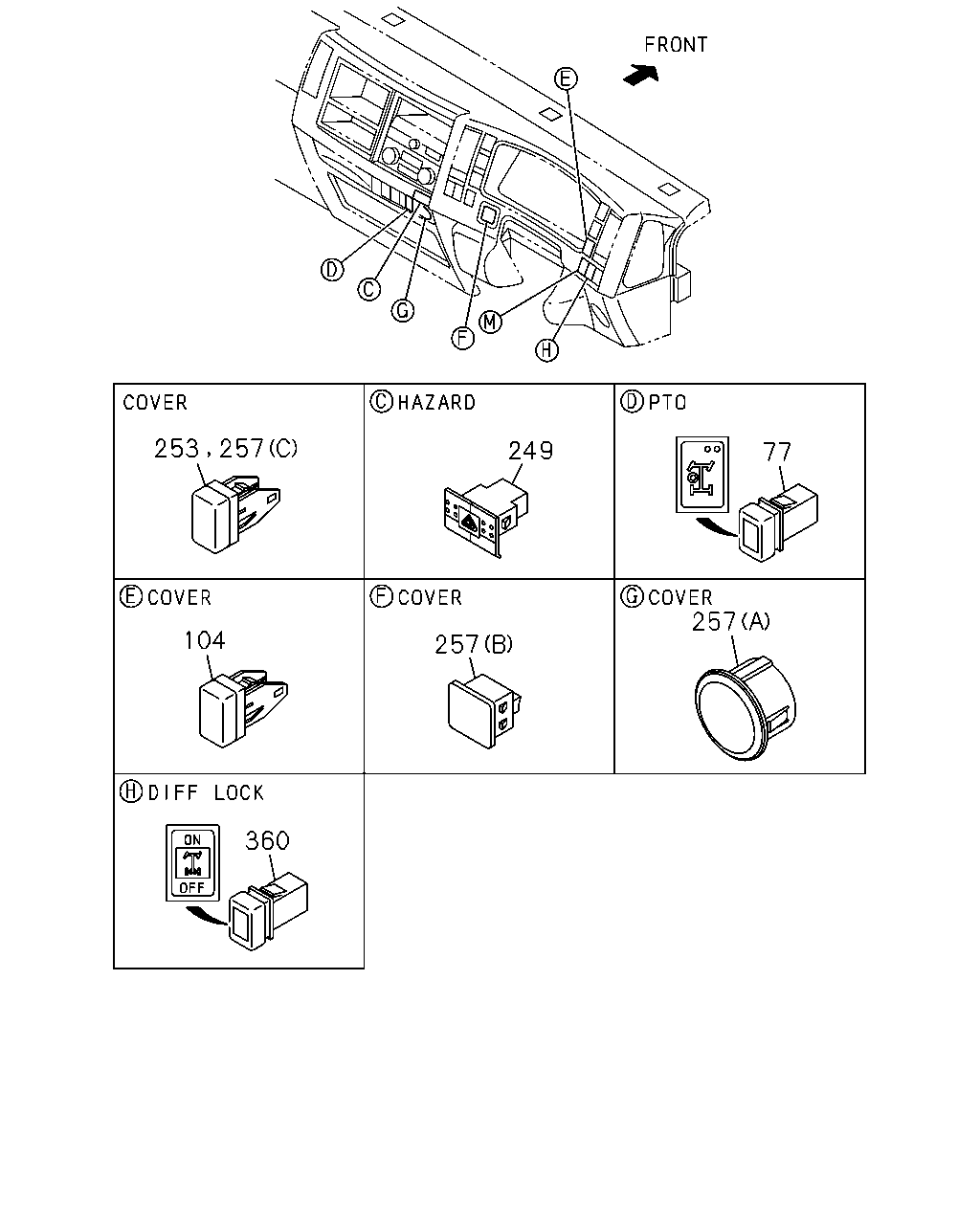

çizim 108386
77 257 257 104 360 249 253 257
BalonParca AdiParca NoAdetTipApplied Date
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) 		8-97615-488-2 01 1 1104-
104 COVER; SW HOLE,FOG LAMP 8-98025-954-1 01 1 1104-
249 SWITCH; HAZARD 8-97386-922-1 01 1 1104-
253 COVER; SW HOLE 8-98025-954-1 03 1 1104-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 09 1 1104-
257 COVER; HOLE,SW
(B) IDN 		8-98029-914-1 01 1 1104-
257 COVER; HOLE,SW
(D) IDN 		8-98029-917-0 01 1 1104-
257 COVER; HOLE,SW
(A) IDN 		8-98070-401-2 01 1 1104-
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1104-
360 SWITCH ASM; DIFF LK 8-97613-964-1 01 1 1104-

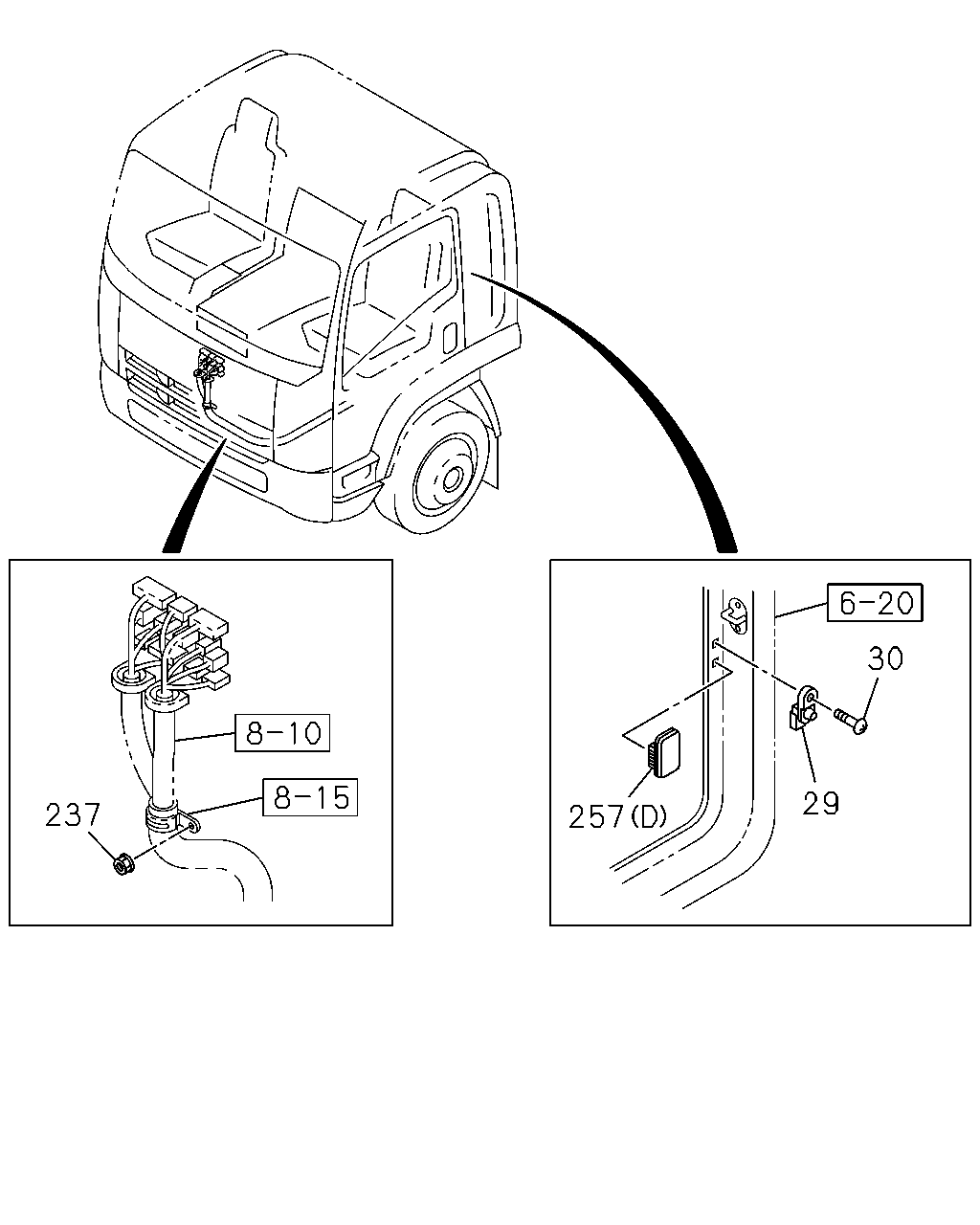

çizim 108387
237 29 30 257
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
BLACK IDN 		8-98022-211-0 01 1 1104-
30 SCREW; DOOR SW
M5X18 IDN 		8-98047-201-0 01 1 1104-
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1104-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 09 1 1104-
257 COVER; HOLE,SW
(B) IDN 		8-98029-914-1 01 1 1104-
257 COVER; HOLE,SW
(D) IDN 		8-98029-917-0 01 1 1104-
257 COVER; HOLE,SW
(A) IDN 		8-98070-401-2 01 1 1104-
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1104-

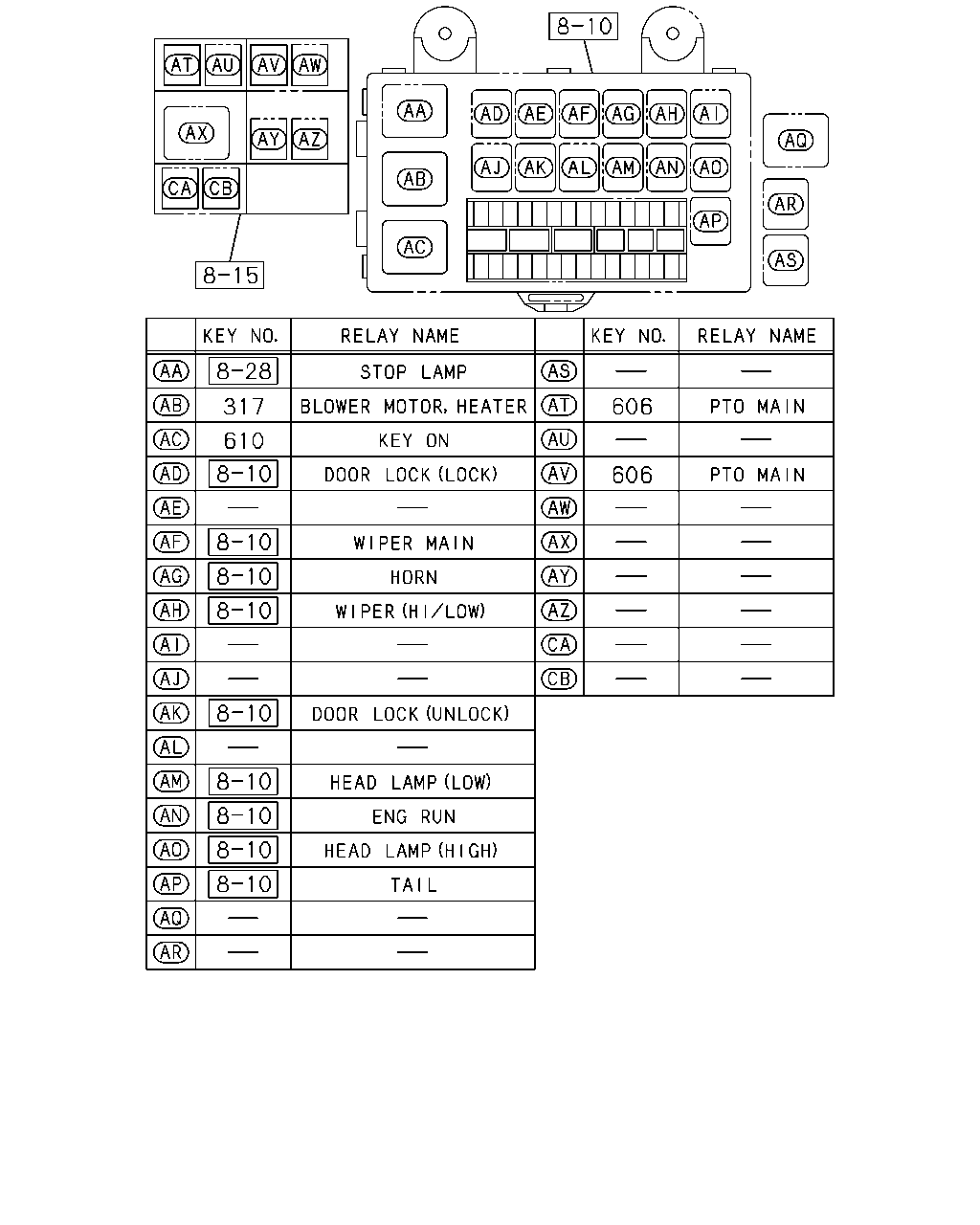

çizim 108388
317 606 606 610
BalonParca AdiParca NoAdetTipApplied Date
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1104-
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1104-
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1104-
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1104-

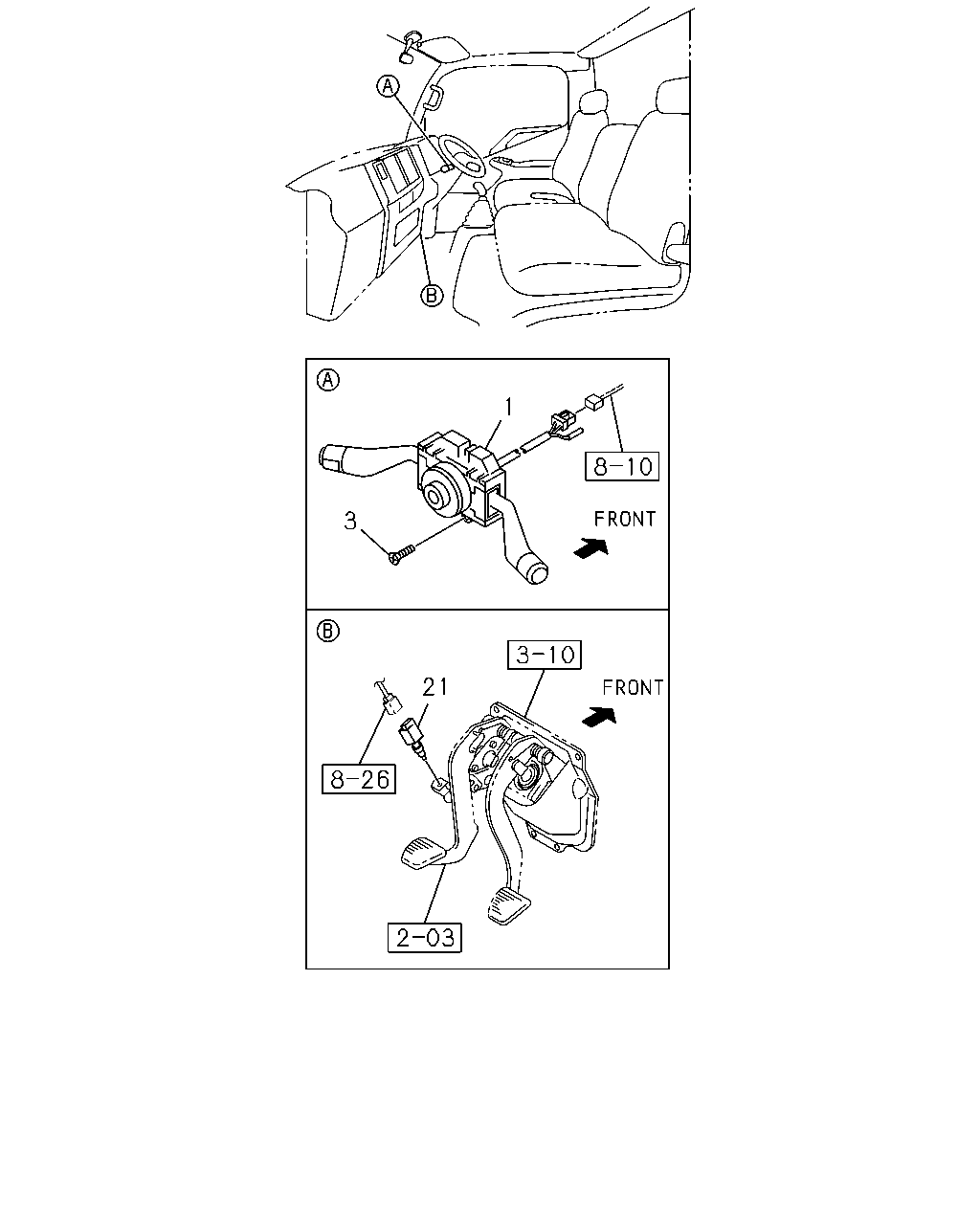

çizim 108445
1 3 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 8-98060-302-1 01 1 1104-1310
1 SWITCH; COMB 8-98243-704-0 01 1 1311-
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1104-
21 SWITCH; CLU
PTO ZF TRANS RR(BDM) 		8-94337-761-0 01 1 1104-
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 1104-
