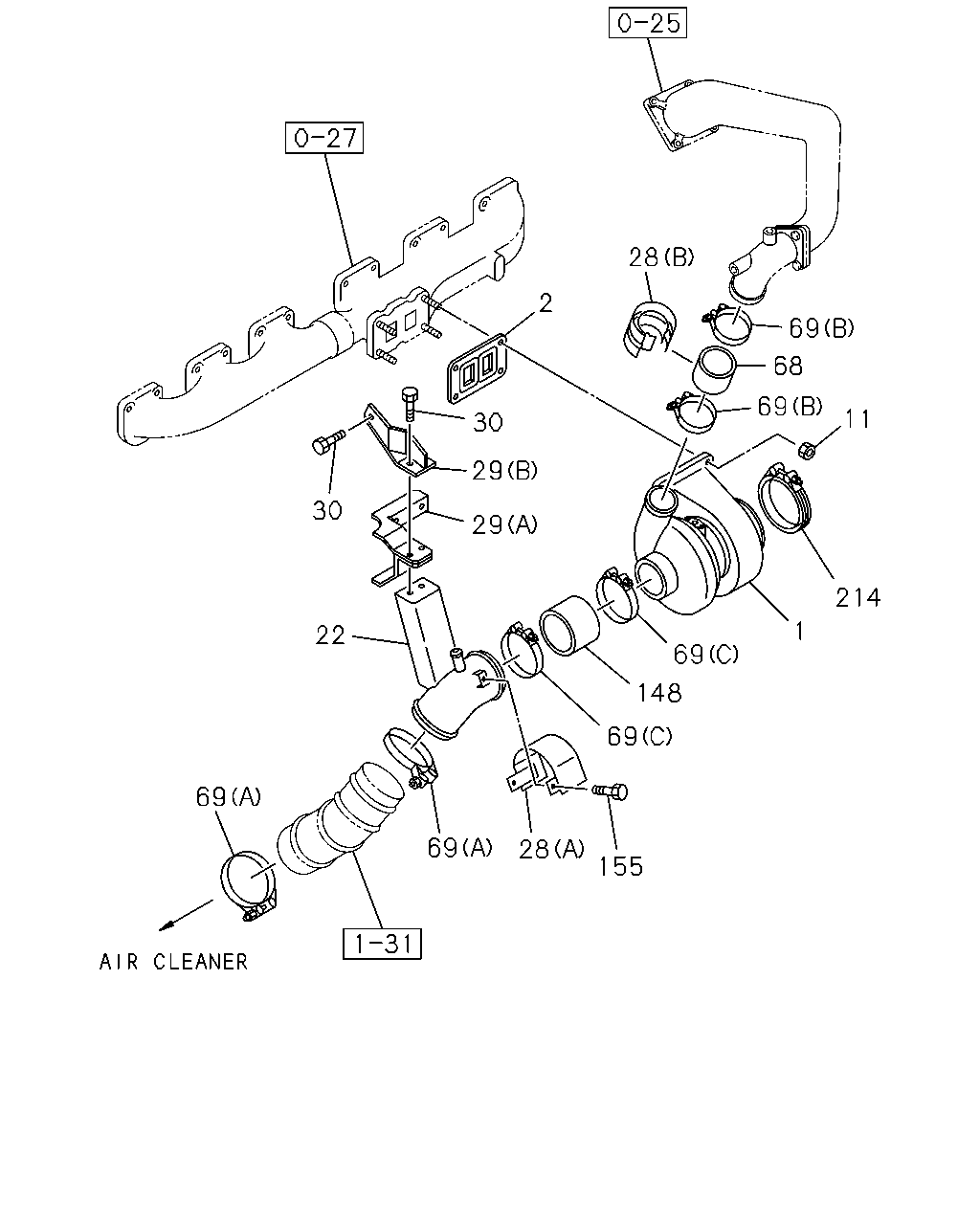

0-36 — TURBOCHARGER SYSTEM
(#2019) — 18 parça
28
2
69
68
69
11
30
29
30
29
214
1
22
69
148
69
69
69
28
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-206-0
01
1
9101-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-103-0
01
1
9101-
11
NUT; TURBOCHARGER
M10
9-09844-575-0
04
1
9101-
22
DUCT; INL,ACL TO TURBOCHARGER
1-14231-847-0
01
1
9101-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
(A)
1-14181-098-0
01
1
9101-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
(B)
1-14181-119-1
01
1
9101-
29
BRACKET; INL PIPE,ACL TO TURBOCHARGER
(A)
1-14119-165-1
01
1
9101-
29
BRACKET; INL PIPE,ACL TO TURBOCHARGER
(B)
1-14119-250-0
01
1
9101-
30
BOLT; PIPE TO BRKT
M10X20 W/LK WASHER
0-50041-020-0
01
1
9101-
30
BOLT; PIPE TO BRKT
M10X30 W/LK WASHER
0-50041-030-0
02
1
9101-
68
HOSE; RUBBER,TURBOCHARGER TO INL COVER
1-09360-648-0
01
1
9101-9210
68
HOSE; RUBBER,TURBOCHARGER TO INL COVER
1-09360-917-0
01
1
9211-
69
CLIP; RUBBER HOSE,TURBOCHARGER
(A) ID=77-95
1-09707-114-0
02
1
9101-
69
CLIP; RUBBER HOSE,TURBOCHARGER
(B) ID=82
9-09915-590-0
02
1
9101-
69
CLIP; RUBBER HOSE,TURBOCHARGER
(C) ID=100
9-09915-599-0
02
1
9101-
148
HOSE; TURBOCHARGER,INL
ID=89 L=80
1-09360-356-1
01
1
9101-
155
BOLT; HEAT PROTECTOR
M8X16 W/LK&PL WASHER
0-50140-816-0
02
1
9101-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
1-09709-094-1
01
1
9101-
