7-40 — INSTRUMENT PANEL AND BOX (#20180) — 110 parça

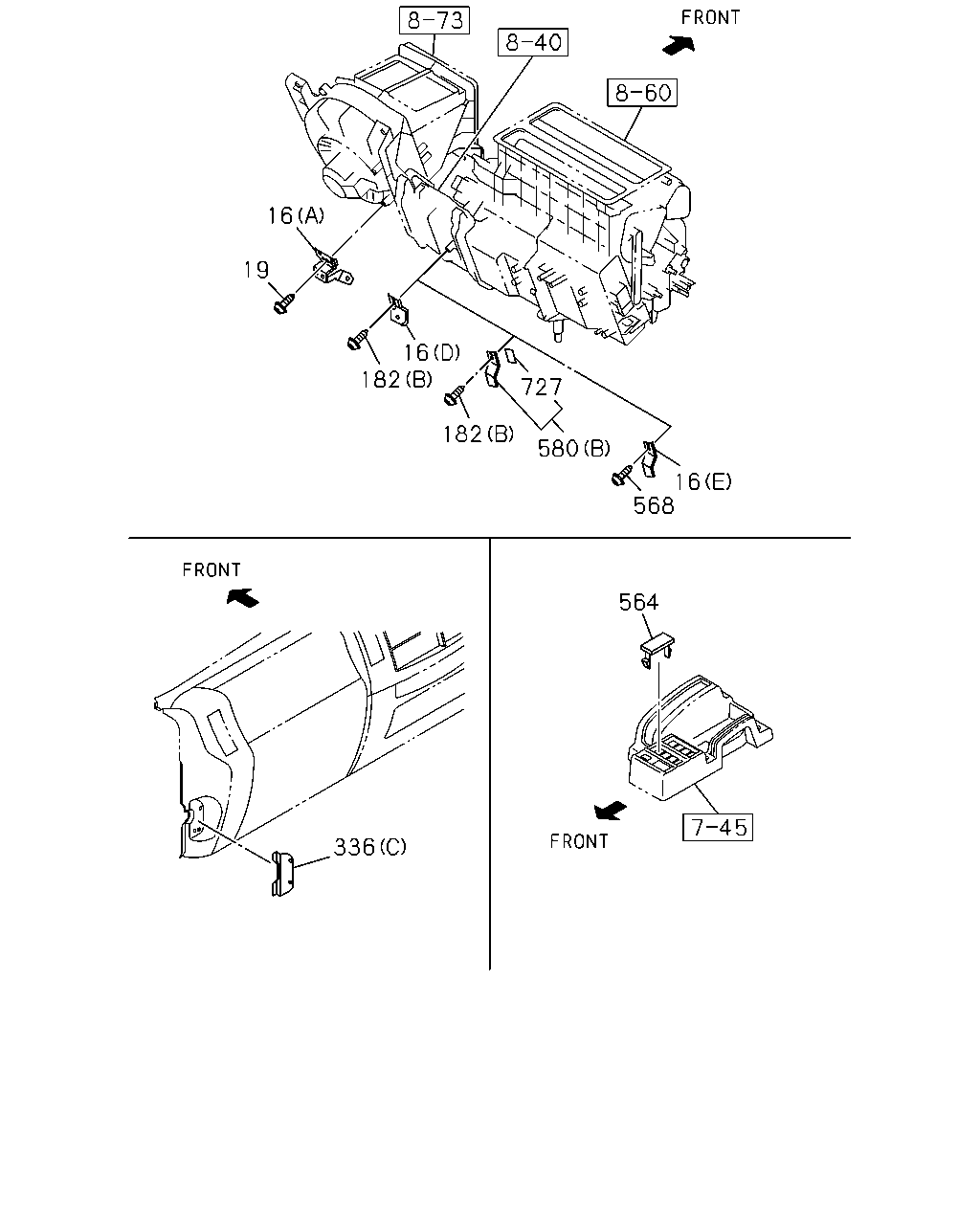

çizim 108424
16 19 182 16 182 727 568 580 564 16 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(E) 		8-98180-277-1 01 1 1204-
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1104-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1104-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1104-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1104-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D) 		8-98017-528-0 01 1 1104-1105
19 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1104-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1104-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1104-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1104-
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1104-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1104-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1104-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1104-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1104-
564 COVER; SW 8-97043-732-1 06 1 1104-
568 BOLT; COVER
M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1204-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1104-
580 BRACKET; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98017-528-0 01 1 1106-1203
580 BRACKET; COVER
(A) IDN 		8-98091-546-0 01 1 1104-
727 SEAL; BRACKET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98186-934-0 01 1 1106-1203

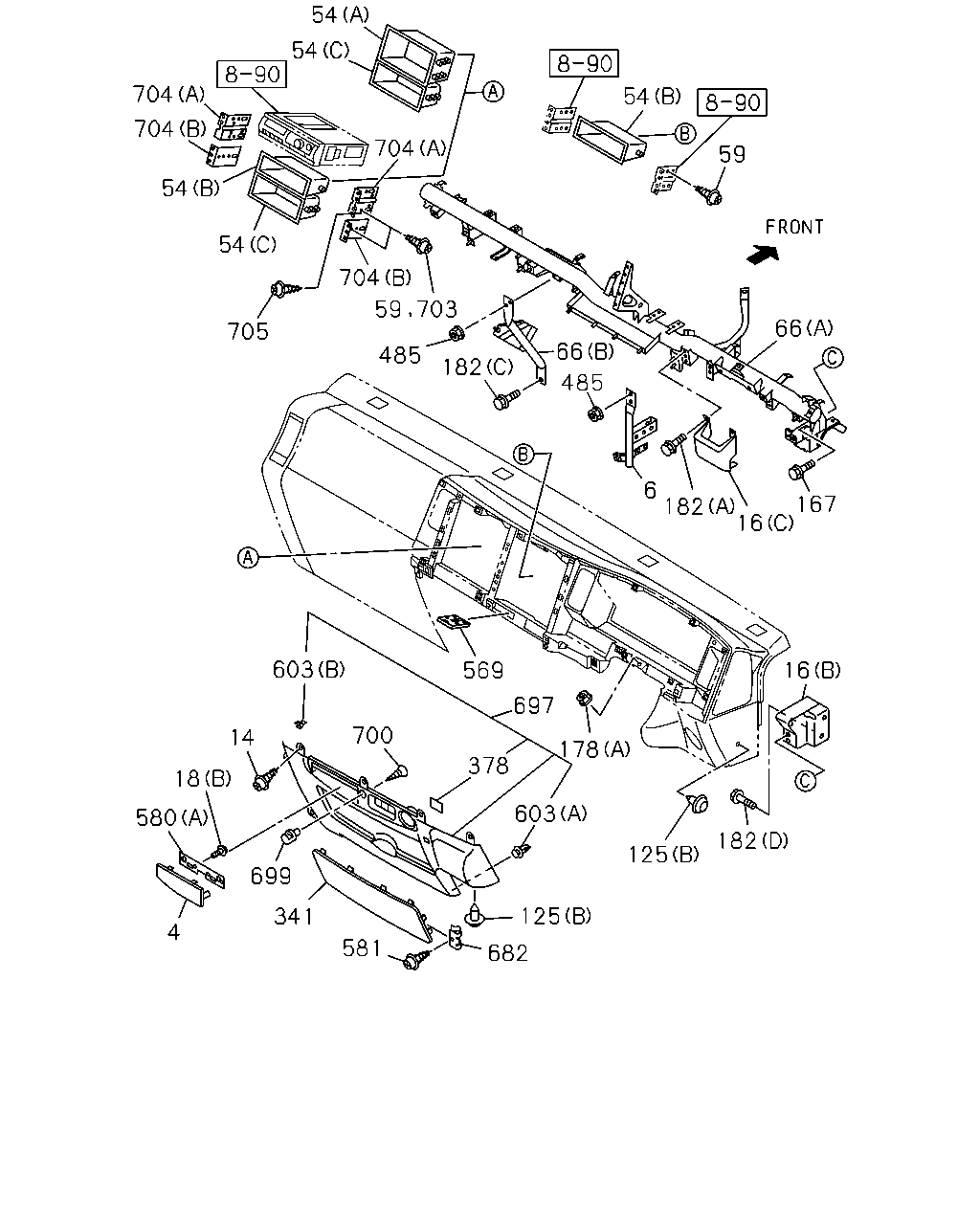

çizim 108447
182 125 603 378 697 569 16 125 682 581 341 699 580 14 18 603 700 178 182 167 6 16 66 485 66 182 485 59 703 704 705 54 54 704 704 54 54 704 59 54 4
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
GRAY IDN 		8-97407-898-1 01 1 1104-
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1104-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1104-
16 BRACKET; INST PNL
(E) 		8-98180-277-1 01 1 1204-
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1104-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1104-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1104-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1104-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D) 		8-98017-528-0 01 1 1104-1105
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1104-
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1104-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK IDN 		8-97407-129-3 01 1 1104-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK IDN 		8-97408-864-3 01 1 1104-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK IDN 		8-97408-865-3 01 1 1104-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1104-
66 REINFORCEMENT; INST PANEL
(A) 		8-98081-322-5 01 1 1104-1111
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1104-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1104-
125 CLIP; INST PANEL
(A) GRAY IDN 		8-97419-968-1 02 1 1104-1203
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1104-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1104-
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1104-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1104-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1104-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1104-
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1104-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1104-1208
341 LID; FUSE BOX 8-97424-725-1 01 1 1209-
378 SEAL; INST PANEL
5X30 IDN 		8-98176-199-0 01 1 1104-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1104-
569 HOLDER; CARD
IDN 		8-97410-276-1 01 1 1104-
580 BRACKET; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98017-528-0 01 1 1106-1203
580 BRACKET; COVER
(A) IDN 		8-98091-546-0 01 1 1104-
581 SCREW
M2.5X4 		8-98219-290-0 02 1 1209-
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1104-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1104-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 05 1 1104-
682 CLIP
IDN 		8-98218-600-0 02 1 1209-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1104-
699 HOOK; INST PANEL
GRAY IDN 		8-97408-927-0 01 1 1104-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1104-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1104-
704 BRACKET; CENTER POCKET
(B) IDN 		8-97585-616-2 02 1 1104-
704 BRACKET; CENTER POCKET
(A) IDN 		8-97585-618-2 02 1 1104-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1104-

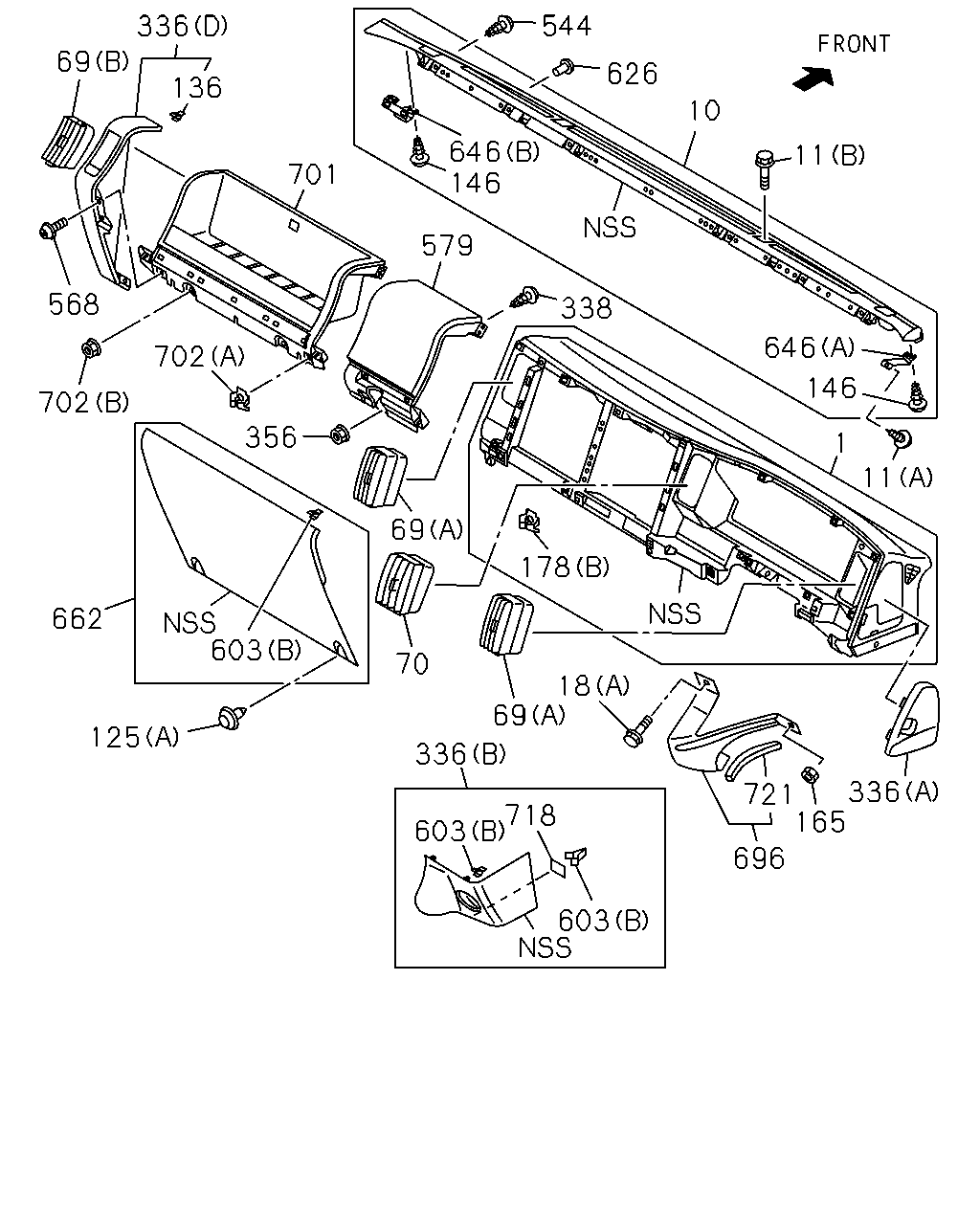

çizim 108448
69 336 136 701 579 146 646 626 544 10 11 646 1 146 11 178 70 69 18 69 336 603 718 603 696 721 336 165 338 356 702 702 662 125 603 568
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97423-015-0 01 1 1104-
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1104-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1104-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1104-
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1104-
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1104-
69 GRILLE; SIDE,AIR OUTLET
(A) IDN 		8-98028-561-2 02 1 1104-
69 GRILLE; SIDE,AIR OUTLET
(B) IDN 		8-98028-562-2 01 1 1104-
70 GRILLE; CENTER,AIR OUTLET
IDN 		8-98028-563-2 01 1 1104-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1104-
125 CLIP; INST PANEL
(A) GRAY IDN 		8-97419-968-1 02 1 1104-1203
136 CLIP; INST COVER 8-98076-254-0 02 1 1104-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1104-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1104-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1104-
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1104-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1104-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1104-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1104-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1104-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1104-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1104-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1104-
568 BOLT; COVER
M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1204-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1104-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1104-
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1104-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1104-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 05 1 1104-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1104-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1104-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1104-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1104-
696 BRACKET; KNEE 8-98066-085-1 01 1 1104-
701 TRAY; INST
GRAY 		8-97421-976-1 01 1 1104-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1104-
702 NUT; TRAY
(A) IDN 		8-98037-629-0 01 1 1104-
718 SEAL; COVER
7X31 IDN 		8-98061-777-0 01 1 1104-
721 FINISHER; BRKT,KNEE
L=140 IDN 		8-97892-742-0 01 1 1104-
