0-35 — ENGINE CONTROL VALVE AND LEVER (#2018) — 88 parça

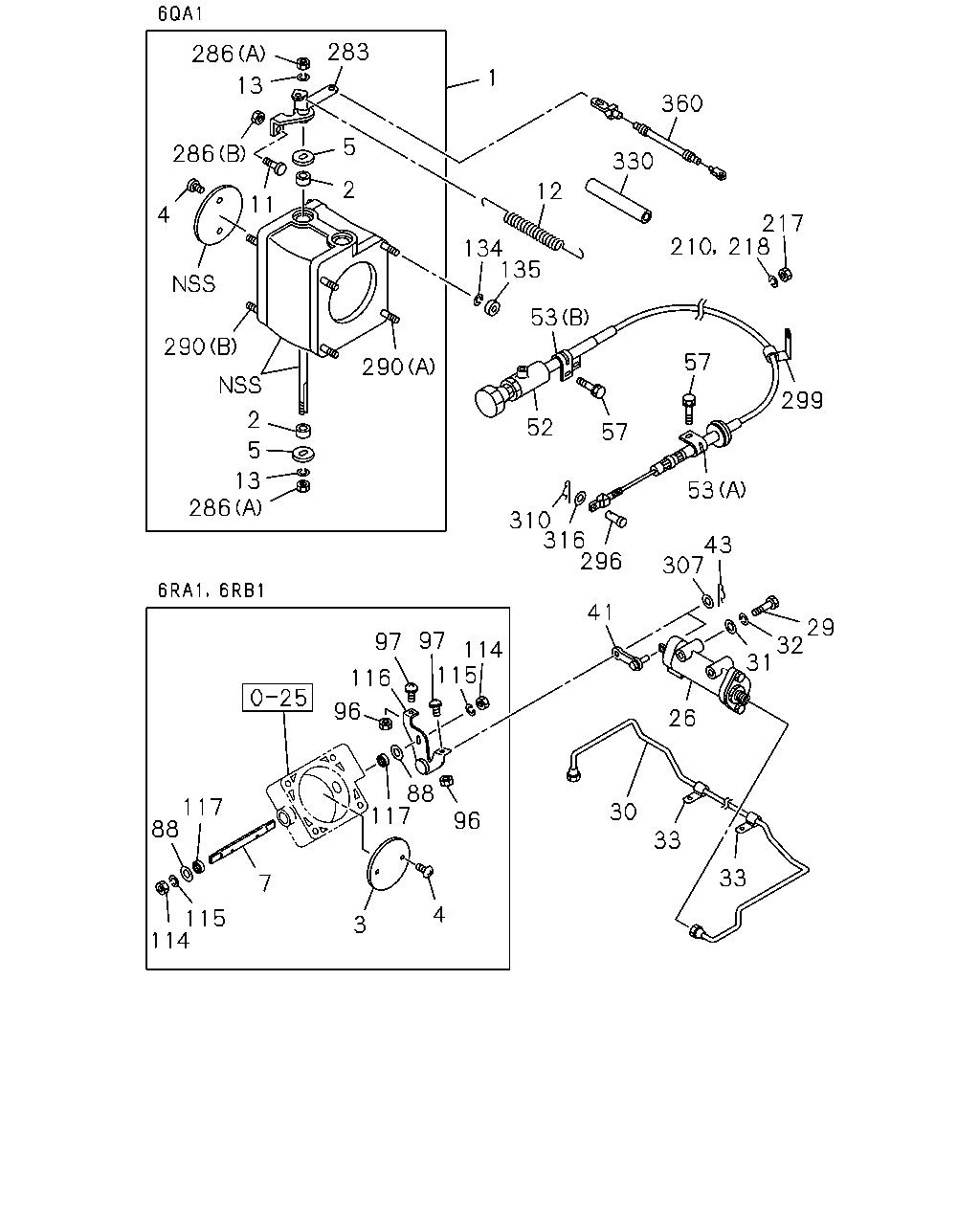

çizim 29797
283 286 1 13 360 5 286 330 2 12 11 4 134 135 217 218 210 53 290 57 290 299 2 52 57 5 13 286 53 310 316 296 43 307 41 29 32 31 97 97 114 115 116 96 26 88 117 117 88 30 96 33 33 7 4 115 114 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHUTTER ASM; INT 1-14310-196-0 01 1 9001- ●
2 COVER; DUST,SHAFT 9-14319-166-0 04 1 9001- ●
3 VALVE; INT SHUTTER 1-14312-033-0 01 1 9001- ● ●
4 SCREW; VLV FIX 1-09102-002-0 02 1 9001- ● ● ●
5 WASHER; THRUST,INT SHUTTER 9-14319-323-0 04 1 9001- ●
7 SHAFT ASM; INT SHUTTER
OD=12 		1-14313-045-1 01 1 9001- ● ●
11 SCREW 9-14319-229-0 02 1 9001- ●
12 SPRING; RETURN,SHUTTER 9-09942-541-0 01 1 9001- ●
13 WASHER; LK
ID=10.2 		9-09150-510-0 04 1 9001- ●
26 CYLINDER ASM; CONT 1-22190-334-1 01 1 9001- ●
26 CYLINDER ASM; CONT 1-22190-379-1 01 1 9001- ● ●
29 BOLT; CONT CYL
M10X55 		9-01056-055-0 02 1 9001-9004 ● ● ●
29 BOLT; CONT CYL
M10X55 		0-10806-055-0 02 1 9005- ● ● ●
30 PIPE ASM; AIR CONT CYL 1-19191-420-1 01 1 9001- ● ●
31 WASHER; PL,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 02 1 9001- ● ● ●
32 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 9001- ● ● ●
33 CLIP; AIR PIPE 1-09700-955-0 02 1 9001- ● ●
41 LINK; INT SHUTTER 9-09882-366-0 01 1 9001- ● ●
43 PIN; SNAP ROD LK 1-09747-007-0 02 1 9001- ● ●
52 CABLE; FUEL CUT
RIGHT HAND DRIVE(LVR5FB) MAB5D M/T(X1N),MAB5R M/T(X3K) L=11170 		1-23210-799-0 01 1 9001-9012 ●
52 CABLE; FUEL CUT
RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 5800MM(58W) EXC. BUS BODY REAR OVERHANG<YK4> L=11170 		1-23210-799-0 01 1 9101- ● ●
52 CABLE; FUEL CUT
RIGHT HAND DRIVE(LVR5FB) MAF6T M/T(X3X) WHEEL BASE 5800MM(58W) L=11320 		1-23210-922-0 01 1 9001-9012 ●
52 CABLE; FUEL CUT
RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 5800MM(58W) BUS BODY REAR OVERHANG<YK4> L=11320 		1-23210-922-0 01 1 9101- ● ●
52 CABLE; FUEL CUT
LEFT HAND DRIVE(LVR6FB) MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5L M/T(X7F) WHEEL BASE 5800MM(58W) L=10830 		1-23210-567-1 01 1 9001-9012 ● ●
52 CABLE; FUEL CUT
MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5L M/T(X7F) WHEEL BASE 5800MM(58W) L=10830 		1-23210-567-1 01 1 9001-9012 ●
52 CABLE; FUEL CUT
LEFT HAND DRIVE(LVR6FB) WHEEL BASE 5800MM(58W) EXC. BUS BODY REAR OVERHANG<YK4> L=10830 		1-23210-567-1 01 1 9101- ● ●
52 CABLE; FUEL CUT
WHEEL BASE 5800MM(58W) EXC. BUS BODY REAR OVERHANG<YK4> L=10830 		1-23210-567-1 01 1 9101- ● ●
52 CABLE; FUEL CUT
LEFT HAND DRIVE(LVR6FB) MAF6T M/T(X3X),MAF6Z M/T(X7U) WHEEL BASE 5800MM(58W) L=10980 		1-23210-833-0 01 1 9001-9012 ● ●
52 CABLE; FUEL CUT
MAF6T M/T(X3X),MAF6Z M/T(X7U) WHEEL BASE 5800MM(58W) L=10980 		1-23210-833-0 01 1 9001-9012 ● ●
52 CABLE; FUEL CUT
L=10980 		1-23210-833-0 01 1 9001-9012 ●
52 CABLE; FUEL CUT
LEFT HAND DRIVE(LVR6FB) WHEEL BASE 5800MM(58W) BUS BODY REAR OVERHANG<YK4> L=10980 		1-23210-833-0 01 1 9101- ● ●
52 CABLE; FUEL CUT
WHEEL BASE 5800MM(58W) BUS BODY REAR OVERHANG<YK4> L=10980 		1-23210-833-0 01 1 9101- ● ●
52 CABLE; FUEL CUT
LEFT HAND DRIVE(LVR6FB) WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) L=11830 		1-23210-513-2 01 1 9001- ● ●
52 CABLE; FUEL CUT
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) L=11830 		1-23210-513-2 01 1 9001- ● ●
52 CABLE; FUEL CUT
RIGHT HAND DRIVE(LVR5FB) L=12170 		1-23210-580-0 01 1 9001-9012 ●
52 CABLE; FUEL CUT
RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 6800MM(68W) L=12170 		1-23210-580-0 01 1 9101- ● ●
53 BRACKET; CABLE
(B) 		1-23219-004-2 01 1 9001- ●
53 BRACKET; CABLE
(A) 		1-23219-005-2 01 1 9001- ●
57 BOLT; BRKT
M8X18 W/LK&PL WASHER 		9-01970-818-0 04 1 9001-9005 ●
57 BOLT; BRKT
M8X18 W/LK&PL WASHER 		0-50140-818-0 04 1 9006- ●
88 WASHER; SHAFT 9-09855-383-0 02 1 9001- ● ●
96 NUT; ADJ SCREW
M5 		9-99110-405-0 02 1 9001- ● ●
97 SCREW; ADJ 9-14319-229-0 02 1 9001- ● ●
114 NUT
M12 		9-99111-412-0 02 1 9001- ● ●
115 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9001- ● ●
116 LEVER 1-14314-109-0 01 1 9001- ● ●
117 COVER; VLV 9-14319-316-0 02 1 9001- ● ●
134 WASHER; LK,LEVER
ID=8.2 		9-09150-508-0 08 1 9001- ●
135 NUT; LEVER
M8 		9-09110-408-0 08 1 9001- ●
210 WASHER; LK,JOINT BALL
ID=5.1 		9-09150-505-0 01 1 9706- ● ● ●
217 NUT; BRKT ENG CONT
M8 		9-09110-408-0 02 1 9001- ● ● ●
218 WASHER; LK,BRKT,ENG CONT
ID=8.2 		9-09150-508-0 02 1 9001- ● ● ●
283 LEVER; ENG STOP 1-14314-124-0 02 1 9001- ●
286 NUT; LK
(A) M10 		9-09111-410-0 02 1 9001- ●
286 NUT; LK
(B) M5 		9-99110-405-0 02 1 9001- ●
290 STUD; CASE,INT SHUTTER
(A) M8X20 L=32 		9-04110-820-0 14 1 9001- ●
290 STUD; CASE,INT SHUTTER
(B) M8X22 L=34 		9-04110-822-0 02 1 9001- ●
296 PIN; JAW,CABLE 9-08233-512-0 02 1 9001- ●
299 CLIP; CABLE
ID=12.5 		9-09917-389-0 02 1 9001- ●
307 WASHER; PL,LINK ROD
ID=10.5 OD=18 		9-09160-510-0 02 1 9001- ● ●
310 PIN; SPLIT,CABLE
L=17.9 		1-09747-002-0 02 1 9001- ●
316 WASHER; PL,CABLE,INT SHUTTER
ID=6.4 		9-09160-506-0 02 1 9001- ●
330 COVER; RETURN SPR 1-15669-002-0 01 1 9001- ●
360 CABLE; INT SHUTTER 1-23210-560-0 01 1 9001-9910 ●

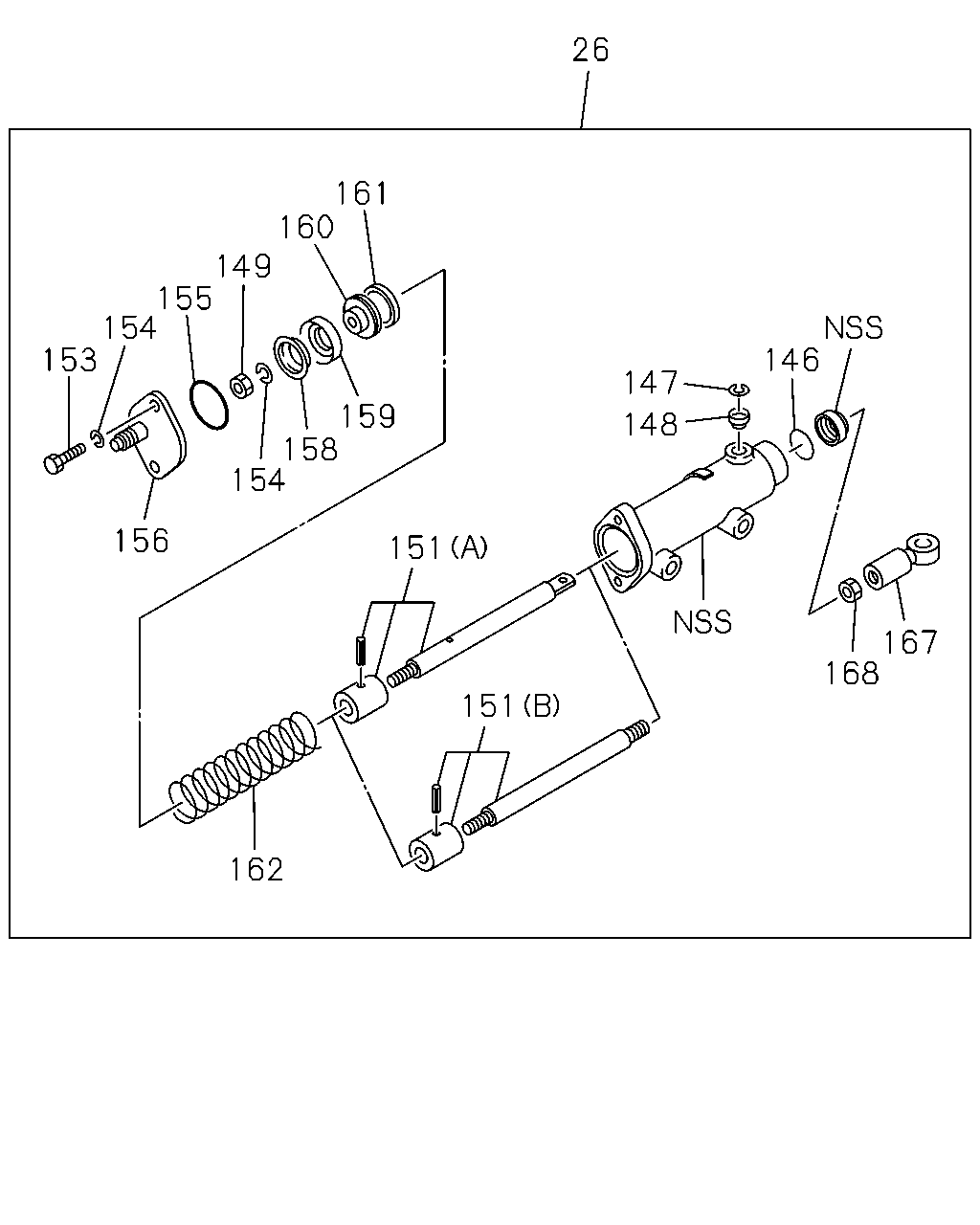

çizim 94184
26 161 160 149 155 154 153 146 147 159 158 154 148 156 151 167 168 151 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 CYLINDER ASM; CONT 1-22190-334-1 01 1 9001- ●
26 CYLINDER ASM; CONT 1-22190-379-1 01 1 9001- ● ●
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9001- ● ● ●
147 RING; RET 9-88510-331-0 01 1 9001- ● ● ●
148 FILTER; CONT CYL 9-88510-330-0 01 1 9001- ● ● ●
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9001- ● ● ●
151 SHAFT; CONT CYL
(A) 		1-22199-116-0 01 1 9001- ●
151 SHAFT; CONT CYL
(B) 		1-22191-032-0 01 1 9001- ● ●
153 BOLT; CONT CYL 9-88510-267-0 02 1 9001- ●
153 BOLT; CONT CYL 8-94311-421-0 02 1 9001- ● ●
154 WASHER; LK,CYL 9-83315-032-0 03 1 9001- ●
154 WASHER; LK,CYL 9-09150-508-0 03 1 9001- ● ●
155 GASKET; CONT CYL 9-88510-372-0 01 1 9001- ● ● ●
156 COVER; CONT CYL 1-22199-036-0 01 1 9001- ●
156 COVER; CONT CYL 1-22189-162-0 01 1 9001- ● ●
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 9001- ● ● ●
159 GASKET; CONT CYL 9-88510-373-0 01 1 9001- ● ● ●
160 PLATE 1-22199-020-0 01 1 9001- ●
160 PLATE 1-22199-001-0 01 1 9001- ● ●
161 RING; WEAR 1-22199-002-0 01 1 9001- ● ● ●
162 SPRING; CONT CYL 1-22199-018-0 01 1 9001- ●
162 SPRING; CONT CYL 9-88510-374-0 01 1 9001- ● ●
167 JOINT; JAW,CONT CYL 9-09511-110-0 01 1 9001- ● ●
168 NUT; JAW JOINT
M10 		9-09111-410-0 01 1 9001- ● ●
