0-33 — FAN AND FAN BELT (#2017) — 77 parça

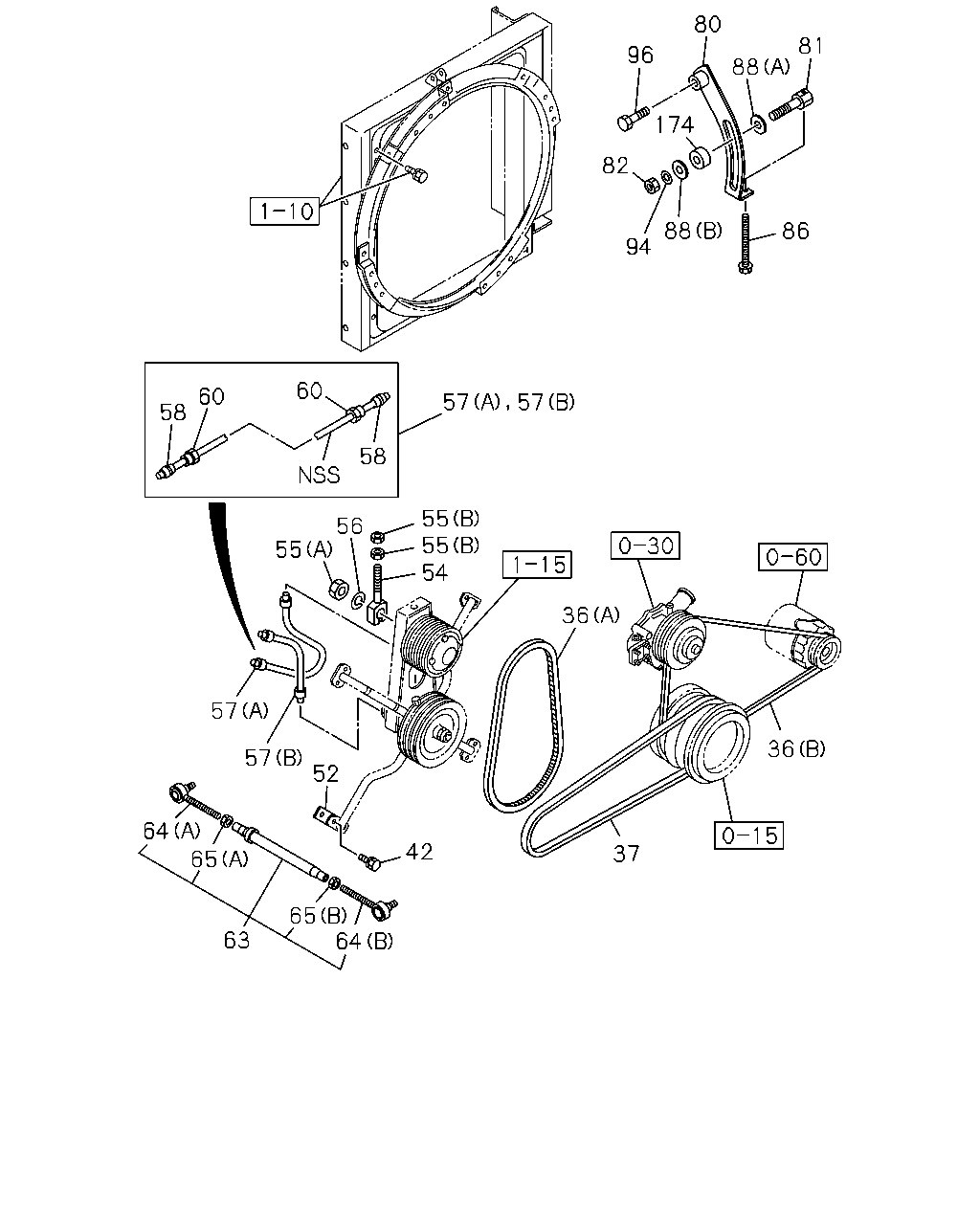

çizim 93788
80 81 96 88 174 82 88 86 94 60 60 57 57 58 58 55 55 54 56 55 36 57 36 57 52 64 42 37 65 65 64 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
36 BELT; COOLING FAN
M/T<X9C> RADIATOR HEAVY DUTY(V05) (A) L=1003 		9-13671-344-0 01 1 9001- ● ●
36 BELT; COOLING FAN
A/T<X9D> (A) L=1003 		9-13671-344-0 01 1 9001- ● ●
36 BELT; COOLING FAN
(A) L=1003 		9-13671-344-0 01 1 9001- ●
36 BELT; COOLING FAN
(B) L=1696 1 SET=2 PIECE(1136711360) MITSUBOSHI 		1-13671-137-0 01 1 9001- ● ● ●
36 BELT; COOLING FAN
(B) L=1319 1 SET=2 PIECE(1136711070) MITSUBOSHI 		1-13671-108-0 01 1 9001- ●
37 BELT; COOLING FAN,CR/SHF TO IDLE PULLE
L=2295 		1-13671-106-0 02 1 9001- ● ● ● ●
42 BOLT; FAN DRIVE
M10X30 W/LK WASHER 		9-01911-030-0 08 1 9001-9002 ● ● ●
42 BOLT; FAN DRIVE
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9003-9606 ● ● ●
42 BOLT; FAN DRIVE
M10X30 FLANGE 		0-28681-030-0 08 1 9607- ● ● ●
42 BOLT; FAN DRIVE
M10X40 W/LK WASHER 		0-50041-040-0 08 1 9101-9106 ●
42 BOLT; FAN DRIVE
M10X45 W/LK WASHER 		0-50041-045-0 08 1 9107-9606 ●
42 BOLT; FAN DRIVE
M10X40 FLANGE 		0-28681-040-0 08 1 9607-9706 ●
42 BOLT; FAN DRIVE
M10X45 FLANGE 		0-28081-045-0 08 1 9707- ●
52 SPACER; FAN DRIVE 1-21629-040-0 04 1 9101- ●
54 RETAINER; IDLE PULLEY,COOLING FAN 1-21625-018-0 01 1 9001-9007 ● ● ●
54 RETAINER; IDLE PULLEY,COOLING FAN 1-21625-036-0 01 1 9008- ● ● ● ●
55 NUT; IDLE PULLEY RET
(A) M24 		9-09840-264-0 01 1 9001-9007 ● ● ●
55 NUT; IDLE PULLEY RET
(A) M24 		9-99111-524-0 01 1 9008- ● ● ● ●
55 NUT; IDLE PULLEY RET
(B) M10 		9-09110-410-0 02 1 9001-9604 ● ● ● ●
55 NUT; IDLE PULLEY RET
(B) M10 		9-09110-510-0 02 1 9605- ● ● ● ●
56 WASHER; LK,IDLE PULLEY TO SPINDLE
ID=24.5 		9-09150-524-0 01 1 9001- ● ● ● ●
57 PIPE; GREASE,IDLE PULLEY
(A) L=180 		1-59461-674-0 01 1 9001- ● ● ● ●
57 PIPE; GREASE,IDLE PULLEY
(B) L=135 		1-59461-675-0 01 1 9001- ● ● ● ●
58 SLEEVE; GREASE PIPE,FAN & IDLE PULLEY
ID=6.1 T=6 		9-83765-027-0 02 1 9001- ● ● ● ●
60 NIPPLE; SLEEVE,GREASE PIPE
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		9-83765-026-0 04 1 9001- ● ●
60 NIPPLE; SLEEVE,GREASE PIPE
A/T<X9D> 		9-83765-026-0 04 1 9001- ● ●
60 NIPPLE; SLEEVE,GREASE PIPE 9-83765-026-0 04 1 9001- ●
60 NIPPLE; SLEEVE,GREASE PIPE
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) 		9-83765-026-0 02 1 9001- ● ●
60 NIPPLE; SLEEVE,GREASE PIPE 9-83765-026-0 02 1 9001- ●
63 LINK ASM; ADJ,COOLING FAN DRIVE PULLEY
L=690 		1-21629-018-4 01 1 9001- ● ● ● ●
64 ROD ASM; END,SWING ARM,FAN DRIVE
(A) RH THREAD 		1-09760-006-2 01 1 9001- ● ● ● ●
64 ROD ASM; END,SWING ARM,FAN DRIVE
(B) LH THREAD 		1-09760-007-2 01 1 9001- ● ● ● ●
65 NUT; LK,ADJ LINK,FAN PULLEY
(B) LH THREAD 		9-09840-247-1 01 1 9001- ● ● ● ●
65 NUT; LK,ADJ LINK,FAN PULLEY
(A) RH THREAD 		9-99111-412-0 01 1 9001- ● ● ● ●
80 PLATE; ADJ 1-13674-107-0 01 1 9001- ● ● ● ●
81 PIECE; SLIDING
M12X59 		1-13674-161-0 01 1 9001- ● ● ● ●
82 NUT; ADJ PLATE
M12 		9-99110-412-0 01 1 9001-9705 ● ● ● ●
82 NUT; ADJ PLATE
M12 		9-99110-412-0 01 1 9706- ● ● ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 9001- ● ● ● ●
88 WASHER; PL,ADJ PLATE
(B) ID=12.5 		9-09160-512-0 01 1 9001-9705 ● ● ● ●
88 WASHER; PL,ADJ PLATE
(B) ID=12.5 		9-09160-512-0 01 1 9706- ● ● ●
88 WASHER; PL,ADJ PLATE
(A) ID=12.5 OD=32 		9-09160-712-0 01 1 9001- ● ● ● ●
94 WASHER; LK,ADJ PLATE
ID=12.2 		9-09150-512-0 01 1 9001-9705 ● ● ● ●
94 WASHER; LK,ADJ PLATE
ID=12.2 		9-09150-512-0 01 1 9706- ● ● ●
96 BOLT; ADJ PLATE
M12X45 		9-01931-245-0 01 1 9001-9005 ● ● ●
96 BOLT; ADJ PLATE
M12X45 W/LK WASHER 		0-50051-245-0 01 1 9006-9705 ● ● ● ●
96 BOLT; ADJ PLATE
M12X45 W/LK WASHER 		0-50051-245-0 01 1 9706- ● ● ●
174 SPACER; ADJ PLATE 1-13679-006-0 01 1 9001- ● ● ● ●

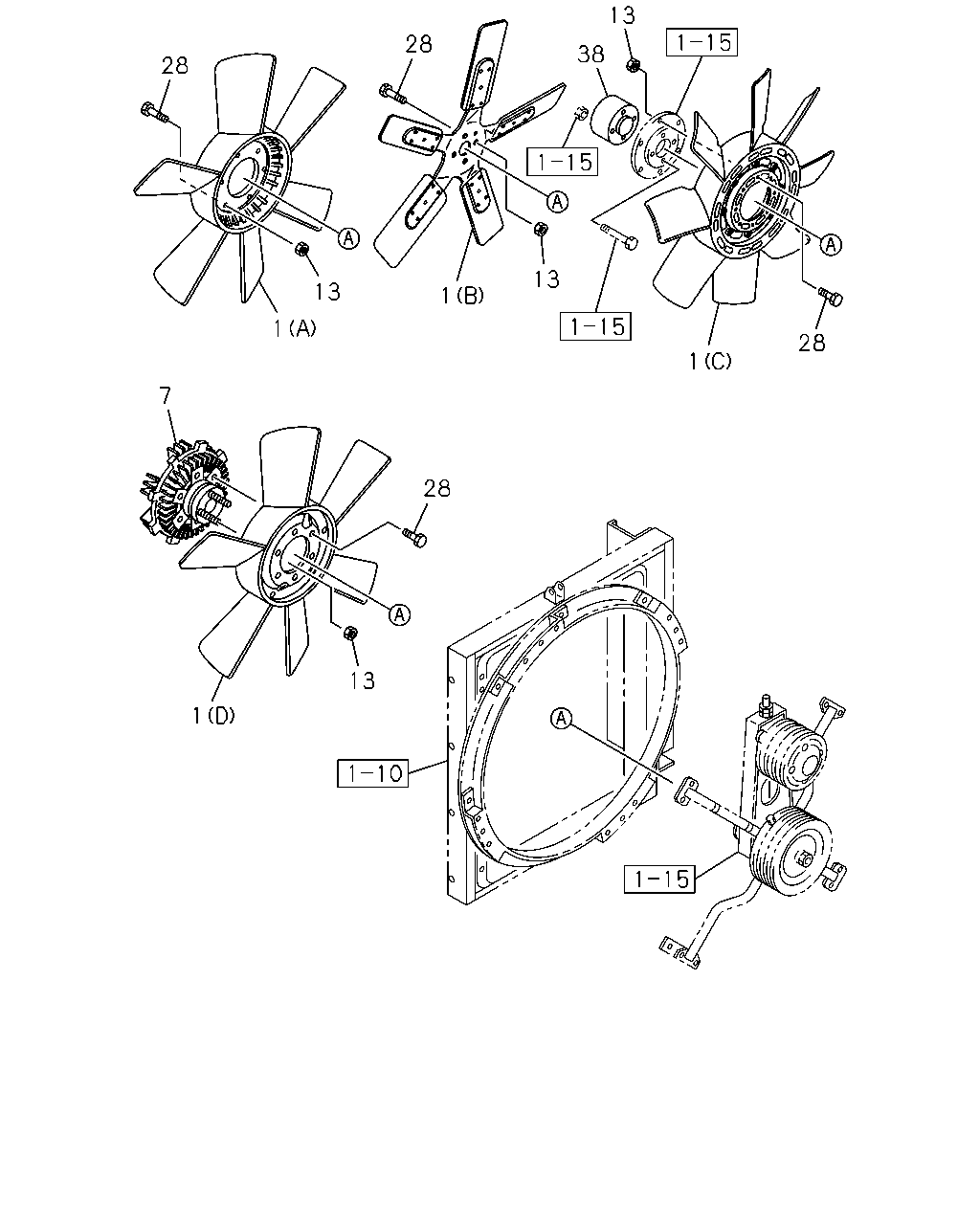

çizim 95358
13 28 38 28 13 13 1 1 28 1 7 28 13 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING
M/T<X9C> RADIATOR HEAVY DUTY(V05) (A) 		1-13660-120-0 01 1 9001-9401 ● ●
1 FAN; COOLING
A/T<X9D> (A) 		1-13660-120-0 01 1 9001-9401 ● ●
1 FAN; COOLING
(A) 		1-13660-120-0 01 1 9001-9401 ●
1 FAN; COOLING
M/T<X9C> RADIATOR HEAVY DUTY(V05) (A) 		1-13660-120-0 01 1 9402- ● ●
1 FAN; COOLING
A/T<X9D> (A) 		1-13660-120-0 01 1 9402- ● ●
1 FAN; COOLING
EXC. FLUID DRIVE FAN<KA3> (A) 		1-13660-120-0 01 1 9402- ●
1 FAN; COOLING
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) (B) 		1-13660-040-0 01 1 9001- ● ●
1 FAN; COOLING
FLUID DRIVE FAN<KA3> (D) 		1-13660-064-0 01 1 9402- ●
1 FAN; COOLING
(C) 		1-13660-156-0 01 1 9101- ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> 		1-21650-034-0 01 1 9402-9404 ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> 		1-21650-189-0 01 1 9405- ●
13 NUT; COOLING FAN
M10 		9-09110-510-0 04 1 9001-9401 ● ● ● ●
13 NUT; COOLING FAN
M10 		9-09110-510-0 04 1 9402-9408 ● ● ●
13 NUT; COOLING FAN
EXC. FLUID DRIVE FAN<KA3> M10 		9-09110-510-0 04 1 9402-9408 ●
13 NUT; COOLING FAN
M10 		9-09110-510-0 04 1 9409-9606 ● ●
13 NUT; COOLING FAN
M10 FLANGE 		0-91150-210-0 04 1 9607- ● ●
13 NUT; COOLING FAN
M10 		9-09110-510-0 06 1 9409-9606 ●
13 NUT; COOLING FAN
M10 FLANGE 		0-91150-210-0 06 1 9607- ●
28 BOLT; COOLING FAN
M10X28 		9-01911-028-0 04 1 9001-9002 ● ● ●
28 BOLT; COOLING FAN
M10X28 W/LK WASHER 		0-50041-028-0 04 1 9003-9401 ● ● ● ●
28 BOLT; COOLING FAN
M10X28 W/LK WASHER 		0-50041-028-0 04 1 9402-9408 ● ● ●
28 BOLT; COOLING FAN
EXC. FLUID DRIVE FAN<KA3> M10X28 W/LK WASHER 		0-50041-028-0 04 1 9402-9408 ●
28 BOLT; COOLING FAN
M10X28 W/LK WASHER 		0-50041-028-0 04 1 9409-9606 ● ●
28 BOLT; COOLING FAN
M10X25 FLANGE 		0-28681-025-0 04 1 9607- ● ●
28 BOLT; COOLING FAN
FLUID DRIVE FAN<KA3> M8X20 W/LK WASHER 		0-50040-820-0 06 1 9402-9606 ●
28 BOLT; COOLING FAN
FLUID DRIVE FAN<KA3> M8X20 FLANGE 		0-28680-820-0 06 1 9607- ●
28 BOLT; COOLING FAN
M10X25 W/LK WASHER 		0-50041-025-0 06 1 9409-9606 ●
28 BOLT; COOLING FAN
M10X25 FLANGE 		0-28681-025-0 06 1 9607- ●
38 SPACER; FAN 1-13669-166-0 01 1 9409- ●
