Isuzu WW
▶
TRUCKS
▶
CHR
▶
10648 - CHR/CJR/CQR
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#2016) — 76 parça
Tümü
A - 6QA1 STD ENG
B - 6RB1 STD ENG
C - 6RA1 STD ENG
D - 6RA1 TC ENG
◀

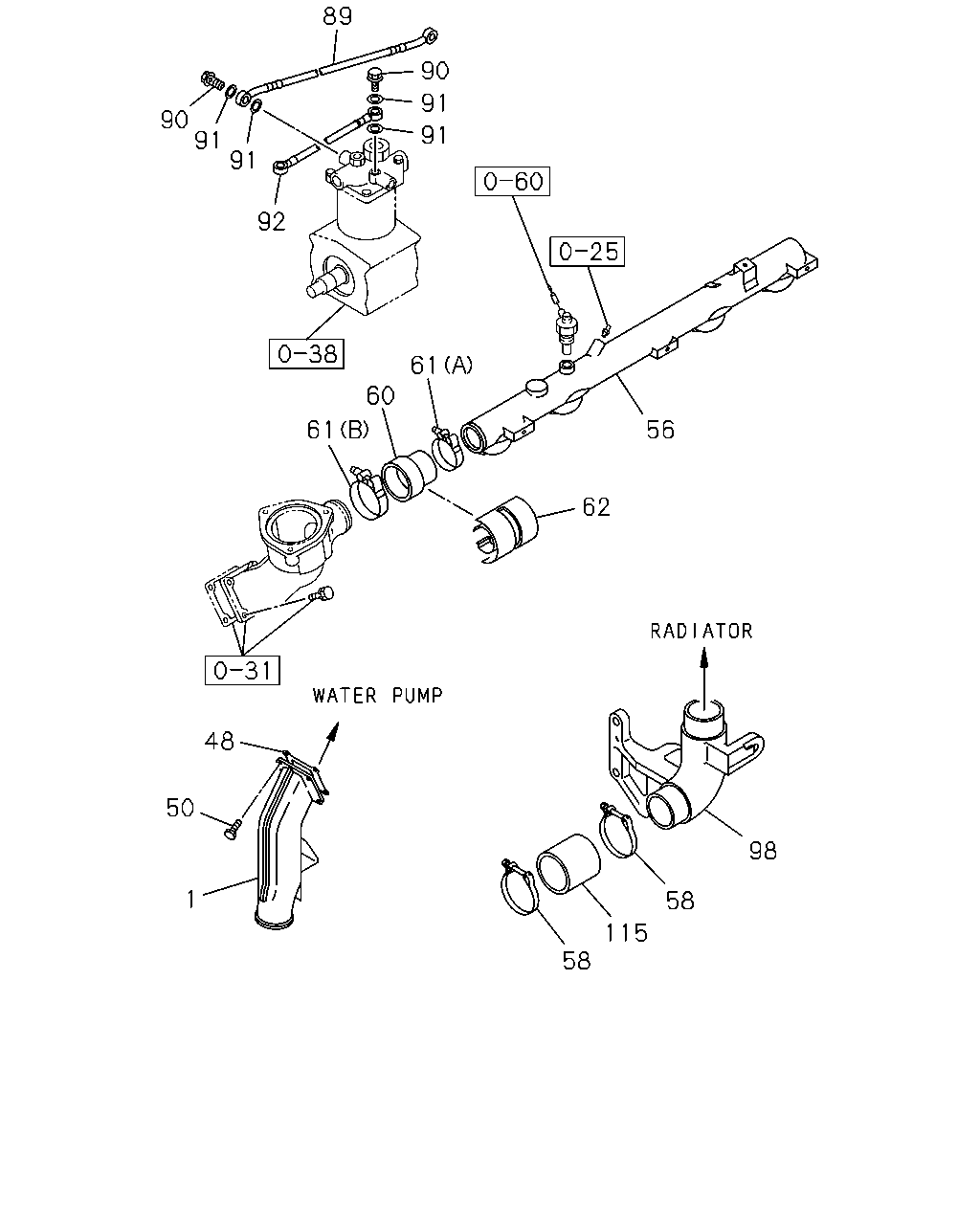

[032A] 6RA1,6RB1 (38 parça)

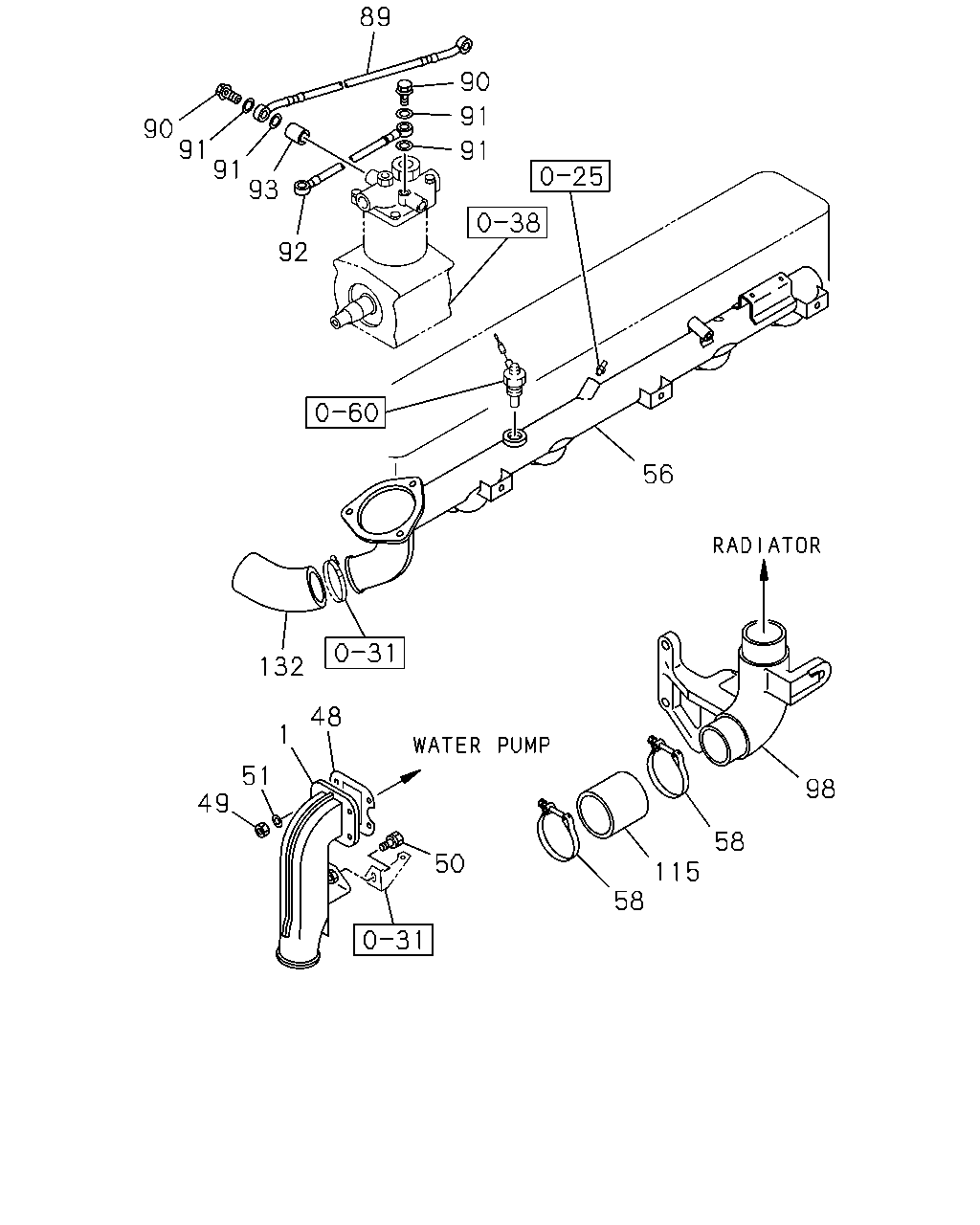

[032A] 6QA1 (38 parça)
▶
89
90
91
90
91
91
91
92
61
60
61
56
62
48
50
98
1
58
115
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PIPE; WATER PUMP,INL
1-13711-255-0
01
1
9001-
●
1
PIPE; WATER PUMP,INL
1-13711-328-0
01
1
9001-9106
●
1
PIPE; WATER PUMP,INL
EXC. COLOMBIA EQUIPMENT(WJ2)
1-13711-328-0
01
1
9001-9106
●
1
PIPE; WATER PUMP,INL
1-13711-328-0
01
1
9107-
●
●
1
PIPE; WATER PUMP,INL
EXC. COLOMBIA EQUIPMENT(WJ2)
1-13711-328-0
01
1
9107-
●
1
PIPE; WATER PUMP,INL
COLOMBIA EQUIPMENT(WJ2)
1-13711-347-0
01
1
9001-
●
1
PIPE; WATER PUMP,INL
1-13711-467-0
01
1
9101-9106
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-007-0
01
1
9001-
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-004-0
01
1
9001-9106
●
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-004-0
01
1
9107-9603
●
●
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-011-0
01
1
9604-
●
●
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-009-0
01
1
9101-9106
●
50
BOLT; WATER PIPE INL
M8X16 W/LK WASHER
9-01910-816-0
01
1
9001-9005
●
50
BOLT; WATER PIPE INL
M8X16 W/LK WASHER
0-50040-816-0
01
1
9006-
●
50
BOLT; WATER PIPE INL
M8X20 W/LK WASHER
9-01910-820-0
04
1
9001-9005
●
●
50
BOLT; WATER PIPE INL
M8X20 W/LK WASHER
0-50040-820-0
04
1
9006-9309
●
●
●
50
BOLT; WATER PIPE INL
TAIWAN EMISSION REGULATION<TAL> M8X20 W/LK WASHER
0-50040-820-0
04
1
9310-
●
50
BOLT; WATER PIPE INL
EXC. TAIWAN EMISSION REGULATION<TAL> M8X22 W/LK&PL WASHER
0-50140-822-0
04
1
9310-
●
50
BOLT; WATER PIPE INL
M8X22 W/LK&PL WASHER
0-50140-822-0
04
1
9310-
●
●
56
PIPE; WATER OUTLET
1-13711-257-0
01
1
9001-
●
56
PIPE; WATER OUTLET
1-13711-260-0
01
1
9001-
●
●
56
PIPE; WATER OUTLET
1-13711-440-0
01
1
9101-
●
58
CLIP; RUBBER HOSE
ID=72
1-09704-068-0
02
1
9001-
●
●
●
●
60
HOSE; OUTLET PIPE TO HSG
1-09360-525-0
01
1
9001-
●
●
●
61
CLIP; HOSE,OUTLET PIPE TO HSG
(A) ID=63
1-09704-067-0
01
1
9001-
●
●
●
61
CLIP; HOSE,OUTLET PIPE TO HSG
(B) ID=70
1-09704-078-0
01
1
9001-
●
●
●
62
PROTECTOR; HEAT,RUB HOSE,OUTLET PIPE
1-14181-156-1
01
1
9001-
●
●
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-166-0
01
1
9001-
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-156-1
01
1
9001-
●
●
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27
1-09675-086-0
03
1
9001-
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X73
1-09675-134-0
01
1
9001-
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27
1-09675-086-0
04
1
9001-
●
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
09
1
9001-
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9001-
●
●
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-182-0
01
1
9001-
●
●
●
●
98
BRACKET; TIE ROD
1-13676-037-0
01
1
9001-
●
●
●
●
98
BRACKET; TIE ROD
1-13676-064-0
01
1
9101-9106
●
115
HOSE; RUBBER
1-09360-732-0
01
1
9001-
●
●
●
●
89
90
91
90
91
91
93
91
92
56
132
48
1
51
98
49
58
50
115
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PIPE; WATER PUMP,INL
1-13711-255-0
01
1
9001-
●
1
PIPE; WATER PUMP,INL
1-13711-328-0
01
1
9001-9106
●
1
PIPE; WATER PUMP,INL
EXC. COLOMBIA EQUIPMENT(WJ2)
1-13711-328-0
01
1
9001-9106
●
1
PIPE; WATER PUMP,INL
1-13711-328-0
01
1
9107-
●
●
1
PIPE; WATER PUMP,INL
EXC. COLOMBIA EQUIPMENT(WJ2)
1-13711-328-0
01
1
9107-
●
1
PIPE; WATER PUMP,INL
COLOMBIA EQUIPMENT(WJ2)
1-13711-347-0
01
1
9001-
●
1
PIPE; WATER PUMP,INL
1-13711-467-0
01
1
9101-9106
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-007-0
01
1
9001-
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-004-0
01
1
9001-9106
●
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-004-0
01
1
9107-9603
●
●
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-011-0
01
1
9604-
●
●
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13741-009-0
01
1
9101-9106
●
49
NUT; WATER PIPE
M8
9-09110-408-0
04
1
9001-
●
50
BOLT; WATER PIPE INL
M8X16 W/LK WASHER
9-01910-816-0
01
1
9001-9005
●
50
BOLT; WATER PIPE INL
M8X16 W/LK WASHER
0-50040-816-0
01
1
9006-
●
50
BOLT; WATER PIPE INL
M8X20 W/LK WASHER
9-01910-820-0
04
1
9001-9005
●
●
50
BOLT; WATER PIPE INL
M8X20 W/LK WASHER
0-50040-820-0
04
1
9006-9309
●
●
●
50
BOLT; WATER PIPE INL
TAIWAN EMISSION REGULATION<TAL> M8X20 W/LK WASHER
0-50040-820-0
04
1
9310-
●
50
BOLT; WATER PIPE INL
EXC. TAIWAN EMISSION REGULATION<TAL> M8X22 W/LK&PL WASHER
0-50140-822-0
04
1
9310-
●
50
BOLT; WATER PIPE INL
M8X22 W/LK&PL WASHER
0-50140-822-0
04
1
9310-
●
●
51
WASHER; LK,PIPE
ID=8.2
9-09150-508-0
04
1
9001-
●
56
PIPE; WATER OUTLET
1-13711-257-0
01
1
9001-
●
56
PIPE; WATER OUTLET
1-13711-260-0
01
1
9001-
●
●
56
PIPE; WATER OUTLET
1-13711-440-0
01
1
9101-
●
58
CLIP; RUBBER HOSE
ID=72
1-09704-068-0
02
1
9001-
●
●
●
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-166-0
01
1
9001-
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-156-1
01
1
9001-
●
●
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27
1-09675-086-0
03
1
9001-
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X73
1-09675-134-0
01
1
9001-
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27
1-09675-086-0
04
1
9001-
●
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
09
1
9001-
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9001-
●
●
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-182-0
01
1
9001-
●
●
●
●
93
COLLAR; DIST,WATER PIPE
1-13634-022-0
01
1
9001-
●
98
BRACKET; TIE ROD
1-13676-037-0
01
1
9001-
●
●
●
●
98
BRACKET; TIE ROD
1-13676-064-0
01
1
9101-9106
●
115
HOSE; RUBBER
1-09360-732-0
01
1
9001-
●
●
●
●
132
HOSE; WATER PIPE
1-09360-526-0
01
1
9001-
●
