Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11393 - FVZ(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

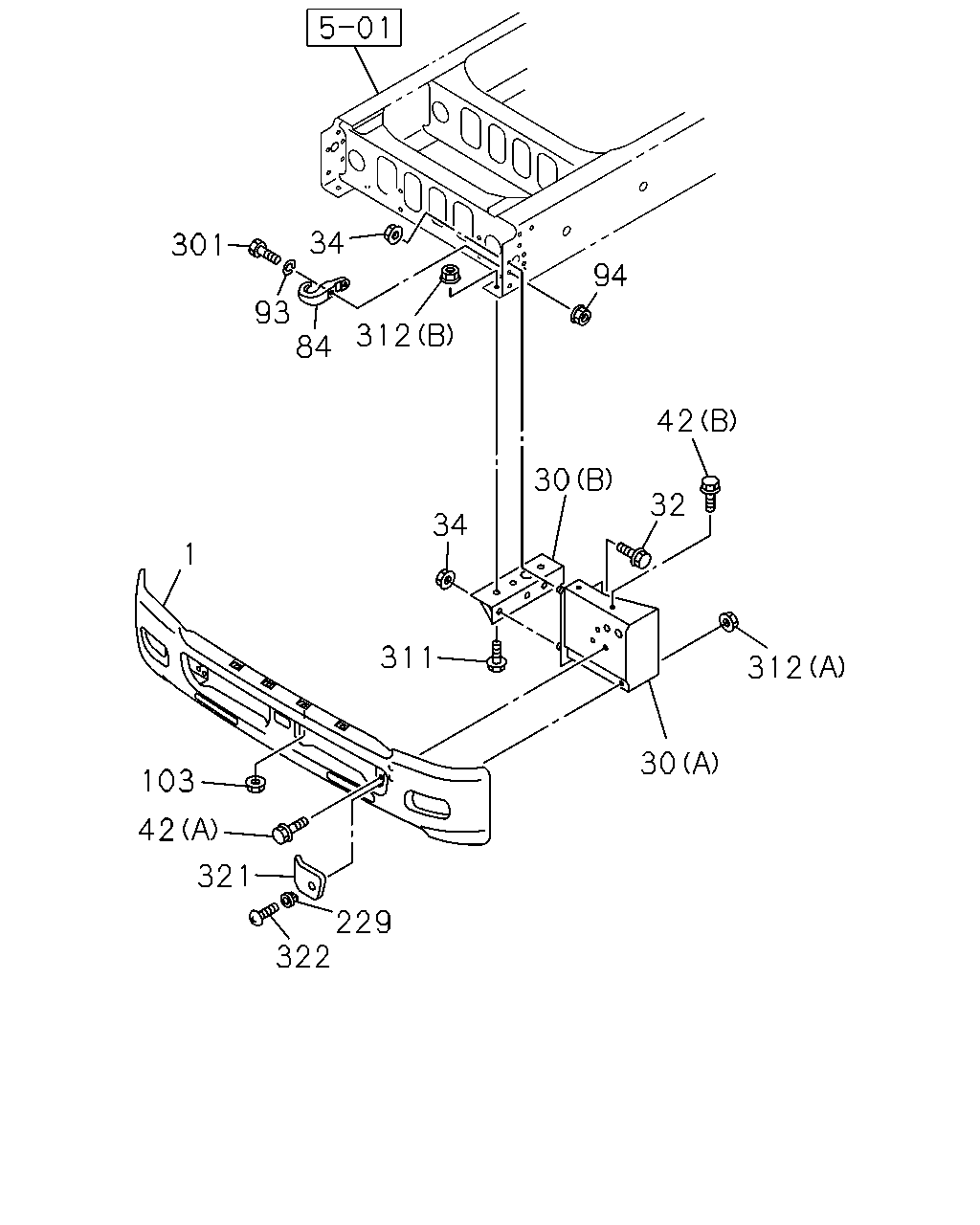

6-01 — FRONT BUMPER
(#20155) — 23 parça
322
229
30
312
311
34
30
42
32
103
1
42
321
84
93
301
34
312
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE IDN
8-97407-730-3
01
1
1104-1212
1
BUMPER ASM; FRT
WHITE
8-97425-754-0
01
1
1301-
30
BRACKET; FRT BUMPER
(A) IDN
8-98177-903-0
01
1
1104-
30
BRACKET; FRT BUMPER
(B) IDN
8-98179-463-0
01
1
1104-
30
BRACKET; FRT BUMPER
(A) IDN
8-98177-902-0
01
1
1104-
30
BRACKET; FRT BUMPER
(B) IDN
8-98179-462-0
01
1
1104-
32
BOLT; BRKT,BUMPER
M12X40 FLANGE
0-28651-240-0
02
1
1104-
34
NUT; BRKT,BUMPER
M12 FLANGE
0-91180-212-0
08
1
1104-
42
BOLT; BUMPER
(A) M10X30
8-94324-205-0
06
1
1104-
42
BOLT; BUMPER
(B) M6X16 FLANGE
8-98098-459-0
04
1
1104-
84
HOOK
1-57181-027-1
01
1
1104-
93
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
1104-
94
NUT; HOOK
M16
0-91110-516-0
02
1
1104-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1104-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1104-
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
02
1
1104-1204
301
BOLT; HOOK TO FRAME
M16X70
0-10961-670-0
02
1
1205-
311
BOLT; BRKT
M14X45 FLANGE
0-28851-445-0
06
1
1104-
312
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1104-
312
NUT; BRKT
(B) M14 FLANGE
0-91180-214-0
06
1
1104-
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
1104-
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
1104-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1104-
