5-01 — FRAME AND OTHER PARTS (#20150) — 86 parça

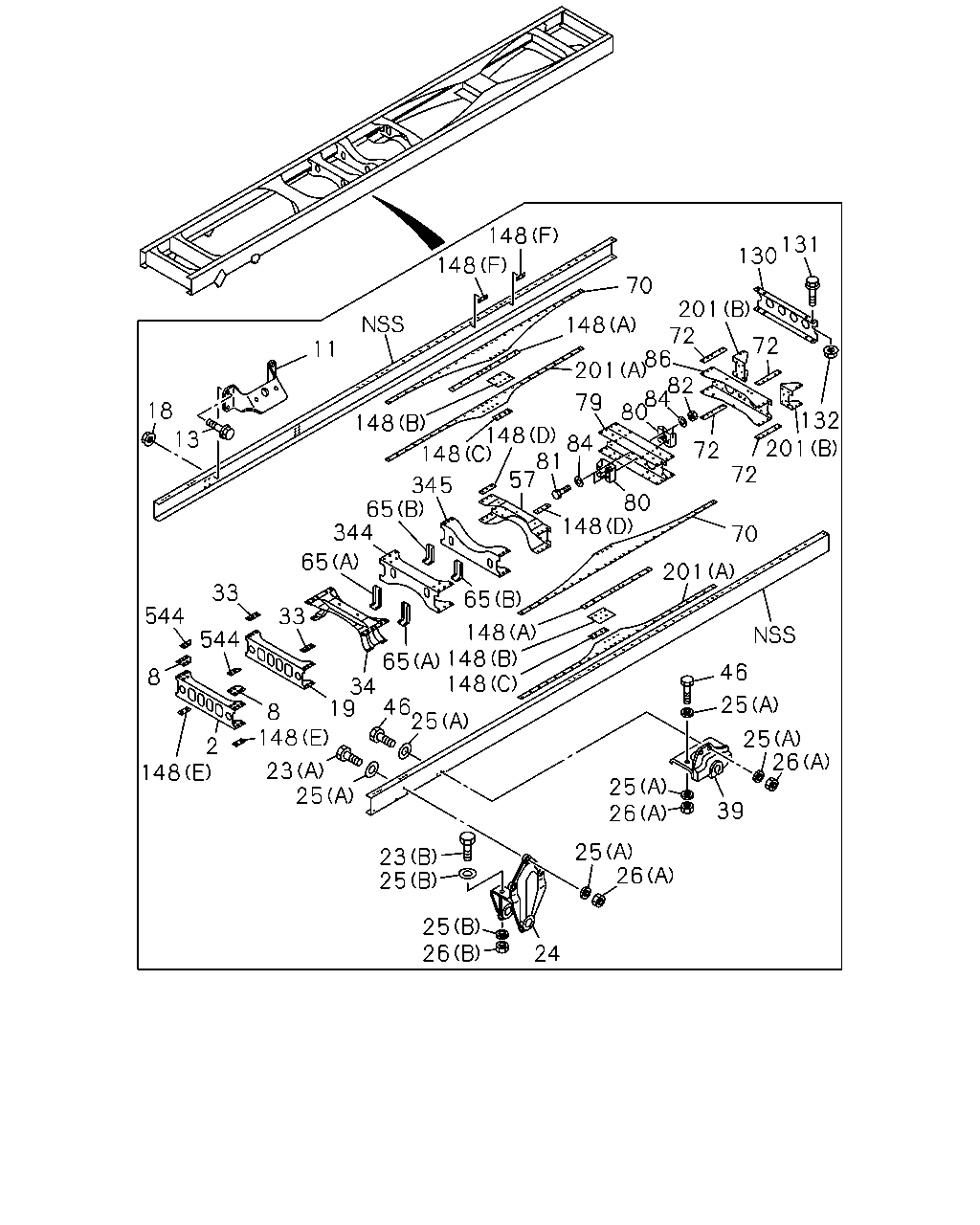

çizim 108359
26 25 25 23 26 25 26 25 46 25 25 26 201 72 70 72 201 25 148 23 148 8 2 544 33 33 544 65 344 65 345 148 148 65 34 19 8 46 25 148 65 148 148 148 201 48 70 130 131 201 72 86 72 132 82 80 84 80 148 57 81 84 79 24 148 148 11 18 13 39
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST
IDN 		8-97610-852-6 01 1 1104-1309 ●
2 MEMBER; CROSS,1ST
IDN 		8-97610-852-7 01 1 1310- ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1104-1309 ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1310- ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1104-1309 ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1310- ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 1104-1309 ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 1310- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1104-1309 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1310- ● ●
19 MEMBER; CROSS,2ND
IDN 		8-97610-853-4 01 1 1104-1309 ●
19 MEMBER; CROSS,2ND
IDN 		8-97610-853-5 01 1 1310- ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1104-1309 ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1310- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1104-1309 ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1310- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1104-1309 ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1310- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1104-1309 ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1310- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1104-1309 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1310- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1104-1309 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1310- ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1104-1309 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1310- ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1104-1309 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1310- ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1104-1309 ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1310- ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1104-1309 ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1310- ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1104-1309 ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1310- ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1104-1309 ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1310- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1104-1309 ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1310- ● ●
57 MEMBER; CROSS,RR SUSP FRT
IDN 		8-97612-103-1 01 1 1104-1309 ●
57 MEMBER; CROSS,RR SUSP FRT
IDN 		8-97612-103-1 01 1 1310- ● ●
65 BRACKET; CENTER BRG
(B) 		8-97614-132-0 02 1 1310- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-150-0 02 1 1310- ●
70 GUSSET; TRUNNION,UPR
IDN 		8-97612-106-0 02 1 1104-1309 ●
70 GUSSET; TRUNNION,UPR
IDN 		8-97612-106-0 02 1 1310- ● ●
72 SPACER; TRUNNION 8-97612-110-0 04 1 1104-1309 ●
72 SPACER; TRUNNION 8-97612-110-0 04 1 1310- ● ●
79 MEMBER; CROSS,TRUNNION ASM
IDN 		8-97612-104-0 01 1 1104-1309 ●
79 MEMBER; CROSS,TRUNNION ASM
IDN 		8-97612-104-0 01 1 1310- ● ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 1104-1309 ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 1310- ● ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 1104-1309 ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 1310- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1104-1309 ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1310- ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1104-1309 ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1310- ● ●
86 MEMBER; CROSS,RR SUSP RR
IDN 		8-97612-105-4 01 1 1104-1309 ●
86 MEMBER; CROSS,RR SUSP RR
IDN 		8-97612-105-4 01 1 1310- ● ●
130 MEMBER; CROSS,END
IDN 		8-97610-869-1 01 1 1104-1309 ●
130 MEMBER; CROSS,END
IDN 		8-97610-869-1 01 1 1310- ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1104-1309 ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1310- ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1104-1309 ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1310- ● ●
148 SPACER; C/MBR
(A) 		8-97646-445-0 02 1 1310- ●
148 SPACER; C/MBR
(E) 		8-97611-039-0 02 1 1104-1309 ●
148 SPACER; C/MBR
(E) 		8-97611-039-0 02 1 1310- ● ●
148 SPACER; C/MBR
(D) 		8-97612-109-0 02 1 1104-1309 ●
148 SPACER; C/MBR
(D) 		8-97612-109-0 02 1 1310- ● ●
148 SPACER; C/MBR
(F) 		8-97612-111-0 04 1 1104-1309 ●
148 SPACER; C/MBR
(F) 		8-97612-111-0 04 1 1310- ● ●
148 SPACER; C/MBR
(A) 		8-97612-112-0 02 1 1104- ●
148 SPACER; C/MBR
(B) 		8-97612-113-0 02 1 1104-1309 ●
148 SPACER; C/MBR
(B) 		8-97612-113-0 02 1 1310- ● ●
148 SPACER; C/MBR
(C) 		8-97612-115-0 02 1 1104-1309 ●
148 SPACER; C/MBR
(C) 		8-97612-115-0 02 1 1310- ● ●
201 GUSSET; C/MBR
(A) 		8-97646-267-0 02 1 1310- ●
201 GUSSET; C/MBR
(B) IDN 		8-97612-108-2 02 1 1104-1309 ●
201 GUSSET; C/MBR
(B) IDN 		8-97612-108-2 02 1 1310- ● ●
201 GUSSET; C/MBR
(A) IDN 		8-97618-440-1 01 1 1104- ●
201 GUSSET; C/MBR
(A) IDN 		8-97640-018-2 01 1 1104- ●
344 MEMBER; CROSS,4TH
IDN 		8-97611-238-1 01 1 1104-1309 ●
344 MEMBER; CROSS,4TH
IDN 		8-97611-238-1 01 1 1310- ● ●
345 MEMBER; CROSS,5TH
IDN 		8-97611-238-1 01 1 1310- ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1104-1309 ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1310- ● ●
