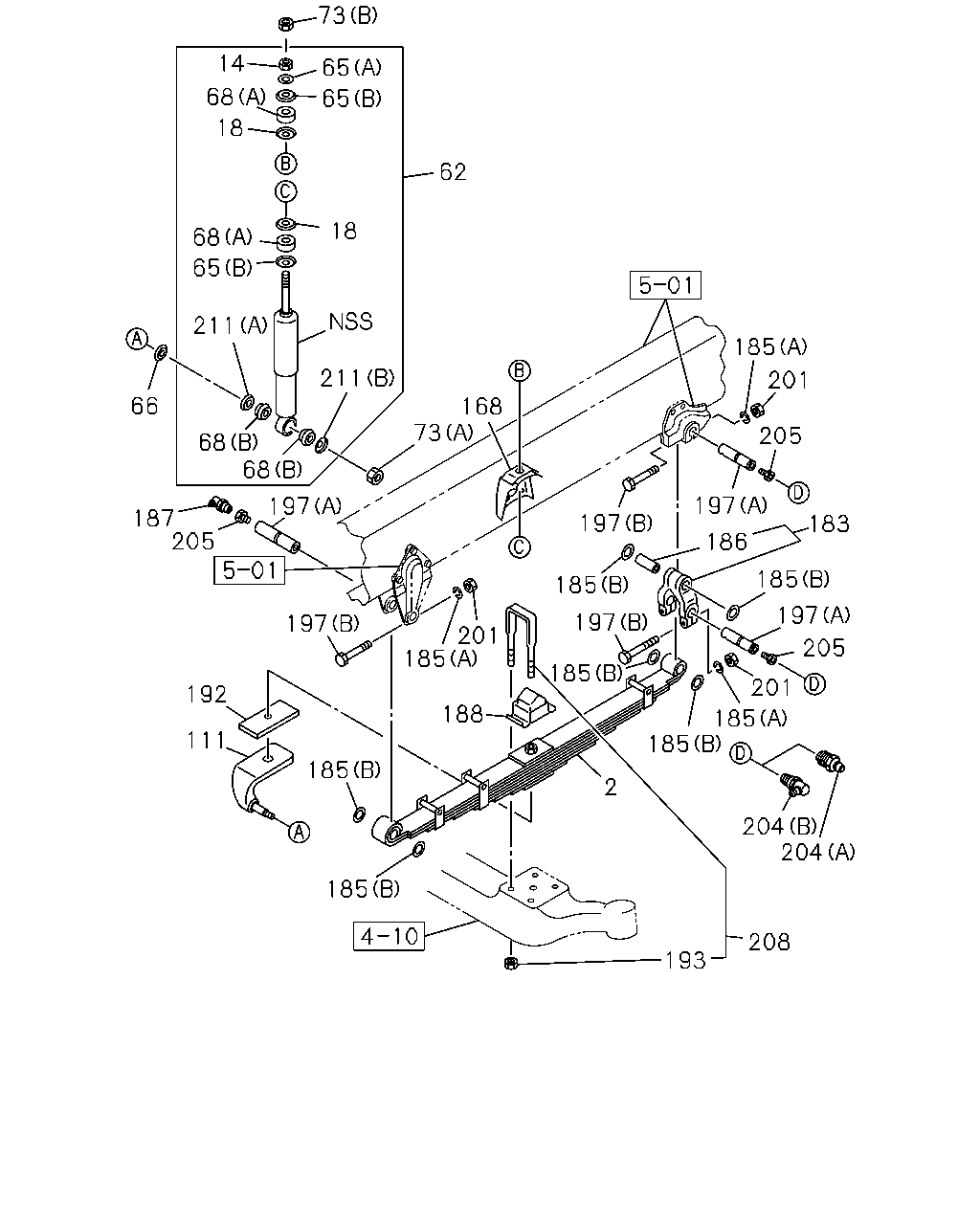

2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
IDN
|
8-98167-308-0 |
02 |
1 |
1104- |
| |
14 |
NUT; S/ABS,UPR
M14
|
9-99111-414-0 |
02 |
1 |
1104- |
| |
18 |
WASHER; CENTERING,S/ABS
ID=24
|
1-51631-067-0 |
04 |
1 |
1104- |
| |
62 |
ABSORBER ASM; SHOCK,FRT
IDN
|
1-51630-512-0 |
02 |
1 |
1104- |
| |
65 |
WASHER; S/ABS
(A)
ID=16.5
|
1-09503-266-0 |
02 |
1 |
1104- |
| |
65 |
WASHER; S/ABS
(B)
ID=16.5
|
1-51631-068-0 |
04 |
1 |
1104- |
| |
66 |
WASHER; LK,S/ABS SETTING
ID=21
|
0-91610-520-0 |
02 |
1 |
1104- |
| |
68 |
BUSHING; S/ABS
(A)
ID=16 T=25
|
1-51631-069-0 |
04 |
1 |
1104- |
| |
68 |
BUSHING; S/ABS
(B)
|
9-51631-026-0 |
04 |
1 |
1104- |
| |
73 |
NUT; BRKT,SHOCK
(A)
M20
|
0-91110-520-0 |
02 |
1 |
1104- |
| |
73 |
NUT; BRKT,SHOCK
(B)
M14
|
0-91111-514-0 |
02 |
1 |
1104- |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
|
8-98121-195-0 |
01 |
1 |
1104- |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
|
8-98121-193-0 |
01 |
1 |
1104- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
ZF9S1110 DD M/T(Y5P)
WHEEL BASE 5300MM(53W)
|
1-51681-616-0 |
02 |
1 |
1104-1108 |
| |
168 |
BRACKET; S/ABS,FRT SUSP
ZF9S1110 DD M/T(Y5P)
WHEEL BASE 5300MM(53W)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51681-616-0 |
02 |
1 |
1109-1201 |
| |
168 |
BRACKET; S/ABS,FRT SUSP
ZF9S1110 DD M/T(Y5P)
WHEEL BASE 5300MM(53W)
|
1-51681-616-0 |
02 |
1 |
1202-1309 |
| |
168 |
BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5300MM(53W)
|
1-51681-616-0 |
02 |
1 |
1310- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
ZF9S1110 DD M/T(Y5P)
WHEEL BASE 7100MM(71W)
|
1-51681-616-0 |
02 |
1 |
1310- |
| |
183 |
SHACKLE; FRT SUSP
|
1-51162-029-5 |
02 |
1 |
1104- |
| |
185 |
WASHER; LK,PIN
(B)
ID=32.4
|
1-51169-018-0 |
12 |
1 |
1104- |
| |
185 |
WASHER; LK,PIN
(A)
ID=12.2
|
8-98179-315-0 |
12 |
1 |
1104- |
| |
186 |
BUSHING; SHACKLE
OD=38
|
8-98081-829-0 |
02 |
1 |
1104- |
| |
187 |
NIPPLE; GREASE,FRT
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
1104- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
IDN
|
1-51172-125-1 |
02 |
1 |
1104- |
| |
192 |
PIECE; DIST
80X144 ID=17.5
|
1-51177-284-1 |
AR |
1 |
1104- |
| |
193 |
NUT; U BOLT
M22
|
8-98179-318-0 |
08 |
1 |
1104- |
| |
197 |
PIN; FRT SPR,FRT
(B)
M12X80
|
0-10856-280-0 |
12 |
1 |
1104- |
| |
197 |
PIN; FRT SPR,FRT
(A)
|
1-51161-031-0 |
06 |
1 |
1104- |
| |
201 |
NUT; PIN LK
M12
|
0-91110-512-0 |
12 |
1 |
1104- |
| |
204 |
NIPPLE; GREASE,RR
(A)
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
1104- |
| |
204 |
NIPPLE; GREASE,RR
(B)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
02 |
1 |
1104- |
| |
205 |
ATTACHMENT; GREASE NIPPLE
|
9-43165-001-0 |
06 |
1 |
1104- |
| |
208 |
U-BOLT SET; FRT SPRING
L=230
|
1-87870-493-0 |
04 |
1 |
1104- |
| |
211 |
WASHER; BRKT,SHOCK
(A)
ID=27
|
9-51631-027-0 |
02 |
1 |
1104- |
| |
211 |
WASHER; BRKT,SHOCK
(B)
ID=21
|
9-51631-028-0 |
02 |
1 |
1104- |
