◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11393 - FVZ(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#20134) — 219 parça

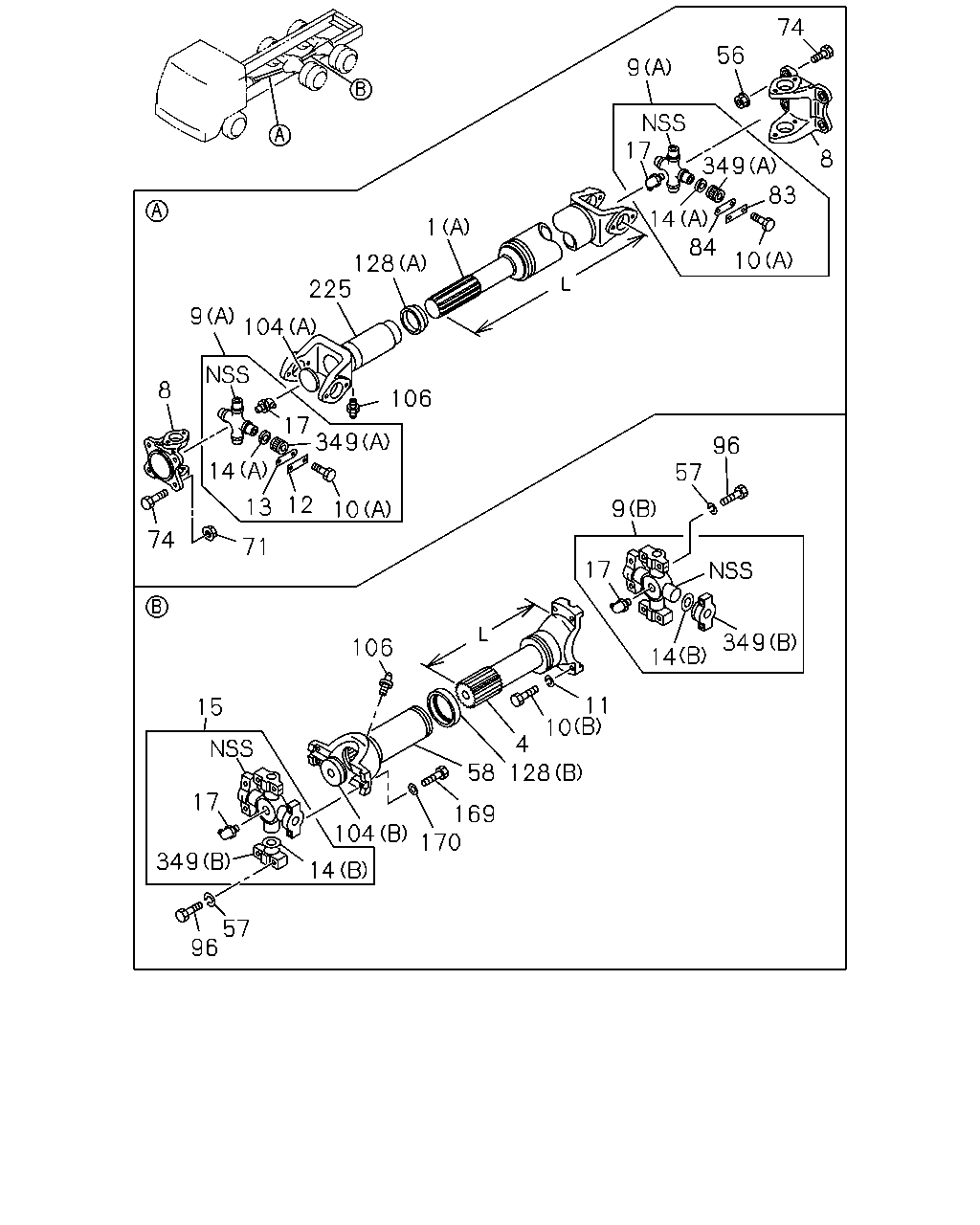

çizim 108328
9 104 225 128 1 106 17 349 10 12 13 14 8 74 71 15 17 349 96 57 14 104 170 169 58 128 4 10 11 14 349 17 57 9 96 106 9 17 14 84 10 83 349 8 74 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (A) L=1482 		1-37124-132-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=1002 		8-98239-156-0 01 1 1310- ●
1 SHAFT; PROP
(B) L=1172 		1-37124-182-0 01 1 1310- ●
1 SHAFT; PROP
(D) L=902 		8-98239-158-0 01 1 1310- ●
1 SHAFT; PROP
ZF9S1110 DD M/T(Y5P) (A) L=1407 		1-37124-233-0 01 1 1104- ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1104- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1310- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1104-1309 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1104-1309 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1310- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1104- ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1310- ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1104-1309 ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 1310- ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 1310- ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1104- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1104- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1104-1309 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1104-1309 ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1310- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1104-1309 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1310- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1310- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1104- ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1104- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1104-1309 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1104-1309 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1104-1309 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1310- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1310- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1104- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1104- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1104- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1104-1309 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1310- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) M16X48 		1-09000-383-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1310- ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1104-1309 ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1104-1309 ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1104- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1104- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1104-1309 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1310- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1104-1309 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1104-1309 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1310- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1310- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1104-1309 ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1310- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1104- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1104- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1104- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1104-1309 ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1310- ● ●
349 BEARING; FRT UJT,PROP SHAFT
(A) 		1-09811-375-0 08 1 1104-1309 ●
349 BEARING; FRT UJT,PROP SHAFT
(A) 		1-09811-375-0 08 1 1310- ● ●
349 BEARING; FRT UJT,PROP SHAFT
(A) 		1-09811-375-0 08 1 1310- ●
349 BEARING; FRT UJT,PROP SHAFT
(B) 		1-09811-403-0 08 1 1104-1309 ●
349 BEARING; FRT UJT,PROP SHAFT
(B) 		1-09811-403-0 08 1 1310- ● ●

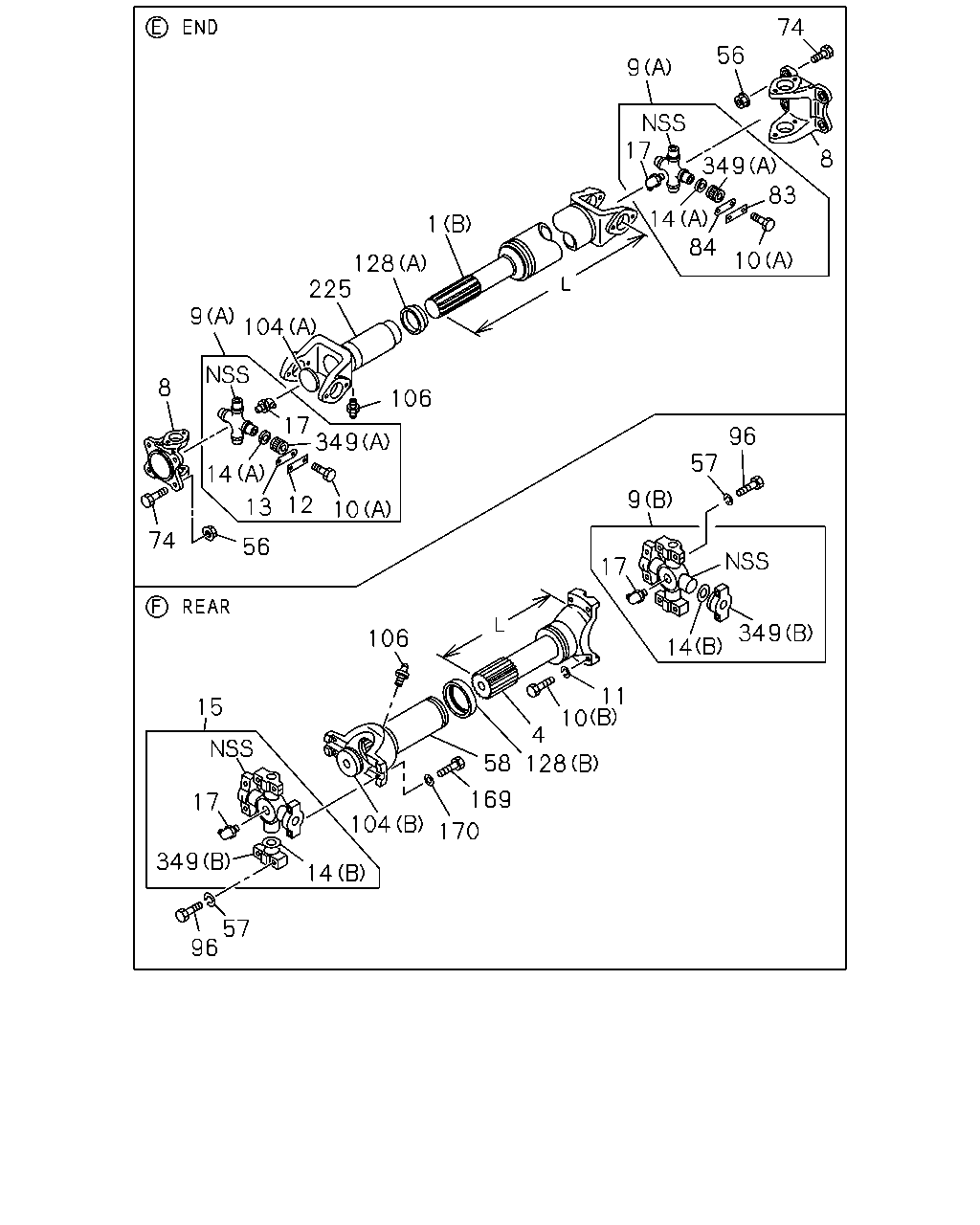

çizim 381777
9 225 128 1 106 349 12 10 13 56 14 8 74 17 57 96 9 17 14 10 4 128 11 58 106 104 15 17 349 14 170 83 84 349 14 17 56 74 8 169 349 57 96 104 10 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (A) L=1482 		1-37124-132-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=1002 		8-98239-156-0 01 1 1310- ●
1 SHAFT; PROP
(B) L=1172 		1-37124-182-0 01 1 1310- ●
1 SHAFT; PROP
(D) L=902 		8-98239-158-0 01 1 1310- ●
1 SHAFT; PROP
ZF9S1110 DD M/T(Y5P) (A) L=1407 		1-37124-233-0 01 1 1104- ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1104- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1310- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1104-1309 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1104-1309 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1310- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1104- ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1310- ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1104-1309 ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 1310- ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 1310- ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1104- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1104- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1104-1309 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1104-1309 ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1310- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1104-1309 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1310- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1310- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1104- ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1104- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1104-1309 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1104-1309 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1104-1309 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1310- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1310- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1104- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1104- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1104-1309 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1310- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) M16X48 		1-09000-383-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1310- ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1104-1309 ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1104-1309 ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1104- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1104- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1104-1309 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1310- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1104-1309 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1104-1309 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1310- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1310- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1104-1309 ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1310- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1104- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1104- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1104- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1104-1309 ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1310- ● ●
349 BEARING; FRT UJT,PROP SHAFT
(A) 		1-09811-375-0 08 1 1104-1309 ●
349 BEARING; FRT UJT,PROP SHAFT
(A) 		1-09811-375-0 08 1 1310- ● ●
349 BEARING; FRT UJT,PROP SHAFT
(A) 		1-09811-375-0 08 1 1310- ●
349 BEARING; FRT UJT,PROP SHAFT
(B) 		1-09811-403-0 08 1 1104-1309 ●
349 BEARING; FRT UJT,PROP SHAFT
(B) 		1-09811-403-0 08 1 1310- ● ●

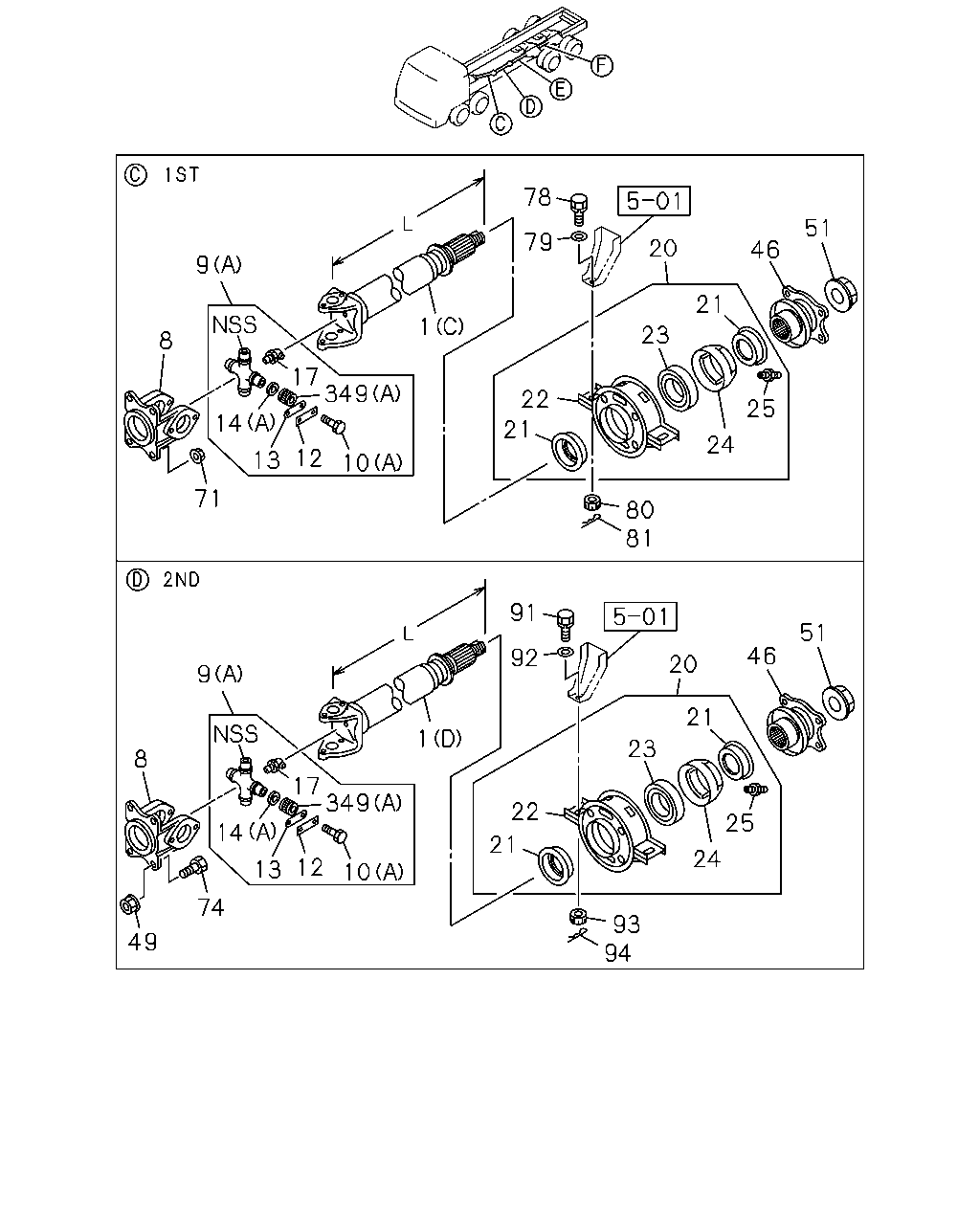

çizim 381819
9 1 78 79 20 46 51 21 23 25 24 80 21 22 81 91 92 20 51 46 21 25 24 23 22 93 94 21 1 349 10 12 17 13 74 49 9 8 17 14 349 12 13 71 10 14 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (A) L=1482 		1-37124-132-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=1002 		8-98239-156-0 01 1 1310- ●
1 SHAFT; PROP
(B) L=1172 		1-37124-182-0 01 1 1310- ●
1 SHAFT; PROP
(D) L=902 		8-98239-158-0 01 1 1310- ●
1 SHAFT; PROP
ZF9S1110 DD M/T(Y5P) (A) L=1407 		1-37124-233-0 01 1 1104- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1310- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1104-1309 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1104-1309 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1310- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1104- ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1310- ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1104-1309 ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 1310- ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 1310- ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1104- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1104-1309 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1310- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1104-1309 ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1310- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1310- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1104-1309 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1310- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1310- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1104- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1104-1309 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1104-1309 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 1310- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 1310- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1310- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1310- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1104- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1104-1309 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1310- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) M16X48 		1-09000-383-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1310- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1310- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1310- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1310- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1310- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1310- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1310- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1310- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1310- ●
349 BEARING; FRT UJT,PROP SHAFT
(A) 		1-09811-375-0 08 1 1104-1309 ●
349 BEARING; FRT UJT,PROP SHAFT
(A) 		1-09811-375-0 08 1 1310- ● ●
349 BEARING; FRT UJT,PROP SHAFT
(A) 		1-09811-375-0 08 1 1310- ●
349 BEARING; FRT UJT,PROP SHAFT
(B) 		1-09811-403-0 08 1 1104-1309 ●
349 BEARING; FRT UJT,PROP SHAFT
(B) 		1-09811-403-0 08 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
