Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11393 - FVZ(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#20132) — 14 parça
◀
[377A] NO.2 (11 parça)
[377A] NO.1 (3 parça)
▶
192
100
74
325
192
223
297
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
74
ADAPTER; UNION TO NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1104-
100
NUT; UNION
M12 FLANGE IDN
0-91180-112-0
01
1
1104-
192
TUBE; NYLON
WHEEL BASE 7100MM(71W) SERVICED BY L=6000 OD=8
1-87411-008-0
01
1
1310-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
1104-1303
192
TUBE; NYLON
WHEEL BASE 5300MM(53W) SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
1304-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
01
1
1104-
223
TUBE; CORRUGATE
WHEEL BASE 7100MM(71W) SERVICED BY L=6000 ID=10
1-87411-021-0
01
1
1310-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=10
1-87411-020-0
01
1
1104-1303
223
TUBE; CORRUGATE
WHEEL BASE 5300MM(53W) SERVICED BY L=4000 ID=10
1-87411-020-0
01
1
1304-
297
CLIP; BAND
FULLER ES11109 DD M/T(Y5N) L=350
1-09707-183-0
03
1
1310-
325
UNION; 2WAY
M12 2WAY
1-09654-059-2
01
1
1104-

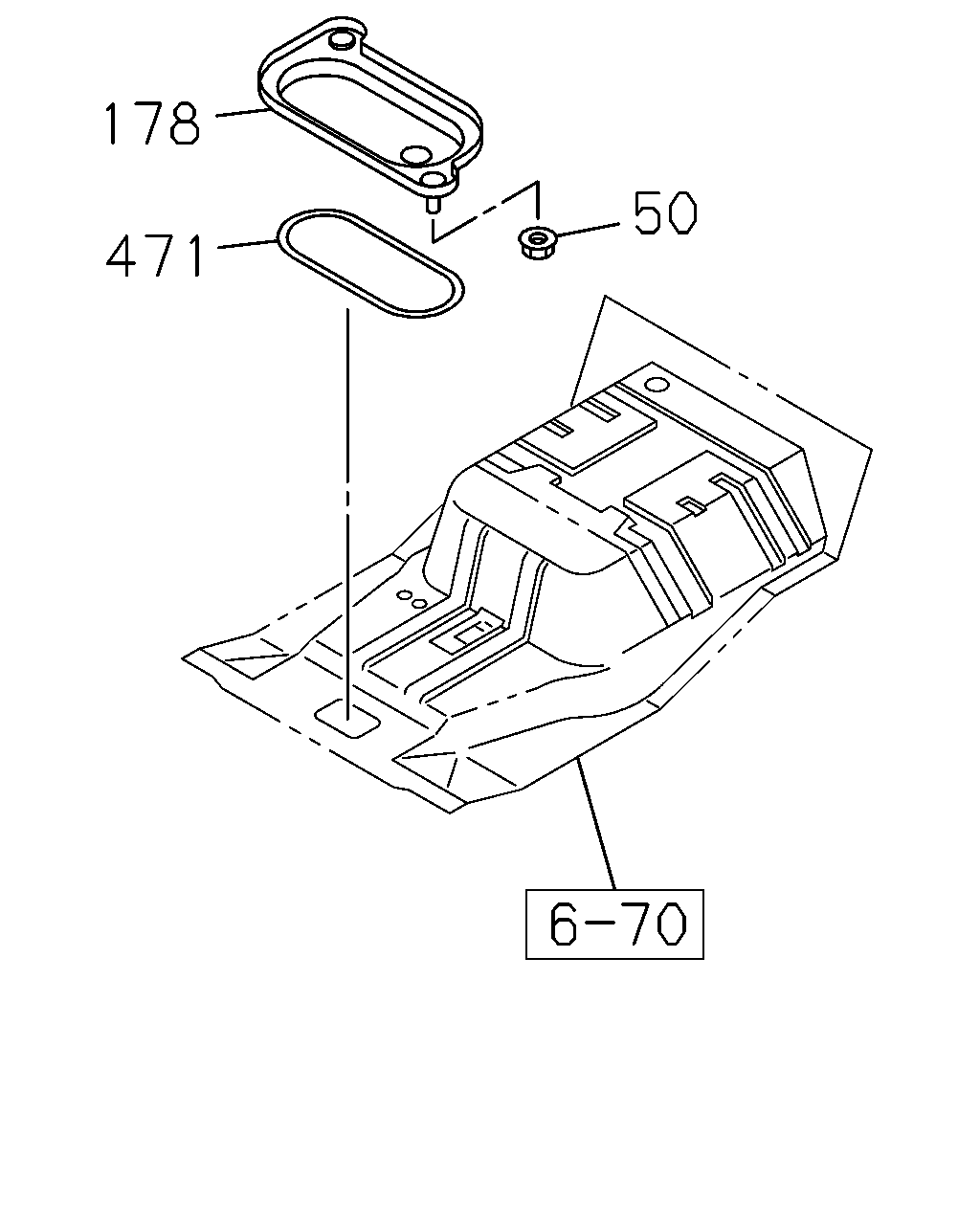

178
50
471
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
1104-
178
BRACKET; UNION
8-98017-052-1
01
1
1104-
471
SEAL; BRKT
1-79738-832-0
01
1
1104-
