0-28 — VENTILATION SYSTEM (#2013) — 45 parça

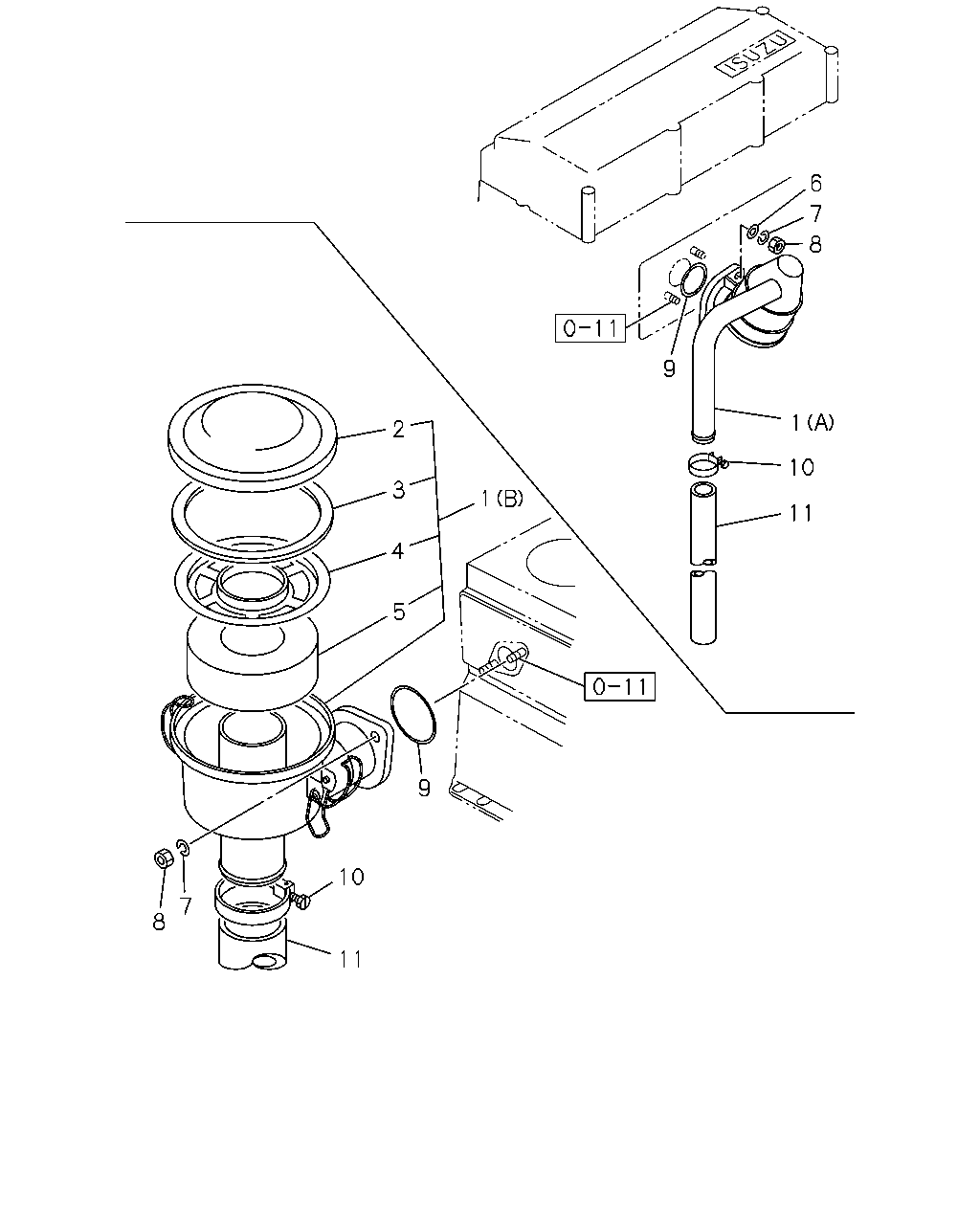

çizim 94525
6 7 8 9 1 2 10 3 1 11 4 5 9 10 7 8 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BREATHER; AIR
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A) 		9-11740-298-3 01 1 9001-9204 ●
1 BREATHER; AIR
(A) 		9-11740-298-3 01 1 9001-9204 ●
1 BREATHER; AIR
(A) 		9-11740-298-3 01 1 9205- ●
1 BREATHER; AIR
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) 		1-11740-096-1 01 1 9001-9204 ●
1 BREATHER; AIR
(B) 		1-11740-096-1 01 1 9001-9204 ● ●
1 BREATHER; AIR
(B) 		1-11740-096-1 01 1 9205-9304 ● ● ●
1 BREATHER; AIR
(B) 		1-11740-096-1 01 1 9305- ● ●
1 BREATHER; AIR
EXC. TAIWAN EMISSION REGULATION<TAL> (B) 		1-11740-096-1 01 1 9305- ●
1 BREATHER; AIR
TAIWAN EMISSION REGULATION<TAL> (B) 		1-11740-154-0 01 1 9305- ●
2 CAP; AIR BREATHER BODY
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-11746-025-0 01 1 9001-9204 ●
2 CAP; AIR BREATHER BODY 9-11746-025-0 01 1 9001-9204 ● ●
2 CAP; AIR BREATHER BODY 9-11746-025-0 01 1 9205- ● ● ●
3 GASKET; BODY TO CAP 9-09921-240-0 01 1 9001-9304 ● ● ●
3 GASKET; BODY TO CAP 9-09921-240-0 01 1 9305- ● ●
3 GASKET; BODY TO CAP
EXC. TAIWAN EMISSION REGULATION<TAL> 		9-09921-240-0 01 1 9305- ●
3 GASKET; BODY TO CAP
TAIWAN EMISSION REGULATION<TAL> 		1-09630-100-0 01 1 9305- ●
4 RETAINER; ELEMENT 9-11746-028-0 01 1 9001- ● ● ●
5 ELEMENT; BRASS WOOL
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-11745-061-0 01 1 9001-9204 ●
5 ELEMENT; BRASS WOOL 9-11745-061-0 01 1 9001-9204 ● ●
5 ELEMENT; BRASS WOOL 9-11745-061-0 01 1 9205- ● ● ●
6 WASHER; BREATHER
ID=8.4 		9-09160-508-0 02 1 9101- ●
7 WASHER; LK,BREATHER
ID=8.2 		9-09150-508-0 02 1 9001- ● ● ● ●
8 NUT; BREATHER
M8 		9-09110-408-0 02 1 9001- ● ● ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=38.7 		1-09623-299-0 01 1 9001-9204 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3). ID=48 		9-09920-647-0 01 1 9001-9003 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48 		9-09920-647-0 01 1 9001-9003 ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3). ID=47.7 		1-09623-465-0 01 1 9004-9204 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7 		1-09623-465-0 01 1 9004-9204 ● ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7 		1-09623-465-0 01 1 9205- ● ● ● ●
10 CLIP; AIR BREATHER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=32 		9-09915-005-1 01 1 9001-9204 ●
10 CLIP; AIR BREATHER
ID=32 		9-09915-005-1 01 1 9001-9204 ●
10 CLIP; AIR BREATHER
ID=32 		9-09915-005-1 01 1 9205- ●
10 CLIP; AIR BREATHER
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) D=50 BAND 		1-09707-046-0 01 1 9001-9204 ●
10 CLIP; AIR BREATHER
D=50 BAND 		1-09707-046-0 01 1 9001-9204 ● ●
10 CLIP; AIR BREATHER
D=50 BAND 		1-09707-046-0 01 1 9205- ● ● ●
11 HOSE; RUBBER,AIR
A/T<X9D> L=700 		1-09360-455-0 01 1 9001- ●
11 HOSE; RUBBER,AIR
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=25 L=660 		0-02825-660-0 01 1 9001-9204 ●
11 HOSE; RUBBER,AIR
ID=25 L=660 		0-02825-660-0 01 1 9001-9204 ●
11 HOSE; RUBBER,AIR
ID=25 L=660 		0-02825-660-0 01 1 9205- ●
11 HOSE; RUBBER,AIR
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=520 		1-09360-454-1 01 1 9001-9204 ●
11 HOSE; RUBBER,AIR
L=520 		1-09360-454-1 01 1 9001-9204 ● ●
11 HOSE; RUBBER,AIR
M/T<X9C> L=520 		1-09360-454-1 01 1 9205-9409 ●
11 HOSE; RUBBER,AIR
L=520 		1-09360-454-1 01 1 9205-9409 ● ●
11 HOSE; RUBBER,AIR
M/T<X9C> L=520 		0-02840-520-0 01 1 9410- ●
11 HOSE; RUBBER,AIR
L=520 		0-02840-520-0 01 1 9410- ● ●
