3-55 — BRAKE PIPING; OIL,REAR (#20128) — 24 parça

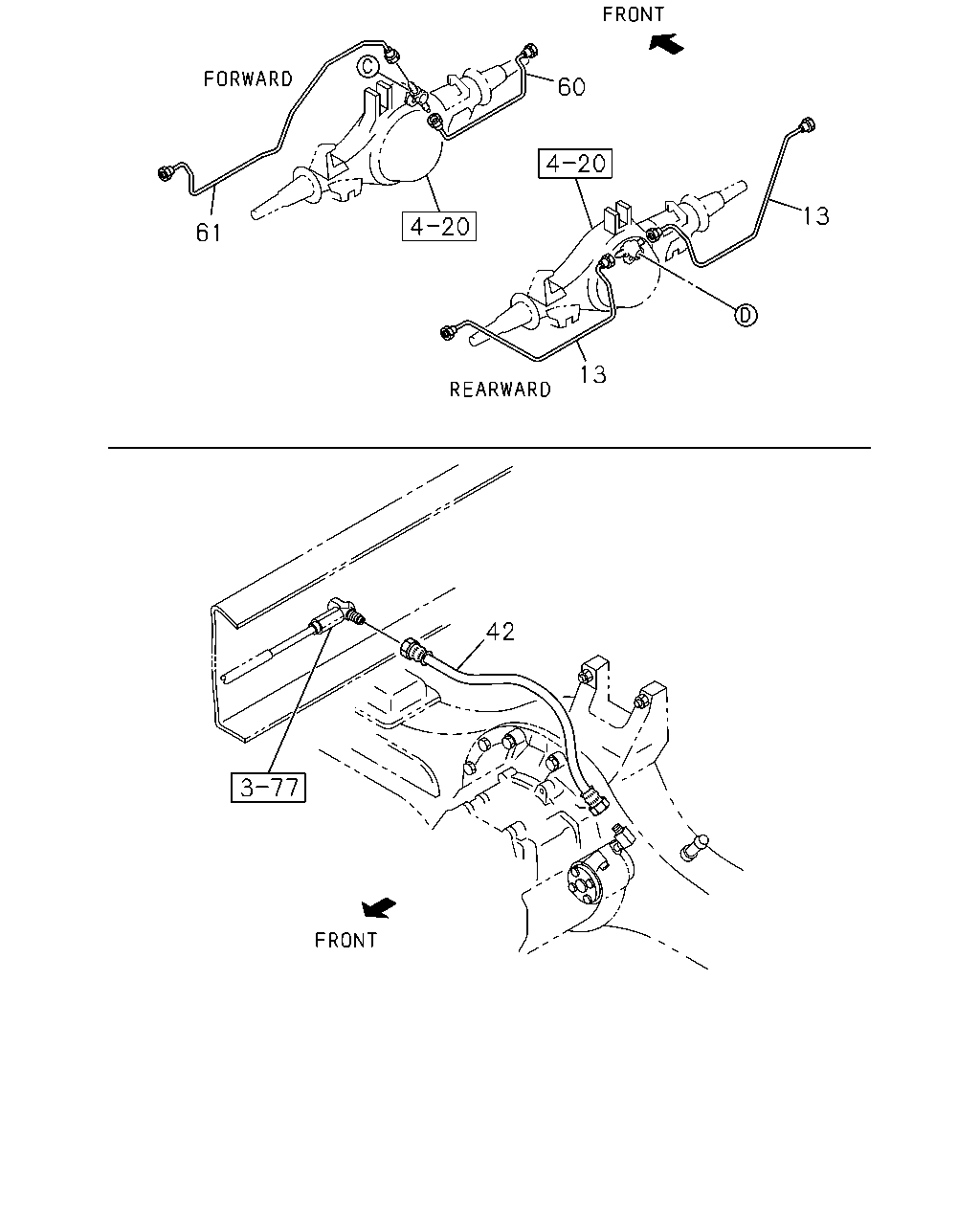

çizim 108361
42 13 60 61 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE
L=988 		1-47426-901-0 01 1 1104-1309
13 PIPE; BRK,RR AXLE
L=857 		1-47426-902-0 01 1 1104-1309
42 HOSE; FLEX,DIFF LOCK 1-09363-680-0 01 1 1104-
60 PIPE ASM; BRK
L=779 		1-47427-915-0 01 1 1104-1309
61 PIPE ASM; BRK
L=1193 		1-47426-899-0 01 1 1104-1309

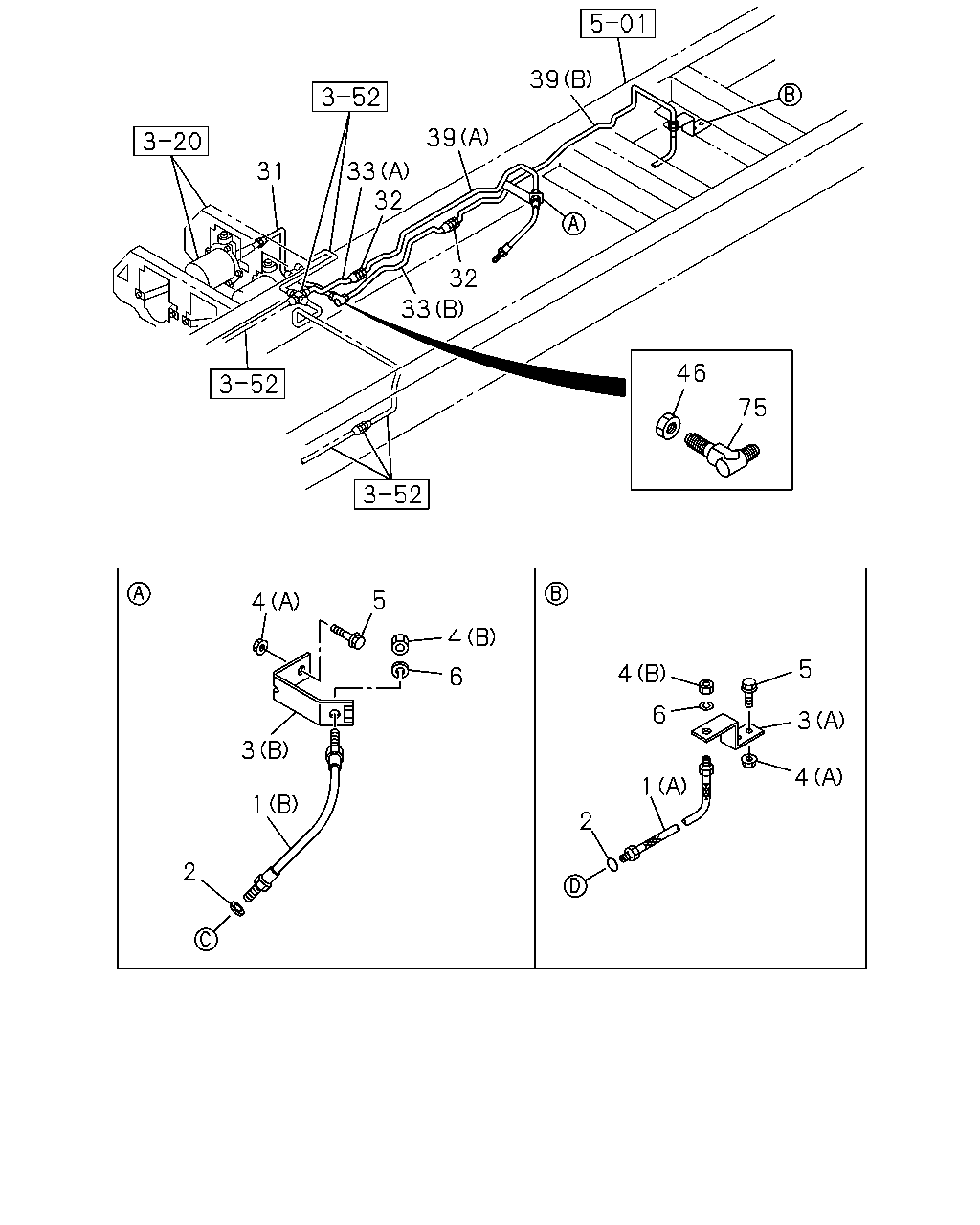

çizim 108362
46 4 5 4 6 3 1 2 2 4 6 1 5 3 4 75 33 32 32 33 39 39 31
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
(B) L=450 		1-09364-188-0 01 1 1104-
1 HOSE; FLEX,RR BRK
(A) L=600 		1-09364-197-0 01 1 1104-
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 02 1 1104-
3 BRACKET; FLEX HOSE,RR BRK
(A) 		1-47465-608-0 01 1 1104-
3 BRACKET; FLEX HOSE,RR BRK
(B) 		1-47475-357-2 01 1 1104-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 04 1 1104-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M12 		9-09840-280-0 02 1 1104-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 04 1 1104-
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 1104-
31 PIPE; OIL,AIR MASTER TO UNION
L=646 SERVICED BY L=650 		1-47428-726-0 01 1 1104-
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 02 1 1104-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 7100MM(71W) (A) L=3196 SERVICED BY L=3200 		1-47428-745-0 01 1 1310-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 7100MM(71W) (B) L=3363 SERVICED BY L=3400 		1-47428-746-0 01 1 1310-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) L=1393 SERVICED BY L=1500 		1-47428-735-0 01 1 1104-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) L=1544 SERVICED BY L=1620 		1-47428-736-0 01 1 1104-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=856 SERVICED BY L=900 		1-47428-729-0 01 1 1104-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) L=2409 SERVICED BY L=2500 		1-47428-742-0 01 1 1104-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1104-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1104-
