Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11393 - FVZ(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

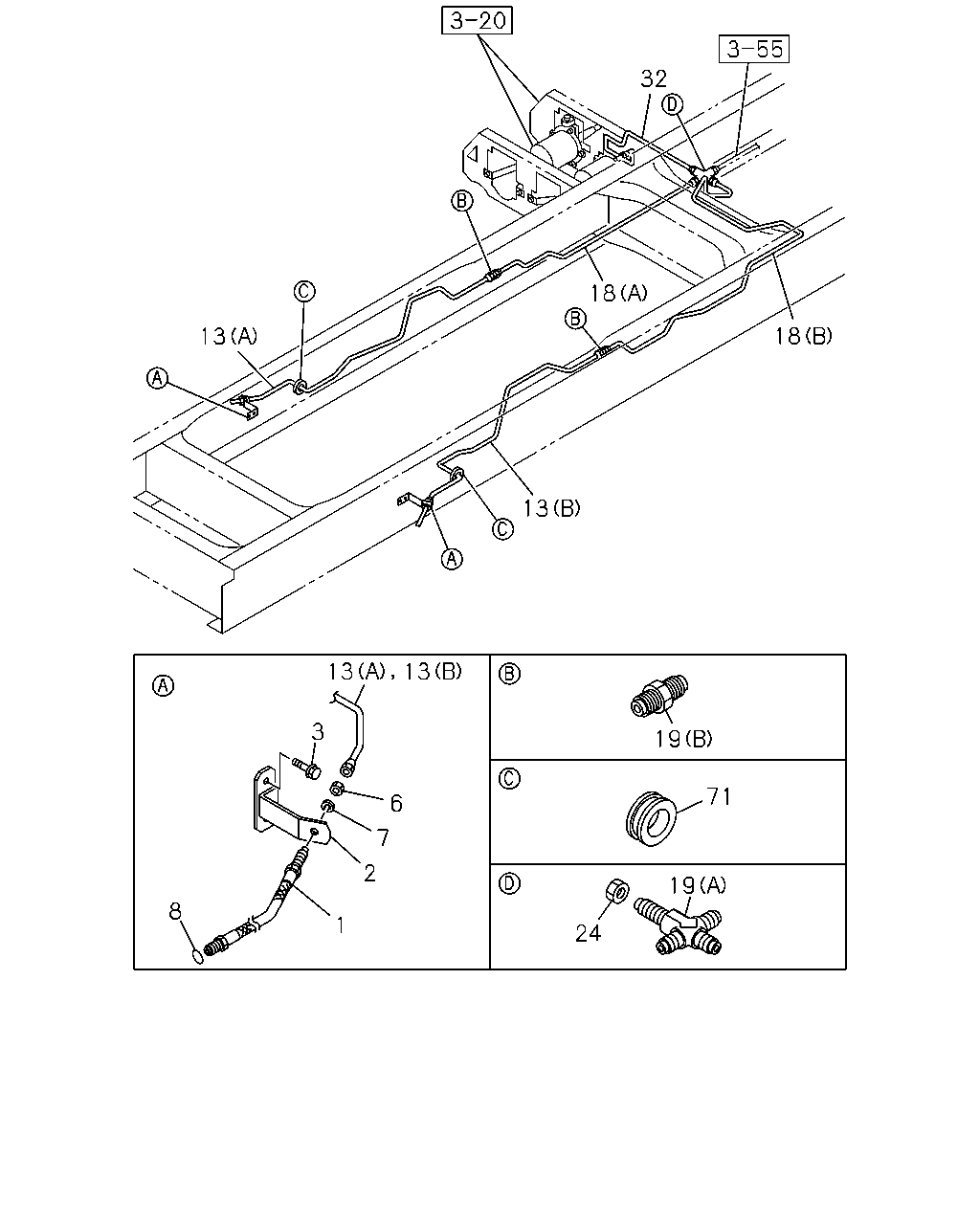

3-52 — BRAKE PIPING; OIL,FRONT
(#20127) — 17 parça
13
32
18
18
13
3
8
1
2
7
6
13
13
19
71
19
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=610
0-05212-610-0
02
1
1104-
2
BRACKET; FLEX HOSE,FRT BRK
8-98177-524-0
02
1
1104-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE IDN
0-28650-825-0
04
1
1104-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
1104-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
0-91510-512-0
02
1
1104-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
1104-
13
PIPE; OIL,UNION TO UNION
(B) L=1334 SERVICED BY L=1370
1-47428-734-0
01
1
1104-
13
PIPE; OIL,UNION TO UNION
(A) L=1331 SERVICED BY L=1370
1-47428-734-0
01
1
1104-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
WHEEL BASE 7100MM(71W) (B) L=1893 SERVICED BY L=2000
1-47428-739-0
01
1
1310-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1893 SERVICED BY L=2000
1-47428-739-0
01
1
1104-1303
18
PIPE; OIL,UNION TO FRT FLEX HOSE
WHEEL BASE 5300MM(53W) (B) L=1893 SERVICED BY L=2000
1-47428-739-0
01
1
1304-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=689 SERVICED BY L=700
1-47428-727-0
01
1
1104-
19
UNION; OIL PIPE
(B) M12 L=40
0-92113-006-0
02
1
1104-
19
UNION; OIL PIPE
(A)
1-09656-019-1
01
1
1104-
24
NUT; UNION,OIL PIPE
M14
0-91110-514-0
01
1
1104-
32
PIPE; OIL,AIR MASTER TO UNION
L=381 IDN
8-98184-180-0
01
1
1104-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1104-
