3-20 — AIR TANK (#20121) — 183 parça

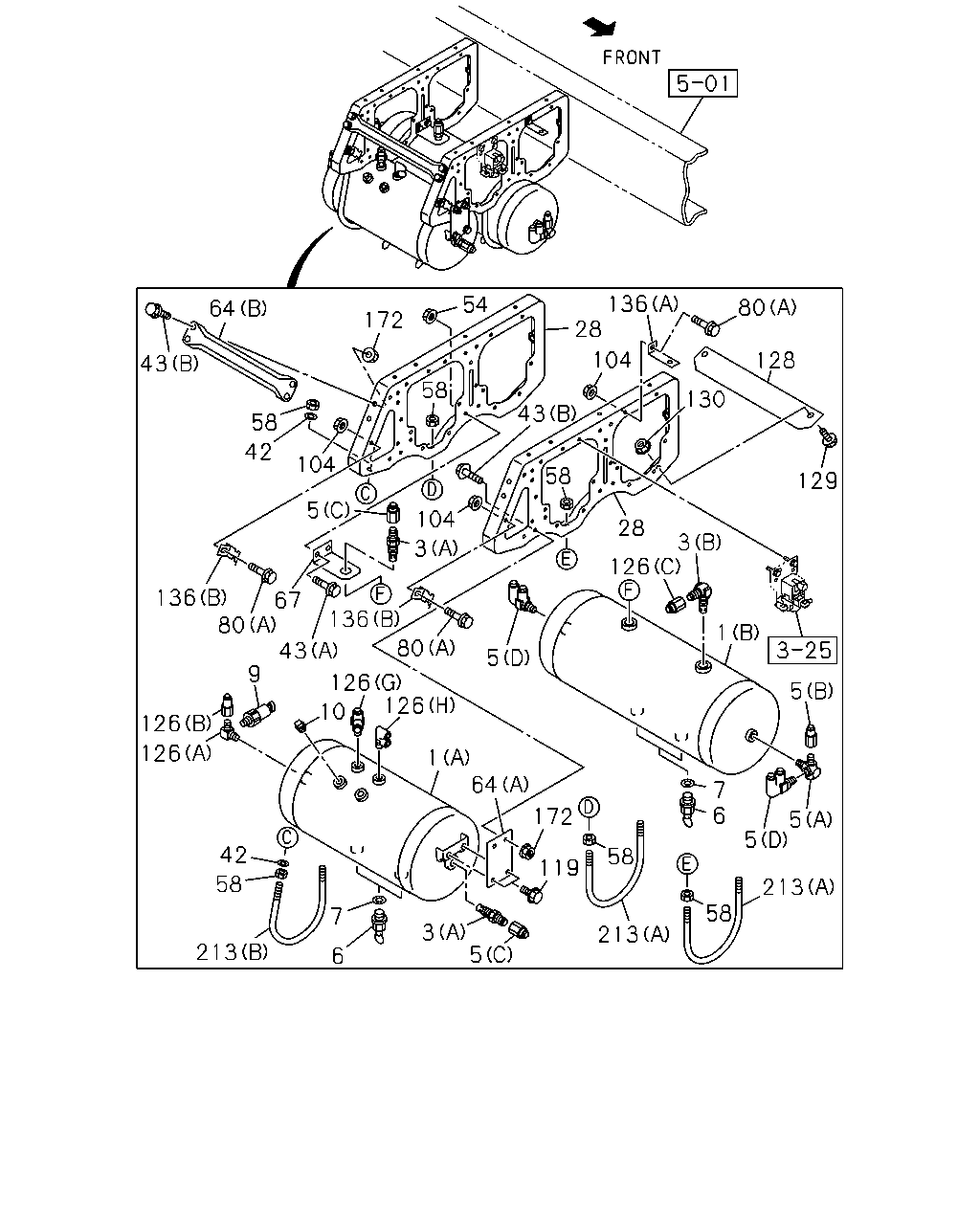

çizim 108305
80 128 129 5 7 5 5 6 213 213 58 58 119 172 64 1 3 5 6 213 58 42 126 126 9 126 10 126 5 80 136 43 80 6 1 3 28 3 104 5 136 67 104 58 172 28 54 43 104 136 130 58 43 64 42 7 58
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48370-493-0 01 1 1104-1501
1 TANK ASM; AIR
(A) 		8-98269-244-0 01 1 1502-
1 TANK ASM; AIR
(B) 		8-98179-212-0 01 1 1104-
3 VALVE; CHECK,AIR TANK
(A) 		1-48410-182-3 02 1 1104-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1104-
5 UNION; AIR TANK
(A) 		1-09656-557-1 01 1 1104-1112
5 UNION; AIR TANK
(A) M16 & R3/8 		8-98204-239-0 01 1 1201-
5 UNION; AIR TANK
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1104-
5 UNION; AIR TANK
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1104-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1104-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1107-1501
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1502-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1104-1106
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1107-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1107-1501
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1502-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1104-1106
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1107-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 01 1 1104-
10 PLUG; AIR TANK
PT1/4 		9-99204-513-0 01 1 1104-
28 BRACKET; AIR TANK 8-98174-720-0 02 1 1104-
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 1104-
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE IDN 		0-28651-025-0 02 1 1104-
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X30 FLANGE 		0-28651-030-0 06 1 1104-
54 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 1104-
58 NUT; BAND,AIR TANK
M8 IDN 		0-91110-508-0 12 1 1104-
64 STAY; AIR TANK,MAIN
(A) 		1-48317-760-0 01 1 1104-
64 STAY; AIR TANK,MAIN
(B) 		1-53318-293-1 01 1 1104-
67 STAY; SUB TANK 1-48317-321-2 01 1 1104-
80 BOLT; BRKT
WHEEL BASE 7100MM(71W) (E) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1310-
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 1104-
80 BOLT; BRKT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1104-1303
80 BOLT; BRKT
WHEEL BASE 5300MM(53W) (B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1304-
80 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 1104-
80 BOLT; BRKT
(D) M12X30 FLANGE 		0-28651-230-0 04 1 1104-1303
80 BOLT; BRKT
WHEEL BASE 5300MM(53W) (D) M12X30 FLANGE 		0-28651-230-0 04 1 1304-
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1104-
119 BOLT; STAY
M10X25 FLANGE IDN 		0-28651-025-0 02 1 1104-
126 CONNECTOR; ELBOW
(A) 		1-09656-698-0 01 1 1104-
126 CONNECTOR; ELBOW
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1104-
126 CONNECTOR; ELBOW
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1104-
126 CONNECTOR; ELBOW
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1104-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1104-
126 CONNECTOR; ELBOW
(F) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1104-
126 CONNECTOR; ELBOW
(G) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1104-
126 CONNECTOR; ELBOW
(H) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1104-
128 PROTECTOR 1-53319-018-0 01 1 1104-
129 BOLT; PROTECTOR FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1104-
130 NUT; PROTECTOR FIX
M8 FLANGE 		0-91180-108-0 02 1 1104-
136 BRACKET; CLIP
(A) L=90 B=25 		1-47475-530-0 01 1 1104-
136 BRACKET; CLIP
(B) 		8-98119-184-1 02 1 1104-
172 NUT; STAY,AIR TANK,MAIN
M10 FLANGE 		0-91180-210-0 06 1 1104-
213 BOLT; U AIR TANK
(A) IDN 		1-48317-301-0 02 1 1104-
213 BOLT; U AIR TANK
(B) IDN 		1-48317-302-0 01 1 1104-

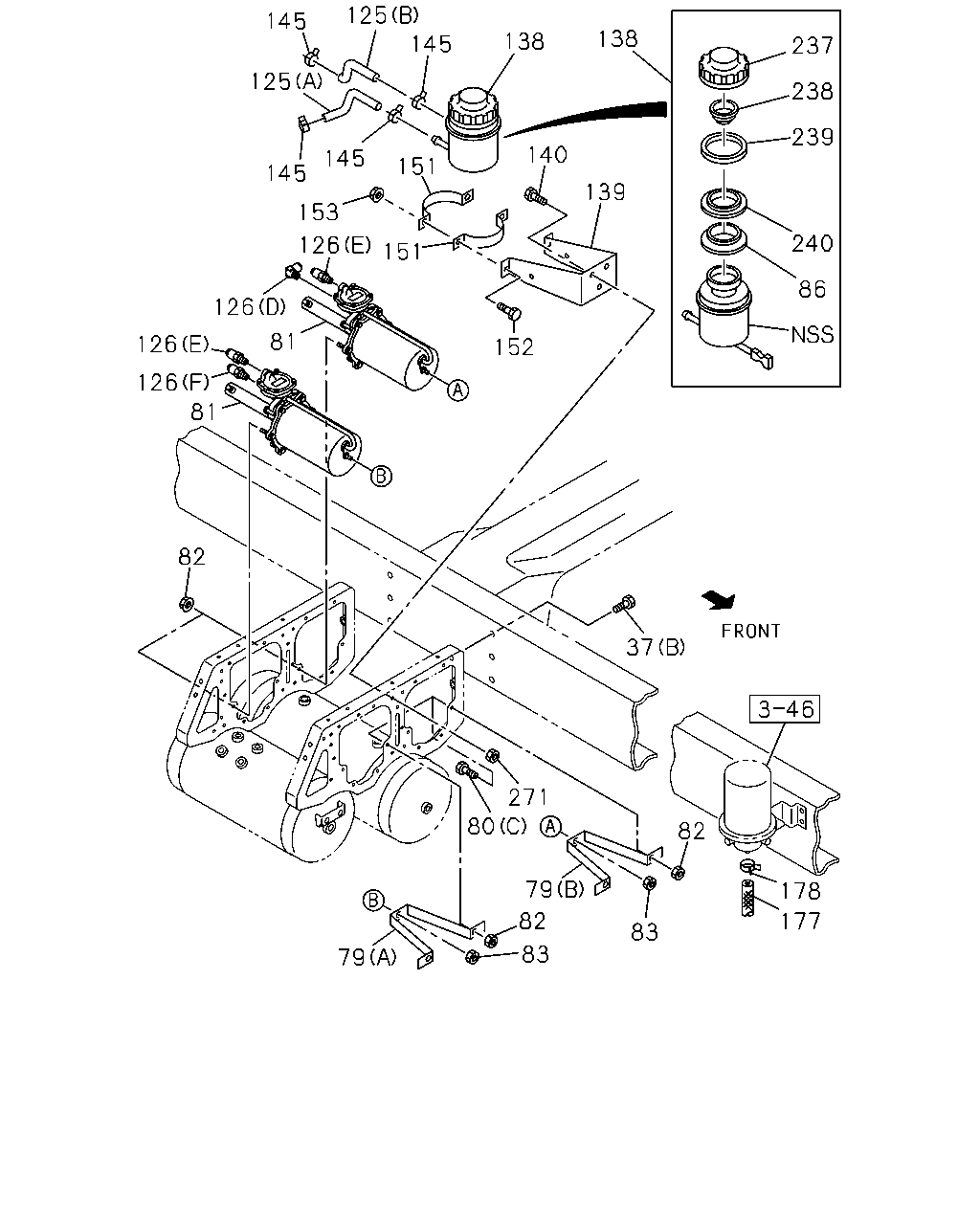

çizim 108307
37 381 381 46 30 26 2 39 39 26 27 7 6 30 26 30 46 46 80 30 80 80 46 46 80
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
WHEEL BASE 7100MM(71W) IDN 		8-98195-655-0 01 1 1310-
2 TANK; AIR
IDN 		8-98179-213-0 01 1 1104-1303
2 TANK; AIR
WHEEL BASE 5300MM(53W) IDN 		8-98179-213-0 01 1 1304-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1107-1501
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1502-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1104-1106
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1107-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1107-1501
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1502-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1104-1106
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1107-
26 PLUG; SUB AIR TANK
WHEEL BASE 7100MM(71W) PT3/8 		9-09204-517-0 02 1 1310-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 03 1 1104-1303
26 PLUG; SUB AIR TANK
WHEEL BASE 5300MM(53W) PT3/8 		9-09204-517-0 03 1 1304-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1104-1303
27 UNION; ELBOW,AIR TANK
WHEEL BASE 5300MM(53W) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 7100MM(71W) (E) 		1-48317-287-2 02 1 1310-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 7100MM(71W) (F) 		8-98040-713-1 01 1 1310-
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-994-2 01 1 1104-1303
30 BRACKET; AIR TANK,SUB
WHEEL BASE 5300MM(53W) (A) 		1-48317-994-2 01 1 1304-
30 BRACKET; AIR TANK,SUB
(B) 		8-98157-749-0 01 1 1104-1303
30 BRACKET; AIR TANK,SUB
WHEEL BASE 5300MM(53W) (B) 		8-98157-749-0 01 1 1304-
30 BRACKET; AIR TANK,SUB
(C) IDN 		8-98182-085-0 01 1 1104-1303
30 BRACKET; AIR TANK,SUB
WHEEL BASE 5300MM(53W) (C) IDN 		8-98182-085-0 01 1 1304-
30 BRACKET; AIR TANK,SUB
(D) IDN 		8-98182-821-0 01 1 1104-1303
30 BRACKET; AIR TANK,SUB
WHEEL BASE 5300MM(53W) (D) IDN 		8-98182-821-0 01 1 1304-
37 BOLT; AIR TANK
WHEEL BASE 7100MM(71W) (C) M10X40 FLANGE 		0-28651-040-0 04 1 1310-
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 02 1 1104-1303
37 BOLT; AIR TANK
WHEEL BASE 5300MM(53W) (A) M14X50 		0-20851-450-0 02 1 1304-
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1104-
39 U-BOLT; AIR TANK
WHEEL BASE 7100MM(71W) 		1-48317-289-0 02 1 1310-
39 U-BOLT; AIR TANK
L=253 IDN 		1-48317-248-1 02 1 1104-1303
39 U-BOLT; AIR TANK
WHEEL BASE 5300MM(53W) L=253 IDN 		1-48317-248-1 02 1 1304-
46 NUT; U-BOLT
(A) M8 IDN 		0-91110-508-0 08 1 1104-
46 NUT; U-BOLT
(B) M12 FLANGE 		0-91180-212-0 01 1 1104-1303
46 NUT; U-BOLT
WHEEL BASE 5300MM(53W) (B) M12 FLANGE 		0-91180-212-0 01 1 1304-
80 BOLT; BRKT
WHEEL BASE 7100MM(71W) (E) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1310-
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 1104-
80 BOLT; BRKT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1104-1303
80 BOLT; BRKT
WHEEL BASE 5300MM(53W) (B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1304-
80 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 1104-
80 BOLT; BRKT
(D) M12X30 FLANGE 		0-28651-230-0 04 1 1104-1303
80 BOLT; BRKT
WHEEL BASE 5300MM(53W) (D) M12X30 FLANGE 		0-28651-230-0 04 1 1304-
381 NUT; SUB TANK
M14 		0-91110-514-0 04 1 1104-1303
381 NUT; SUB TANK
WHEEL BASE 5300MM(53W) M14 		0-91110-514-0 04 1 1304-
çizim 108308
86 240 239 238 237 138 138 140 139 152 151 126 153 145 145 151 145 125 145 125 126 126 126 81 82 81 271 79 80 82 83 79 82 37 177 178 83
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
WHEEL BASE 7100MM(71W) (C) M10X40 FLANGE 		0-28651-040-0 04 1 1310-
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 02 1 1104-1303
37 BOLT; AIR TANK
WHEEL BASE 5300MM(53W) (A) M14X50 		0-20851-450-0 02 1 1304-
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1104-
79 STAY; AIR MASTER TO BRKT
(A) 		1-53318-348-0 01 1 1104-
79 STAY; AIR MASTER TO BRKT
(B) 		8-98120-254-0 01 1 1104-
80 BOLT; BRKT
WHEEL BASE 7100MM(71W) (E) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1310-
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 1104-
80 BOLT; BRKT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1104-1303
80 BOLT; BRKT
WHEEL BASE 5300MM(53W) (B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1304-
80 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 1104-
80 BOLT; BRKT
(D) M12X30 FLANGE 		0-28651-230-0 04 1 1104-1303
80 BOLT; BRKT
WHEEL BASE 5300MM(53W) (D) M12X30 FLANGE 		0-28651-230-0 04 1 1304-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-794-0 01 1 1104-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-795-0 01 1 1104-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91180-210-0 04 1 1104-
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 10 1 1104-
86 SEAL; DUST 1-47529-019-0 01 1 1104-
125 HOSE; OIL TANK TO AIR MASTER
(A) IDN 		1-47469-118-0 01 1 1104-
125 HOSE; OIL TANK TO AIR MASTER
(B) IDN 		1-47469-119-0 01 1 1104-
126 CONNECTOR; ELBOW
(A) 		1-09656-698-0 01 1 1104-
126 CONNECTOR; ELBOW
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1104-
126 CONNECTOR; ELBOW
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1104-
126 CONNECTOR; ELBOW
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1104-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1104-
126 CONNECTOR; ELBOW
(F) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1104-
126 CONNECTOR; ELBOW
(G) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1104-
126 CONNECTOR; ELBOW
(H) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1104-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1104-
139 BRACKET; OIL TANK
IDN 		8-98174-721-0 01 1 1104-
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE IDN 		0-28651-025-0 03 1 1104-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 IDN 		1-09704-102-0 04 1 1104-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1104-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1104-
153 NUT; OIL TANK TO BAND
M8 IDN 		0-91110-508-0 02 1 1104-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1104-
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1104-
237 CAP; OIL TANK 1-47525-030-0 01 1 1104-
238 PLATE; BAFFLE 1-47529-022-0 01 1 1104-
239 FILTER; DUST 1-47529-017-0 01 1 1104-
240 HOLDER; FILTER 1-47529-018-0 01 1 1104-
271 NUT; BRKT,HOSE
M10 FLANGE 		0-91180-210-0 03 1 1104-

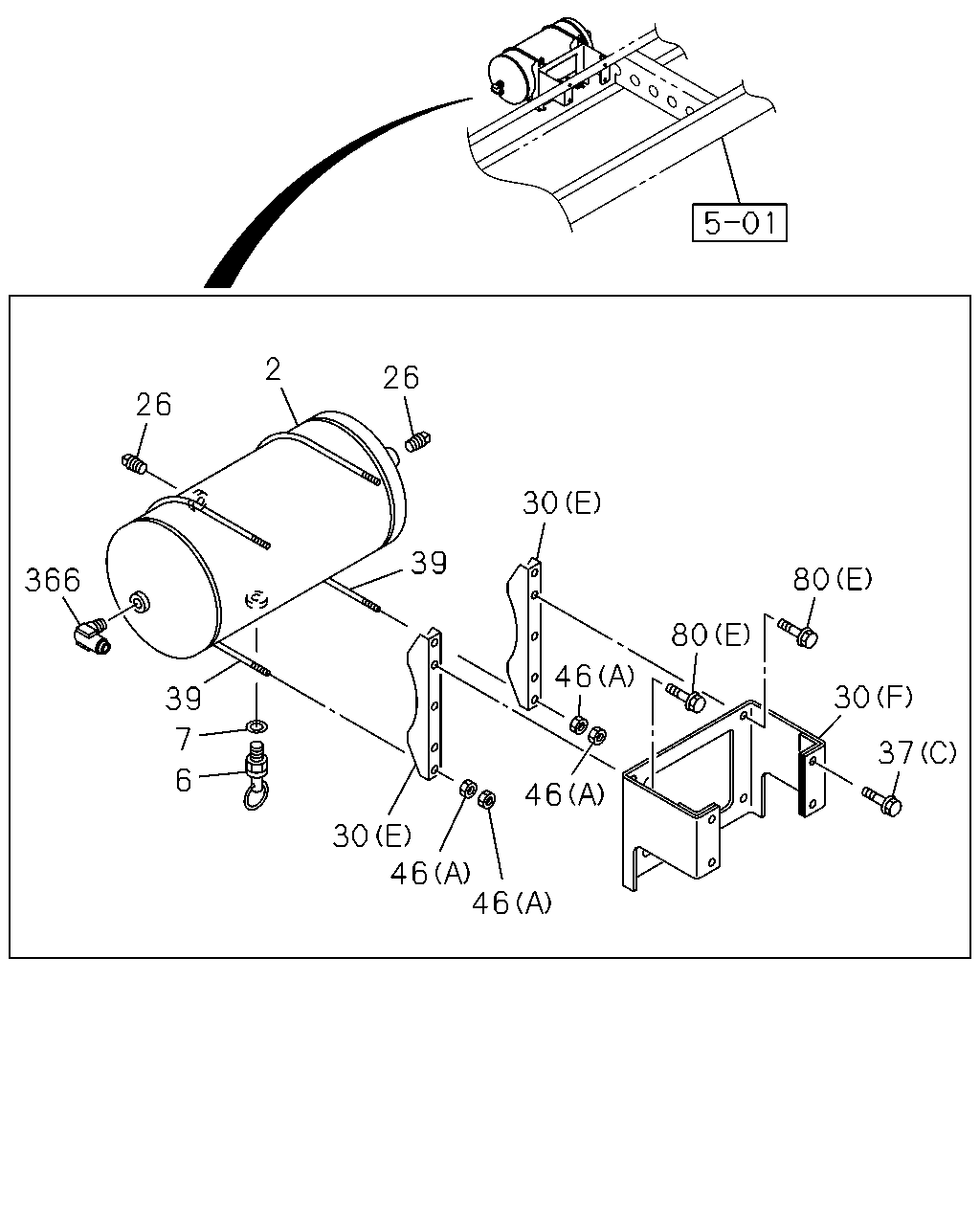

çizim 380543
37 30 80 80 30 46 46 46 46 30 39 26 2 26 366 39 6 7
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
WHEEL BASE 7100MM(71W) IDN 		8-98195-655-0 01 1 1310-
2 TANK; AIR
IDN 		8-98179-213-0 01 1 1104-1303
2 TANK; AIR
WHEEL BASE 5300MM(53W) IDN 		8-98179-213-0 01 1 1304-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1107-1501
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1502-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1104-1106
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1107-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1107-1501
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1502-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1104-1106
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1107-
26 PLUG; SUB AIR TANK
WHEEL BASE 7100MM(71W) PT3/8 		9-09204-517-0 02 1 1310-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 03 1 1104-1303
26 PLUG; SUB AIR TANK
WHEEL BASE 5300MM(53W) PT3/8 		9-09204-517-0 03 1 1304-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 7100MM(71W) (E) 		1-48317-287-2 02 1 1310-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 7100MM(71W) (F) 		8-98040-713-1 01 1 1310-
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-994-2 01 1 1104-1303
30 BRACKET; AIR TANK,SUB
WHEEL BASE 5300MM(53W) (A) 		1-48317-994-2 01 1 1304-
30 BRACKET; AIR TANK,SUB
(B) 		8-98157-749-0 01 1 1104-1303
30 BRACKET; AIR TANK,SUB
WHEEL BASE 5300MM(53W) (B) 		8-98157-749-0 01 1 1304-
30 BRACKET; AIR TANK,SUB
(C) IDN 		8-98182-085-0 01 1 1104-1303
30 BRACKET; AIR TANK,SUB
WHEEL BASE 5300MM(53W) (C) IDN 		8-98182-085-0 01 1 1304-
30 BRACKET; AIR TANK,SUB
(D) IDN 		8-98182-821-0 01 1 1104-1303
30 BRACKET; AIR TANK,SUB
WHEEL BASE 5300MM(53W) (D) IDN 		8-98182-821-0 01 1 1304-
37 BOLT; AIR TANK
WHEEL BASE 7100MM(71W) (C) M10X40 FLANGE 		0-28651-040-0 04 1 1310-
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 02 1 1104-1303
37 BOLT; AIR TANK
WHEEL BASE 5300MM(53W) (A) M14X50 		0-20851-450-0 02 1 1304-
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1104-
39 U-BOLT; AIR TANK
WHEEL BASE 7100MM(71W) 		1-48317-289-0 02 1 1310-
39 U-BOLT; AIR TANK
L=253 IDN 		1-48317-248-1 02 1 1104-1303
39 U-BOLT; AIR TANK
WHEEL BASE 5300MM(53W) L=253 IDN 		1-48317-248-1 02 1 1304-
46 NUT; U-BOLT
(A) M8 IDN 		0-91110-508-0 08 1 1104-
46 NUT; U-BOLT
(B) M12 FLANGE 		0-91180-212-0 01 1 1104-1303
46 NUT; U-BOLT
WHEEL BASE 5300MM(53W) (B) M12 FLANGE 		0-91180-212-0 01 1 1304-
80 BOLT; BRKT
WHEEL BASE 7100MM(71W) (E) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1310-
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 1104-
80 BOLT; BRKT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1104-1303
80 BOLT; BRKT
WHEEL BASE 5300MM(53W) (B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1304-
80 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 1104-
80 BOLT; BRKT
(D) M12X30 FLANGE 		0-28651-230-0 04 1 1104-1303
80 BOLT; BRKT
WHEEL BASE 5300MM(53W) (D) M12X30 FLANGE 		0-28651-230-0 04 1 1304-
366 CONNECTOR; NYLON TUBE
WHEEL BASE 7100MM(71W) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1310-

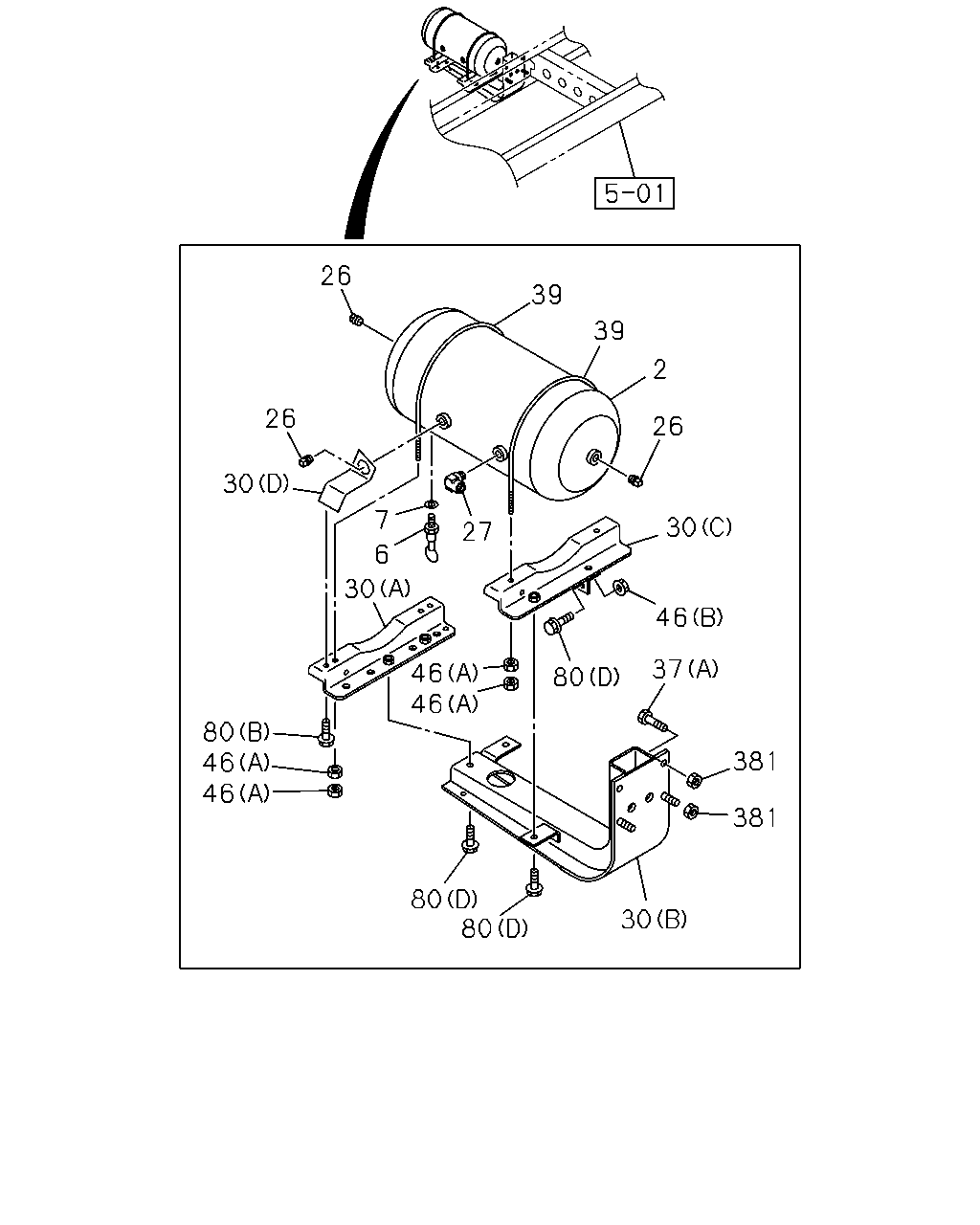

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
