Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#20115) — 7 parça

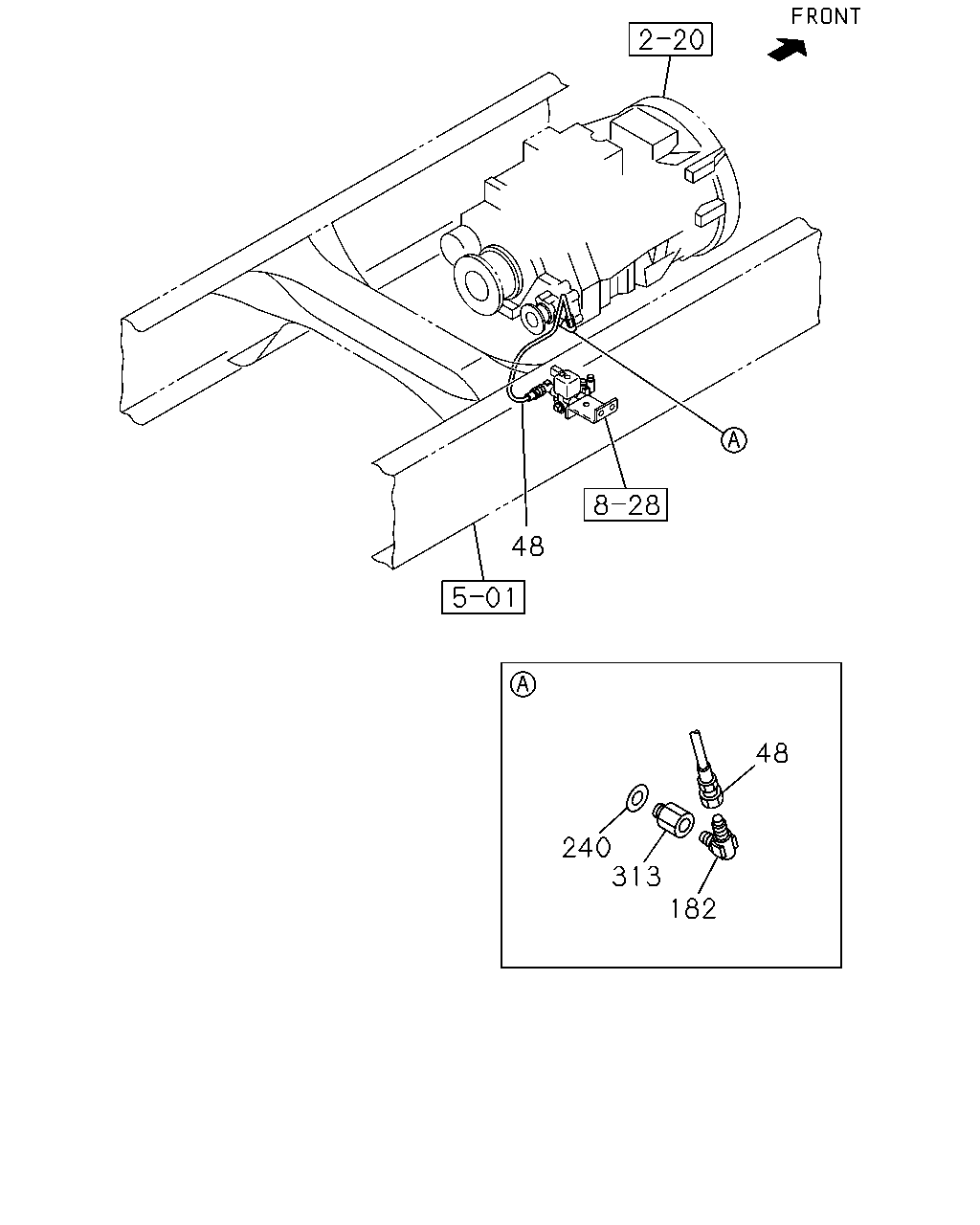

48 240 313 182 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	HOSE; FLEX,PTO PTO CONTROL<SV6> L=320	1-09363-625-0	01	1	1104-
182	CONNECTOR; FLARE PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1104-
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR(BDM) ID=12.2	1-09630-084-0	01	1	1104-1312
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR(BDM) ID=12.2	8-98251-344-0	01	1	1401-
313	ADAPTER PTO ZF TRANS RR(BDM) PT1/4	1-09654-396-0	01	1	1104-

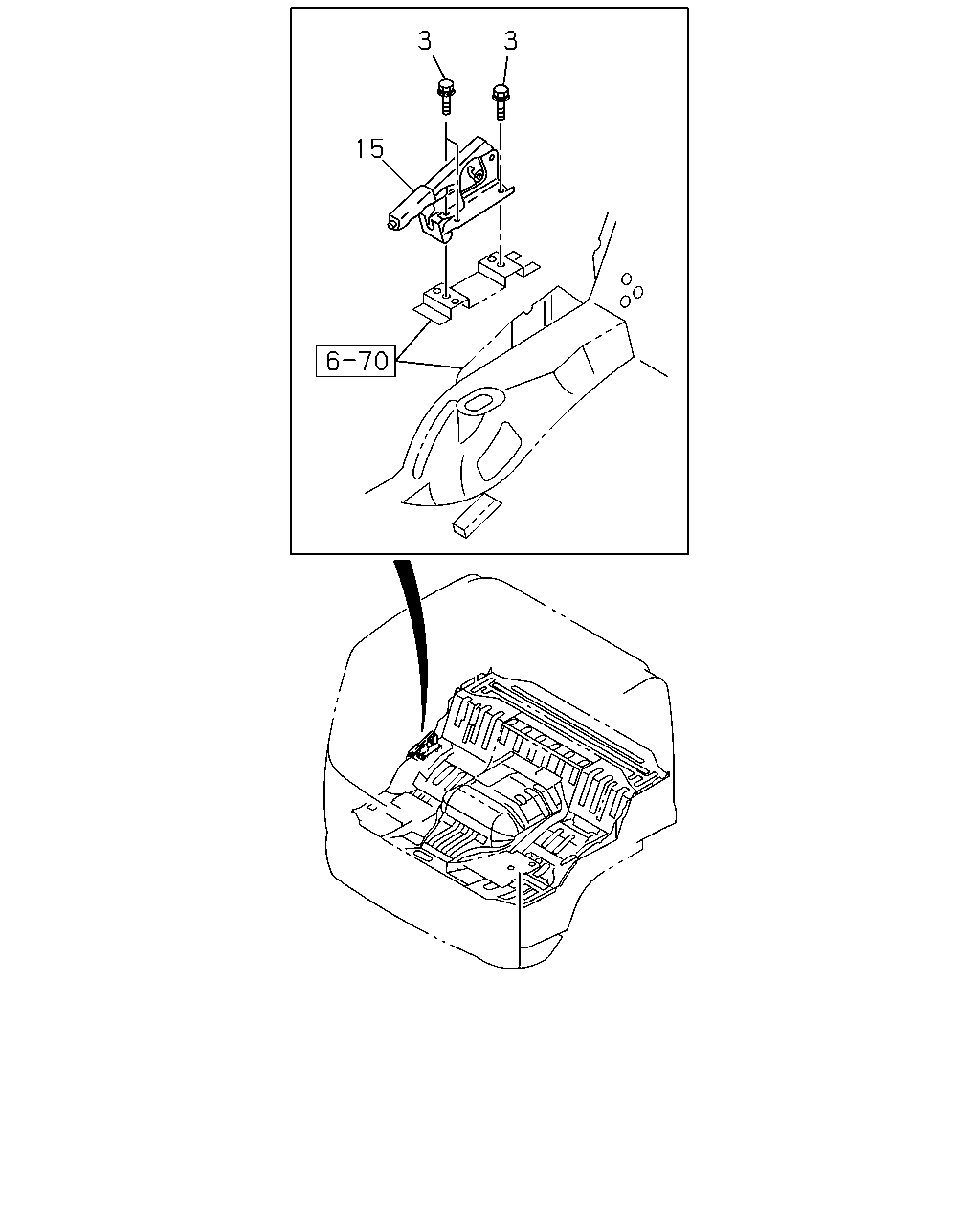

3 3 15

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1104-
	15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	1104-
