2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#20112) — 13 parça

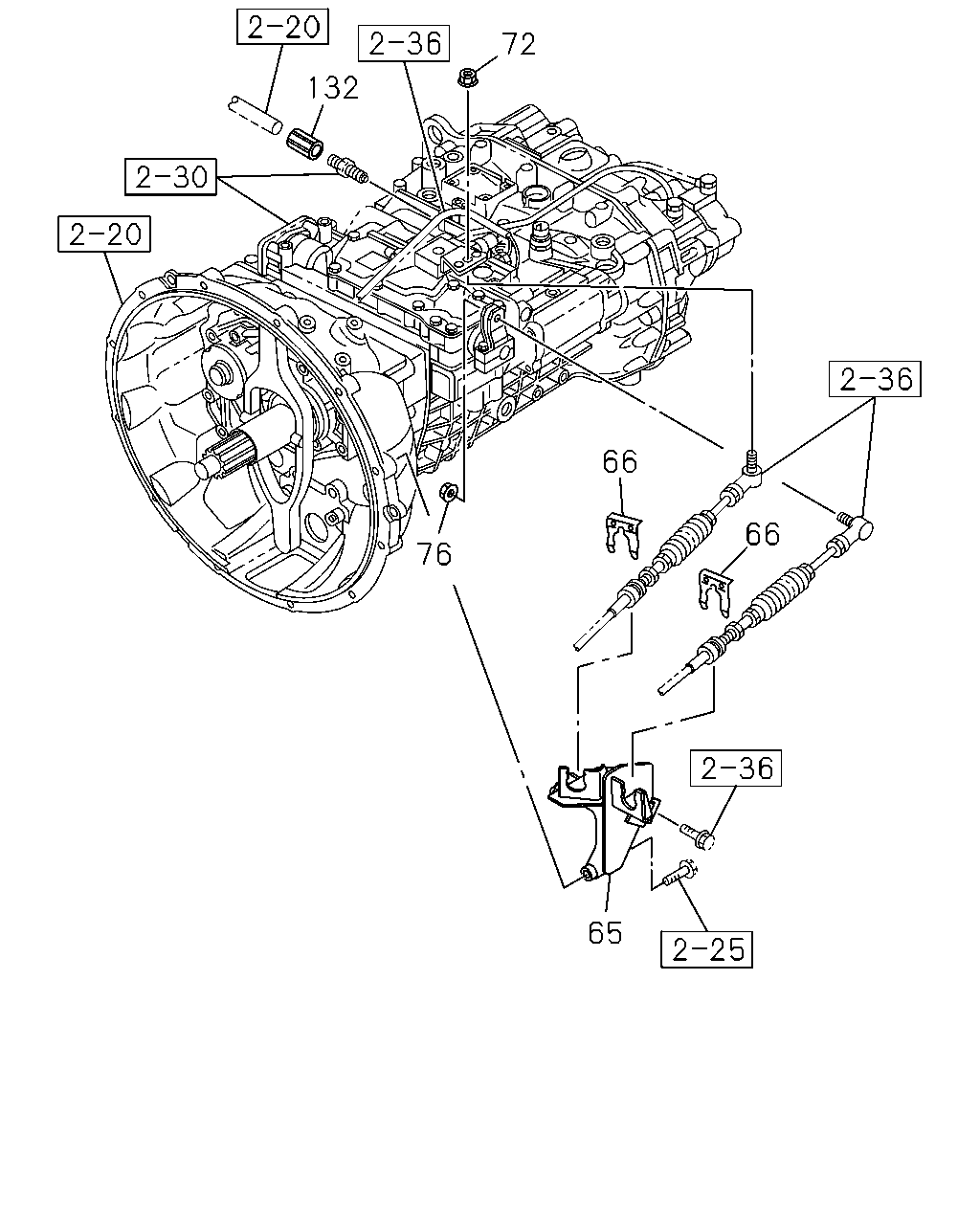

çizim 108341

72 132 66 66 65 76

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N)	8-98131-609-0	01	1	1310-
	65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 DD M/T(Y5P)	8-98060-386-0	01	1	1104-
	66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1104-
	72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1104-
	76	NUT; BALL JOINT,SELECT WIRE FULLER ES11109 DD M/T(Y5N) M8 FLANGE	1-09440-049-0	01	1	1310-
	76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	1104-
	132	CONNECTOR; FLEX HOSE ZF9S1110 DD M/T(Y5P) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1104-

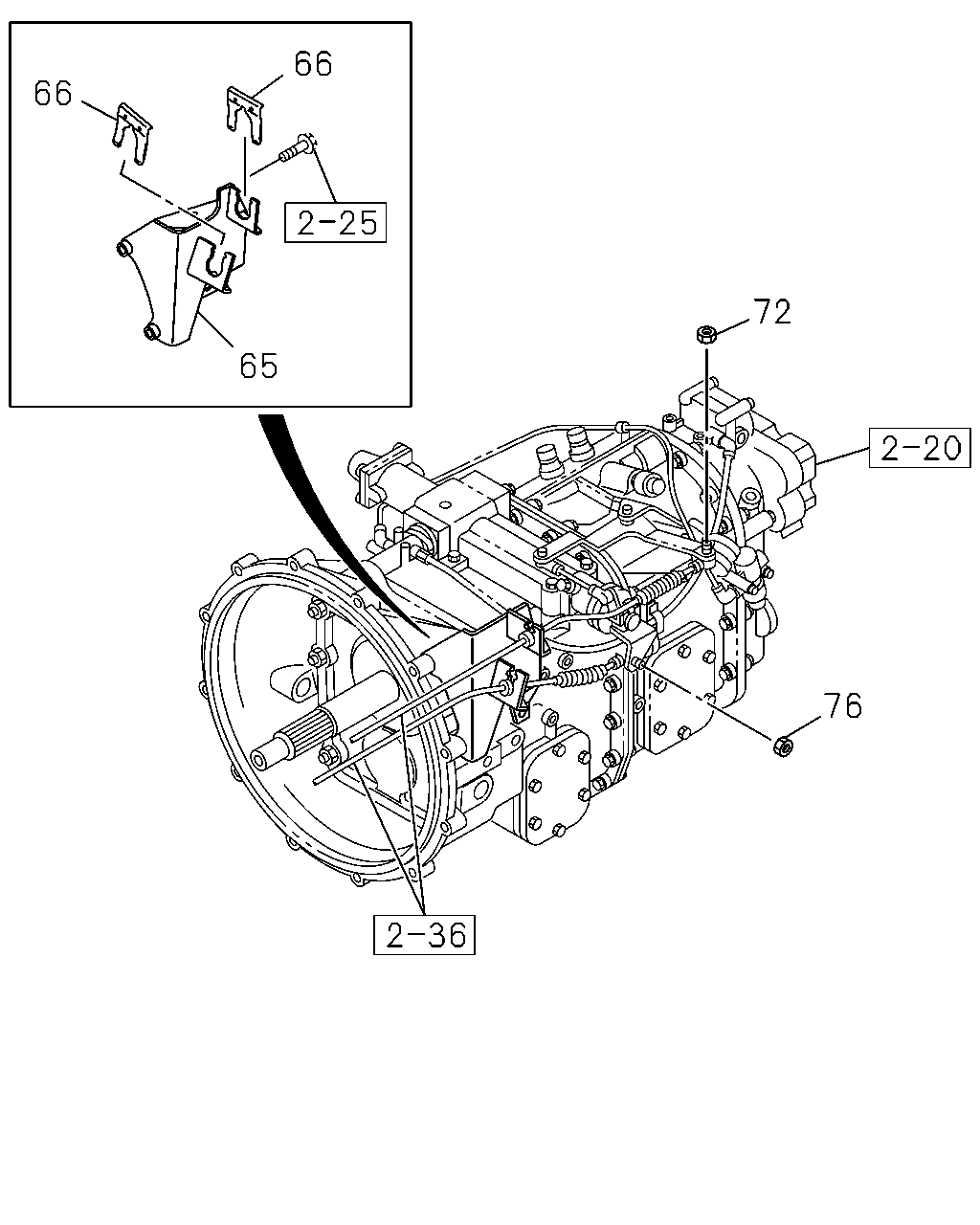

çizim 379955

66 66 65 72 76

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N)	8-98131-609-0	01	1	1310-
	65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 DD M/T(Y5P)	8-98060-386-0	01	1	1104-
	66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1104-
	72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1104-
	76	NUT; BALL JOINT,SELECT WIRE FULLER ES11109 DD M/T(Y5N) M8 FLANGE	1-09440-049-0	01	1	1310-
	76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	1104-
