◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11393 - FVZ(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#20111) — 89 parça

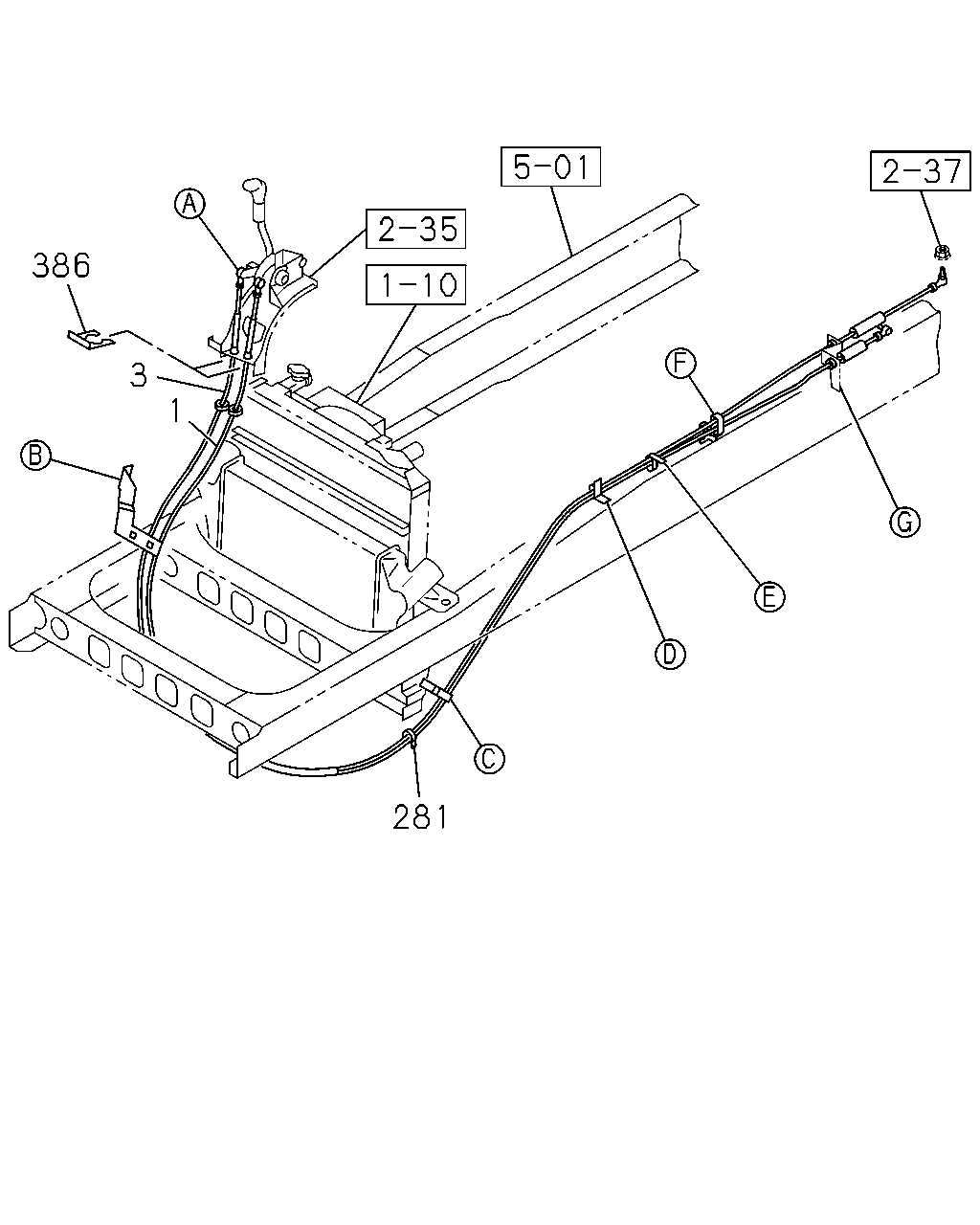

çizim 108298
386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1310-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1104-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1310-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1104-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1104-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1104-

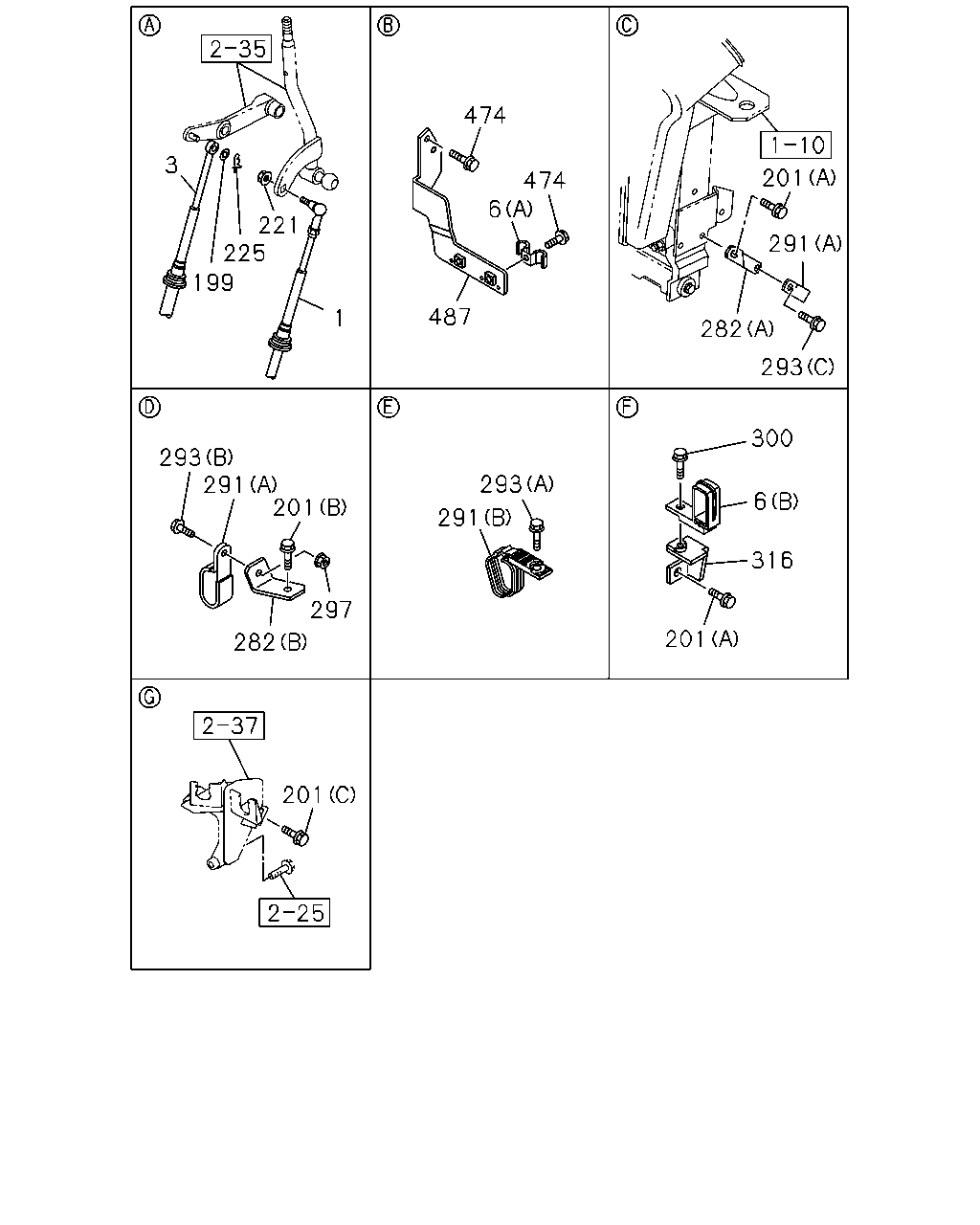

çizim 108301
201 282 201 291 293 291 293 201 316 6 300 293 282 291 201 474 474 6 487 1 199 225 221 3 297
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1310-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1104-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1310-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1104-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1104-
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1104-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1104-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1104-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1104-
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1104-
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1104-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1104-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1104-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1104-
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1104-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1104-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1104-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1104-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1104-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1104-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1104-
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1104-
316 BRACKET; CLIP 8-98086-439-0 01 1 1104-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1104-
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1104-

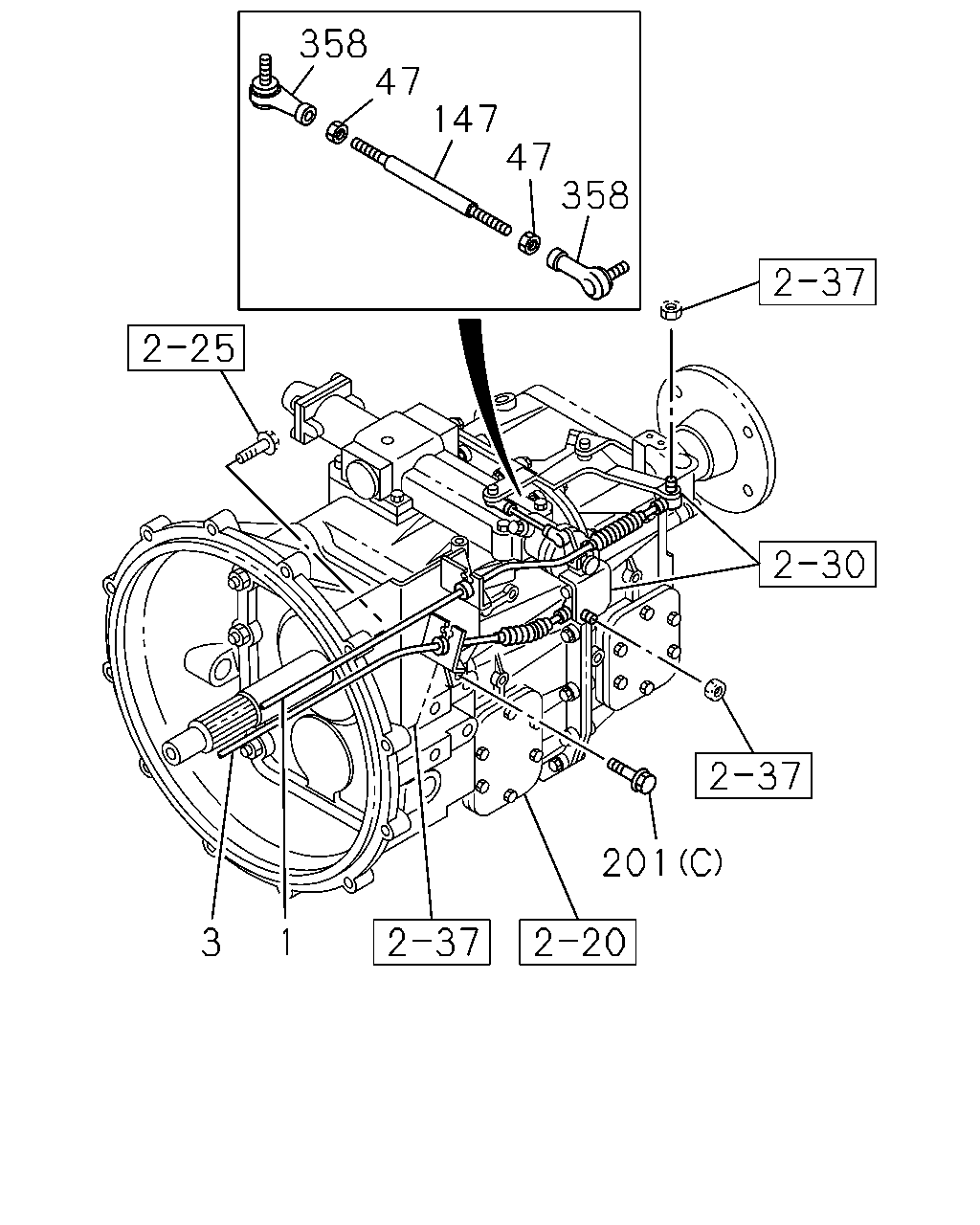

çizim 379927
3 1 358 47 147 47 358 201
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1310-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1104-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1310-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1104-
47 NUT; LK,LINK ROD
FULLER ES11109 DD M/T(Y5N) M8 		0-91111-508-0 02 1 1310-
147 ROD; LINK
FULLER ES11109 DD M/T(Y5N) 		0-84000-808-0 01 1 1310-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1104-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1104-
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1104-
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1104-
358 ROD END; SCREW
FULLER ES11109 DD M/T(Y5N) L=45.5 		1-09760-118-1 02 1 1310-

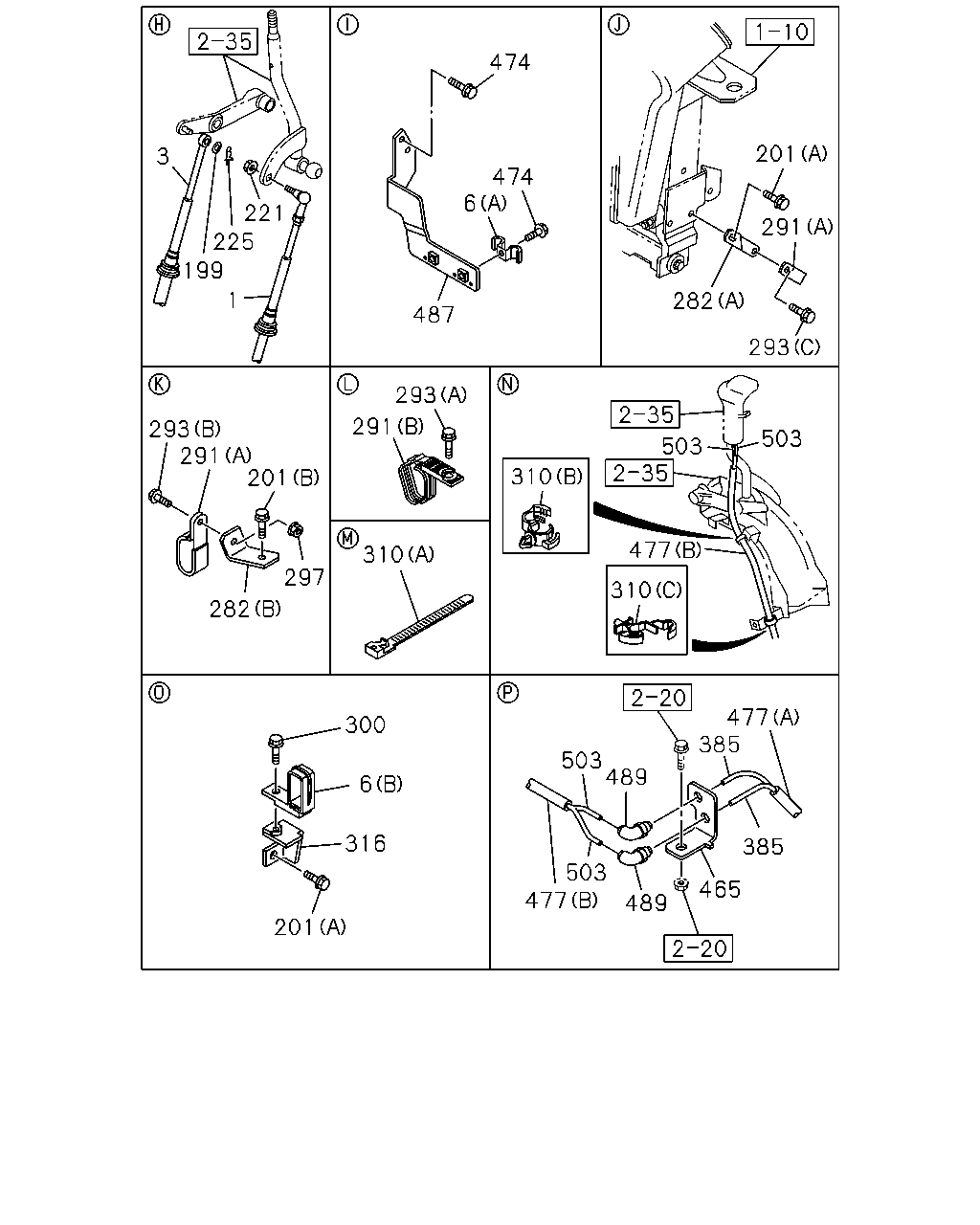

çizim 380759
201 316 300 6 477 503 489 489 385 385 465 503 477 282 201 297 291 293 310 291 293 310 477 503 310 503 293 282 291 201 487 6 474 474 1 199 225 221 3
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1310-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1104-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1310-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1104-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1104-
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1104-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1104-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1104-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1104-
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1104-
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1104-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1104-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1104-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1104-
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1104-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1104-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1104-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1104-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1104-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1104-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1104-
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1104-
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (A) L=100 		5-09707-036-1 01 1 1310-
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (C) ID=12 		8-94218-436-0 01 1 1310-
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (B) ID=6 & 10-13 		8-97069-515-0 01 1 1310-
316 BRACKET; CLIP 8-98086-439-0 01 1 1104-
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1310-
465 BRACKET; CONNECTOR
FULLER ES11109 DD M/T(Y5N) 		8-98141-474-0 01 1 1310-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1104-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1310-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1310-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1310-
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1104-
489 CONNECTOR
FULLER ES11109 DD M/T(Y5N) 		8-98085-747-0 02 1 1310-
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1310-

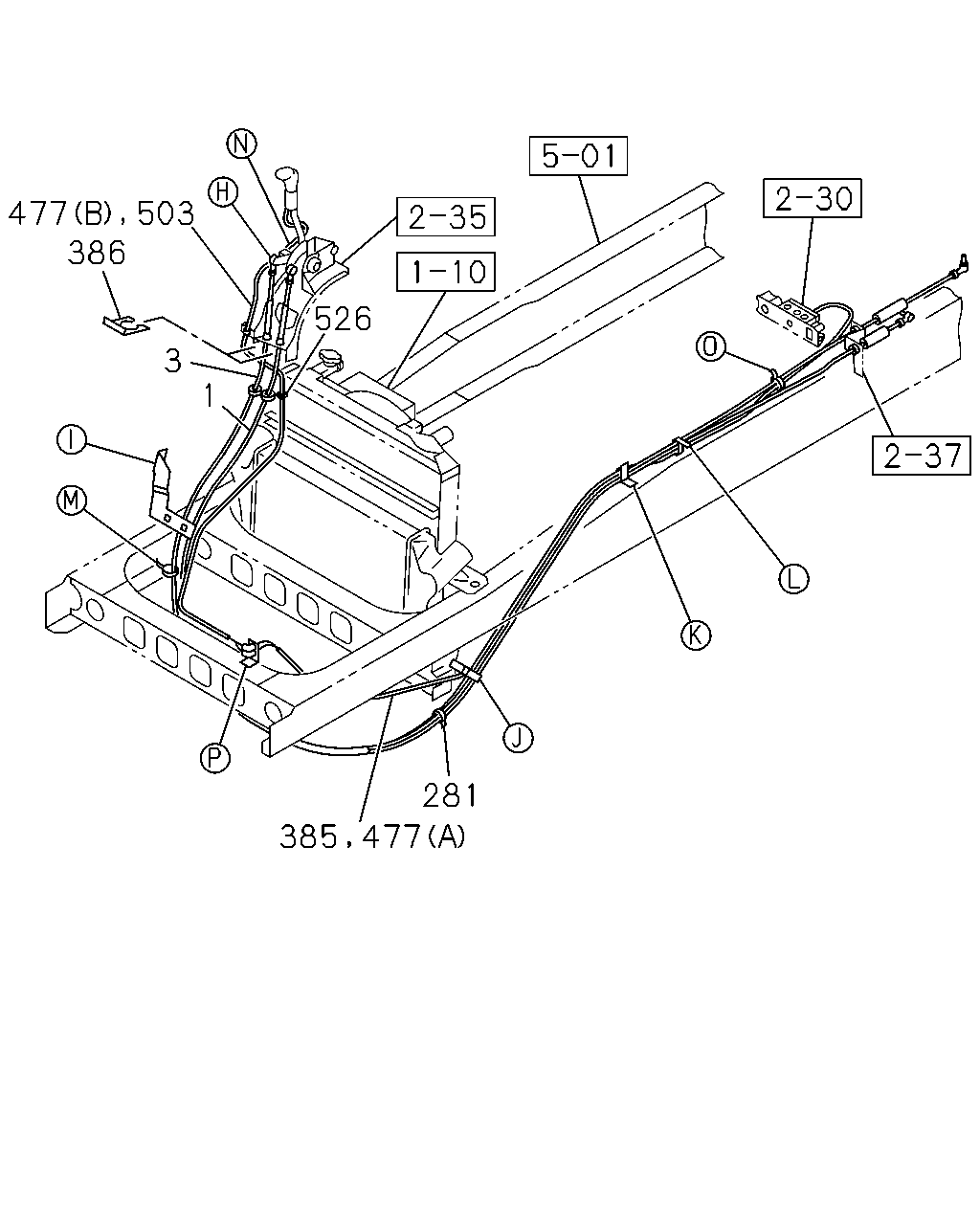

çizim 380943
385 477 281 1 3 526 477 386 503
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1310-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1104-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1310-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1104-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1104-
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1310-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1104-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1310-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1310-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1310-
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1310-
526 GROMMET
FULLER ES11109 DD M/T(Y5N) 		5-09333-062-0 01 1 1310-
