◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11393 - FVZ(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#20110) — 50 parça

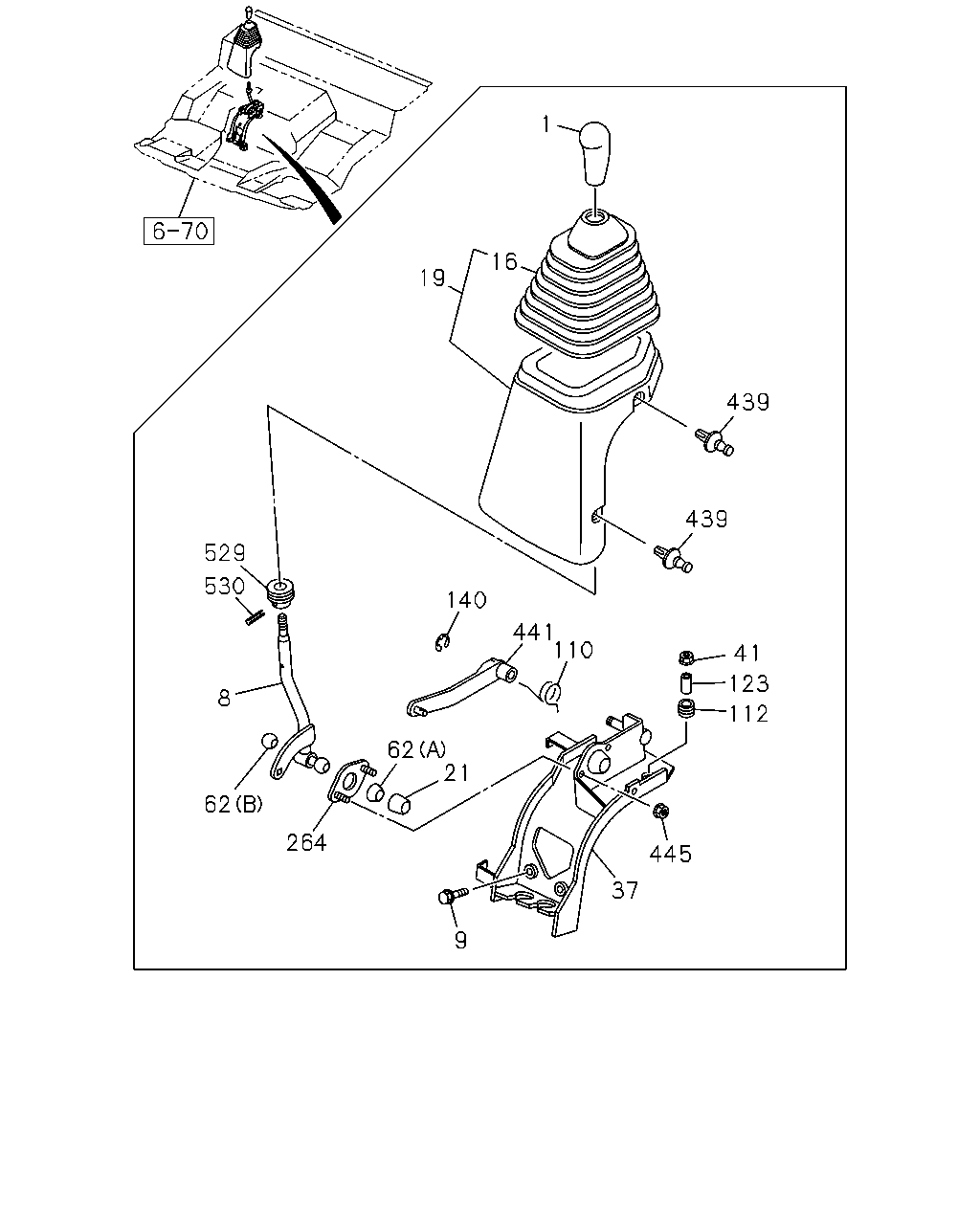

çizim 108276
1 16 19 439 439 41 23 112 445 37 110 441 140 529 530 8 62 264 62 21 9
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		1-33611-106-0 01 1 1310-1401
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		8-98224-288-0 01 1 1402-
1 KNOB; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33611-099-1 01 1 1104-
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) 		8-98093-458-0 01 1 1310-
8 LEVER; CHANGE
ZF9S1110 DD M/T(Y5P) 		8-98093-455-0 01 1 1104-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1104-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1104-
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1104-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1104-
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) 		8-98093-450-0 01 1 1310-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 DD M/T(Y5P) 		8-98093-444-0 01 1 1104-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1104-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1104-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1104-
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1104-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1104-
140 RING; SNAP
ID=10 IDN 		0-91805-510-0 01 1 1104-
264 PLATE; COVER 1-33619-430-0 01 1 1104-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1104-
441 LEVER; SELECT 8-98093-449-0 01 1 1104-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1104-
529 RING; BOOT
ZF9S1110 DD M/T(Y5P) 		1-33619-504-0 01 1 1104-
530 PIN; SPRING
ZF9S1110 DD M/T(Y5P) 		1-33619-505-0 01 1 1104-

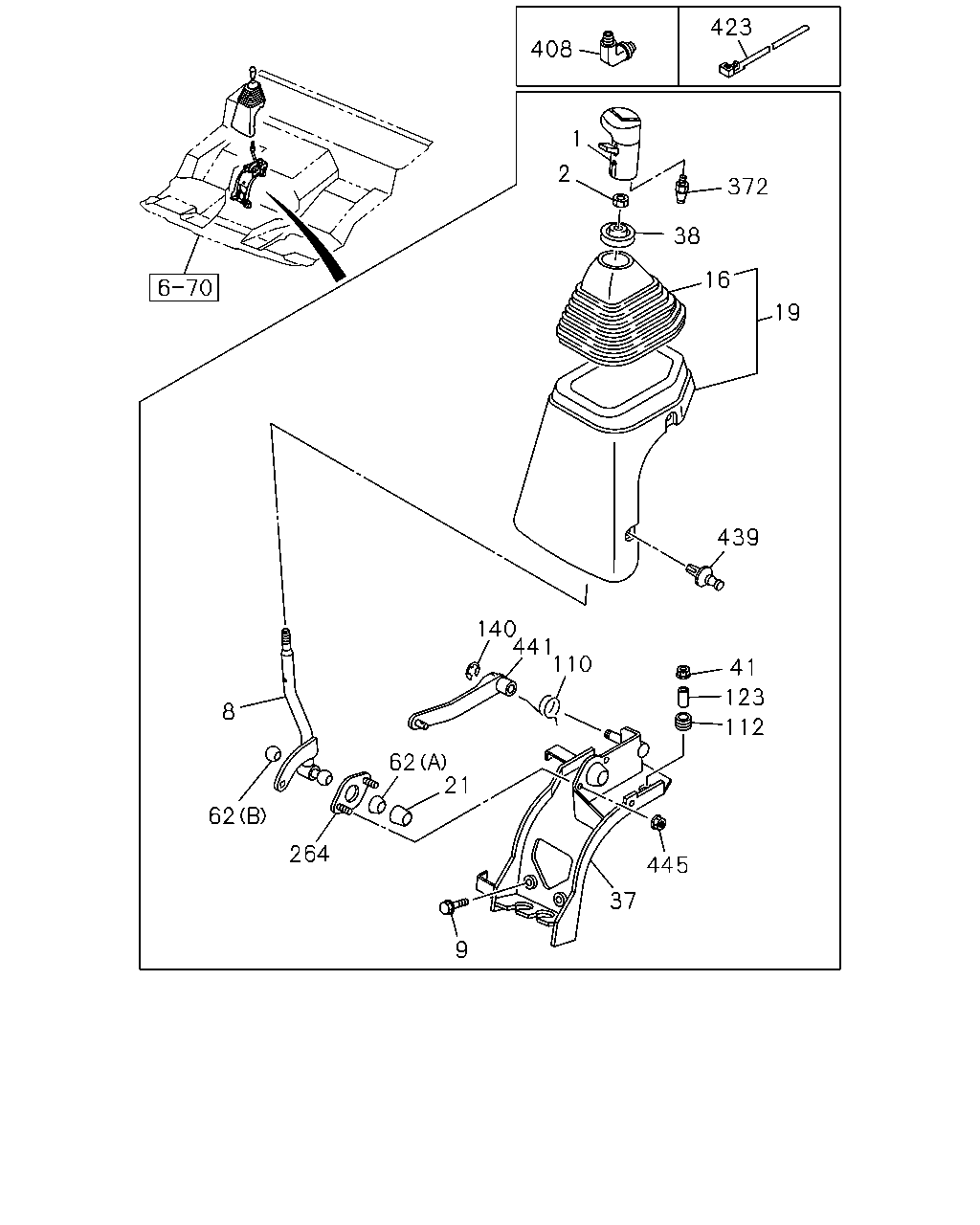

çizim 380509
423 1 2 372 38 16 19 439 140 441 110 112 123 41 445 37 9 264 62 8 62 21 408
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		1-33611-106-0 01 1 1310-1401
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		8-98224-288-0 01 1 1402-
1 KNOB; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33611-099-1 01 1 1104-
2 NUT; KNOB
FULLER ES11109 DD M/T(Y5N) 1/2-13UNC 		1-33619-033-0 01 1 1310-
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) 		8-98093-458-0 01 1 1310-
8 LEVER; CHANGE
ZF9S1110 DD M/T(Y5P) 		8-98093-455-0 01 1 1104-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1104-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1104-
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1104-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1104-
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) 		8-98093-450-0 01 1 1310-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 DD M/T(Y5P) 		8-98093-444-0 01 1 1104-
38 HOLDER; BOOT CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		1-79996-383-0 01 1 1310-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1104-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1104-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1104-
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1104-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1104-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1104-
140 RING; SNAP
ID=10 IDN 		0-91805-510-0 01 1 1104-
264 PLATE; COVER 1-33619-430-0 01 1 1104-
372 CONNECTOR; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		8-98114-396-0 02 1 1310-
408 CONNECTOR; AIR HOSE
FULLER ES11109 DD M/T(Y5N) 		1-33549-381-0 01 1 1310-
423 CLIP; BAND
FULLER ES11109 DD M/T(Y5N) L=140 IDN 		5-09707-031-1 01 1 1310-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1104-
441 LEVER; SELECT 8-98093-449-0 01 1 1104-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1104-
