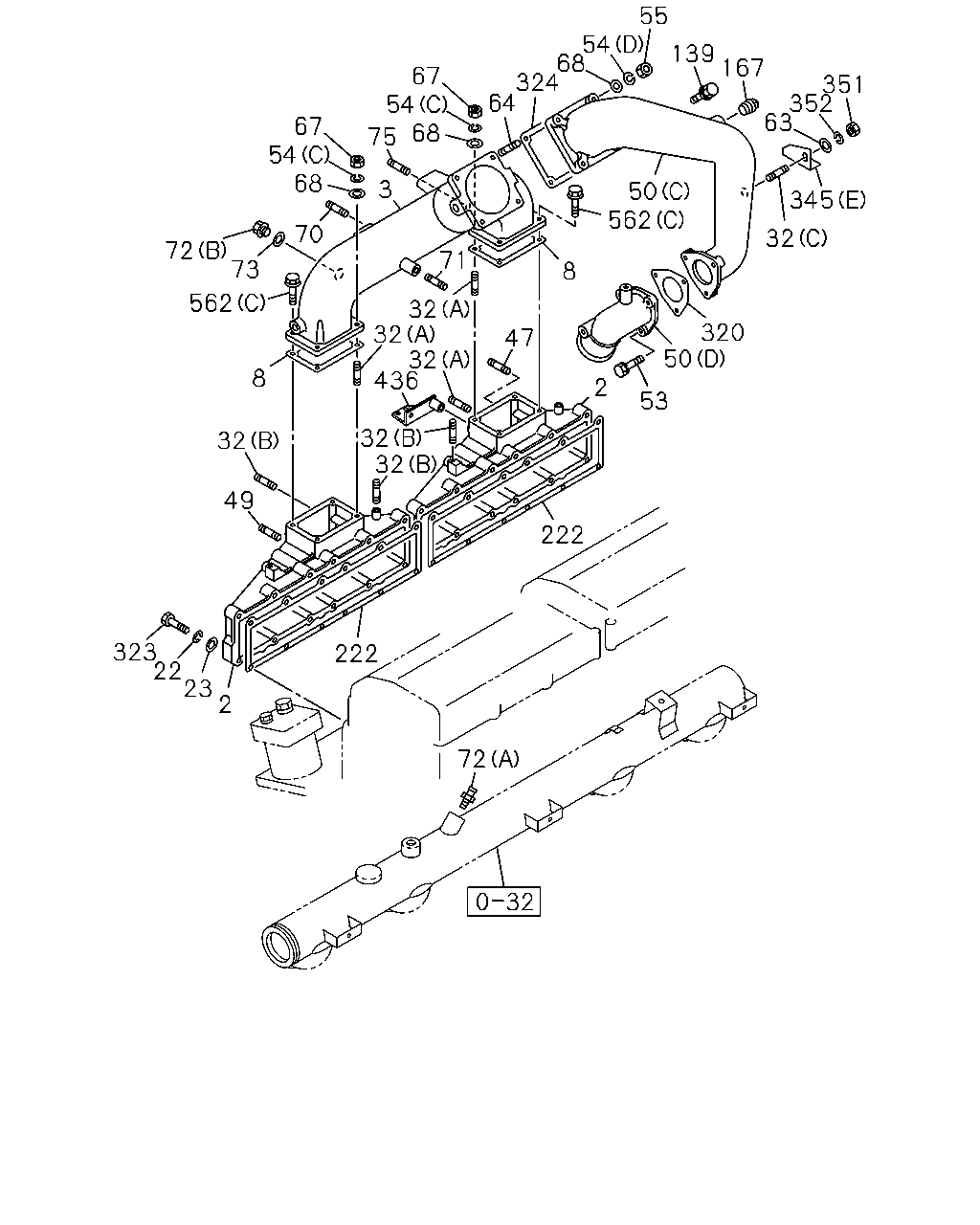

0-25 — INLET MANIFOLD (#2011) — 160 parça

55 54 68 324 64 139 167 67 54 68 351 352 63 67 54 68 75 3 50 562 345 70 32 72 73 71 8 562 32 32 32 436 320 50 47 8 2 53 32 32 32 49 222 323 22 23 2 222 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	1-14110-225-0	02	1	9001-	●	●	●
3	DUCT; INT	1-14114-425-1	01	1	9001-	●	●
3	DUCT; INT	1-14114-674-2	01	1	9101-			●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-041-0	02	1	9001-9603	●	●	●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-087-0	02	1	9604-	●	●	●
22	WASHER; LK,INL MANIF ID=10.2	9-09150-510-0	08	1	9001-				●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	24	1	9001-	●	●	●
23	WASHER; PL,INL MANIF ID=8.4 OD=18	9-09164-608-0	20	1	9001-	●	●	●
32	STUD; INL PIPE (A) M8X71 L=83	9-09830-212-0	02	1	9001-	●	●
32	STUD; INL PIPE (B) M5X25 L=35	9-94010-525-0	04	1	9001-	●	●	●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	06	1	9101-			●
32	STUD; INL PIPE (C) M10X18 L=33	9-04411-018-0	01	1	9101-			●
47	STUD; BRKT,POWER STEERING M10X18 L=33	9-04411-018-0	02	1	9101-			●
49	STUD; CABLE M10X16 L=31	9-04411-016-0	06	1	9001-	●	●	●
50	PIPE; INL (A)	1-14111-468-1	01	1	9001-				●
50	PIPE; INL (B)	1-14111-741-1	01	1	9001-	●	●
50	PIPE; INL (C)	1-14114-637-0	01	1	9101-			●
50	PIPE; INL (D)	1-14114-845-0	01	1	9101-			●
53	BOLT; INL PIPE M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9101-			●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	01	1	9001-	●	●		●
54	WASHER; LK,INL PIPE (B) ID=8.2	9-09150-508-0	08	1	9001-	●	●
54	WASHER; LK,INL PIPE (C) ID=8.2	9-09150-508-0	06	1	9101-			●
54	WASHER; LK,INL PIPE (D) ID=10.2	9-09150-510-0	04	1	9101-			●
55	NUT; INL PIPE M10	9-09110-410-0	04	1	9101-			●
63	WASHER; PL,INL PIPE ID=10.5 OD=18	9-09160-510-0	01	1	9101-			●
64	STUD; INL PIPE M10X20 L=35	9-04411-020-0	04	1	9001-	●	●
64	STUD; INL PIPE M10X35 L=50	9-04411-035-0	04	1	9101-			●
67	NUT; INL DUCT M8	9-09110-408-0	02	1	9001-	●	●
67	NUT; INL DUCT M8	9-09110-408-0	06	1	9101-			●
68	WASHER; PL,INL DUCT ID=8.4	9-09160-508-0	08	1	9001-	●	●
68	WASHER; PL,INL DUCT ID=8.4	9-09160-508-0	06	1	9101-			●
68	WASHER; PL,INL DUCT ID=10.5 OD=18	9-09160-510-0	04	1	9101-			●
70	STUD; WATER PIPE M10X16 L=31	9-04411-016-0	02	1	9101-			●
71	STUD; FUEL PIPE M6X16 L=25	9-04110-616-0	02	1	9101-			●
72	PLUG; HTR BOSS (A)	9-09664-005-0	01	1	9001-	●	●	●	●
72	PLUG; HTR BOSS (B) M22X12	1-09604-035-0	02	1	9001-	●	●	●
73	GASKET; PLUG,AIR DUCT ID=22.5	9-09571-422-0	02	1	9001-	●	●	●
75	STUD; BRKT,AIR PIPE M6X25 L=34	9-04110-625-0	01	1	9101-			●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	9-01911-020-0	01	1	9001-9002				●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-9701				●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	0-50041-020-0	01	1	9702-			●	●
139	BOLT; BRKT FIX M10X20	9-01971-020-0	01	1	9001-9002	●	●
139	BOLT; BRKT FIX M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9003-	●	●
167	PLUG; INL MANIF PT1	1-09605-021-0	01	1	9101-			●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-031-0	02	1	9001-9602	●	●	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-082-0	02	1	9603-	●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-057-1	01	1	9101-			●
323	BOLT; DUCT M8X170	9-09801-271-0	01	1	9001-	●
323	BOLT; DUCT M8X50	9-01065-850-0	12	1	9001-	●	●	●
323	BOLT; DUCT M8X102 L=116	9-09801-273-0	03	1	9001-	●	●	●
323	BOLT; DUCT M8X140	9-09801-276-0	09	1	9001-	●	●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14317-031-0	01	1	9101-9603			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14317-040-0	01	1	9604-			●
345	BRACKET; INL PIPE (A)	9-14119-223-0	01	1	9001-				●
345	BRACKET; INL PIPE (B)	9-14119-224-0	01	1	9001-				●
345	BRACKET; INL PIPE (C)	9-14119-221-1	01	1	9001-	●	●
345	BRACKET; INL PIPE (D)	9-14119-222-0	01	1	9001-	●	●
345	BRACKET; INL PIPE (E)	1-14119-193-0	01	1	9101-			●
351	NUT; BRKT,INL PIPE M10	9-09110-410-0	01	1	9101-			●
352	WASHER; LK,BRKT,INL PIPE ID=10.2	9-09150-510-0	01	1	9101-			●
436	BRACKET; FUEL CUT	1-23219-071-0	01	1	9001-	●	●	●
562	BOLT; INL DUCT (A) M8X85	9-01055-885-0	02	1	9001-9005	●	●
562	BOLT; INL DUCT (A) M8X85	0-10805-885-0	02	1	9006-	●	●
562	BOLT; INL DUCT (B) M8X180	9-09801-272-0	04	1	9001-	●	●
562	BOLT; INL DUCT (C) M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9101-			●

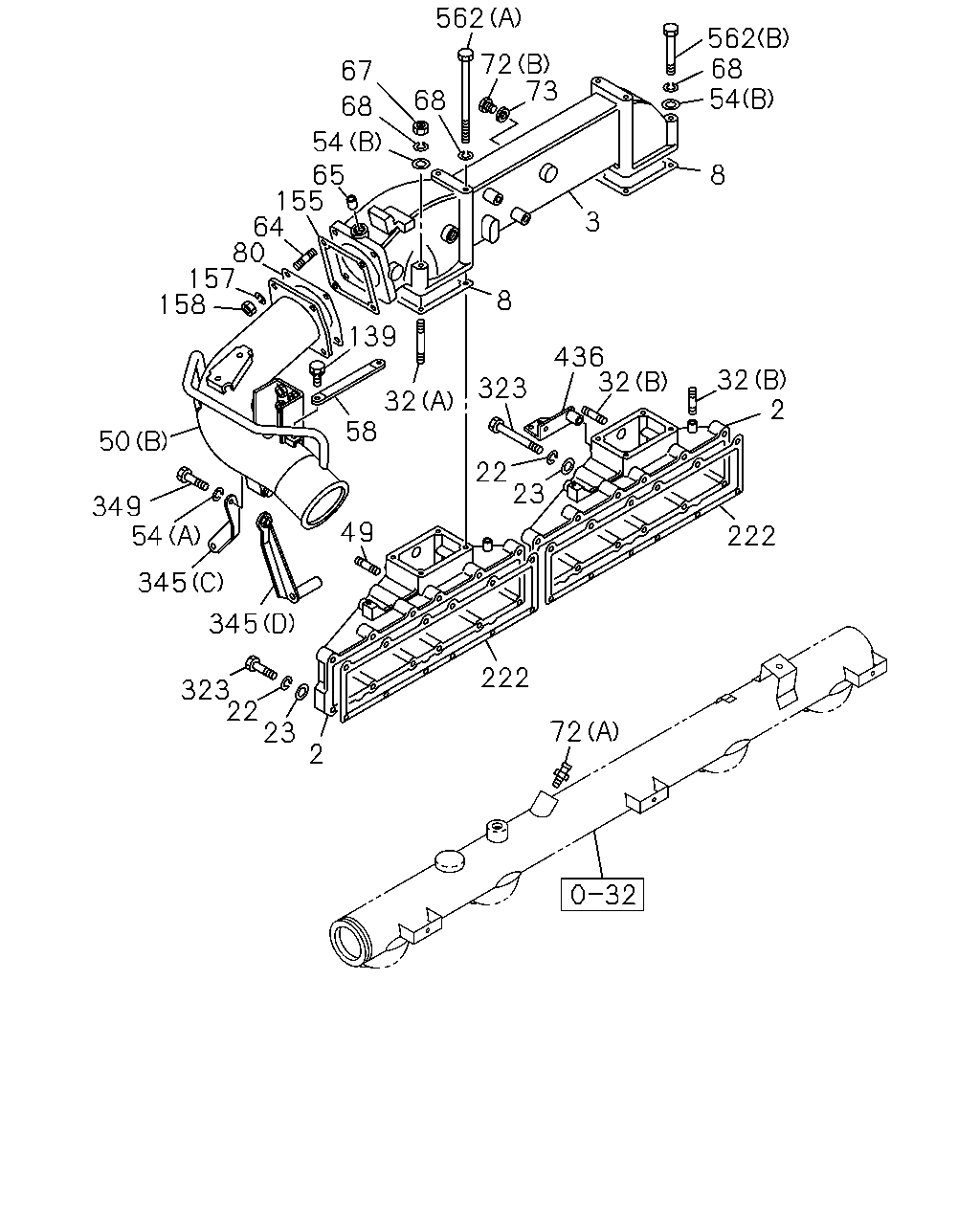

562 562 68 54 72 73 67 68 68 54 65 155 64 80 157 158 8 3 8 139 436 32 32 2 323 32 58 50 22 23 349 54 49 222 345 345 222 323 22 23 72 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	1-14110-225-0	02	1	9001-	●	●	●
3	DUCT; INT	1-14114-425-1	01	1	9001-	●	●
3	DUCT; INT	1-14114-674-2	01	1	9101-			●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-041-0	02	1	9001-9603	●	●	●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-087-0	02	1	9604-	●	●	●
22	WASHER; LK,INL MANIF ID=10.2	9-09150-510-0	08	1	9001-				●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	24	1	9001-	●	●	●
23	WASHER; PL,INL MANIF ID=8.4 OD=18	9-09164-608-0	20	1	9001-	●	●	●
32	STUD; INL PIPE (A) M8X71 L=83	9-09830-212-0	02	1	9001-	●	●
32	STUD; INL PIPE (B) M5X25 L=35	9-94010-525-0	04	1	9001-	●	●	●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	06	1	9101-			●
32	STUD; INL PIPE (C) M10X18 L=33	9-04411-018-0	01	1	9101-			●
49	STUD; CABLE M10X16 L=31	9-04411-016-0	06	1	9001-	●	●	●
50	PIPE; INL (A)	1-14111-468-1	01	1	9001-				●
50	PIPE; INL (B)	1-14111-741-1	01	1	9001-	●	●
50	PIPE; INL (C)	1-14114-637-0	01	1	9101-			●
50	PIPE; INL (D)	1-14114-845-0	01	1	9101-			●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	01	1	9001-	●	●		●
54	WASHER; LK,INL PIPE (B) ID=8.2	9-09150-508-0	08	1	9001-	●	●
54	WASHER; LK,INL PIPE (C) ID=8.2	9-09150-508-0	06	1	9101-			●
54	WASHER; LK,INL PIPE (D) ID=10.2	9-09150-510-0	04	1	9101-			●
58	STAY; INL MANIF	1-14119-118-0	01	1	9001-				●
58	STAY; INL MANIF	9-14119-246-0	01	1	9001-	●	●
64	STUD; INL PIPE M10X20 L=35	9-04411-020-0	04	1	9001-	●	●
64	STUD; INL PIPE M10X35 L=50	9-04411-035-0	04	1	9101-			●
65	BUSHING; SHAFT	1-14319-096-0	02	1	9001-	●	●
67	NUT; INL DUCT M8	9-09110-408-0	02	1	9001-	●	●
67	NUT; INL DUCT M8	9-09110-408-0	06	1	9101-			●
68	WASHER; PL,INL DUCT ID=8.4	9-09160-508-0	08	1	9001-	●	●
68	WASHER; PL,INL DUCT ID=8.4	9-09160-508-0	06	1	9101-			●
68	WASHER; PL,INL DUCT ID=10.5 OD=18	9-09160-510-0	04	1	9101-			●
72	PLUG; HTR BOSS (A)	9-09664-005-0	01	1	9001-	●	●	●	●
72	PLUG; HTR BOSS (B) M22X12	1-09604-035-0	02	1	9001-	●	●	●
73	GASKET; PLUG,AIR DUCT ID=22.5	9-09571-422-0	02	1	9001-	●	●	●
80	GASKET; INT SHUTTER TO INL PIPE	1-14317-025-0	02	1	9001-				●
80	GASKET; INT SHUTTER TO INL PIPE	1-14317-030-1	01	1	9001-		●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	9-01911-020-0	01	1	9001-9002				●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-9701				●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	0-50041-020-0	01	1	9702-			●	●
139	BOLT; BRKT FIX M10X20	9-01971-020-0	01	1	9001-9002	●	●
139	BOLT; BRKT FIX M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9003-	●	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14317-031-0	01	1	9001-9603	●	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14317-040-0	01	1	9604-	●	●
157	WASHER; LK,INT SHUTTER ID=10.2	9-09150-510-0	04	1	9001-	●	●
158	NUT; INT SHUTTER M10	9-09110-410-0	04	1	9001-	●	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-031-0	02	1	9001-9602	●	●	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-082-0	02	1	9603-	●	●	●
323	BOLT; DUCT M8X170	9-09801-271-0	01	1	9001-	●
323	BOLT; DUCT M8X50	9-01065-850-0	12	1	9001-	●	●	●
323	BOLT; DUCT M8X102 L=116	9-09801-273-0	03	1	9001-	●	●	●
323	BOLT; DUCT M8X140	9-09801-276-0	09	1	9001-	●	●	●
345	BRACKET; INL PIPE (A)	9-14119-223-0	01	1	9001-				●
345	BRACKET; INL PIPE (B)	9-14119-224-0	01	1	9001-				●
345	BRACKET; INL PIPE (C)	9-14119-221-1	01	1	9001-	●	●
345	BRACKET; INL PIPE (D)	9-14119-222-0	01	1	9001-	●	●
345	BRACKET; INL PIPE (E)	1-14119-193-0	01	1	9101-			●
349	BOLT; BRKT,INL PIPE M10X100	9-01056-000-0	01	1	9001-9004	●	●		●
349	BOLT; BRKT,INL PIPE M10X100	0-10806-000-0	01	1	9005-	●	●		●
436	BRACKET; FUEL CUT	1-23219-071-0	01	1	9001-	●	●	●
562	BOLT; INL DUCT (A) M8X85	9-01055-885-0	02	1	9001-9005	●	●
562	BOLT; INL DUCT (A) M8X85	0-10805-885-0	02	1	9006-	●	●
562	BOLT; INL DUCT (B) M8X180	9-09801-272-0	04	1	9001-	●	●
562	BOLT; INL DUCT (C) M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9101-			●

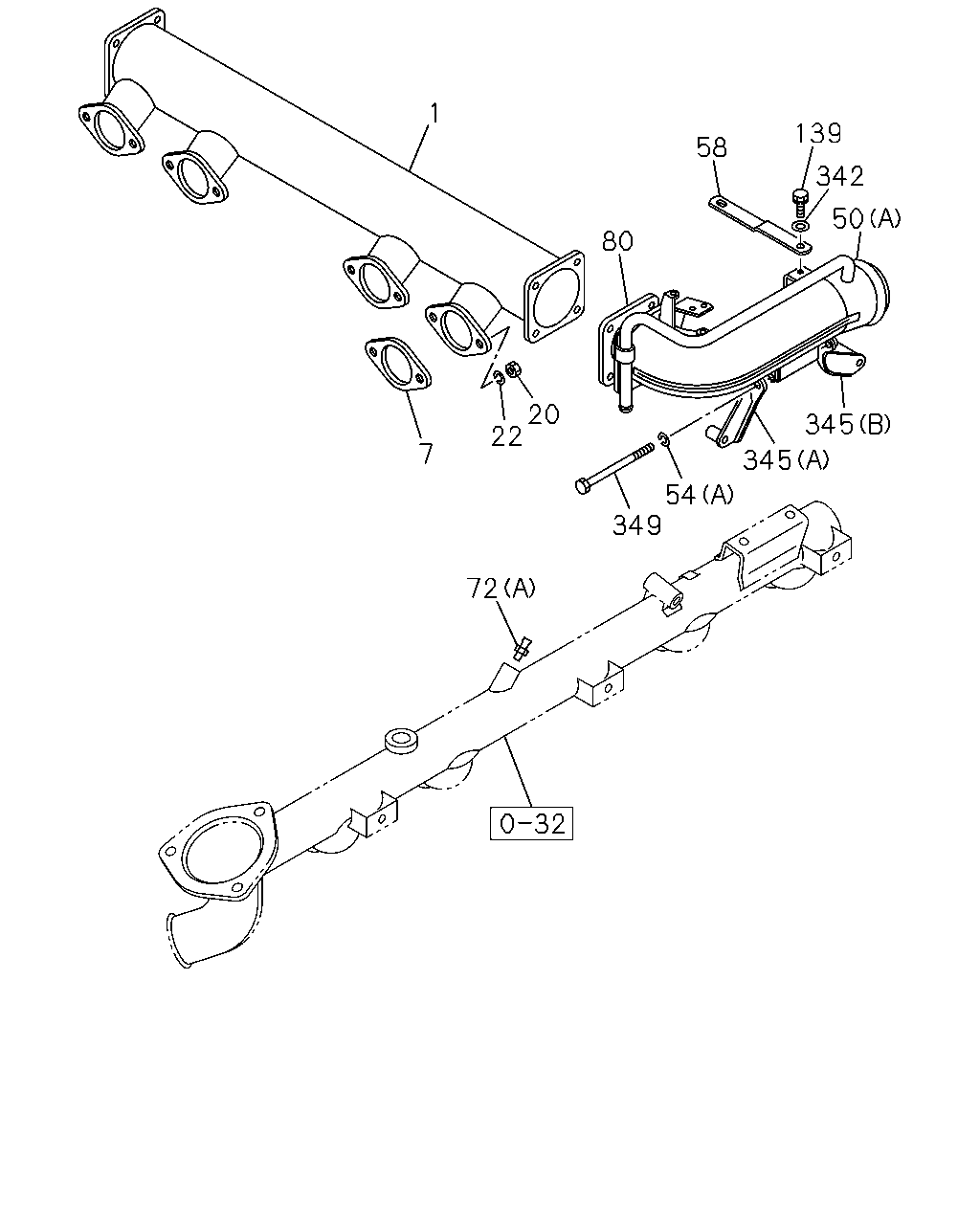

1 139 58 342 50 80 20 22 345 7 345 54 349 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	1-14111-481-1	01	1	9001-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-033-0	04	1	9001-				●
20	NUT; INL MANIF M10	9-09110-410-0	08	1	9001-				●
22	WASHER; LK,INL MANIF ID=10.2	9-09150-510-0	08	1	9001-				●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	24	1	9001-	●	●	●
50	PIPE; INL (A)	1-14111-468-1	01	1	9001-				●
50	PIPE; INL (B)	1-14111-741-1	01	1	9001-	●	●
50	PIPE; INL (C)	1-14114-637-0	01	1	9101-			●
50	PIPE; INL (D)	1-14114-845-0	01	1	9101-			●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	01	1	9001-	●	●		●
54	WASHER; LK,INL PIPE (B) ID=8.2	9-09150-508-0	08	1	9001-	●	●
54	WASHER; LK,INL PIPE (C) ID=8.2	9-09150-508-0	06	1	9101-			●
54	WASHER; LK,INL PIPE (D) ID=10.2	9-09150-510-0	04	1	9101-			●
58	STAY; INL MANIF	1-14119-118-0	01	1	9001-				●
58	STAY; INL MANIF	9-14119-246-0	01	1	9001-	●	●
72	PLUG; HTR BOSS (A)	9-09664-005-0	01	1	9001-	●	●	●	●
72	PLUG; HTR BOSS (B) M22X12	1-09604-035-0	02	1	9001-	●	●	●
80	GASKET; INT SHUTTER TO INL PIPE	1-14317-025-0	02	1	9001-				●
80	GASKET; INT SHUTTER TO INL PIPE	1-14317-030-1	01	1	9001-		●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	9-01911-020-0	01	1	9001-9002				●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-9701				●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	0-50041-020-0	01	1	9702-			●	●
139	BOLT; BRKT FIX M10X20	9-01971-020-0	01	1	9001-9002	●	●
139	BOLT; BRKT FIX M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9003-	●	●
342	WASHER; PL,STAY,INL PIPE ID=10.5 OD=22	9-09160-610-0	01	1	9001-				●
345	BRACKET; INL PIPE (A)	9-14119-223-0	01	1	9001-				●
345	BRACKET; INL PIPE (B)	9-14119-224-0	01	1	9001-				●
345	BRACKET; INL PIPE (C)	9-14119-221-1	01	1	9001-	●	●
345	BRACKET; INL PIPE (D)	9-14119-222-0	01	1	9001-	●	●
345	BRACKET; INL PIPE (E)	1-14119-193-0	01	1	9101-			●
349	BOLT; BRKT,INL PIPE M10X100	9-01056-000-0	01	1	9001-9004	●	●		●
349	BOLT; BRKT,INL PIPE M10X100	0-10806-000-0	01	1	9005-	●	●		●
