2-05 — CLUTCH PIPING (#20103) — 80 parça

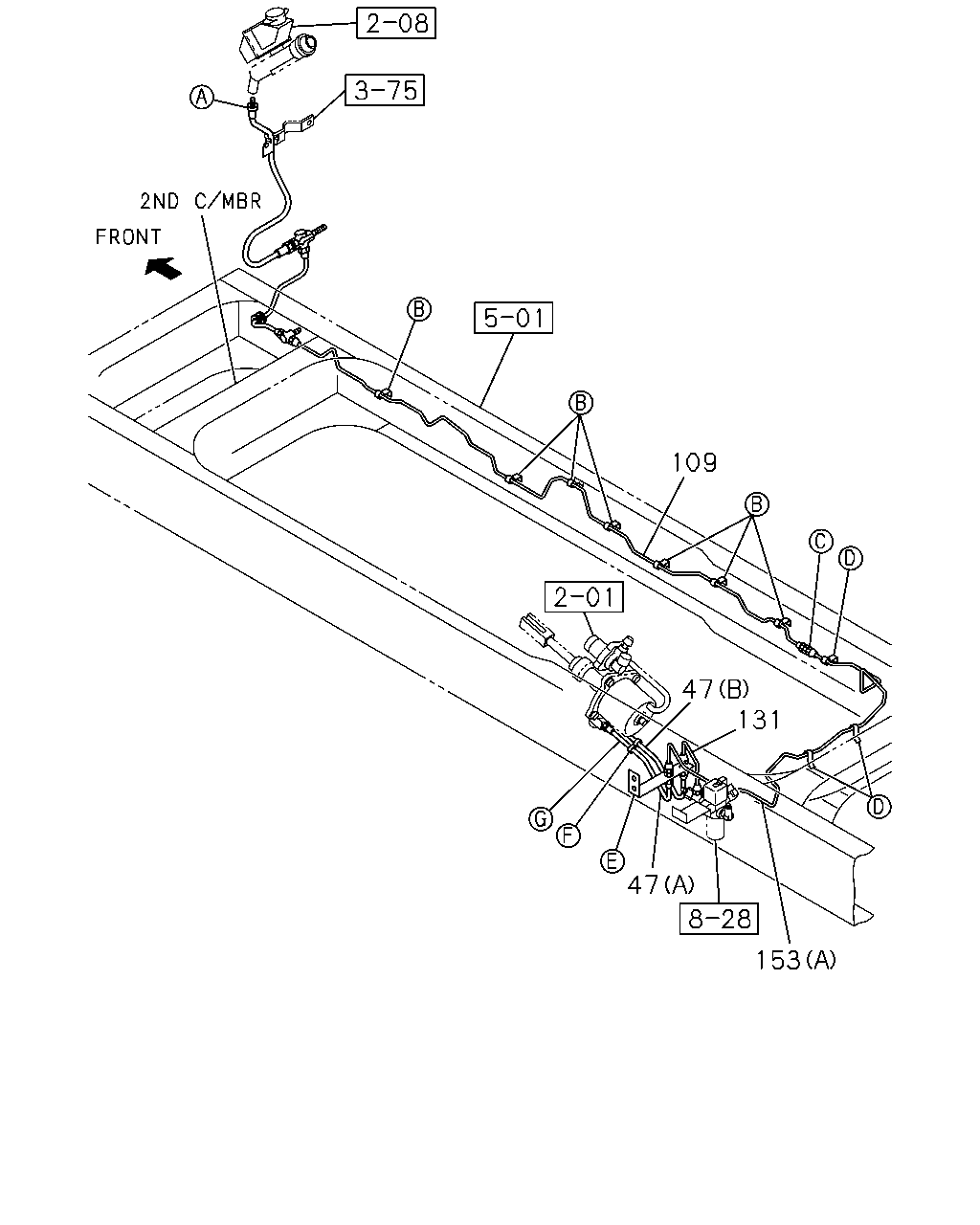

109 47 131 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1310-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1310-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1104-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1104-
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2766 SERVICED BY L=3000	1-47428-773-0	01	1	1104-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1104-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) (B) L=2749 SERVICED BY L=3000	1-47428-773-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (A) L=1655 SERVICED BY L=1700	1-47428-767-0	01	1	1104-

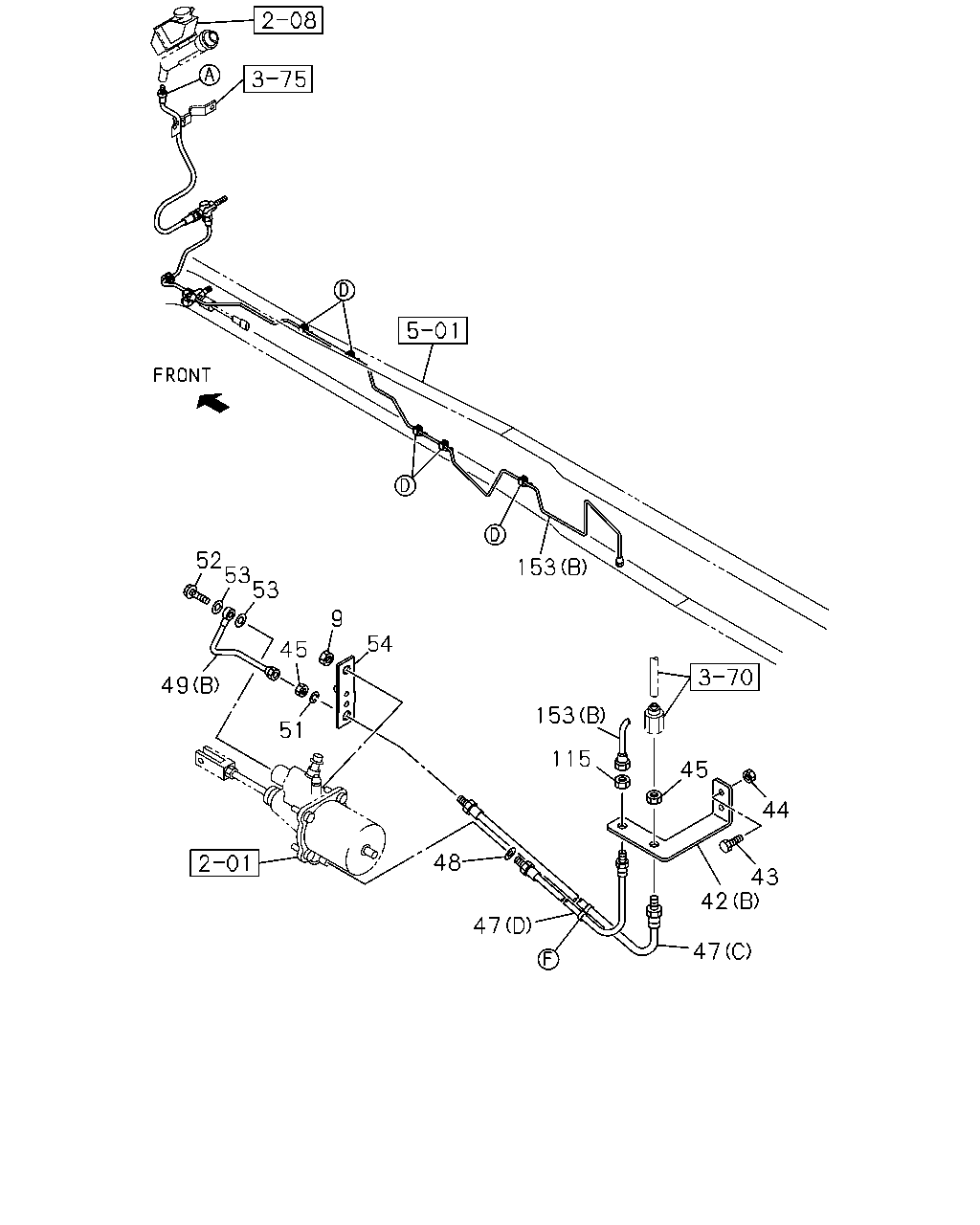

153 153 115 45 43 42 47 44 47 48 51 54 9 53 45 53 52 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER ES11109 DD M/T(Y5N) M10 FLANGE	0-91180-210-0	02	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N) (B)	8-98100-603-0	01	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (A)	8-98077-571-0	01	1	1104-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1104-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1104-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1104-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1310-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1310-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1104-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1104-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1104-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N) (B)	1-49124-974-0	01	1	1310-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=232 IDN	1-49124-795-0	01	1	1104-1309
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) (A) L=232 IDN	1-49124-795-0	01	1	1310-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1104-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1104-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1104-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
54	BRACKET; AIR,FLEX HOSE FULLER ES11109 DD M/T(Y5N)	8-98081-247-0	01	1	1310-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1104-1303
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) M14	0-91111-514-0	01	1	1304-1309
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) (B) L=2749 SERVICED BY L=3000	1-47428-773-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (A) L=1655 SERVICED BY L=1700	1-47428-767-0	01	1	1104-

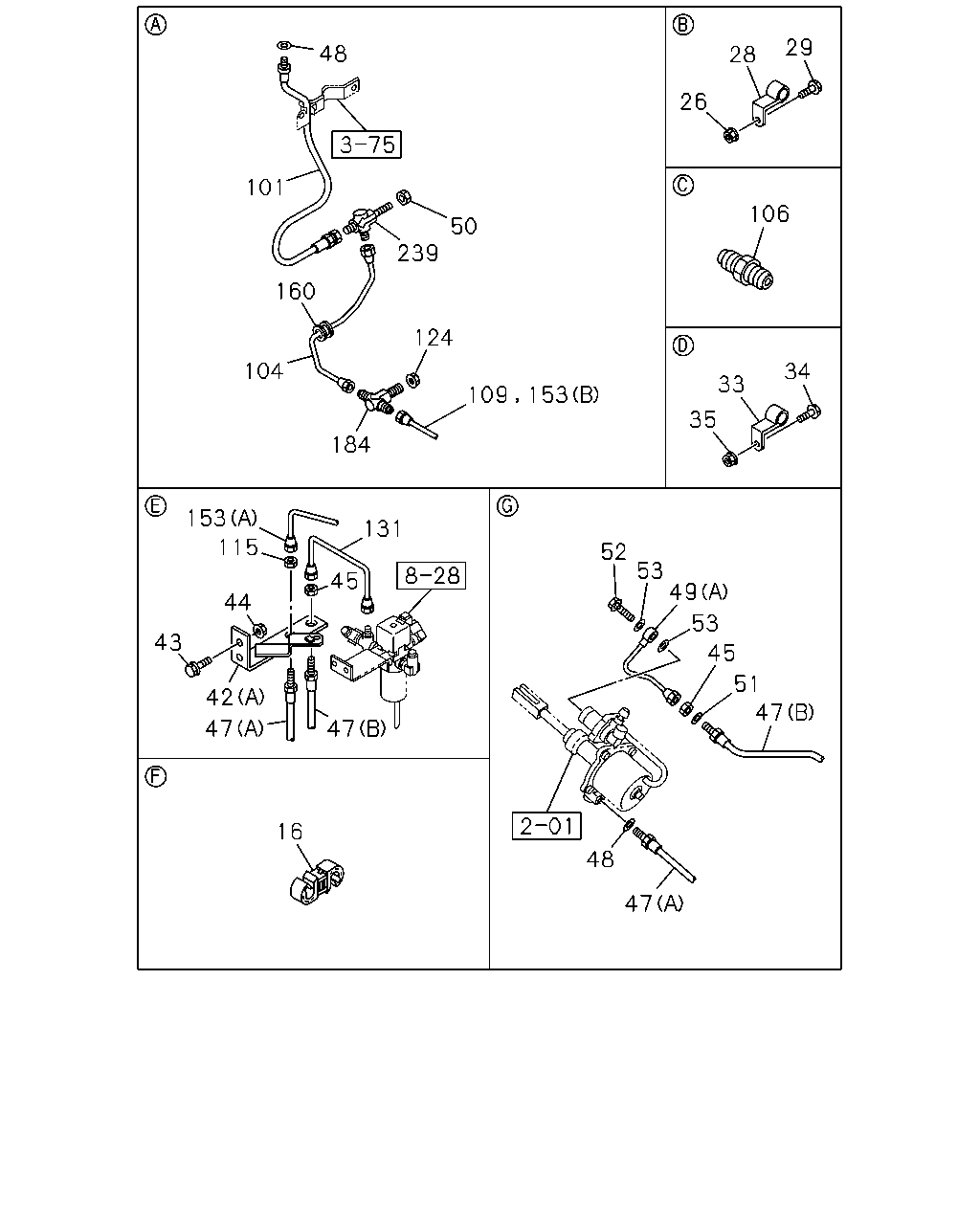

29 28 26 106 33 34 35 52 53 49 53 45 51 47 47 48 131 47 47 43 42 153 115 44 45 184 104 160 101 48 50 239 124 109 153 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1104-
26	NUT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8 FLANGE	0-91180-108-0	07	1	1104-
28	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	07	1	1104-
29	BOLT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	07	1	1104-
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) ID=8 H=20 L=20	1-09700-604-0	06	1	1310-
33	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	03	1	1104-
34	BOLT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	06	1	1310-
34	BOLT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	03	1	1104-
35	NUT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	06	1	1310-
35	NUT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8 FLANGE	0-91180-108-0	03	1	1104-
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N) (B)	8-98100-603-0	01	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (A)	8-98077-571-0	01	1	1104-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1104-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1104-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1104-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1310-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1310-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1104-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1104-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1104-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N) (B)	1-49124-974-0	01	1	1310-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=232 IDN	1-49124-795-0	01	1	1104-1309
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) (A) L=232 IDN	1-49124-795-0	01	1	1310-
50	NUT; UNION M12	0-91111-512-0	01	1	1104-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1104-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1104-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1104-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1104-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1104-1303
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 DD M/T(Y5P) L=544 SERVICED BY L=550	1-47428-753-0	01	1	1304-1309
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1310-
106	UNION; OIL PIPE ZF9S1110 DD M/T(Y5P) M14 STRAIGHT	0-92113-008-0	01	1	1104-
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2766 SERVICED BY L=3000	1-47428-773-0	01	1	1104-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1104-1303
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) M14	0-91111-514-0	01	1	1304-1309
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1310-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1104-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1104-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) (B) L=2749 SERVICED BY L=3000	1-47428-773-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (A) L=1655 SERVICED BY L=1700	1-47428-767-0	01	1	1104-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1104-
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1104-1303
184	UNION; FLEX HOSE ZF9S1110 DD M/T(Y5P) M14 2WAY	1-09654-176-2	01	1	1304-1309
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1310-
239	UNION; CLU HOSE	8-98107-850-0	01	1	1104-1303
239	UNION; CLU HOSE ZF9S1110 DD M/T(Y5P)	8-98107-850-0	01	1	1304-1309
239	UNION; CLU HOSE	8-98107-850-0	01	1	1310-
