◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#2010) — 61 parça

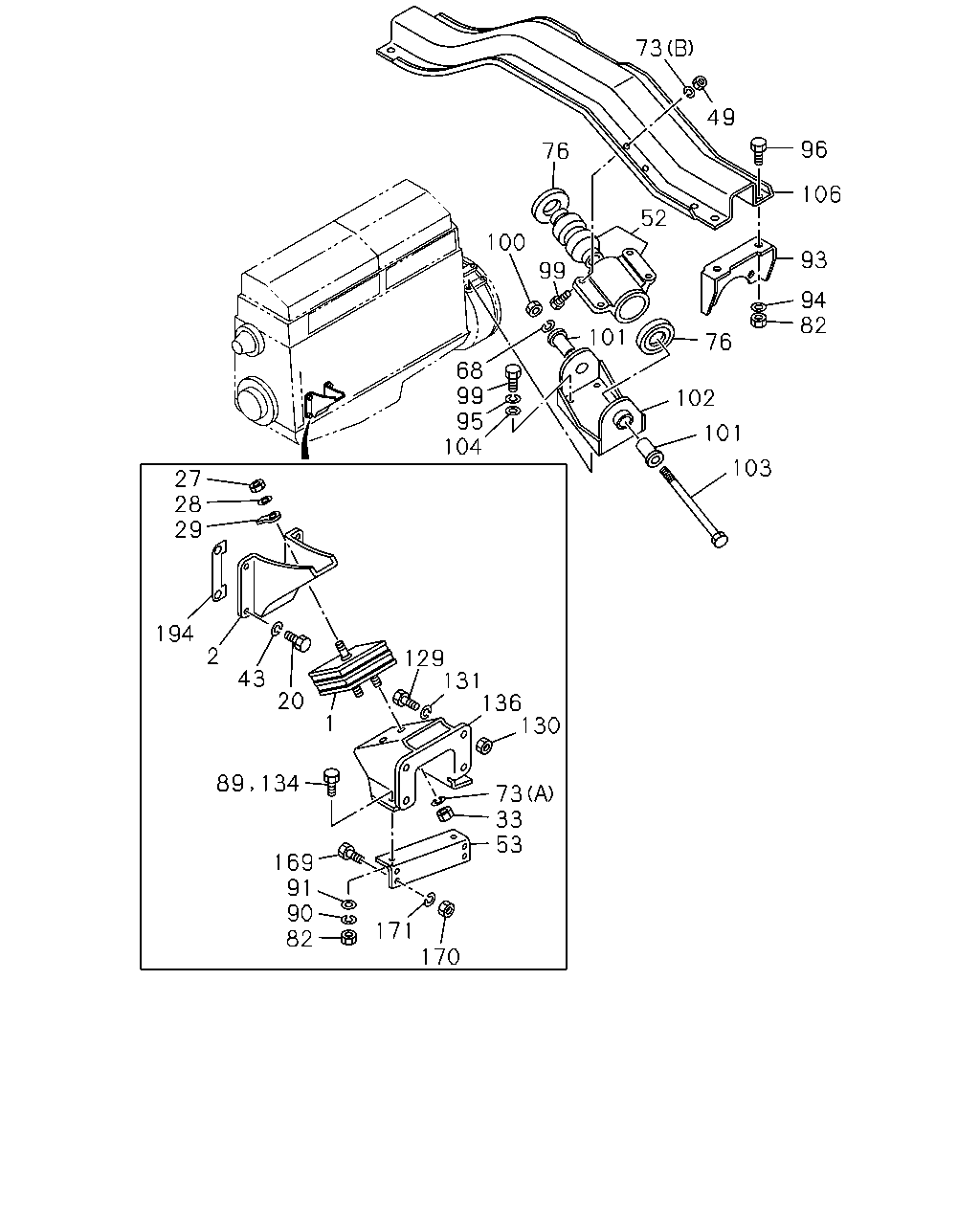

çizim 29731
73 49 96 76 106 52 100 93 99 94 82 101 76 68 99 95 104 102 101 103 27 28 29 194 2 129 131 136 130 43 20 1 134 73 33 53 169 91 90 82 171 170 89
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RUBBER; ENG FOOT,FRT 9-53215-177-1 02 1 9001- ● ● ● ●
2 FOOT; ENG 9-11771-215-1 02 1 9001- ● ● ● ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 06 1 9001- ● ● ● ●
20 BOLT; ENG FOOT
M14X40 		9-92361-440-0 02 1 9001- ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-418-0 02 1 9001-9802 ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 9803- ● ● ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 9001- ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 9001- ● ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9001- ● ● ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 9001- ● ● ● ●
49 NUT; CUSHION RUBBER TO FRAME
M12 		9-99110-512-0 08 1 9001-9606 ● ● ● ●
49 NUT; CUSHION RUBBER TO FRAME
M12 FLANGE 		0-91150-212-0 08 1 9607- ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 9-53220-161-1 02 1 9001-9210 ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53220-088-1 02 1 9211- ● ● ● ●
53 SUPPORT ASM; ENG MTG 1-53211-099-0 02 1 9001- ● ● ● ●
68 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-516-0 02 1 9001- ● ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2 		9-09150-514-0 04 1 9001- ● ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=12.2 		9-09150-612-0 08 1 9001-9606 ● ● ● ●
76 STOPPER; ENG MTG RUBBER 9-53225-239-0 04 1 9001- ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 16 1 9001- ● ● ● ●
89 BOLT; BRKT
M14X55 		9-91066-455-0 04 1 9001-9606 ● ● ● ●
89 BOLT; BRKT
M14X50 FLANGE 		0-28891-450-0 04 1 9607- ● ● ● ●
90 WASHER; LK
ID=14.2 		9-09150-614-0 08 1 9001-9606 ● ● ● ●
91 WASHER; PL
ID=15 		9-09651-069-0 16 1 9001-9606 ● ● ● ●
91 WASHER; PL
ID=15 		9-09651-069-0 08 1 9607- ● ● ● ●
93 BRACKET; MEMBER,ENG MTG RR 1-53221-046-1 02 1 9001- ● ● ● ●
94 WASHER; PL,BRKT
ID=15 		9-09651-069-0 16 1 9001- ● ● ● ●
95 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 08 1 9001-9606 ● ● ● ●
95 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 08 1 9902- ● ● ● ●
96 BOLT; BRKT
M14X45 		9-92061-445-0 08 1 9001-9606 ● ● ● ●
96 BOLT; BRKT
M14X40 FLANGE 		0-28691-440-0 08 1 9607-9901 ● ● ● ●
96 BOLT; BRKT
M14X40 		9-92061-440-0 08 1 9902- ● ● ● ●
99 BOLT; LWR BRKT RR
M14X32 		9-92351-432-0 08 1 9001-9005 ● ● ●
99 BOLT; LWR BRKT RR
M14X32 		0-23801-432-0 08 1 9006-9606 ● ● ● ●
99 BOLT; LWR BRKT RR
M14X30 FLANGE 		0-28681-430-0 08 1 9607-9704 ● ● ● ●
99 BOLT; LWR BRKT RR
M14X32 		0-23801-432-0 08 1 9705- ● ● ● ●
99 BOLT; LWR BRKT RR
M12X40 		9-09801-095-0 08 1 9001-9606 ● ● ● ●
99 BOLT; LWR BRKT RR
M12X40 FLANGE 		0-28681-240-0 08 1 9607- ● ● ● ●
100 NUT; CUSHION RUBBER
M16 		9-99110-416-0 02 1 9001- ● ● ● ●
101 COLLAR; CUSHION RUBBER 9-53229-075-0 04 1 9001- ● ● ● ●
102 BRACKET; LWR CUSHION RUBBER 1-53221-101-3 02 1 9001- ● ● ● ●
103 BOLT; CUSHION RUBBER RR,LWR
M16X200 		9-09801-097-0 02 1 9001- ● ● ● ●
104 WASHER; PL,CUSHION RUBBER
ID=15 		9-09651-069-0 08 1 9206- ● ● ● ●
106 MEMBER; MTG,RR 1-53221-102-3 01 1 9001- ● ● ● ●
129 BOLT; ENG TO BRKT
M14X40 		9-92061-440-0 12 1 9001-9606 ● ● ● ●
129 BOLT; ENG TO BRKT
M14X40 FLANGE 		0-28691-440-0 12 1 9607-9901 ● ● ● ●
129 BOLT; ENG TO BRKT
M14X40 		9-92061-440-0 12 1 9902- ● ● ● ●
130 NUT; ENG TO BRKT
M14 		9-99110-514-0 12 1 9001- ● ● ● ●
131 WASHER; LK,ENG TO BRKT
ID=14.2 		9-09150-614-0 12 1 9001-9606 ● ● ● ●
131 WASHER; LK,ENG TO BRKT
ID=14.2 		9-09150-614-0 12 1 9902- ● ● ● ●
134 BOLT; SUPPORT BRKT
M14X40 		9-92061-440-0 04 1 9001-9606 ● ● ● ●
134 BOLT; SUPPORT BRKT
M14X40 FLANGE 		0-28691-440-0 04 1 9607- ● ● ● ●
136 BRACKET; CUSHION RUBBER,FRT 1-53211-173-0 01 1 9001- ● ● ● ●
136 BRACKET; CUSHION RUBBER,FRT 1-53211-174-0 01 1 9001- ● ● ● ●
169 BOLT; SUPPORT
M12X32 		9-92061-232-0 08 1 9001-9606 ● ● ● ●
169 BOLT; SUPPORT
M12X30 FLANGE 		0-28691-230-0 08 1 9607-9701 ● ● ● ●
169 BOLT; SUPPORT
M12X35 		9-92061-235-0 08 1 9702- ● ● ● ●
170 NUT; SUPPORT
M12 		9-99110-512-0 08 1 9001-9606 ● ● ● ●
170 NUT; SUPPORT
M12 FLANGE 		0-91150-212-0 08 1 9607- ● ● ● ●
171 WASHER; LK,ENG SUPPORT
ID=12.2 		9-09150-612-0 08 1 9001-9606 ● ● ● ●
194 PLATE; LK,LWR BRKT 9-53229-100-0 04 1 9001-9205 ● ● ● ●
