Isuzu WW
▶
TRUCKS
▶
FSR
▶
10625 - FSR-LHD
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#201) — 49 parça
◀

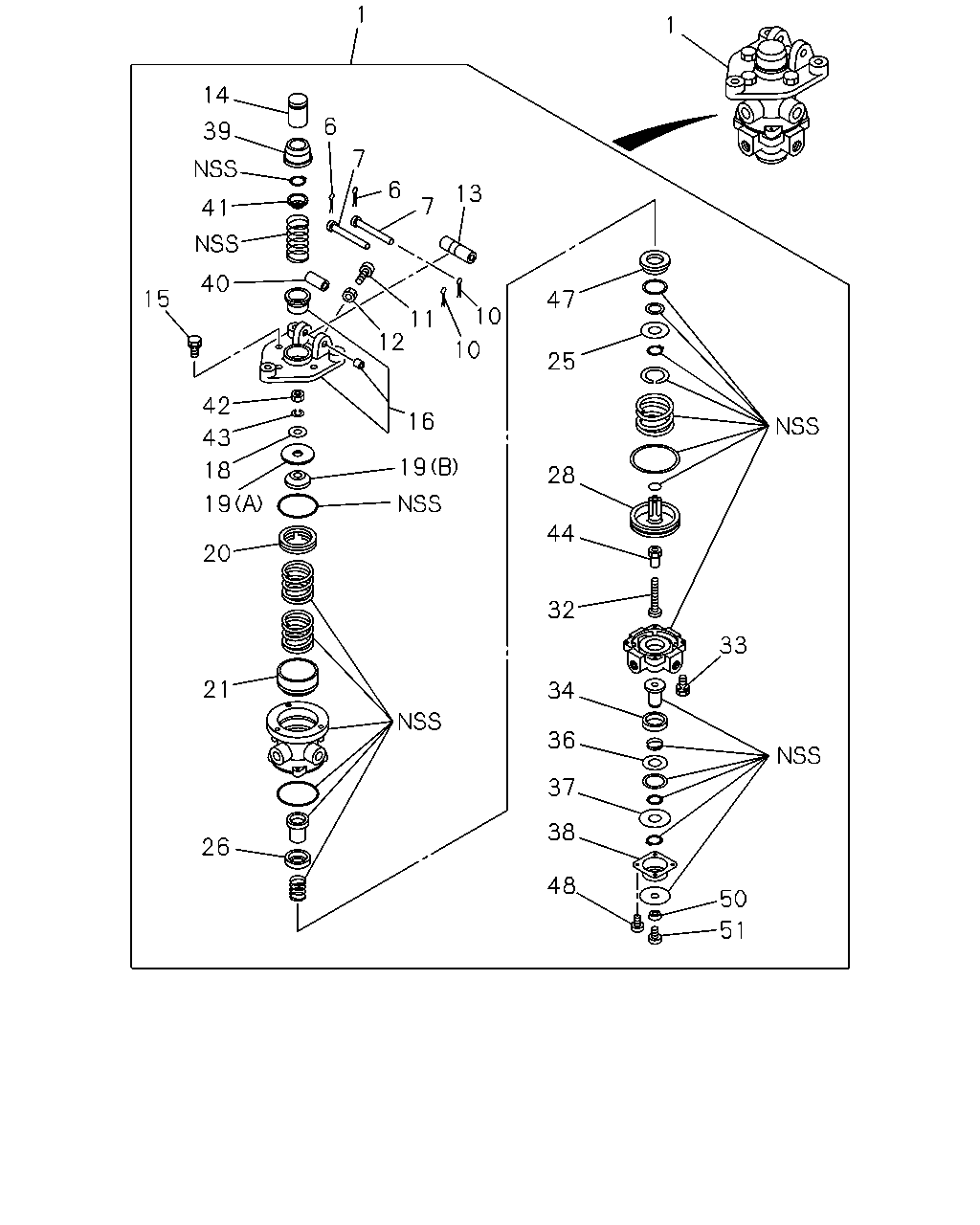

[334A] NO.1 (42 parça)

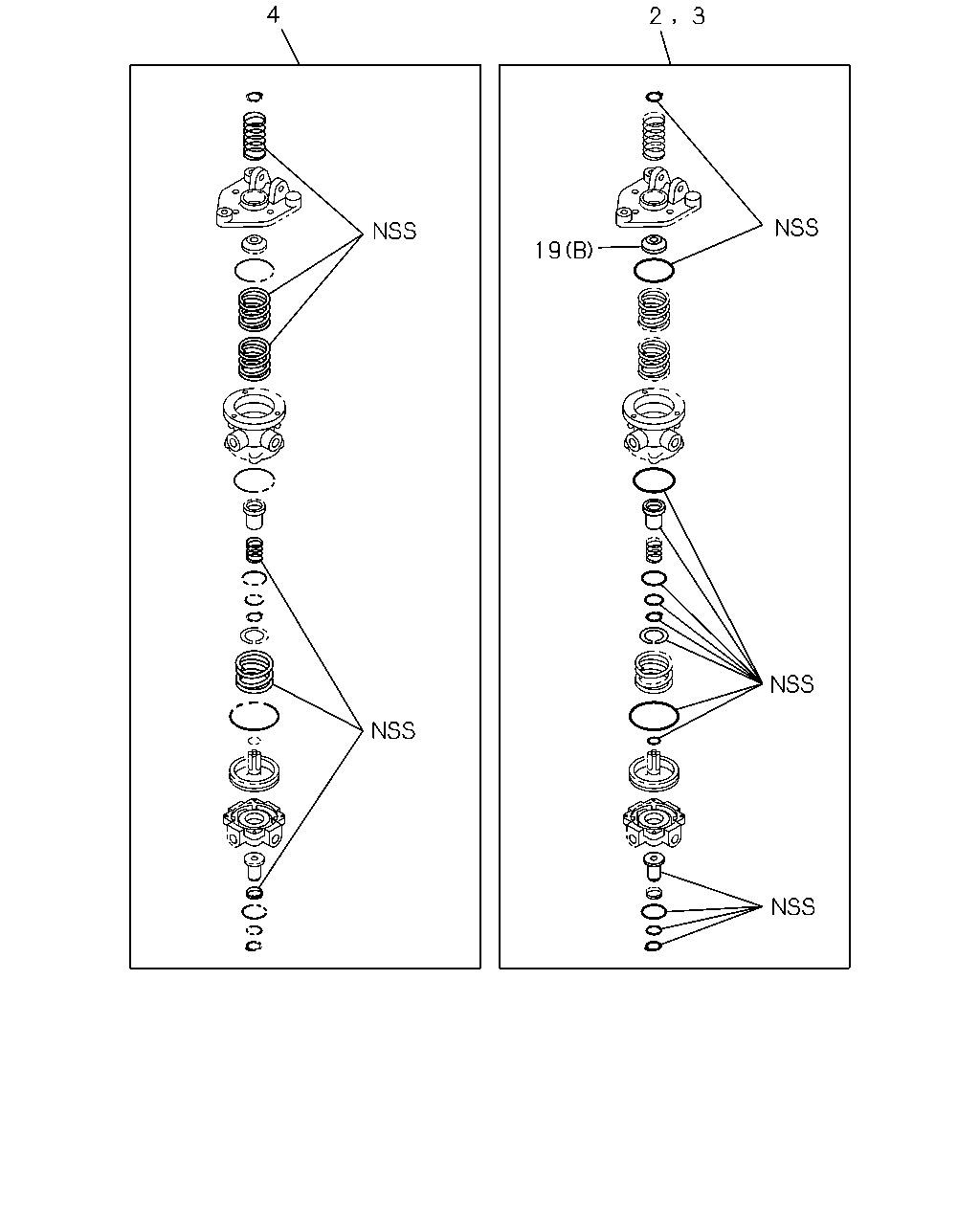

[334A] NO.2 REPAIR KIT (7 parça)
▶
1
1
14
6
39
7
6
13
7
41
40
15
47
10
11
12
10
25
42
16
43
19
18
28
19
44
20
32
33
21
34
36
37
38
26
48
50
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
TAIWAN EQUIPMENT(WW5)
1-48100-708-0
01
1
9212-
1
VALVE; BRK
EXC. TAIWAN EQUIPMENT(WW5)
1-48100-625-2
01
1
9212-
6
PIN; PEDAL,SIDE,BRK VLV
1-48119-083-0
02
1
9212-
7
PIN; PEDAL,BRK VLV
1-48119-082-0
02
1
9212-
10
PIN; SPLIT,BRK VLV
1-48119-087-0
02
1
9212-
11
SCREW; SET,BRK VLV
TAIWAN EQUIPMENT(WW5)
1-48119-309-0
01
1
9212-
11
SCREW; SET,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5)
1-48119-088-0
01
1
9212-
12
NUT; SCREW,PEDAL,BRK VLV
1-48119-089-0
01
1
9212-
13
ROLLER; PEDAL,BRK VLV
1-48119-257-0
01
1
9212-
14
PLUNGER; BRK VLV
TAIWAN EQUIPMENT(WW5)
1-48119-326-0
01
1
9212-
14
PLUNGER; BRK VLV
EXC. TAIWAN EQUIPMENT(WW5)
1-48119-316-0
01
1
9212-
15
BOLT; PLATE,BRK VLV
1-48119-232-0
03
1
9212-
16
PLATE; MTG,BRKT VLV
TAIWAN EQUIPMENT(WW5)
1-48119-325-0
01
1
9212-
16
PLATE; MTG,BRKT VLV
EXC. TAIWAN EQUIPMENT(WW5)
1-48119-261-2
01
1
9212-
18
WASHER; LK,SEAT,BRK VLV
1-48129-156-0
01
1
9212-
19
SEAT; SPRING,BRK VLV
TAIWAN EQUIPMENT(WW5) (A)
1-48119-320-0
01
1
9212-
19
SEAT; SPRING,BRK VLV
TAIWAN EQUIPMENT(WW5) (B)
1-48119-321-0
01
1
9212-
19
SEAT; SPRING,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) (A)
1-48129-172-0
01
1
9212-
20
PISTON; UPR,BRK VLV
TAIWAN EQUIPMENT(WW5)
1-48119-318-0
01
1
9212-
20
PISTON; UPR,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5)
1-48119-263-0
01
1
9212-
21
BUSHING; UPR BODY
TAIWAN EQUIPMENT(WW5)
1-48119-317-0
01
1
9212-
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
9212-
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
9212-
28
PISTON; LWR,BRK VLV
1-48123-050-0
01
1
9212-
32
SCREW; BRK VLV
TAIWAN EQUIPMENT(WW5)
1-48119-323-0
01
1
9212-
32
SCREW; BRK VLV
EXC. TAIWAN EQUIPMENT(WW5)
1-48121-039-0
01
1
9212-
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
9212-
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
9212-
36
RETAINER; GASKET,BRK VLV
1-48129-169-0
01
1
9212-
37
WASHER; VLV LWR,BRK VLV
1-48129-166-0
01
1
9212-
38
COVER; EXH,BRK VLV
1-48119-217-0
01
1
9212-
39
BOOT; PLUNGER,BRK VLV
1-48119-079-0
01
1
9212-
40
PIPE; PLATE,BRK VLV
1-48119-086-0
01
1
9212-
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
9212-
42
NUT; SPR SEAT,BRK VLV
1-48129-157-0
01
1
9212-
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
9212-
44
SLEEVE; PISTON,BRK VLV
TAIWAN EQUIPMENT(WW5)
1-48119-322-0
01
1
9212-
44
SLEEVE; PISTON,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5)
1-48129-171-0
01
1
9212-
47
RETAINER; GASKET,BRK VLV
1-48129-147-0
01
1
9212-
48
BOLT; COVER,BRK VLV
1-48119-216-0
04
1
9212-
50
WASHER; RET,BRK VLV
1-48129-112-0
01
1
9212-
51
SCREW; FORMING,BRK VLV
1-48129-111-0
01
1
9212-
4
2
3
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; RUBBER,BRK VLV
TAIWAN EQUIPMENT(WW5)
1-85576-143-0
01
1
9212-
3
REPAIR KIT; RUBBER,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5)
1-85576-049-0
01
1
9212-
4
REPAIR KIT; SPRING,BRK VLV
TAIWAN EQUIPMENT(WW5)
1-85576-144-0
01
1
9212-
4
REPAIR KIT; SPRING,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5)
1-85576-050-0
01
1
9212-
19
SEAT; SPRING,BRK VLV
TAIWAN EQUIPMENT(WW5) (A)
1-48119-320-0
01
1
9212-
19
SEAT; SPRING,BRK VLV
TAIWAN EQUIPMENT(WW5) (B)
1-48119-321-0
01
1
9212-
19
SEAT; SPRING,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) (A)
1-48129-172-0
01
1
9212-
