4-01 — PROPELLER SHAFT (#20096) — 121 parça

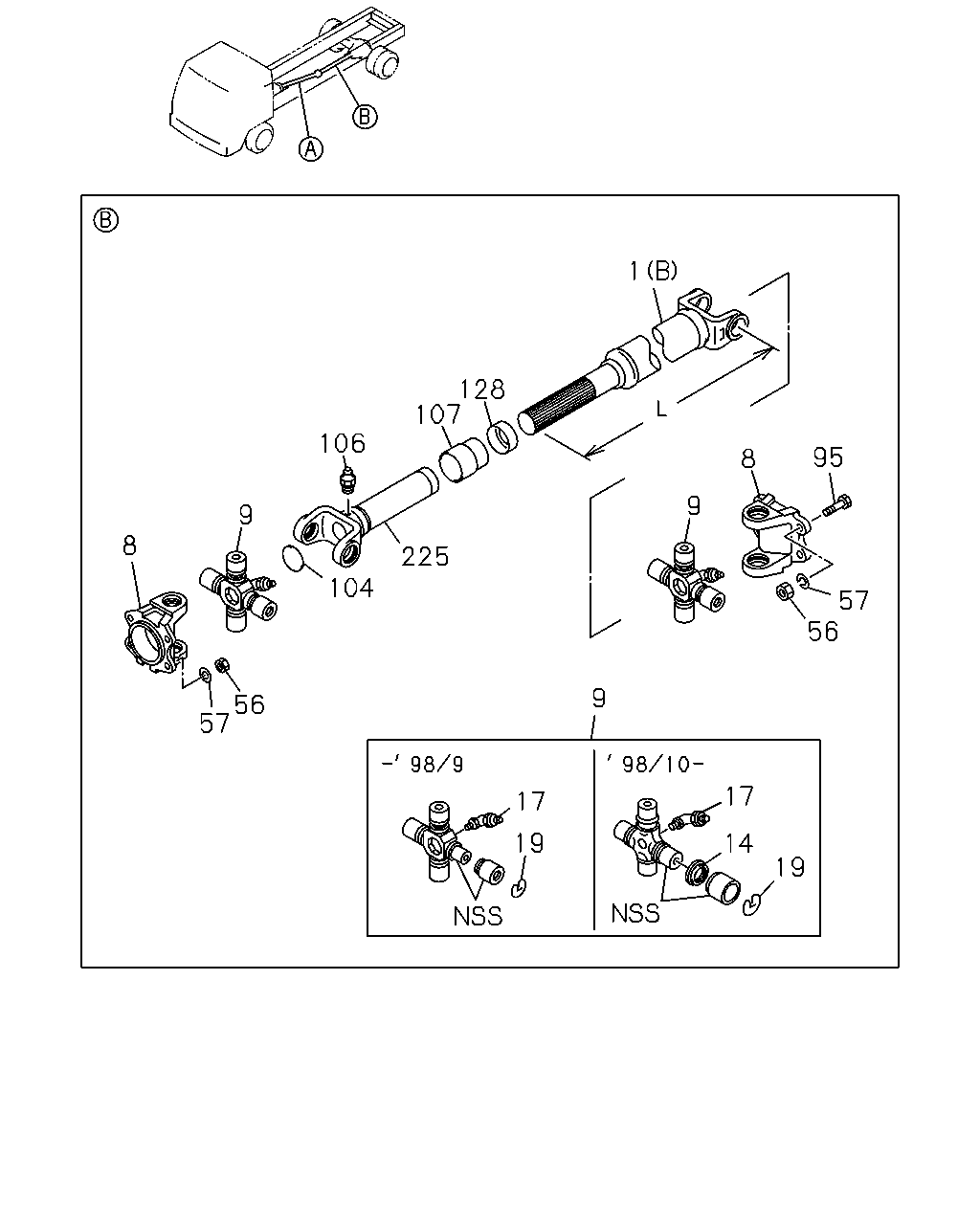

çizim 64972
1 128 107 106 95 8 9 9 8 225 104 57 56 9 56 57 17 17 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=716 		1-37123-771-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=861 		1-37151-943-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=761 		1-37151-772-1 01 1 9510- ●
1 SHAFT; PROP
(B) L=951 		1-37123-764-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1091 		1-37151-640-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=991 		1-37151-582-1 01 1 9510- ●
1 SHAFT; PROP
(B) L=1256 		1-37123-393-3 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1386 		1-37152-002-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1286 		1-37151-583-1 01 1 9510- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 9510- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 9510- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 9810-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 9810-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MBJ5 M/T<Y9A> 1ST 		1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
MBJ6 M/T<Y9B> 1ST 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 AR 1 1506- ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
MBJ6 M/T<Y9B> 1ST 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 9810-1505 ● ● ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A> 1ST 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 9810-1505 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9510-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9510- ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9510-0512 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9510-0603 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9510- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9510- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9510-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 9510- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9810-9811 ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9812- ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9510-9809 ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9810-9811 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9810-9811 ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9812-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9903- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9510-9809 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9810-9811 ● ●
çizim 65005
64 45 174 172 173 51 66 64 45 46 20 74 63 21 24 23 22 1 25 21 71 9 72 9 8 17 17 74 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=716 		1-37123-771-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=861 		1-37151-943-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=761 		1-37151-772-1 01 1 9510- ●
1 SHAFT; PROP
(B) L=951 		1-37123-764-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1091 		1-37151-640-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=991 		1-37151-582-1 01 1 9510- ●
1 SHAFT; PROP
(B) L=1256 		1-37123-393-3 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1386 		1-37152-002-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1286 		1-37151-583-1 01 1 9510- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 9510- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 9510- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 9810-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 9810-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MBJ5 M/T<Y9A> 1ST 		1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
MBJ6 M/T<Y9B> 1ST 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 AR 1 1506- ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
MBJ6 M/T<Y9B> 1ST 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 9810-1505 ● ● ●
14 COVER; DUST,SPIDER
MBJ5 M/T<Y9A> 1ST 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 9810-1505 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9510-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9510- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9510- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510- ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510- ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-0605 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510- ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-0512 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-0602 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9510-0512 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9510-0603 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 9510- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X40 		1-09000-187-0 04 1 9510-9609 ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X40 		1-09000-187-0 04 1 9610-9807 ● ● ●
172 BRACKET; CENTER BRG 1-37515-118-0 01 1 9510- ●
172 BRACKET; CENTER BRG 1-37515-122-0 01 1 9510- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606 ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0512 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9510-9606 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
