Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#20095) — 298 parça

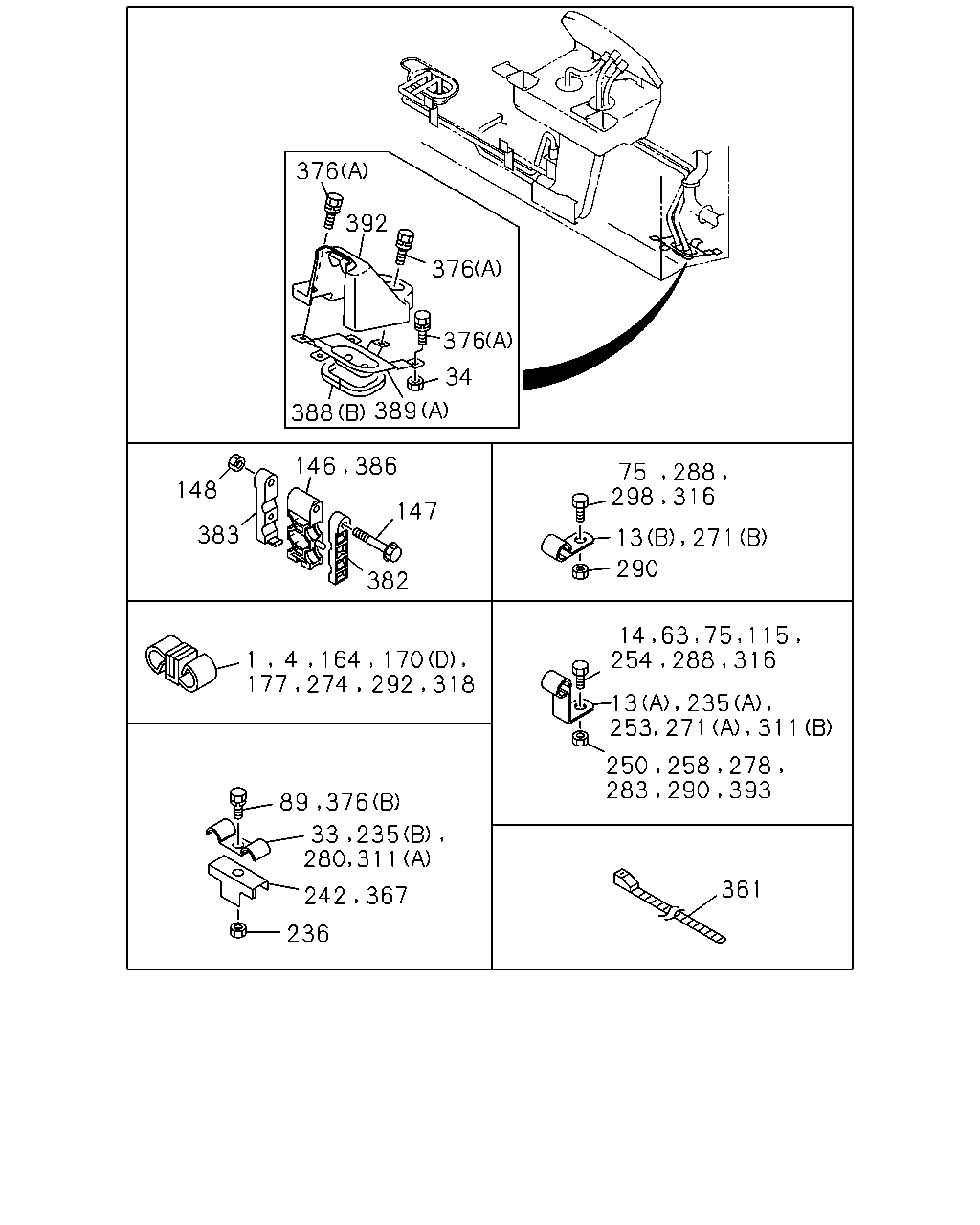

376 392 376 376 34 148 147 383 290 382 1 361 236 388 389 146 386 75 288 298 316 13 271 4 164 170 177 274 292 318 14 63 75 115 254 288 316 13 235 253 271 311 250 258 278 393 290 283 89 376 33 235 280 311 242 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9510-9802
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 12	1-09709-278-1	01	1	9510-9802
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9510-
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	9510-0606
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802
33	CLIP; BOLT ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9510-0109
33	CLIP; BOLT EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0110-
34	NUT; BRKT M8 FLANGE	8-94279-517-0	01	1	9510-9611
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-0605
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0606-
34	NUT; BRKT M8 FLANGE	8-94279-517-0	03	1	9510-9611
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0605
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X45 FLANGE	0-28080-845-0	03	1	9607-9802
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	03	1	9510-9606
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> M8X16 FLANGE	0-28080-816-0	01	1	9510-9802
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28080-820-0	01	1	9510-9606
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28080-820-0	01	1	9510-9606
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	03	1	9607-9802
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28680-825-0	03	1	9607-9802
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
89	BOLT; PIPE CLIP EXC. PTO CONTROL<SV6> M8X16 FLANGE	0-28080-816-0	01	1	9510-9802
115	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
115	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9801
115	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	9802-9802
146	CLIP; AIR PIPE ID=10	1-09709-242-0	01	1	9510-9802
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	03	1	9510-9802
148	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9510-9606
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9802
164	CLIP; AIR PIPE ID=10 & 15	1-09709-279-1	01	1	9510-9802
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9510-9802
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9803-
170	CLIP; NYLON TUBE (C)	1-09700-940-0	02	1	9803-9804
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9805-9805
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9805-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0512
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0601-1303
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	1304-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9901-9912
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0001-0001
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0001-0001
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0002
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0002
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0002
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	04	1	0002-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0001-0001
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	02	1	0005-
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	9510-9802
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9802
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9 & 9 L=17 & 17	1-09700-651-0	01	1	9510-9802
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9510-9802
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56> (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	02	1	9510-9802
250	NUT; PIPE CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606
250	NUT; PIPE CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802
250	NUT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
250	NUT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9802
253	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9802
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-9802
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-9801
254	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606
254	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802
254	BOLT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
254	BOLT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9 L=40	9-09524-875-0	01	1	9510-0606
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9 L=40	0-95234-875-0	01	1	0607-
274	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9510-9802
274	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	9510-9802
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9510-9606
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9802
280	CLIP; AIR PIPE EXC. PTO CONTROL<SV6> ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8	9-09110-408-0	03	1	9510-9606
283	NUT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8	9-09110-408-0	03	1	9510-9606
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	03	1	9607-9802
283	NUT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	03	1	9607-9802
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9712
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	9801-0512
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9510-9606
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9607-0602
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	9510-
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56> M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9510-9802
311	CLIP; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9510-9802
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802
311	CLIP; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9510-9911
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28080-810-0	02	1	9912-0512
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	02	1	0601-
318	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9510-0207
318	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0208-
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	9510-0109
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	0110-0410
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0411-
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	02	1	0110-0410
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=140	5-09707-031-1	01	1	9510-
367	BRACKET ASM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9510-9802
367	BRACKET ASM	1-47475-427-1	01	1	9510-9802
367	BRACKET ASM	1-47475-427-1	01	1	9803-0109
367	BRACKET ASM EXC. AIR DRYER<PS7>	1-47475-427-1	01	1	0110-
376	BOLT; BRKT (B) M8X40 FLANGE	0-28080-840-0	01	1	9510-9606
376	BOLT; BRKT (B) M8X45 FLANGE	0-28080-845-0	01	1	9607-0109
376	BOLT; BRKT EXC. AIR DRYER<PS7> (B) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512
376	BOLT; BRKT EXC. AIR DRYER<PS7> (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9510-
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0904
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
376	BOLT; BRKT (D) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512
376	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	9510-9802
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	9510-9802
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	9510-9802
388	SEAL (A) L=280	1-79738-793-1	01	1	9510-
388	SEAL (B) L=215	1-79738-794-1	01	1	9510-
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-790-1	01	1	9510-
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-79738-795-1	01	1	9510-
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-806-1	01	1	9510-9802
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-839-0	01	1	9803-
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-811-1	01	1	9510-
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9510-
393	NUT; UNION M8	9-09110-408-0	01	1	9510-9606
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	9607-9802
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	9803-0602
393	NUT; UNION M8 FLANGE	0-91180-108-0	03	1	0603-

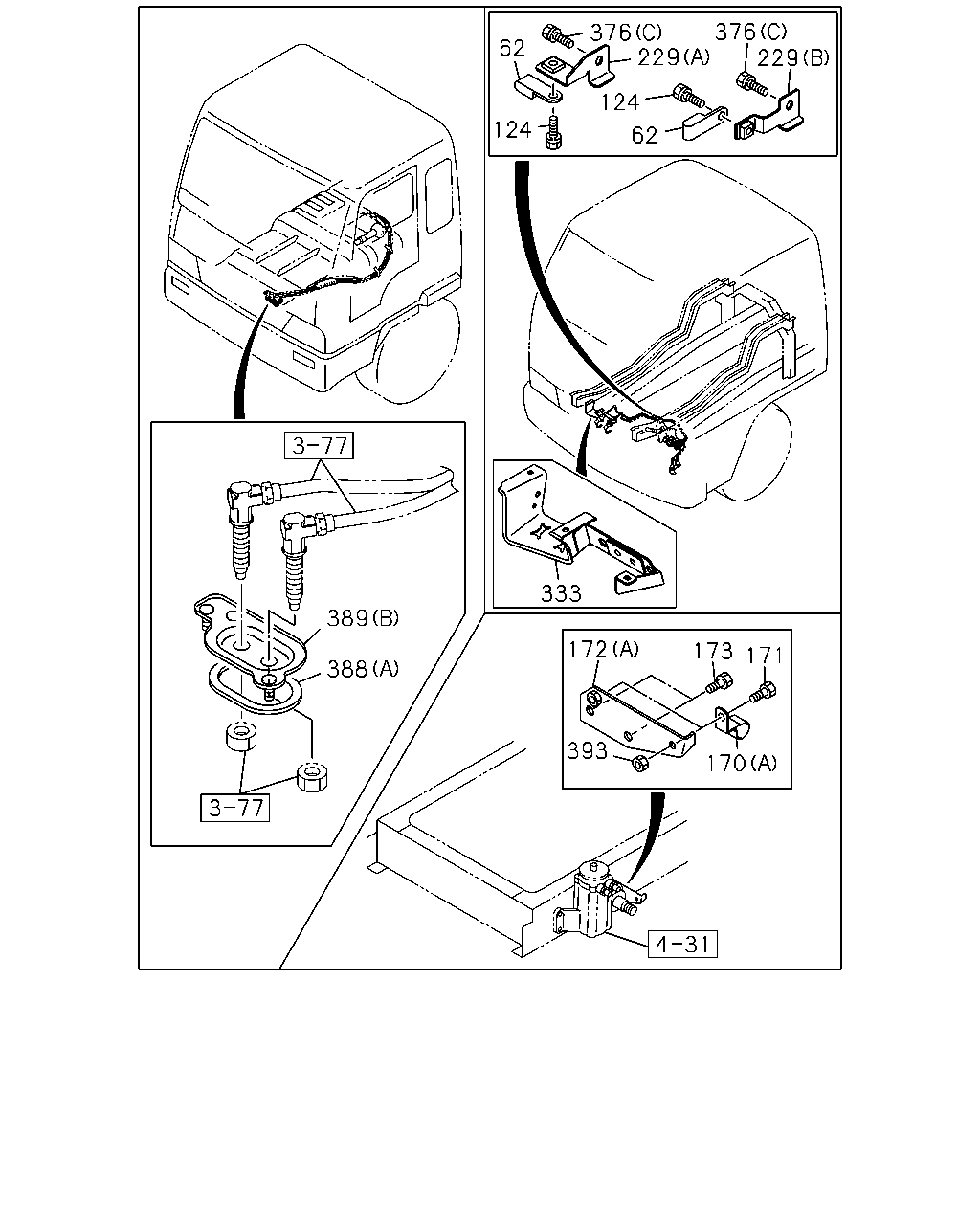

376 229 376 229 62 124 124 62 333 389 172 173 171 388 393 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	CLIP; AIR PIPE ID=13X2 L=20	9-09535-236-0	02	1	9510-0606
62	CLIP; AIR PIPE ID=13X2 L=20	0-95325-236-0	02	1	0607-
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0904
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9510-9802
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9803-
170	CLIP; NYLON TUBE (C)	1-09700-940-0	02	1	9803-9804
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9805-9805
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9805-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0512
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0601-1303
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	1304-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9901-9912
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0001-0001
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0001-0001
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0002
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0002
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0002
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	04	1	0002-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0001-0001
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	02	1	0005-
171	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	9803-0512
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9510-
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9803-0005
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	04	1	0006-0006
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0007-
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	9803-0004
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	02	1	0005-
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	9803-
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	9803-
172	BRACKET; TUBE CLIP (E) L=59 B=20	1-47479-048-0	01	1	0007-
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28081-016-0	02	1	9510-9806
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9807-0512
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9803-0005
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0006-0512
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	06	1	9803-0512
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	06	1	0601-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0005-0512
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
229	BRACKET; PIPE CLIP (A)	1-79738-819-0	01	1	9510-0004
229	BRACKET; PIPE CLIP (B)	1-79738-858-0	01	1	0005-
333	BRACKET; BRK AIR PIPE	1-79738-804-4	01	1	9510-
376	BOLT; BRKT (B) M8X40 FLANGE	0-28080-840-0	01	1	9510-9606
376	BOLT; BRKT (B) M8X45 FLANGE	0-28080-845-0	01	1	9607-0109
376	BOLT; BRKT EXC. AIR DRYER<PS7> (B) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512
376	BOLT; BRKT EXC. AIR DRYER<PS7> (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9510-
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0904
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
376	BOLT; BRKT (D) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512
376	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-
388	SEAL (A) L=280	1-79738-793-1	01	1	9510-
388	SEAL (B) L=215	1-79738-794-1	01	1	9510-
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-790-1	01	1	9510-
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-79738-795-1	01	1	9510-
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-806-1	01	1	9510-9802
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-839-0	01	1	9803-
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-811-1	01	1	9510-
393	NUT; UNION M8	9-09110-408-0	01	1	9510-9606
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	9607-9802
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	9803-0602
393	NUT; UNION M8 FLANGE	0-91180-108-0	03	1	0603-

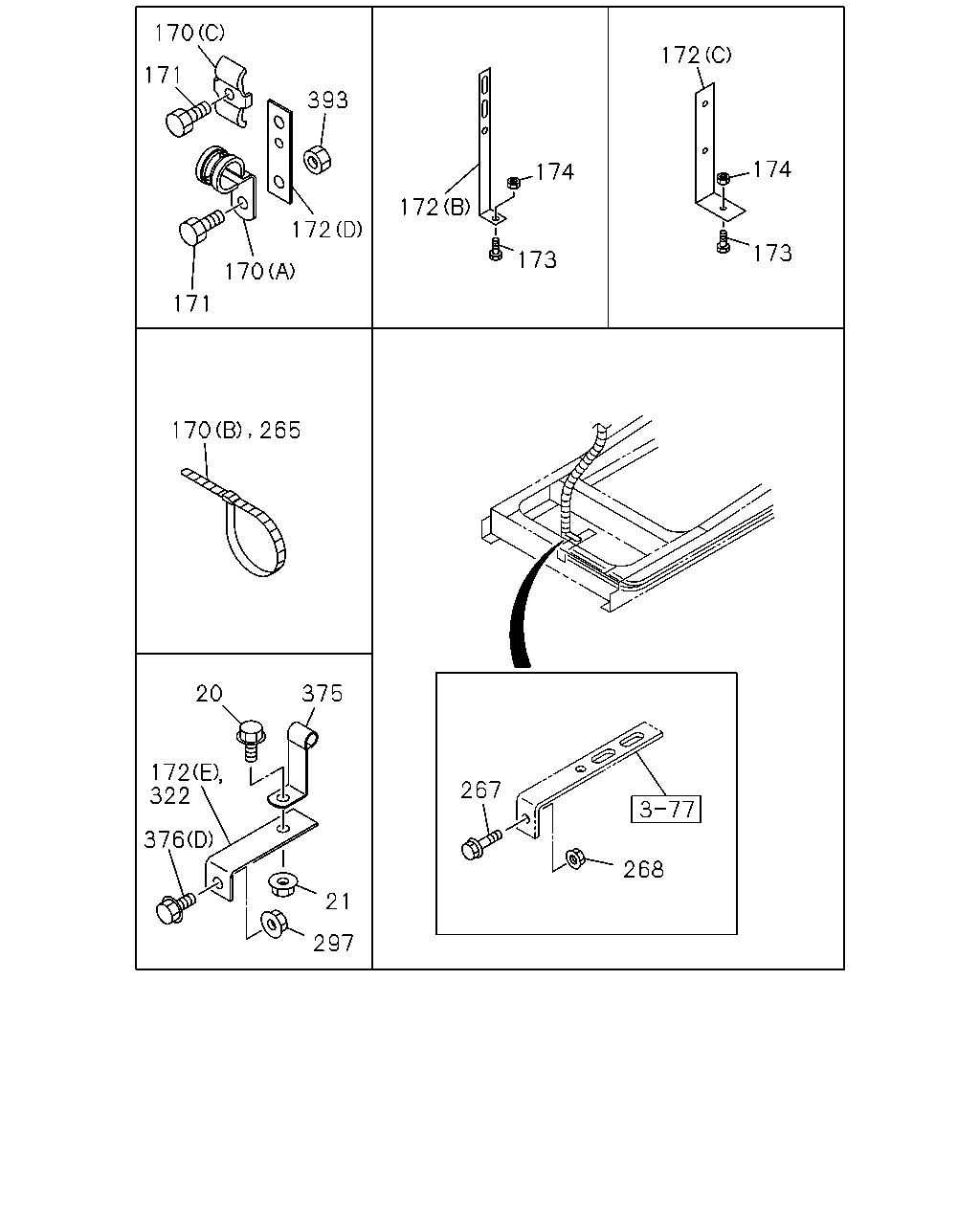

170 172 171 393 174 174 172 172 173 173 170 171 20 375 172 322 267 376 268 21 297 170 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9510-9802
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9803-
170	CLIP; NYLON TUBE (C)	1-09700-940-0	02	1	9803-9804
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9805-9805
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9805-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0512
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0601-1303
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	1304-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9901-9912
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0001-0001
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0001-0001
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0002
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0002
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0002
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	04	1	0002-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0001-0001
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0002-0004
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	02	1	0005-
171	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9510-9802
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	9803-0512
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9510-
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9803-0005
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	04	1	0006-0006
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0007-
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	9803-0004
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	02	1	0005-
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	9803-
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	9803-
172	BRACKET; TUBE CLIP (E) L=59 B=20	1-47479-048-0	01	1	0007-
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28081-016-0	02	1	9510-9806
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9807-0512
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9803-0005
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0006-0512
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	06	1	9803-0512
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	06	1	0601-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0005-0512
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	9803-0004
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0005
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0006-0602
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0005-0602
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0603-
265	CLIP; NYLON TUBE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	09	1	9803-9803
265	CLIP; NYLON TUBE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	10	1	9804-0106
265	CLIP; NYLON TUBE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	0107-
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	10	1	9803-9803
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	9804-0106
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	9803-9803
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	12	1	9804-
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0512
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9803-0602
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
322	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	0005-
375	CLIP; AIR PIPE D=9 T=45	5-09700-021-0	01	1	0005-
376	BOLT; BRKT (B) M8X40 FLANGE	0-28080-840-0	01	1	9510-9606
376	BOLT; BRKT (B) M8X45 FLANGE	0-28080-845-0	01	1	9607-0109
376	BOLT; BRKT EXC. AIR DRYER<PS7> (B) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512
376	BOLT; BRKT EXC. AIR DRYER<PS7> (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9510-
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0904
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
376	BOLT; BRKT (D) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512
376	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-
393	NUT; UNION M8	9-09110-408-0	01	1	9510-9606
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	9607-9802
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	9803-0602
393	NUT; UNION M8 FLANGE	0-91180-108-0	03	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
