◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#20094) — 201 parça

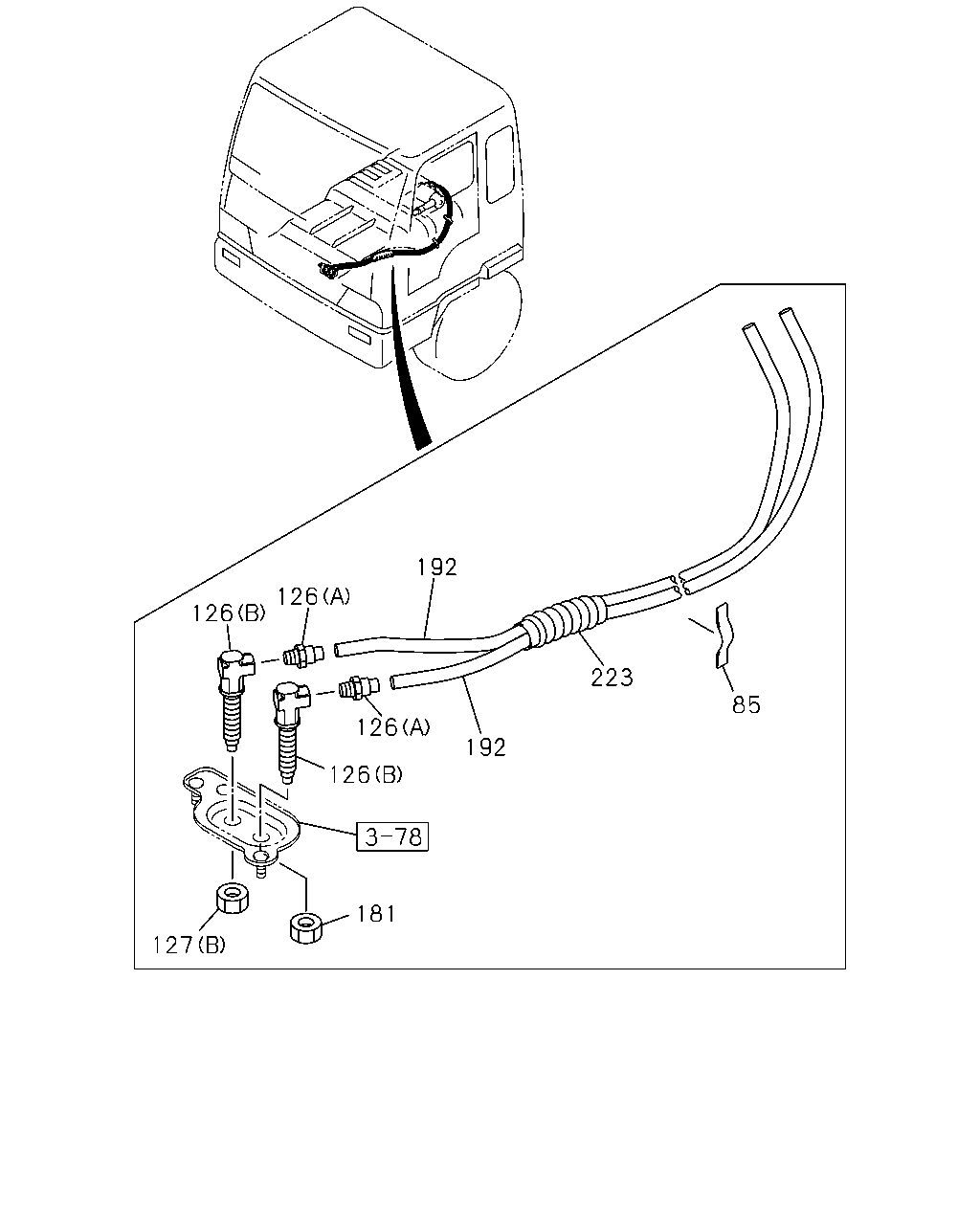

çizim 15984
192 126 126 223 85 126 192 126 181 127
BalonParca AdiParca NoAdetTipApplied Date
85 GASKET; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30 		1-72498-014-1 05 1 9510-9903
85 GASKET; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40 		1-72498-022-1 05 1 9904-
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 9510-9802
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY 		1-09660-758-1 01 1 9803-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005-
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09660-743-0 02 1 9510-9802
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 9803-
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 01 1 9803-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 01 1 9803-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005-
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 		9-99111-414-0 01 1 9510-9802
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 		9-99111-420-0 01 1 9803-0512
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 		0-91111-520-0 01 1 0601-
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18 		9-99111-418-0 01 1 9510-9802
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18 		9-99111-418-0 01 1 9510-9802
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		9-99111-420-0 01 1 9803-0512
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		0-91111-520-0 01 1 0601-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9510-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9510-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9603-9802
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9803-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0002-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9510-
çizim 64834
192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9510-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9510-

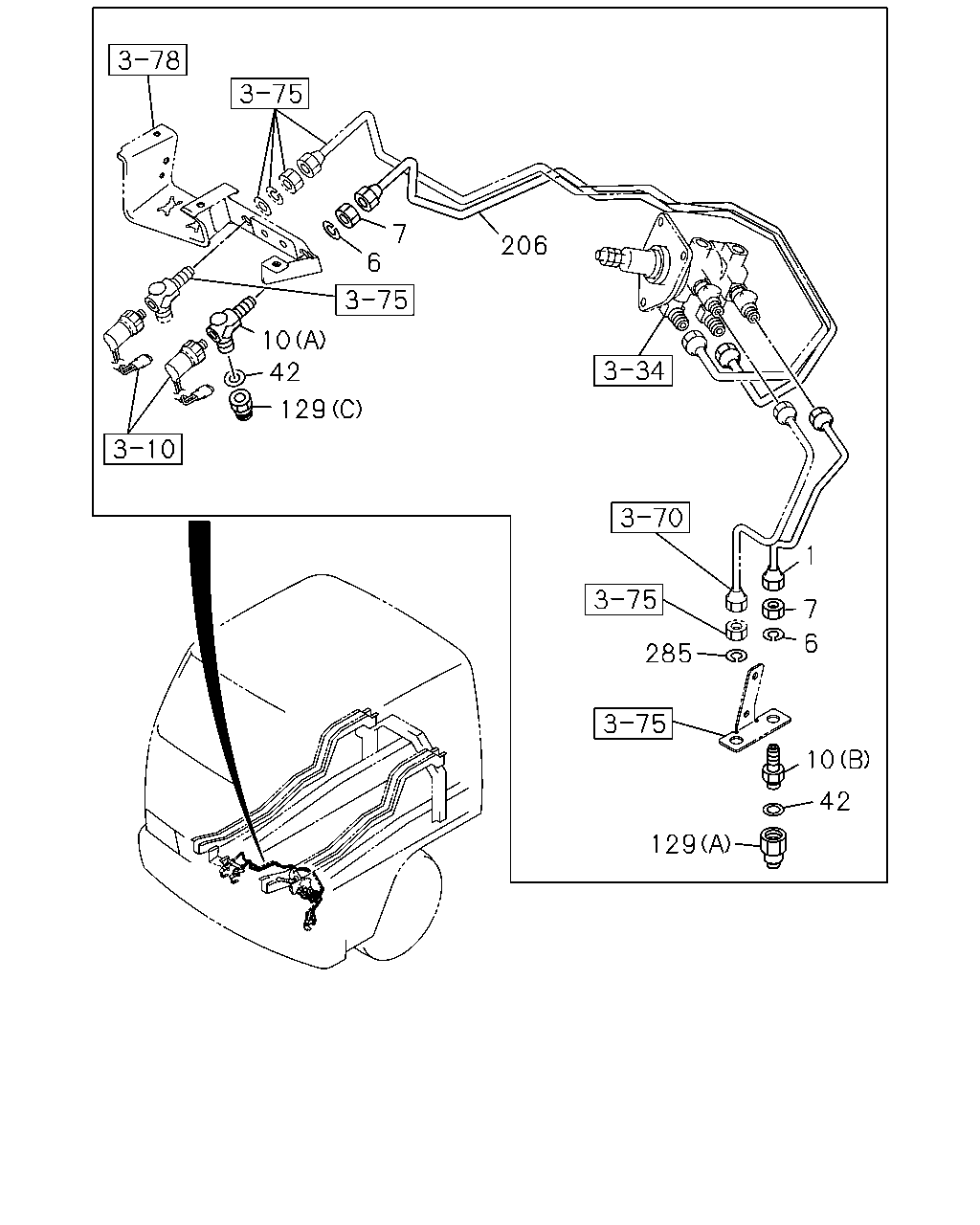

çizim 64965
7 206 6 10 42 129 1 7 6 285 10 42 129
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,FLEX HOSE TO BRK VLV
DUAL AIR GAUGE<UG2> L=423 		1-49113-428-2 01 1 9510-
1 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> 		1-49116-436-1 01 1 9510-
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 01 1 9510-9512
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9601-0603
6 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604-
7 NUT; FLEX HOSE
M16 		9-99111-416-0 01 1 9510-9512
7 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9601-0512
7 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601-
10 CONNECTOR; FLEX HOSE
(A) 		1-09656-700-0 01 1 9510-9811
10 CONNECTOR; FLEX HOSE
(A) M16X2 & PT1/4 3WAY 		1-09656-329-1 01 1 9812-
10 CONNECTOR; FLEX HOSE
(B) 		1-09654-324-0 01 1 9601-9802
10 CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT 		1-09654-380-0 01 1 9803-
42 GASKET; CONNECTOR
ID=11 OD=18 		9-09572-510-0 01 1 9510-9512
42 GASKET; CONNECTOR
ID=11 OD=18 		9-09572-510-0 02 1 9601-9802
42 GASKET; CONNECTOR
ID=11 OD=18 		9-09572-510-0 01 1 9803-9811
129 CONNECTOR; NYLON TUBE
(C) 		1-09660-728-1 01 1 9510-9512
129 CONNECTOR; NYLON TUBE
(C) 		1-09660-728-1 02 1 9601-9802
129 CONNECTOR; NYLON TUBE
(C) 		1-09660-728-1 01 1 9803-9811
129 CONNECTOR; NYLON TUBE
(C) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9812-0007
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9803-0007
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9803-0004
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9803-0004
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09661-097-0 01 1 9812-0004
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09661-097-0 01 1 9812-0004
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09661-097-0 02 1 0005-0007
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0008-
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=1145 		1-49116-438-0 01 1 9510-0004
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=1267 		1-49121-665-0 01 1 0005-
285 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9510-9801

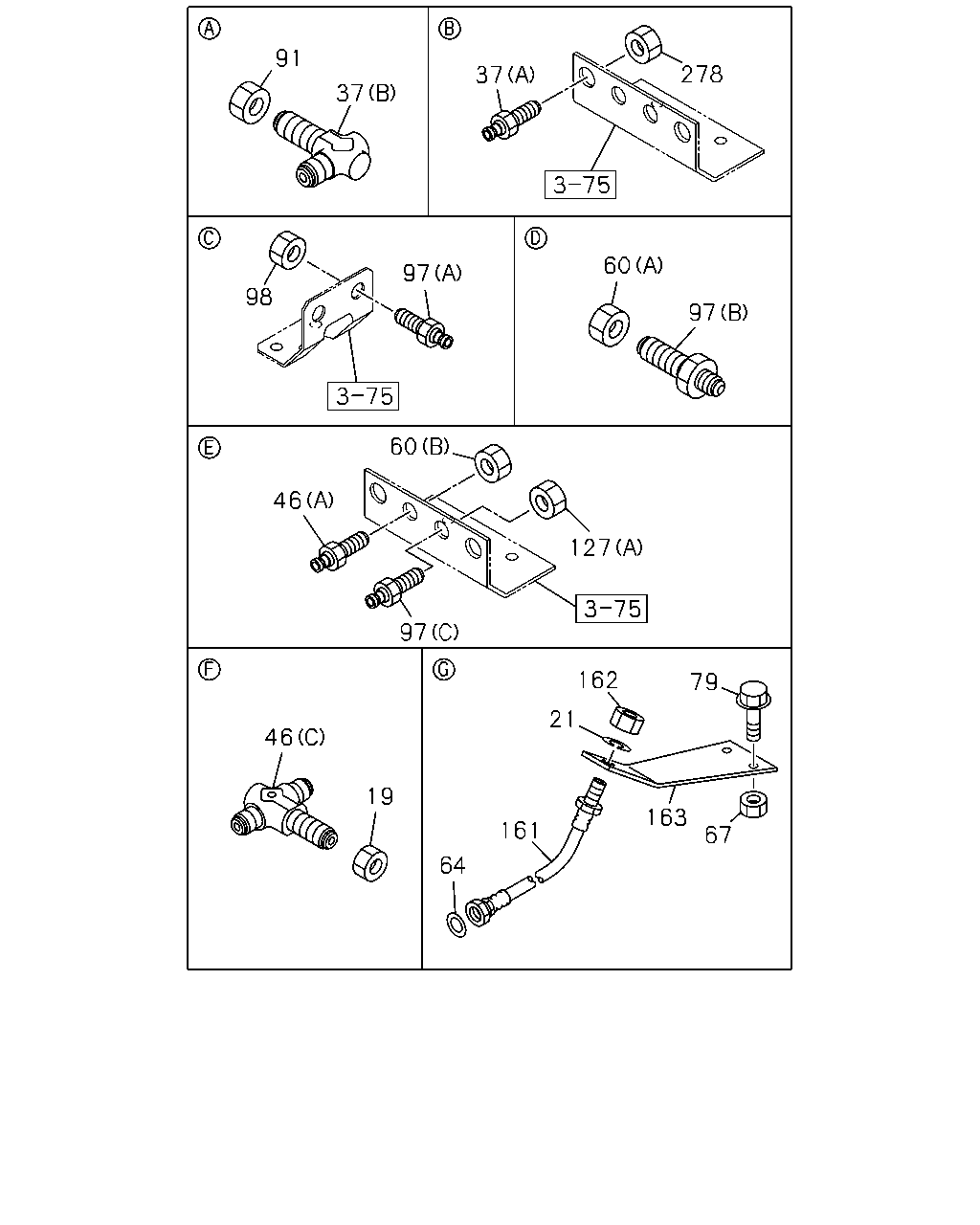

çizim 65025
91 278 37 37 60 97 98 97 60 46 127 97 162 79 21 46 19 163 161 67 64
BalonParca AdiParca NoAdetTipApplied Date
19 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 		9-99111-412-0 01 1 9510-9802
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		9-09150-514-0 01 1 9510-0603
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		0-91510-514-0 01 1 0604-
37 UNION; AIR PIPE
(A) 		1-09660-807-2 01 1 9510-9802
37 UNION; AIR PIPE
(B) M16 ELBOW 		9-09235-210-1 02 1 9510-9802
46 NIPPLE; AIR PIPE
(A) 		1-09660-807-1 01 1 9510-9512
46 NIPPLE; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 9510-9802
46 NIPPLE; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-09660-913-1 01 1 9510-9802
46 NIPPLE; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT 		9-09223-008-1 01 1 9510-9802
60 NUT; NIPPLE,AIR PIPE
(A) M16 		9-99111-416-0 01 1 9510-9512
60 NUT; NIPPLE,AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 		9-99111-416-0 01 1 9510-9512
60 NUT; NIPPLE,AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 		9-99111-416-0 01 1 9601-9802
60 NUT; NIPPLE,AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 		9-99111-414-0 01 1 9510-9802
64 GASKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18 		9-09572-510-0 01 1 9510-
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9510-9606
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0603-
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
91 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 9510-9802
97 UNION; AIR PIPE
(A) 		1-09660-807-2 01 1 9510-9802
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & M16 STRAIGHT 		1-09654-316-1 01 1 9510-9802
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09660-913-1 01 1 9510-9802
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT 		9-09223-008-1 01 1 9510-9802
98 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9510-9802
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 		9-99111-414-0 01 1 9510-9802
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 		9-99111-420-0 01 1 9803-0512
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 		0-91111-520-0 01 1 0601-
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18 		9-99111-418-0 01 1 9510-9802
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580 		0-07462-580-1 01 1 9510-0605
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580 		0-57462-580-1 01 1 0606-
162 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99111-414-0 01 1 9510-0512
162 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		0-91111-514-0 01 1 0601-
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47475-464-0 01 1 9510-
278 NUT; UNION
M16 		9-99111-416-0 01 1 9510-9802

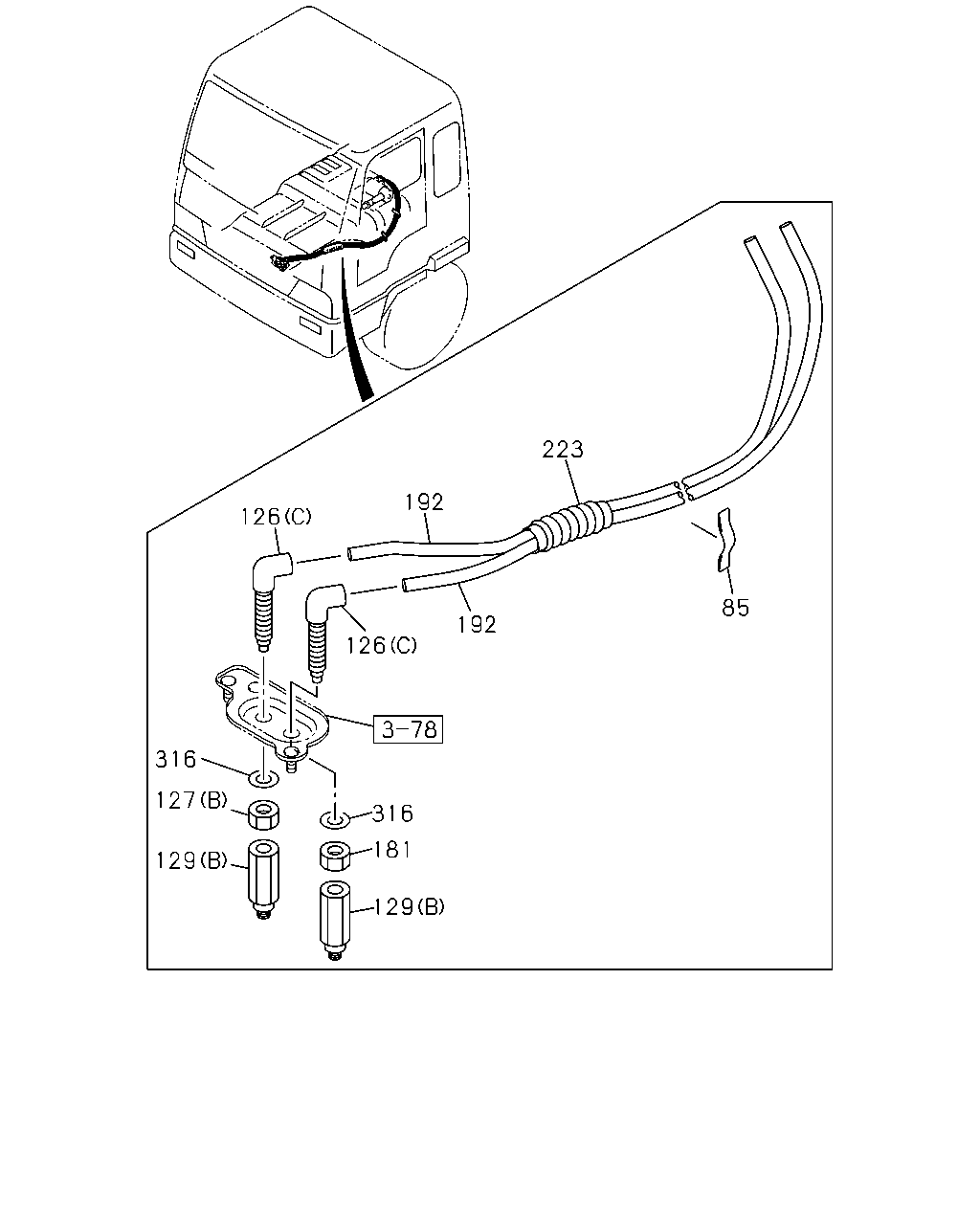

çizim 65045
223 192 126 85 192 126 316 127 316 181 129 129
BalonParca AdiParca NoAdetTipApplied Date
85 GASKET; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30 		1-72498-014-1 05 1 9510-9903
85 GASKET; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40 		1-72498-022-1 05 1 9904-
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 9510-9802
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY 		1-09660-758-1 01 1 9803-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005-
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09660-743-0 02 1 9510-9802
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 9803-
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 01 1 9803-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 01 1 9803-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005-
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 		9-99111-414-0 01 1 9510-9802
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 		9-99111-420-0 01 1 9803-0512
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 		0-91111-520-0 01 1 0601-
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18 		9-99111-418-0 01 1 9510-9802
129 CONNECTOR; NYLON TUBE
(C) 		1-09660-728-1 01 1 9510-9512
129 CONNECTOR; NYLON TUBE
(C) 		1-09660-728-1 02 1 9601-9802
129 CONNECTOR; NYLON TUBE
(C) 		1-09660-728-1 01 1 9803-9811
129 CONNECTOR; NYLON TUBE
(C) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9812-0007
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9803-0007
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9803-0004
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9803-0004
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09661-097-0 01 1 9812-0004
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09661-097-0 01 1 9812-0004
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09661-097-0 02 1 0005-0007
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0008-
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18 		9-99111-418-0 01 1 9510-9802
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		9-99111-420-0 01 1 9803-0512
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		0-91111-520-0 01 1 0601-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9510-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9510-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9603-9802
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9803-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0002-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9510-
316 WASHER; PL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 		9-09160-520-0 02 1 9804-0605
316 WASHER; PL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 		0-91610-520-0 02 1 0606-

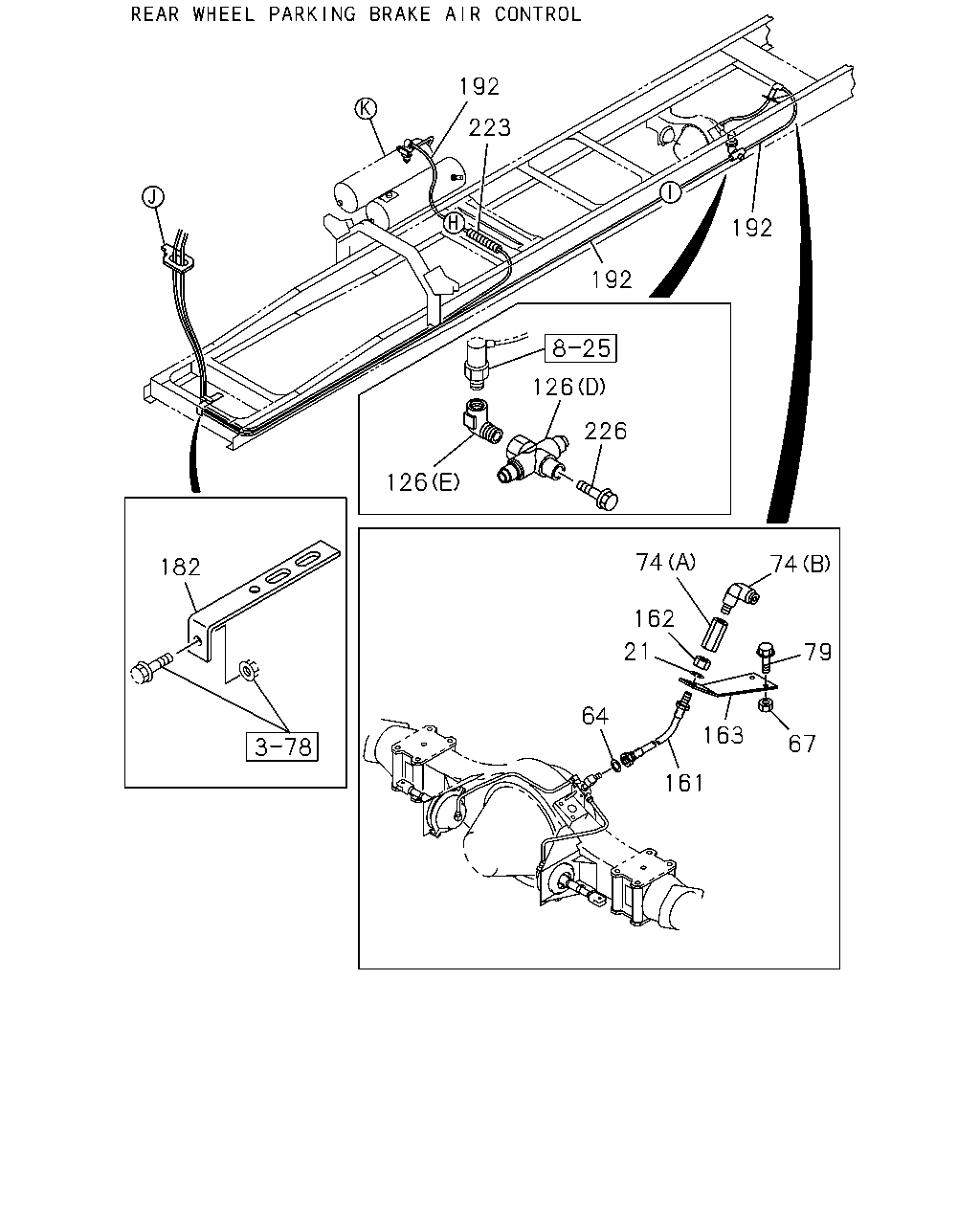

çizim 65304
192 223 192 192 126 226 126 74 74 182 162 21 79 64 163 67 161
BalonParca AdiParca NoAdetTipApplied Date
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		9-09150-514-0 01 1 9510-0603
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		0-91510-514-0 01 1 0604-
64 GASKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18 		9-09572-510-0 01 1 9510-
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9510-9606
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0603-
74 ADAPTER; UNION TO NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-09660-881-0 01 1 9803-
74 ADAPTER; UNION TO NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9803-
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 9510-9802
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY 		1-09660-758-1 01 1 9803-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005-
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09660-743-0 02 1 9510-9802
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 9803-
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 01 1 9803-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 01 1 9803-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005-
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580 		0-07462-580-1 01 1 9510-0605
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580 		0-57462-580-1 01 1 0606-
162 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99111-414-0 01 1 9510-0512
162 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		0-91111-514-0 01 1 0601-
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47475-464-0 01 1 9510-
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=100 H=30 		1-47477-645-2 01 1 9803-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9510-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9510-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9603-9802
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9803-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0002-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9510-
226 BOLT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28680-820-0 01 1 9803-0512
226 BOLT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
çizim 66756
118 87 102 192 96 254 192 187 144 97 144 159 192 31 46 31
BalonParca AdiParca NoAdetTipApplied Date
31 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2485 SERVICED BY L=2700 		1-47426-396-0 01 1 9510-9802
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1597 SERVICED BY L=1700 		1-47426-391-0 01 1 9510-9802
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2015 SERVICED BY L=2150 		1-47426-394-0 01 1 9510-9802
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2617 SERVICED BY L=2700 		1-47426-396-0 01 1 9510-9802
46 NIPPLE; AIR PIPE
(A) 		1-09660-807-1 01 1 9510-9512
46 NIPPLE; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 9510-9802
46 NIPPLE; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-09660-913-1 01 1 9510-9802
46 NIPPLE; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT 		9-09223-008-1 01 1 9510-9802
87 PIPE; AIR,AIR TANK TO UNION 1-49116-275-0 01 1 9510-9802
96 PIPE; AIR,UNION TO UNION
L=2978 SERVICED BY L=3300 		1-47426-426-0 01 1 9510-9605
96 PIPE; AIR,UNION TO UNION
L=2978 SERVICED BY L=3300 		1-47426-426-0 01 1 9606-9802
97 UNION; AIR PIPE
(A) 		1-09660-807-2 01 1 9510-9802
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & M16 STRAIGHT 		1-09654-316-1 01 1 9510-9802
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09660-913-1 01 1 9510-9802
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT 		9-09223-008-1 01 1 9510-9802
102 PIPE; AIR,UNION TO UNION
L=2701 SERVICED BY L=2900 		1-47426-425-0 01 1 9510-9605
102 PIPE; AIR,UNION TO UNION
L=2701 SERVICED BY L=2900 		1-47426-425-0 01 1 9606-9802
118 PIPE; AIR,UNION TO AIR MASTER 1-49114-966-0 01 1 9510-9802
144 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1699 SERVICED BY L=1800 		1-47426-392-0 01 1 9510-9605
144 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1699 SERVICED BY L=1800 		1-47426-392-0 01 1 9606-9610
144 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1699 SERVICED BY L=1800 		1-47426-392-0 01 1 9611-9802
144 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2510 SERVICED BY L=2700 		1-47426-396-0 01 1 9510-9605
144 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2510 SERVICED BY L=2700 		1-47426-396-0 01 1 9606-9802
159 PIPE; AIR,UNION TO FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1767 SERVICED BY L=1800 		1-47426-392-0 01 1 9510-9802
187 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49114-973-0 01 1 9510-9802
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9803-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9510-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9510-
254 PIPE; AIR,TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49114-898-0 01 1 9510-9802
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
