◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#20092) — 280 parça

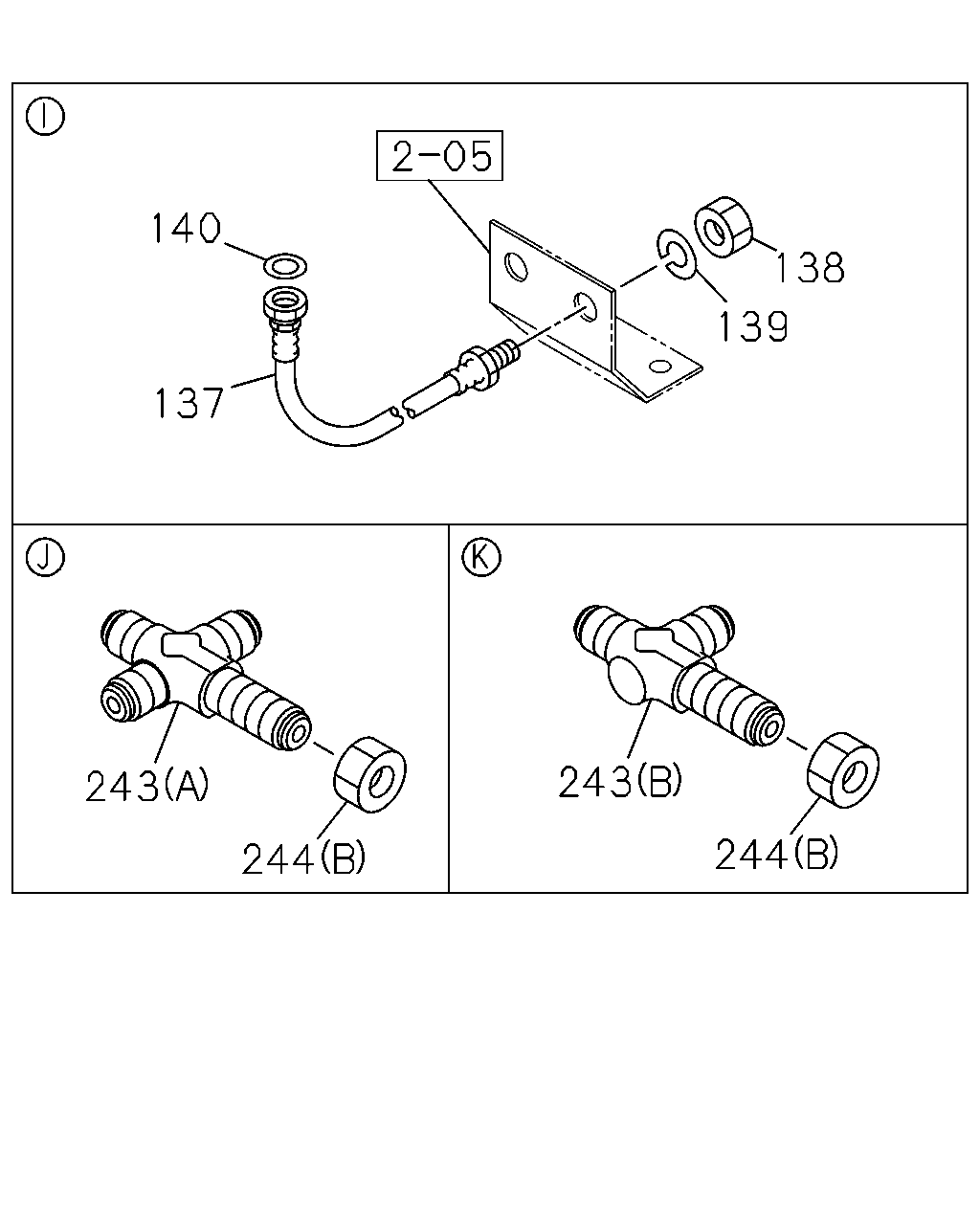

çizim 15504
140 138 139 137 243 243 244 244
BalonParca AdiParca NoAdetTipApplied Date
137 HOSE; FLEX,AIR PRESSURE GAGE
AIR SUSP DRIVER SEAT<A56> L=450 		0-07120-450-0 01 1 9510-9802
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450 		0-07120-450-0 01 1 9510-9802
138 NUT; FLEX HOSE,AIR GOV
AIR SUSP DRIVER SEAT<A56> M12 		9-09840-280-0 01 1 9510-9802
138 NUT; FLEX HOSE,AIR GOV
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9510-9802
139 WASHER; LK,FLEX HOSE,AIR GOV
AIR SUSP DRIVER SEAT<A56> ID=12.2 		9-09150-512-0 01 1 9510-9802
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9510-9802
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802
243 UNION; AIR PIPE
(C) M12 L=66.5 		9-09223-306-1 01 1 9510-0607
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0608-
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (A) M12 		9-09228-306-1 01 1 9510-9802
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9510-9802
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9802
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 9510-
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9510-9802

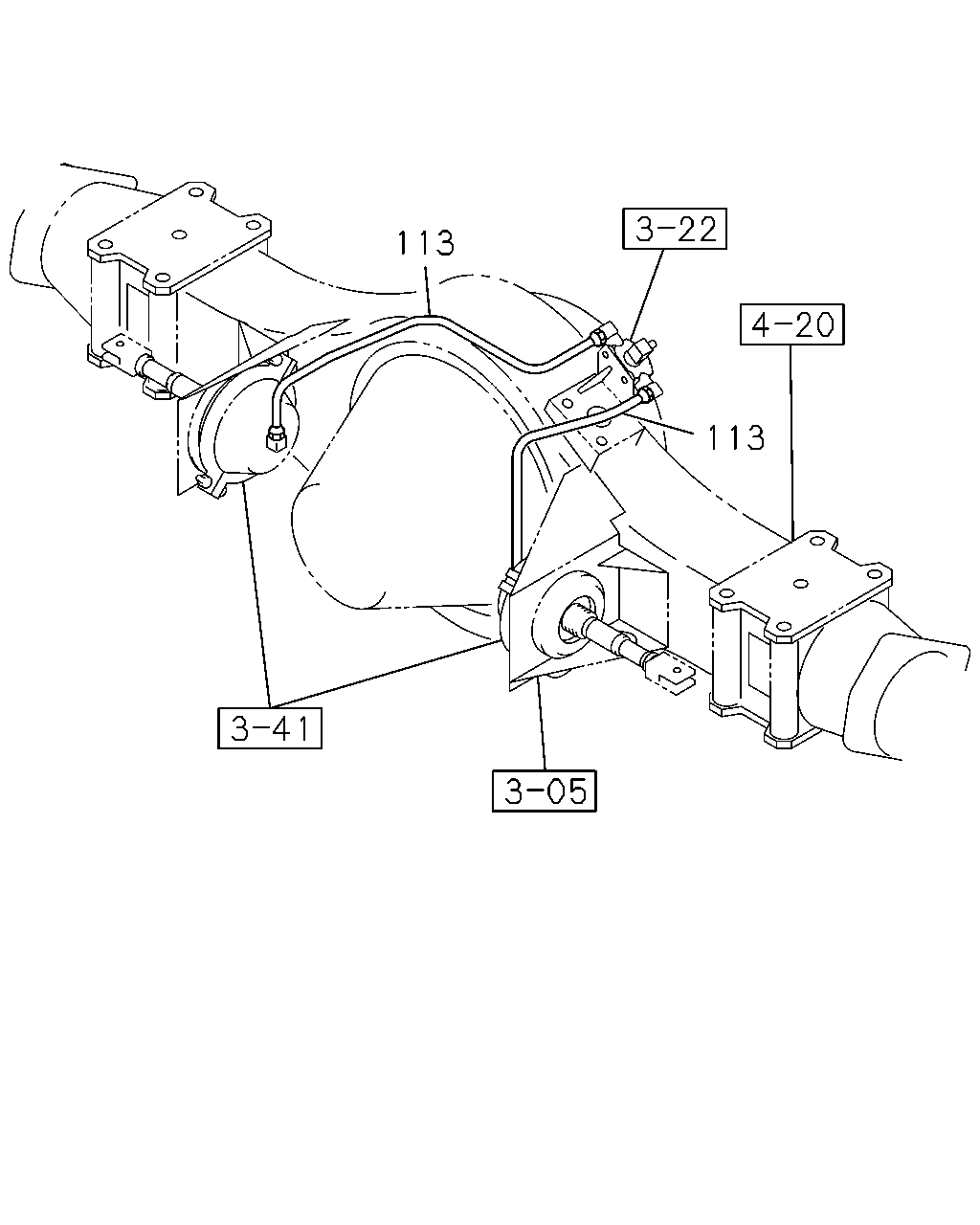

çizim 16726
113 113
BalonParca AdiParca NoAdetTipApplied Date
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=600 		1-47426-379-0 01 1 9510-
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49112-660-0 01 1 9510-

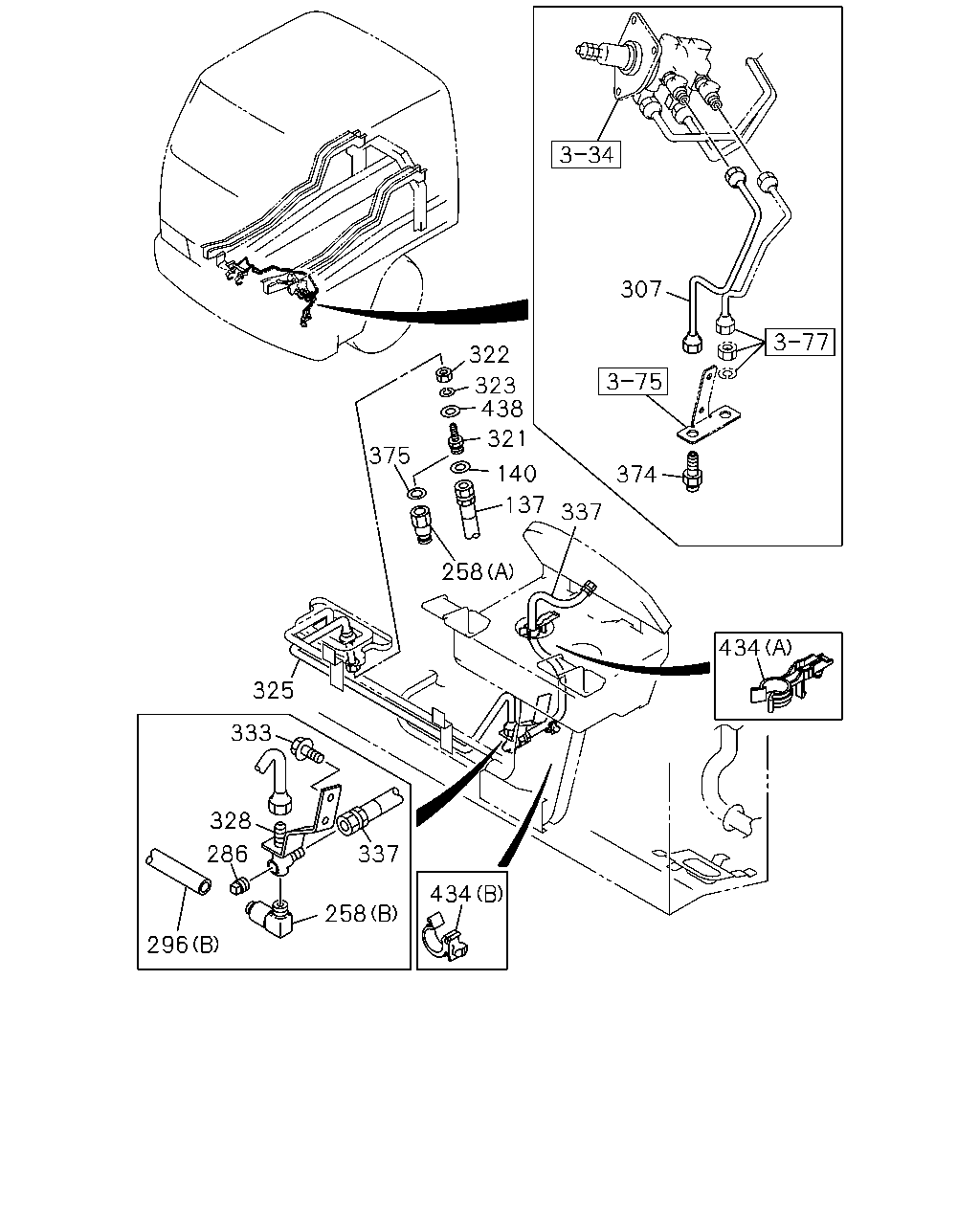

çizim 64909
307 322 323 438 321 375 140 374 137 337 258 434 325 333 328 286 337 434 258 296
BalonParca AdiParca NoAdetTipApplied Date
137 HOSE; FLEX,AIR PRESSURE GAGE
AIR SUSP DRIVER SEAT<A56> L=450 		0-07120-450-0 01 1 9510-9802
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450 		0-07120-450-0 01 1 9510-9802
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9510-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9510-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9510-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0002-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-9803
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9803-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
DUAL AIR GAUGE<UG2> L=540 		1-49113-427-2 01 1 9510-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=434 		1-49116-435-1 01 1 9510-
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9811
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9811
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-0603
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-0603
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604-
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9510-
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9510-
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-415-1 01 1 9510-
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-473-0 01 1 9510-
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9510-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-57210-720-0 02 1 0609-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9510-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-57210-810-0 01 1 0606-
374 CONNECTOR 1-09654-324-0 01 1 9601-9802
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 9803-
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9811
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9811
434 CLIP
(C) D=9 T=45 		5-09700-021-0 01 1 9803-0004
434 CLIP
DUAL AIR GAUGE<UG2> (D) ID=10 & 10 		1-09709-221-0 01 1 9812-
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9510-
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9510-
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-

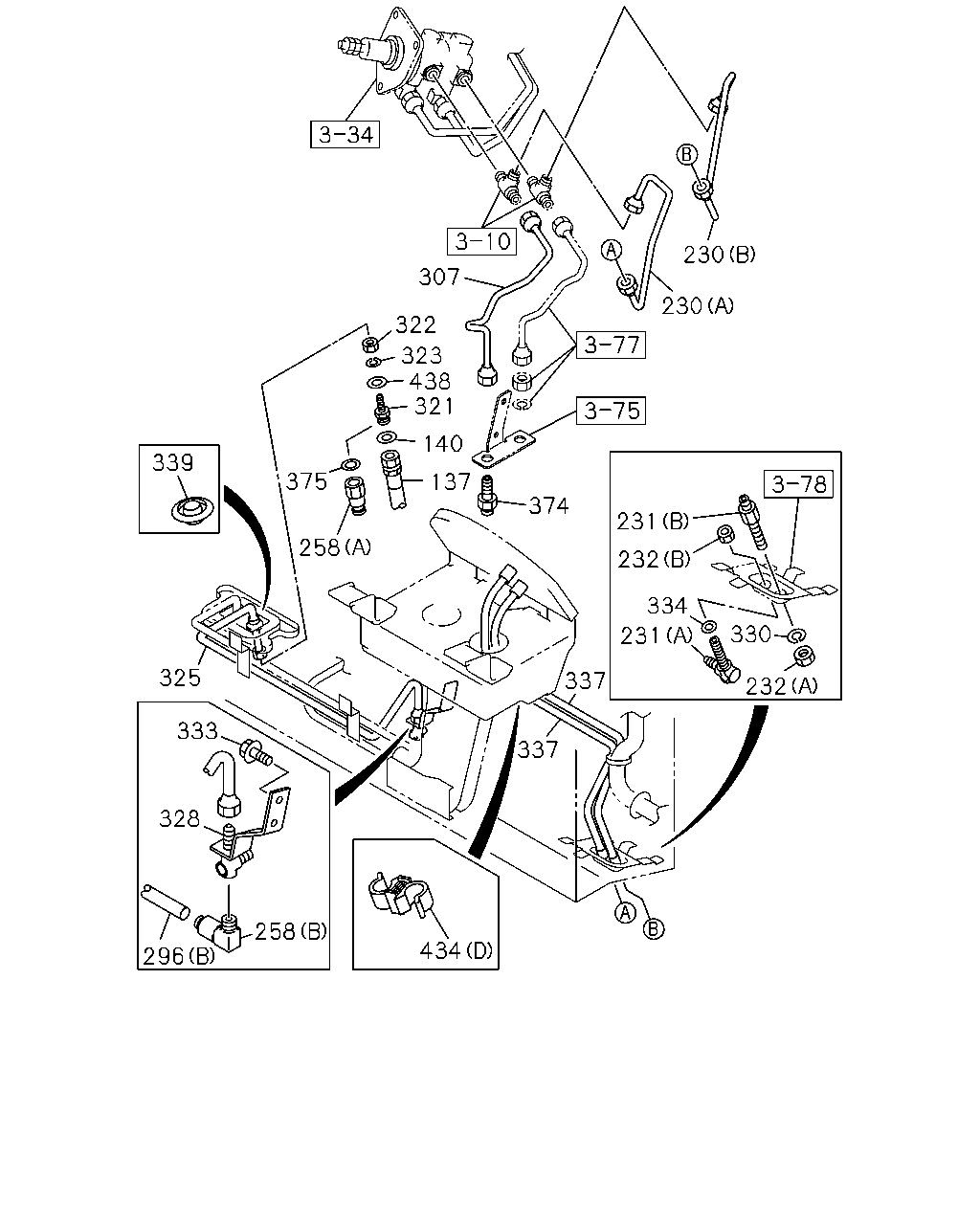

çizim 65042
230 307 230 322 323 438 321 137 140 339 375 374 231 258 232 334 330 231 325 337 232 333 337 328 258 296 434
BalonParca AdiParca NoAdetTipApplied Date
137 HOSE; FLEX,AIR PRESSURE GAGE
AIR SUSP DRIVER SEAT<A56> L=450 		0-07120-450-0 01 1 9510-9802
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450 		0-07120-450-0 01 1 9510-9802
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) L=426 		1-49116-433-0 01 1 9510-
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) L=483 		1-49116-434-0 01 1 9510-
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (A) M10 ELBOW 		1-09654-186-2 01 1 9510-
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 STRAIGHT 		1-09654-361-0 01 1 9510-
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (A) M10 H=8 		1-09400-029-0 01 1 9510-
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 		9-09110-410-0 01 1 9510-0512
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 		0-91110-510-0 01 1 0601-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9510-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9510-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0002-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-9803
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9803-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
DUAL AIR GAUGE<UG2> L=540 		1-49113-427-2 01 1 9510-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=434 		1-49116-435-1 01 1 9510-
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9811
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9811
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-0603
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-0603
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604-
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9510-
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9510-
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-415-1 01 1 9510-
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-473-0 01 1 9510-
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 9510-0603
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 02 1 0604-
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9510-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9510-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-57210-720-0 02 1 0609-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9510-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-57210-810-0 01 1 0606-
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9510-
374 CONNECTOR 1-09654-324-0 01 1 9601-9802
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 9803-
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9811
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9811
434 CLIP
(C) D=9 T=45 		5-09700-021-0 01 1 9803-0004
434 CLIP
DUAL AIR GAUGE<UG2> (D) ID=10 & 10 		1-09709-221-0 01 1 9812-
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9510-
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9510-
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-
çizim 65052
14 154 170 34 14 154 176 171 184 186 185 1 155 6 3 2 7 155
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 9510-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0304
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-924-0 01 1 9510-9802
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9803-0109
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-922-0 01 1 0110-
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-293-0 01 1 0110-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9510-9802
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-296-0 01 1 9803-9910
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 9911-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9510-9910
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49114-969-0 01 1 9510-9802
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49118-403-0 01 1 9803-9803
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49119-460-0 01 1 9804-9910
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49122-149-0 01 1 9911-0109
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0110-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1137 		1-49122-151-0 01 1 0110-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-972-0 01 1 0110-
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9510-9606
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-
çizim 65070
251 222 217 272 250 238 222 217
BalonParca AdiParca NoAdetTipApplied Date
217 PIPE; VAC,UNION TO MAG VLV 1-49114-871-0 01 1 9510-9802
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1348 SERVICED BY L=1370 		1-47426-354-0 01 1 9510-9802
250 PIPE; AIR,UNION TO FLEX HOSE
AIR SUSP DRIVER SEAT<A56> L=2629 SERVICED BY L=2650 		1-47426-363-0 01 1 9510-9802
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=2629 SERVICED BY L=2650 		1-47426-363-0 01 1 9510-9802
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		1-49115-027-0 01 1 9510-9802
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49116-267-0 01 1 9510-9802
çizim 65155
242 244 244 243 243 238 251
BalonParca AdiParca NoAdetTipApplied Date
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1348 SERVICED BY L=1370 		1-47426-354-0 01 1 9510-9802
242 PIPE; AIR,AIR TANK TO UNION 1-49114-895-0 01 1 9510-9802
243 UNION; AIR PIPE
(C) M12 L=66.5 		9-09223-306-1 01 1 9510-0607
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0608-
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (A) M12 		9-09228-306-1 01 1 9510-9802
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9510-9802
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9802
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 9510-
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9510-9802
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		1-49115-027-0 01 1 9510-9802
çizim 65210
154 14 170 154 34 14 176 171 184 186 185 155 1 6 3 2 7 155
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 9510-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0304
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-924-0 01 1 9510-9802
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9803-0109
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-922-0 01 1 0110-
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-293-0 01 1 0110-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9510-9802
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-296-0 01 1 9803-9910
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 9911-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9510-9910
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49114-969-0 01 1 9510-9802
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49118-403-0 01 1 9803-9803
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49119-460-0 01 1 9804-9910
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49122-149-0 01 1 9911-0109
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0110-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1137 		1-49122-151-0 01 1 0110-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-972-0 01 1 0110-
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9510-9606
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-

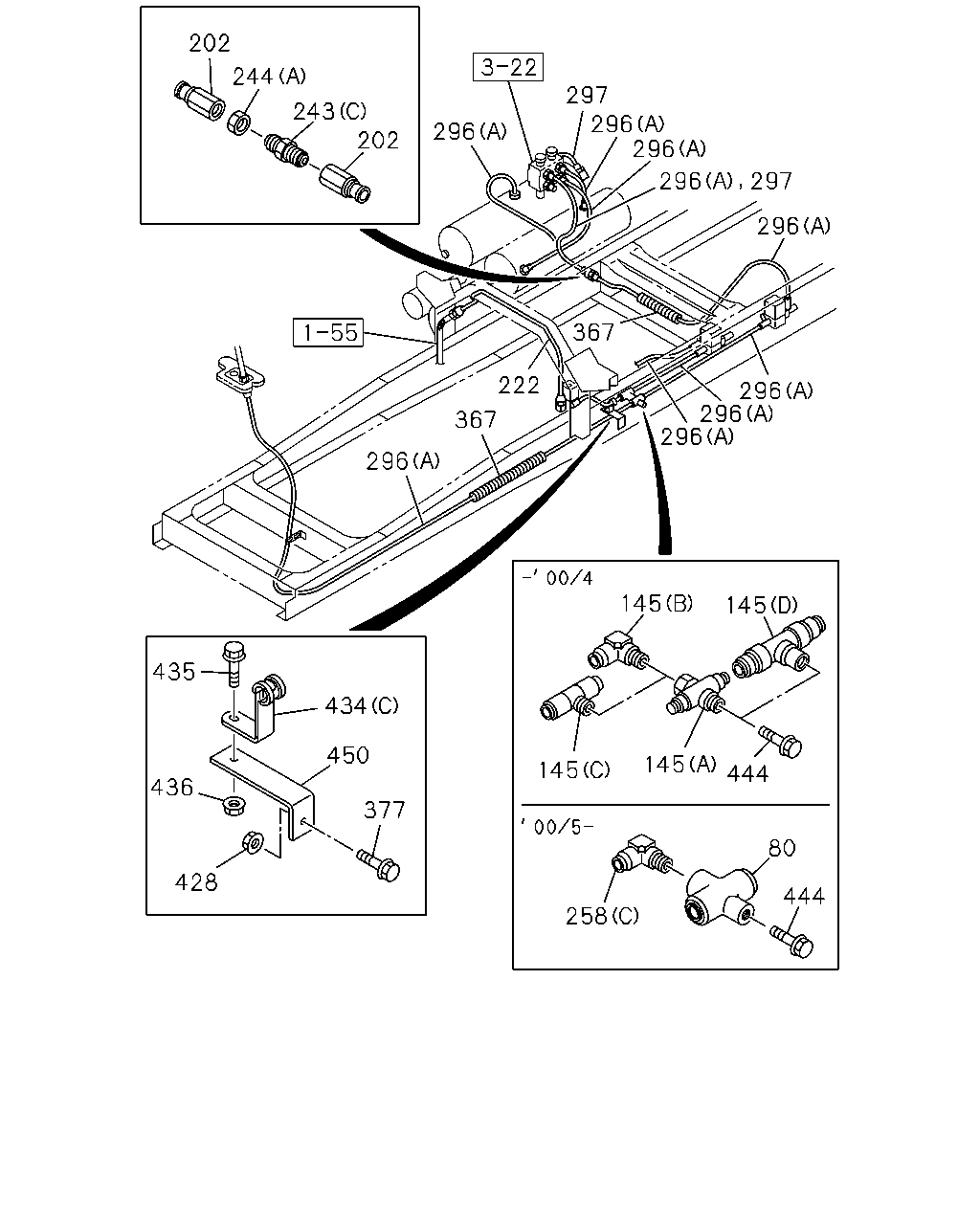

çizim 66467
202 244 297 243 296 296 296 202 296 297 296 367 222 296 296 296 367 296 145 145 435 434 450 145 145 444 436 377 80 428 444 258
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-
80 UNION; 3 WAY
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804
145 UNION; NYLON TUBE
PTO CONTROL<SV6> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-0004
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-0004
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9803-9804
145 UNION; NYLON TUBE
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9803-9804
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804
145 UNION; NYLON TUBE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-0004
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-0004
145 UNION; NYLON TUBE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6> (D) 		1-09660-788-0 01 1 9803-9804
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-9803
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-9803
202 ADAPTER
PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-9803
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-0004
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-0004
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0007
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0008-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-
243 UNION; AIR PIPE
(C) M12 L=66.5 		9-09223-306-1 01 1 9510-0607
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0608-
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (A) M12 		9-09228-306-1 01 1 9510-9802
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9510-9802
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9802
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 9510-
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9510-9802
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9510-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9510-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0002-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-9803
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9803-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9803-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9803-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9803-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 01 1 9803-0004
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9803-0004
434 CLIP
(C) D=9 T=45 		5-09700-021-0 01 1 9803-0004
434 CLIP
DUAL AIR GAUGE<UG2> (D) ID=10 & 10 		1-09709-221-0 01 1 9812-
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9510-
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9510-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9803-0004
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9803-0004
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9803-0001
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0002-0004
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512
444 BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28050-820-0 01 1 0601-
444 BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE 		0-28050-820-0 01 1 0601-
450 BRACKET; CLIP
L=90 B=25 		1-47475-530-0 01 1 9803-0004
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
