3-58 — FIXING PARTS; OIL PIPING (#20091) — 92 parça

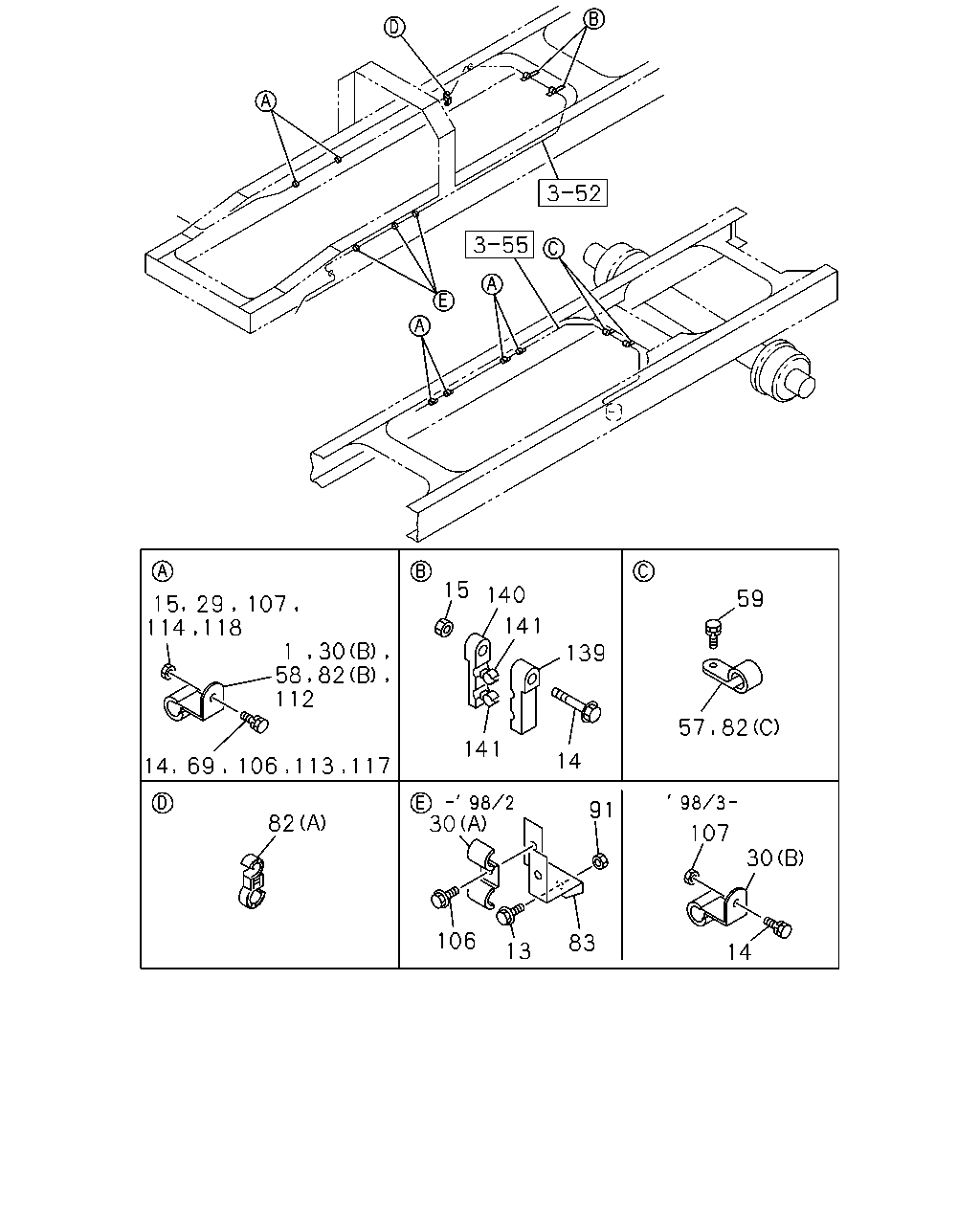

çizim 65091
15 140 59 107 141 1 30 112 139 141 14 69 14 30 91 82 107 30 106 83 13 14 15 29 114 118 106 113 117 57 82 58 82
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; OIL PIPE TO BODY
ID=6 H=20 L=20 		1-09700-603-0 02 1 9510-
13 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606
13 BOLT; BRKT,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9802
14 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512
14 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
14 BOLT; CLIP,OIL PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 9510-0403
14 BOLT; CLIP,OIL PIPE
M8X50 FLANGE 		0-28080-850-0 02 1 0404-0512
14 BOLT; CLIP,OIL PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0601-0601
14 BOLT; CLIP,OIL PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601-0601
14 BOLT; CLIP,OIL PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601-0610
14 BOLT; CLIP,OIL PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601-0610
14 BOLT; CLIP,OIL PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0611-
14 BOLT; CLIP,OIL PIPE
M8X60 FLANGE 		0-28050-860-0 01 1 0611-
15 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 03 1 9510-9606
15 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 9607-0602
15 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0603-
29 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9803-0602
29 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
30 CLIP; OIL PIPE
(A) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 03 1 9510-9802
30 CLIP; OIL PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 06 1 9803-
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		9-09524-635-0 04 1 9510-0603
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		9-09524-635-0 04 1 0604-0606
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 04 1 0607-
58 CLIP; OIL PIPE
WHEEL BASE 3700MM(37W) ID=6 H=20 L=20 		1-09700-603-0 05 1 9510-
58 CLIP; OIL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=6 H=20 L=20 		1-09700-603-0 04 1 9510-
59 BOLT; BRK PIPE,RR AXLE
M8X12 W/LK WASHER 		0-50040-812-0 04 1 9510-9911
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28080-810-0 04 1 9912-0512
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 04 1 0601-
69 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9803-0512
69 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
82 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 02 1 9510-9905
82 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 9906-
82 CLIP; OIL PIPE
(C) ID=7 L=20 		9-09524-635-0 01 1 9803-9806
82 CLIP; OIL PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 9807-0006
82 CLIP; OIL PIPE
(C) ID=7 L=20 		9-09524-632-0 01 1 0007-0008
82 CLIP; OIL PIPE
(C) ID=7 L=20 		9-09524-635-0 01 1 0009-0606
82 CLIP; OIL PIPE
(C) ID=7 L=20 		0-95234-635-0 01 1 0607-
83 BRACKET; PIPE CLIP
M8 W/NUT 		1-47475-439-2 03 1 9510-9802
91 NUT; BRKT,OIL PIPE
M8 		9-09110-408-0 03 1 9510-9606
91 NUT; BRKT,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 9607-9802
106 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 03 1 9510-9802
106 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9803-0512
106 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
106 BOLT; CLIP,OIL PIPE
M8X50 FLANGE 		0-28080-850-0 02 1 9510-9802
106 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 04 1 9803-0512
106 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 04 1 0601-
107 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 02 1 9510-9606
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9607-9802
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 06 1 9803-0602
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 06 1 0603-
112 CLIP; OIL PIPE
WHEEL BASE 4200MM(42W) ID=6 H=20 L=20 		1-09700-603-0 02 1 9510-
112 CLIP; OIL PIPE
WHEEL BASE 4800MM(48W) ID=6 H=20 L=20 		1-09700-603-0 03 1 9510-
113 BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
113 BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9806
113 BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28680-825-0 02 1 9807-0512
113 BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
113 BOLT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W) M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606
113 BOLT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W) M8X30 FLANGE 		0-28680-830-0 03 1 9607-9806
113 BOLT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W) M8X25 FLANGE 		0-28680-825-0 03 1 9807-0512
113 BOLT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
114 NUT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W) M8 		9-09110-408-0 02 1 9510-9606
114 NUT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
114 NUT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 0603-
114 NUT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W) M8 		9-09110-408-0 03 1 9510-9606
114 NUT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W) M8 FLANGE 		0-91150-108-0 03 1 9607-0602
114 NUT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W) M8 FLANGE 		0-91180-108-0 03 1 0603-
117 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606
117 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0512
117 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
117 BOLT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28080-825-0 04 1 9510-9606
117 BOLT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W) M8X30 FLANGE 		0-28680-830-0 04 1 9607-9806
117 BOLT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28680-825-0 04 1 9807-0512
117 BOLT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
117 BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606
117 BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M8X30 FLANGE 		0-28680-830-0 03 1 9607-9806
117 BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M8X25 FLANGE 		0-28680-825-0 03 1 9807-0512
117 BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
118 NUT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W) M8 		9-09110-408-0 05 1 9510-9606
118 NUT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91150-108-0 05 1 9607-0602
118 NUT; CLIP,OIL PIPE
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91180-108-0 05 1 0603-
118 NUT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M8 		9-09110-408-0 04 1 9510-9606
118 NUT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M8 FLANGE 		0-91150-108-0 04 1 9607-0602
118 NUT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M8 FLANGE 		0-91180-108-0 04 1 0603-
139 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 9510-9601
139 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 9602-9802
139 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 9602-9802
139 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 9803-0512
140 CLIP; LWR
ID=10 & 10 		1-09709-243-0 02 1 9510-0512
140 CLIP; LWR
ID=6 & 6 		1-09709-244-0 02 1 9510-9802
141 COLLAR
ID=6 		1-47459-010-0 02 1 9510-0512
141 COLLAR
ID=8 		1-47459-011-0 02 1 9510-0512
