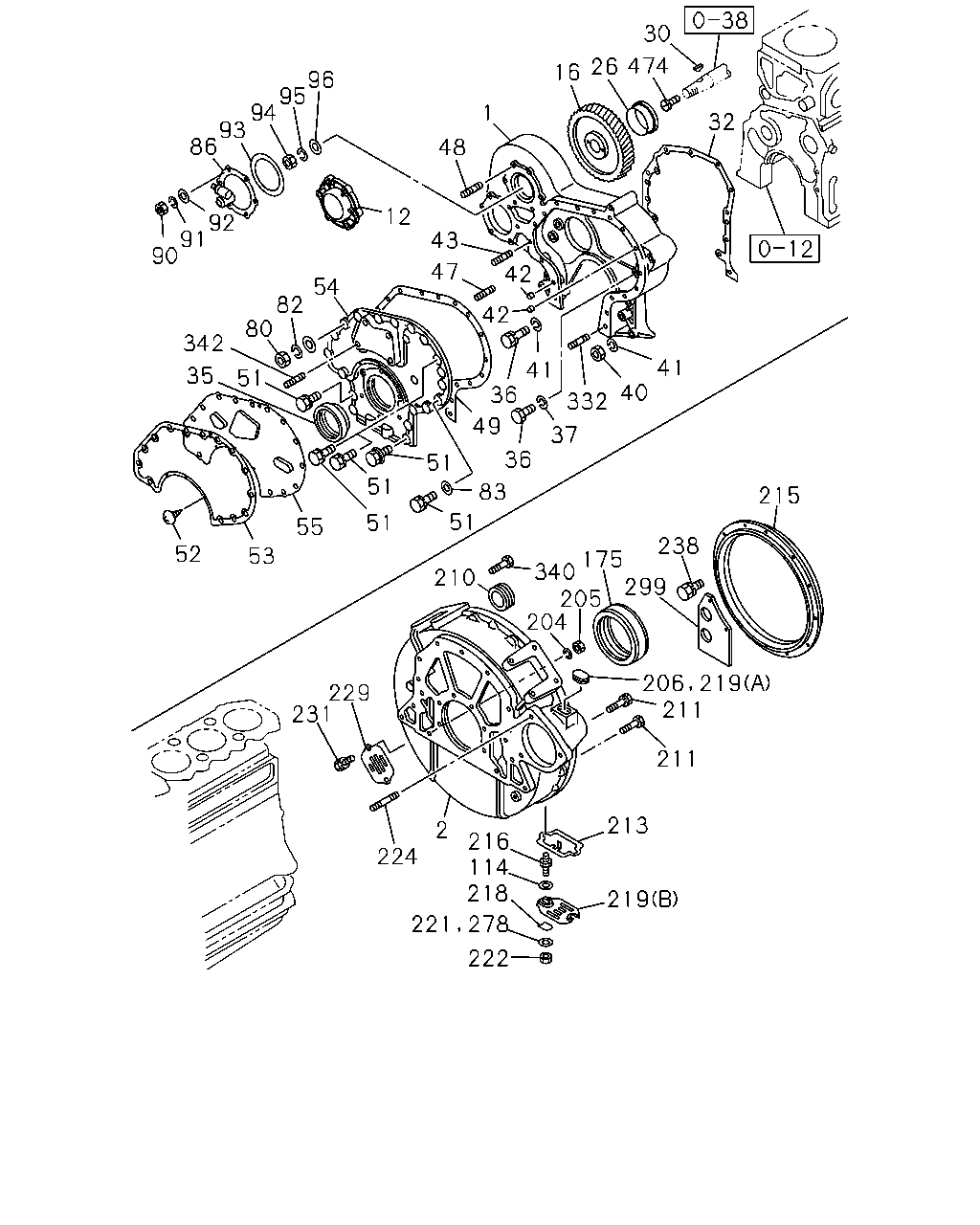

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#2009) — 132 parça

30 16 96 95 94 93 86 1 32 48 92 91 90 12 43 42 47 54 82 80 42 342 41 40 41 36 35 51 332 49 37 36 51 51 83 215 51 51 55 238 52 53 175 340 299 205 204 210 211 229 231 211 213 2 216 114 218 224 219 221 222 26 474 206 219 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR	1-11311-034-0	01	1	9001-	●	●	●	●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-278-1	01	1	9001-				●
2	HOUSING; FLYWHEEL M/T<X9C> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-11341-270-1	01	1	9001-				●
2	HOUSING; FLYWHEEL M/T<X9C>	1-11341-270-1	01	1	9001-	●
2	HOUSING; FLYWHEEL	1-11341-270-1	01	1	9001-			●
2	HOUSING; FLYWHEEL M/T<X9C> 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1)	1-11341-271-2	01	1	9001-		●		●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-272-1	01	1	9001-	●	●
12	COVER; BRG,GEAR CASE,FRT EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOMETER<UD7>	9-11325-058-1	01	1	9001-9407	●	●		●
12	COVER; BRG,GEAR CASE,FRT EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOMETER<UD7>	1-11325-019-0	01	1	9408-	●	●		●
16	GEAR; INJ PUMP DRIVE Z=64	1-12524-013-1	01	1	9001-	●	●	●	●
26	ADAPTER	1-11329-008-0	01	1	9001-	●	●	●	●
30	KEY; DRIVE GEAR	9-08055-519-0	01	1	9001-	●	●	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11312-015-0	01	1	9001-9502	●	●	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11312-016-0	01	1	9503-	●	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-442-0	01	1	9001-	●	●	●	●
36	BOLT; GEAR CASE M8X35	9-01055-835-0	01	1	9001-9005	●	●		●
36	BOLT; GEAR CASE M8X35	0-10805-835-0	01	1	9006-9006	●	●		●
36	BOLT; GEAR CASE M8X35	0-10810-835-0	01	1	9007-	●	●	●	●
36	BOLT; GEAR CASE M12X80	9-01656-280-0	03	1	9001-9005	●	●		●
36	BOLT; GEAR CASE M12X80	0-16806-280-0	03	1	9006-	●	●		●
36	BOLT; GEAR CASE M12X30 W/LK WASHER	9-01931-230-0	06	1	9001-9005	●	●		●
36	BOLT; GEAR CASE M12X30 W/LK WASHER	0-50051-230-0	06	1	9006-	●	●	●	●
36	BOLT; GEAR CASE M10X28	9-02361-028-0	01	1	9001-	●	●	●	●
37	WASHER; PL,GEAR CASE D=19 T=4	1-09503-183-1	01	1	9001-	●	●	●	●
37	WASHER; PL,GEAR CASE ID=10.5	9-09851-950-0	01	1	9001-	●	●	●	●
40	NUT; GEAR CASE M12	9-99110-412-0	03	1	9001-		●		●
40	NUT; GEAR CASE M/T<X9C> M12	9-99110-412-0	03	1	9001-	●
40	NUT; GEAR CASE A/T<X9D> M12	9-99110-412-0	06	1	9001-9012	●
40	NUT; GEAR CASE A/T<X9D> M12	9-99110-412-0	06	1	9101-	●
40	NUT; GEAR CASE M12	9-99110-412-0	06	1	9101-			●
41	WASHER; LK,GEAR CASE ID=12.2	9-09150-512-0	06	1	9001-	●	●	●	●
42	DOWEL; GEAR CASE COVER OD=14 L=10	9-11319-065-2	02	1	9001-	●	●	●	●
43	STUD; BRG COVER M10X35 L=50	1-09302-048-1	04	1	9001-	●	●	●	●
47	BOLT; BRG COVER STUD M12X77 L=95	9-09831-161-0	03	1	9001-				●
47	BOLT; BRG COVER STUD M12X20 L=38	9-94411-220-0	01	1	9001-				●
48	STUD; COVER,ELBOW,P/S M8X22 L=34	9-04110-822-0	12	1	9001-9001	●	●
48	STUD; COVER,ELBOW,P/S M8X25 L=36	1-09300-050-0	12	1	9002-9309	●	●	●
48	STUD; COVER,ELBOW,P/S TAIWAN EMISSION REGULATION<TAL> M8X25 L=36	1-09300-050-0	11	1	9310-9310	●
48	STUD; COVER,ELBOW,P/S M8X25 L=36	1-09300-050-0	12	1	9311-	●	●	●	●
48	STUD; COVER,ELBOW,P/S M8X25 L=36	1-09300-050-0	12	1	9310-9310	●	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-029-0	01	1	9001-9603	●	●	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-051-0	01	1	9604-	●	●	●	●
51	BOLT; GEAR CASE COVER M10X25 W/LK&PL WASHER	9-01991-025-0	03	1	9001-9002	●	●		●
51	BOLT; GEAR CASE COVER M10X25 W/LK&PL WASHER	0-50151-025-0	03	1	9003-	●	●	●	●
51	BOLT; GEAR CASE COVER M10X35 W/LK WASHER	9-01991-035-0	10	1	9001-9002	●	●		●
51	BOLT; GEAR CASE COVER M10X35 W/LK&PL WASHER	0-50151-035-0	10	1	9003-9308	●	●	●	●
51	BOLT; GEAR CASE COVER M10X35 W/LK&PL WASHER	0-50151-035-0	08	1	9309-	●	●	●	●
51	BOLT; GEAR CASE COVER M10X45	9-01991-045-0	01	1	9001-9002	●	●		●
51	BOLT; GEAR CASE COVER M10X45 W/LK&PL WASHER	0-50151-045-0	01	1	9003-	●	●	●	●
51	BOLT; GEAR CASE COVER M10X35	0-23801-035-0	02	1	9309-	●	●	●	●
51	BOLT; GEAR CASE COVER TAIWAN EMISSION REGULATION<TAL> M10X35 W/LK WASHER	0-50051-035-0	05	1	9312-	●
51	BOLT; GEAR CASE COVER TAIWAN EMISSION REGULATION<TAL> M10X45 W/LK WASHER	0-50051-045-0	01	1	9312-	●
51	BOLT; GEAR CASE COVER TAIWAN EMISSION REGULATION<TAL> M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9312-	●
52	SCREW; NOISE SHIELD COVER TAIWAN EMISSION REGULATION<TAL> M4X12 TAPPING	9-07077-412-0	04	1	9312-	●
53	FLANGE; NOISE SHIELD TAIWAN EMISSION REGULATION<TAL>	1-11329-003-1	01	1	9312-	●
54	COVER; GEAR CASE	1-11321-023-4	01	1	9001-9012				●
54	COVER; GEAR CASE	1-11321-025-3	01	1	9001-9012	●	●
54	COVER; GEAR CASE	1-11321-025-3	01	1	9101-	●	●	●	●
55	COVER; NOISE SHIELD TAIWAN EMISSION REGULATION<TAL>	1-19381-070-0	01	1	9312-	●
80	NUT; COVER M10	9-09110-410-0	04	1	9001-	●	●	●	●
82	WASHER; LK,COVER ID=10.2	9-09150-510-0	04	1	9001-	●	●	●	●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	04	1	9001-9308				●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	06	1	9309-				●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	06	1	9001-9308	●	●	●
83	WASHER; PL,COVER TAIWAN EMISSION REGULATION<TAL> ID=10.5 OD=18	9-09160-510-0	08	1	9309-	●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	10	1	9309-9310	●	●	●
83	WASHER; PL,COVER EXC. TAIWAN EMISSION REGULATION<TAL> ID=10.5 OD=18	9-09160-510-0	10	1	9311-	●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	10	1	9311-		●	●
86	ELBOW; TACHOMETER DRIVE ENGINE OVERRUN BUZZER<SK4>	1-85860-013-0	01	1	9001-9201	●	●		●
86	ELBOW; TACHOMETER DRIVE TACHOMETER<UD7>	1-85860-013-0	01	1	9001-9201	●	●		●
86	ELBOW; TACHOMETER DRIVE ENGINE OVERRUN BUZZER<SK4>	1-85860-044-0	01	1	9101-9201			●
86	ELBOW; TACHOMETER DRIVE TACHOMETER<UD7>	1-85860-044-0	01	1	9101-9201			●
86	ELBOW; TACHOMETER DRIVE ENGINE OVERRUN BUZZER<SK4>	1-85860-044-1	01	1	9202-	●	●	●	●
86	ELBOW; TACHOMETER DRIVE TACHOMETER<UD7>	1-85860-044-1	01	1	9202-	●	●	●	●
90	NUT; ELBOW M8	9-09110-408-0	12	1	9001-9304	●	●	●	●
90	NUT; ELBOW M8	9-09110-408-0	12	1	9305-		●	●	●
90	NUT; ELBOW EXC. TAIWAN EMISSION REGULATION<TAL> M8	9-09110-408-0	12	1	9305-	●
90	NUT; ELBOW TAIWAN EMISSION REGULATION<TAL> M8	9-09110-408-0	26	1	9305-	●
90	NUT; ELBOW M8	9-09110-408-0	26	1	9001-9012	●	●
90	NUT; ELBOW M8	9-09110-408-0	14	1	9101-9304	●	●
90	NUT; ELBOW EXC. TAIWAN EMISSION REGULATION<TAL> M8	9-09110-408-0	14	1	9305-	●
90	NUT; ELBOW M8	9-09110-408-0	14	1	9305-		●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	12	1	9001-9304	●	●	●	●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	12	1	9305-		●	●	●
91	WASHER; LK,ELBOW EXC. TAIWAN EMISSION REGULATION<TAL> ID=8.2	9-09150-508-0	12	1	9305-	●
91	WASHER; LK,ELBOW M/T<X9C> TAIWAN EMISSION REGULATION<TAL> ID=8.2	9-09150-508-0	26	1	9305-	●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	26	1	9001-9012	●	●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	14	1	9101-9304	●	●
91	WASHER; LK,ELBOW EXC. TAIWAN EMISSION REGULATION<TAL> ID=8.2	9-09150-508-0	14	1	9305-	●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	14	1	9305-		●
92	WASHER; PL,ELBOW ID=8.4	9-09160-508-0	04	1	9001-				●
92	WASHER; PL,ELBOW ID=8.4	9-09160-508-0	12	1	9001-	●	●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE OVERRUN BUZZER<SK4>,TACHOMETER<UD7> ID=96.4	1-09623-467-0	01	1	9001-	●	●	●	●
94	NUT; GEAR M24	9-99111-524-0	01	1	9001-	●	●	●	●
95	WASHER; LK,GEAR ID=24.5	9-09150-524-0	01	1	9001-	●	●	●	●
96	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	9001-	●	●	●	●
114	WASHER; LK,POINTER FIX ID=8.2	9-09150-508-0	04	1	9706-	●	●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-441-0	01	1	9001-	●	●	●	●
204	WASHER; LK,HSG ID=14.2	9-09150-514-0	01	1	9001-	●	●	●	●
205	NUT; HSG M14	9-99110-414-0	01	1	9001-	●	●	●	●
206	COVER; STARTER CHECK HOLE	9-11349-049-0	01	1	9001-	●	●	●
210	GROMMET; HSG A/T<X9D>	9-09575-799-0	01	1	9001-	●	●		●
211	BOLT; HSG M8X40	9-01970-840-0	06	1	9001-9005	●	●		●
211	BOLT; HSG M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	9006-	●	●	●	●
211	BOLT; HSG M14X50 W/LK WASHER	1-09033-002-0	10	1	9001-	●	●	●	●
211	BOLT; HSG M14X55 W/LK WASHER	1-09033-003-0	02	1	9001-	●	●	●	●
211	BOLT; HSG A/T<X9D> M10X35 W/LK WASHER	9-01931-035-0	12	1	9001-9002	●	●
211	BOLT; HSG A/T<X9D> M10X35 W/LK WASHER	0-50051-035-0	12	1	9003-	●	●
213	POINTER; FLYWHEEL HSG	1-11327-025-2	01	1	9001-	●	●	●	●
215	TUBE; DIST,FLYWHEEL HSG A/T<X9D>	1-32111-003-1	01	1	9001-	●	●		●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	9001-	●	●	●	●
218	WASHER; PL,COVER	1-11349-127-0	01	1	9001-	●	●	●	●
219	COVER; POINTER (A)	9-11349-049-0	01	1	9001-				●
219	COVER; POINTER (B)	1-11349-131-0	01	1	9001-	●	●	●	●
221	WASHER; PL,POINTER ID=8.4 OD=18	9-09160-608-0	01	1	9001-	●	●	●
222	NUT; COVER,TIMING CHECK HOLE M8	9-09110-408-0	02	1	9001-	●	●	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9001-	●	●	●	●
229	COVER; TIMING CHECK HOLE	1-11349-073-0	01	1	9001-9303	●	●	●	●
229	COVER; TIMING CHECK HOLE	1-11349-122-0	01	1	9304-	●	●	●	●
231	BOLT; COVER M8X12 W/LK WASHER	9-01900-812-0	02	1	9001-9204	●	●	●	●
231	BOLT; COVER M8X12 W/LK WASHER	0-50040-812-0	02	1	9205-	●	●	●	●
238	BOLT; DIST A/T<X9D> M10X35 W/LK WASHER	9-01931-035-0	12	1	9001-9002				●
238	BOLT; DIST A/T<X9D> M10X35 W/LK WASHER	0-50051-035-0	12	1	9003-				●
278	WASHER; COVER FIX ID=8.4 OD=18	9-09160-608-0	01	1	9001-				●
299	BRACKET; FLYWHEEL HSG A/T<X9D>	1-34589-001-0	01	1	9001-	●	●		●
332	STUD; ENG CONT BRKT M8X22 L=34	9-04110-822-0	12	1	9001-9402				●
340	BOLT; CLIP M8X16 W/LK WASHER	9-01910-816-0	02	1	9001-9005	●	●
340	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-	●	●	●
342	STUD; OIL FILLER M8X22 L=34	9-04110-822-0	04	1	9001-	●	●	●	●
474	ADAPTER; ELBOW DRIVE ENGINE OVERRUN BUZZER<SK4>,TACHOMETER<UD7>	1-12539-005-0	01	1	9001-9201	●	●		●
474	ADAPTER; ELBOW DRIVE ENGINE OVERRUN BUZZER<SK4>,TACHOMETER<UD7>	1-12539-012-1	01	1	9101-9201			●
474	ADAPTER; ELBOW DRIVE ENGINE OVERRUN BUZZER<SK4>,TACHOMETER<UD7>	1-12539-012-1	01	1	9202-	●	●	●	●
