0-33B — FAN AND FAN BELT (#20085) — 23 parça

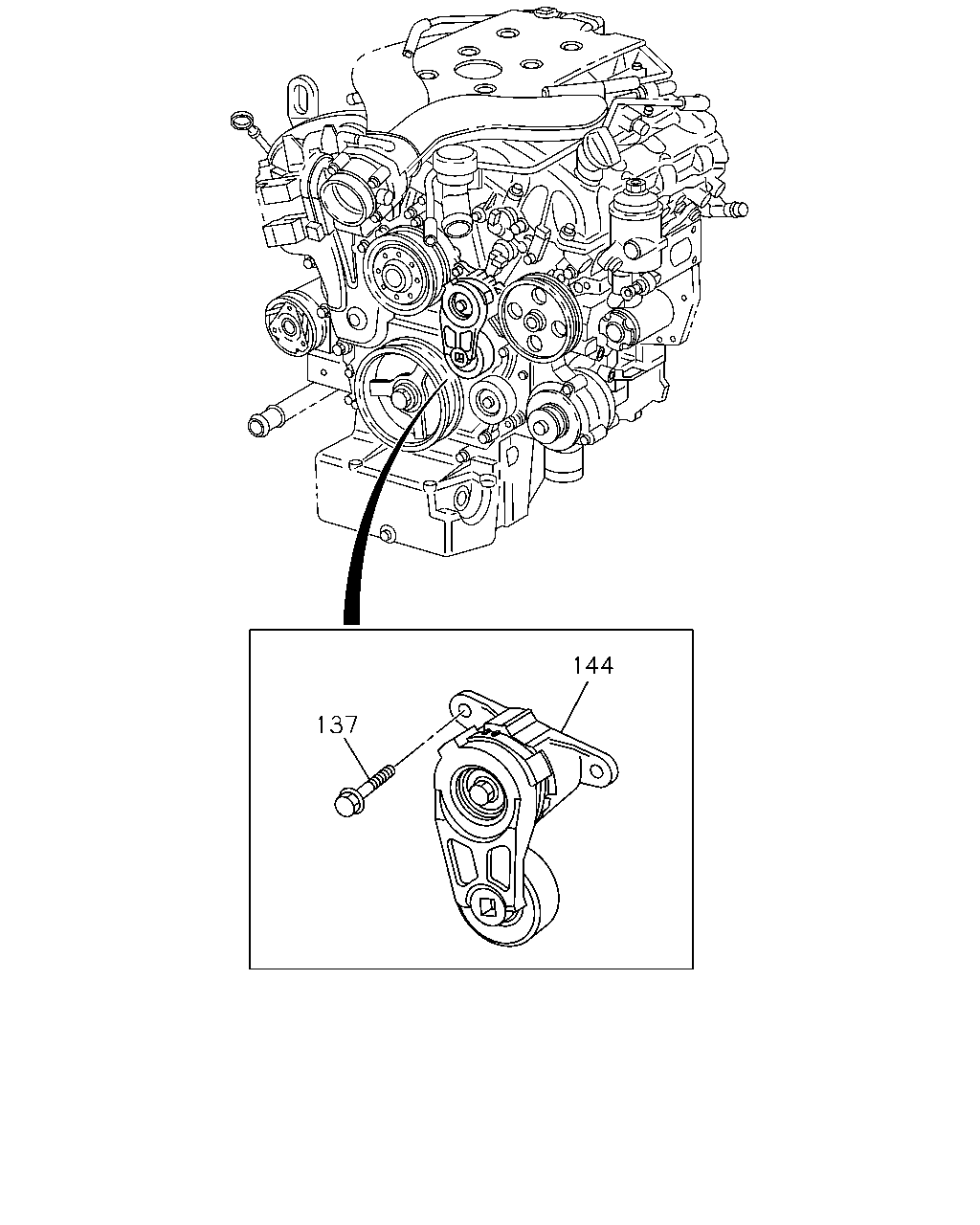

çizim 13968
144 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 01.060 BOLT; TENSION 8-11519-173-0 01 1 0509-0609 ●
137 01.060 BOLT; TENSION
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-173-0 01 1 0610- ●
144 01.060 TENSIONER; DRIVE BELT
09.180 		8-97125-860-1 01 1 0307-0609 ●
144 01.060 TENSIONER; DRIVE BELT 8-12575-509-0 01 1 0509-0609 ●
144 01.060 TENSIONER; DRIVE BELT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-509-0 01 1 0610- ●

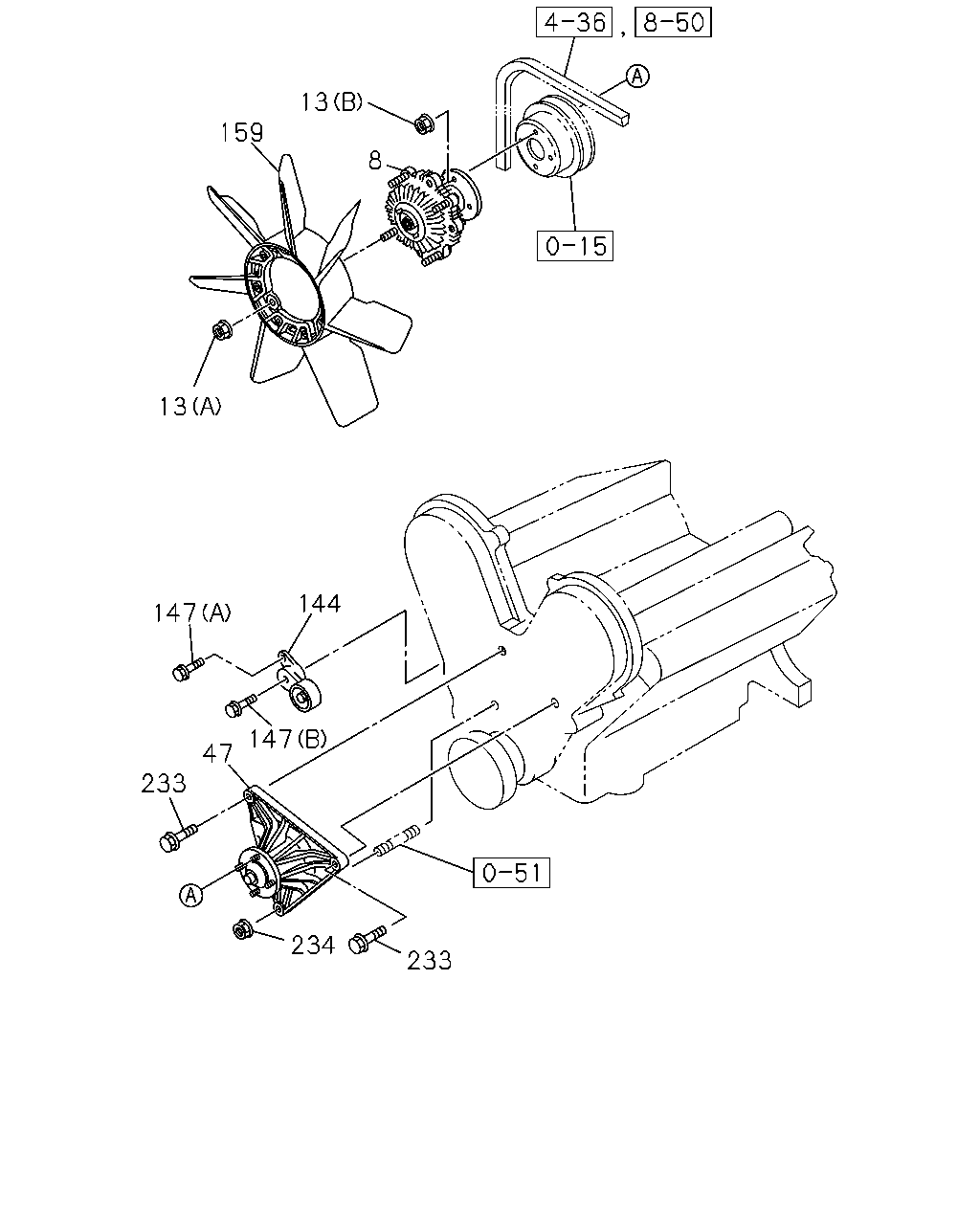

çizim 56664
13 159 8 13 144 147 147 47 233 234 233
BalonParca AdiParca NoAdetTipApplied Date A B
8 01.064 CLUTCH; COOLING FAN 8-97329-954-0 01 1 0307-0405 ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 0406-0609 ●
13 01.062 NUT; COOLING FAN
(A) M6 FLANGE 		0-91180-106-0 04 1 0307-0609 ●
13 01.062 NUT; COOLING FAN
(B) M8 FLANGE 		0-91180-108-0 04 1 0307-0609 ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 0307-0609 ●
144 01.060 TENSIONER; DRIVE BELT
09.180 		8-97125-860-1 01 1 0307-0609 ●
144 01.060 TENSIONER; DRIVE BELT 8-12575-509-0 01 1 0509-0609 ●
144 01.060 TENSIONER; DRIVE BELT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-509-0 01 1 0610- ●
147 01.060 BOLT; BELT TENSIONER
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0307-0609 ●
147 01.060 BOLT; BELT TENSIONER
09.190 (B) M10X65 		9-05821-065-0 01 1 0307-0609 ●
159 01.064 BLADE; COOLING FAN 8-97130-757-1 01 1 0307-0405 ●
159 01.064 BLADE; COOLING FAN 8-97349-762-0 01 1 0406-0609 ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-0 02 1 0307-0609 ●
234 01.060 NUT; FAN BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0307-0609 ●

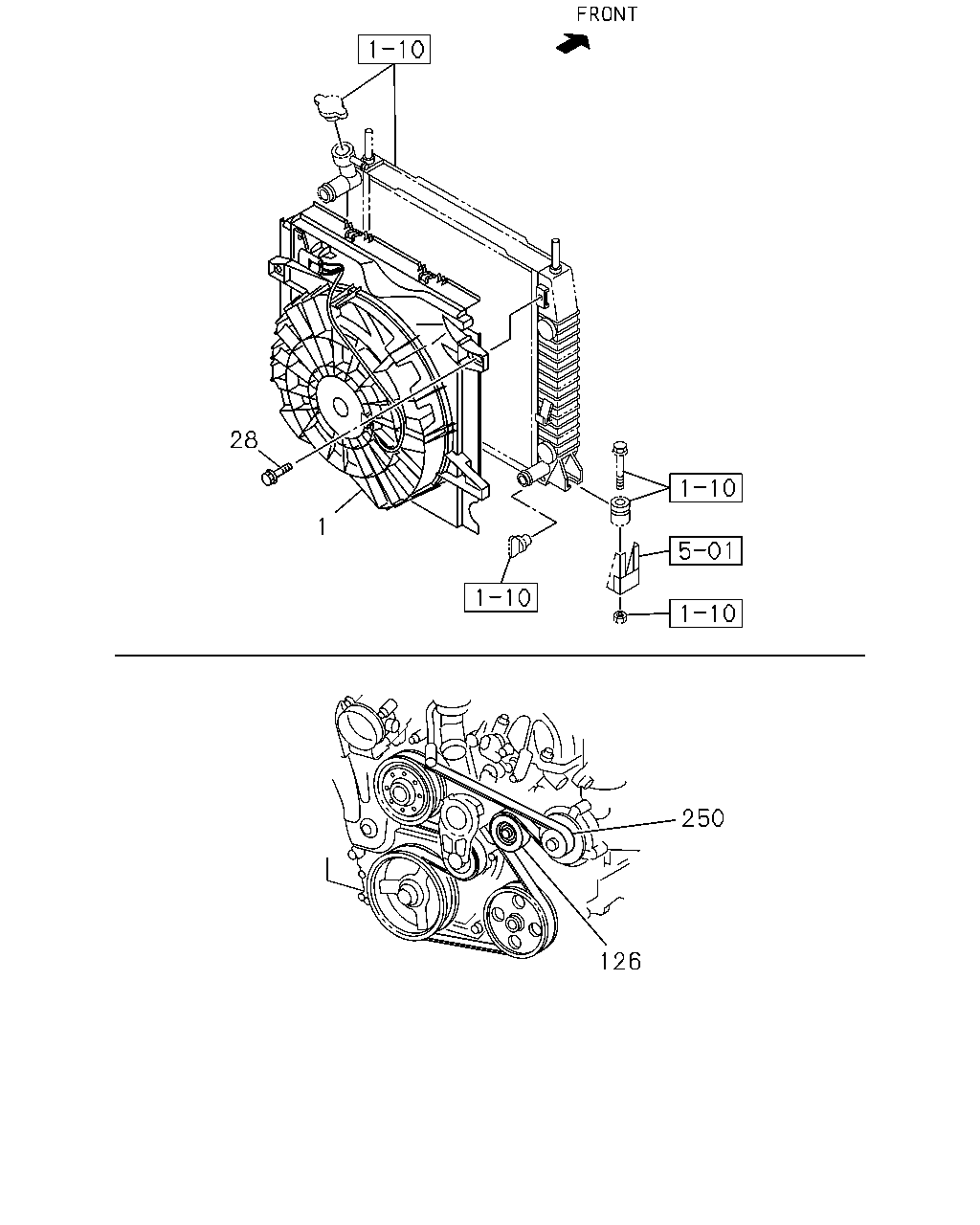

çizim 56694
28 1 250 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING 8-98027-428-0 01 1 0509- ●
28 01.062 BOLT; COOLING FAN 8-98027-482-0 02 1 0509- ●
126 01.062 PULLEY; IDLE 8-92066-625-0 01 1 0509- ●
250 01.066 BELT; SERPENTINE DRIVE 8-98019-613-0 01 1 0509- ●
