0-33A — FAN AND FAN BELT (#20084) — 210 parça

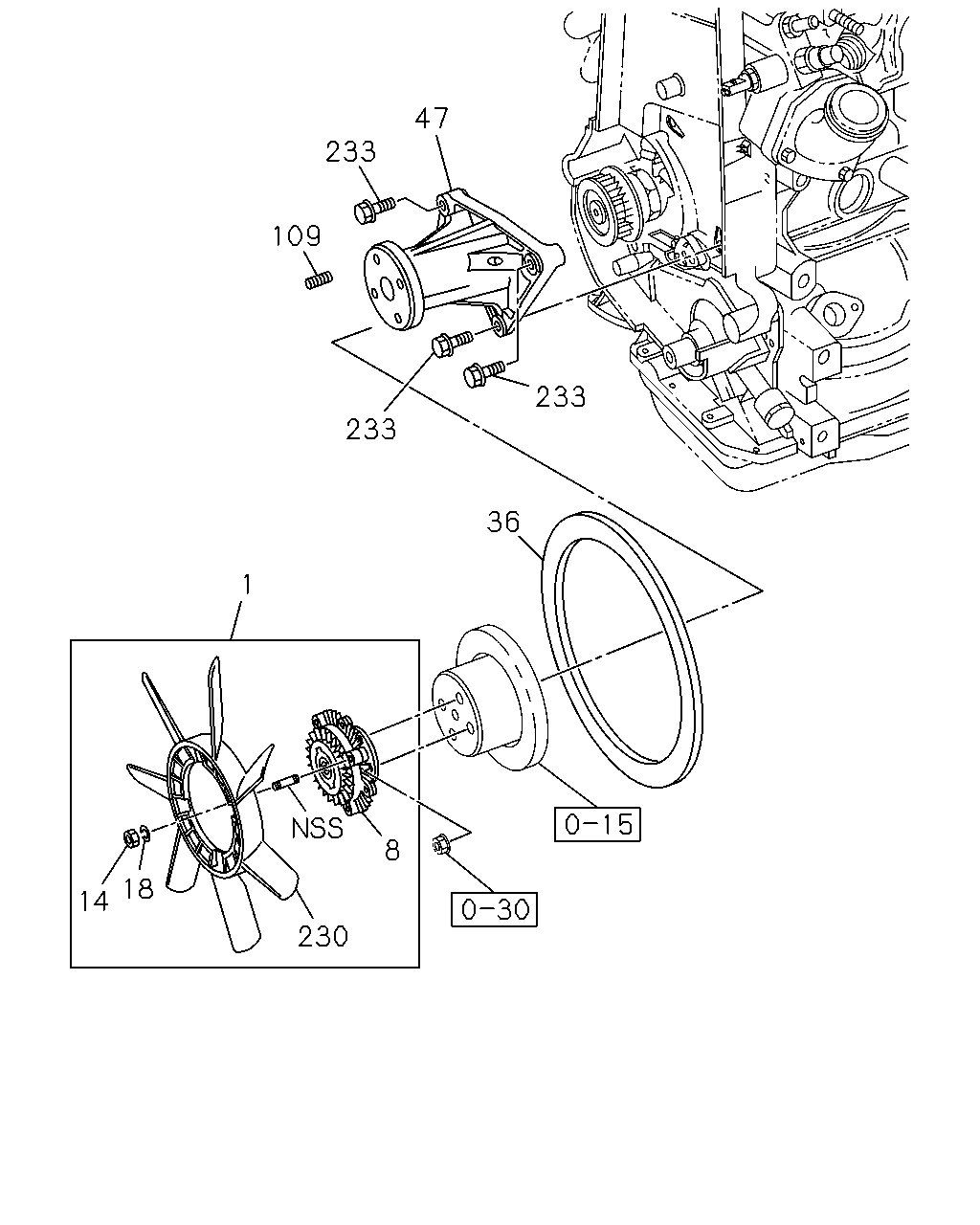

çizim 54303
47 233 109 233 233 36 1 8 18 14 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0307-0609 ● ● ●
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0610- ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0307- ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0610-0612 ● ● ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0701-0912 ● ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 1001- ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0307-0609 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0610- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0307- ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0610-0612 ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0701-0912 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1001- ● ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0509-0609 ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0610- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0307-0508 ● ● ● ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0509- ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 0307- ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0307-0609 ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0307-0609 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0610-0611 ● ● ● ●
36 01.066 BELT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) L=1006 		8-97362-926-0 01 1 0612-0612 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-0612 ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-0612 ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0701-0912 ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1001- ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0307-0609 ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0307- ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 0307- ●
109 01.062 STUD; FAN CLU
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0307-0604 ● ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0609 ● ● ●
109 01.062 STUD; FAN CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M6X18 L=27 		0-41010-618-0 04 1 0610-0611 ●
109 01.062 STUD; FAN CLU
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> M6X18 L=27 		0-41010-618-0 04 1 0610-0611 ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0612-0709 ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 0612-0709 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0710- ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 0710- ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0610-0611 ● ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 0612-0612 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0612-0612 ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 0701-0912 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0701-0912 ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 1001- ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1001- ● ● ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0307-0609 ● ● ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0610- ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0307- ●
233 01.060 BOLT; FAN BRKT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93299-090-0 03 1 1010- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 0307-1009 ●
233 01.060 BOLT; FAN BRKT
AUSTRALIA EQUIPMENT(B13) 		8-11082-931-0 03 1 1010- ●

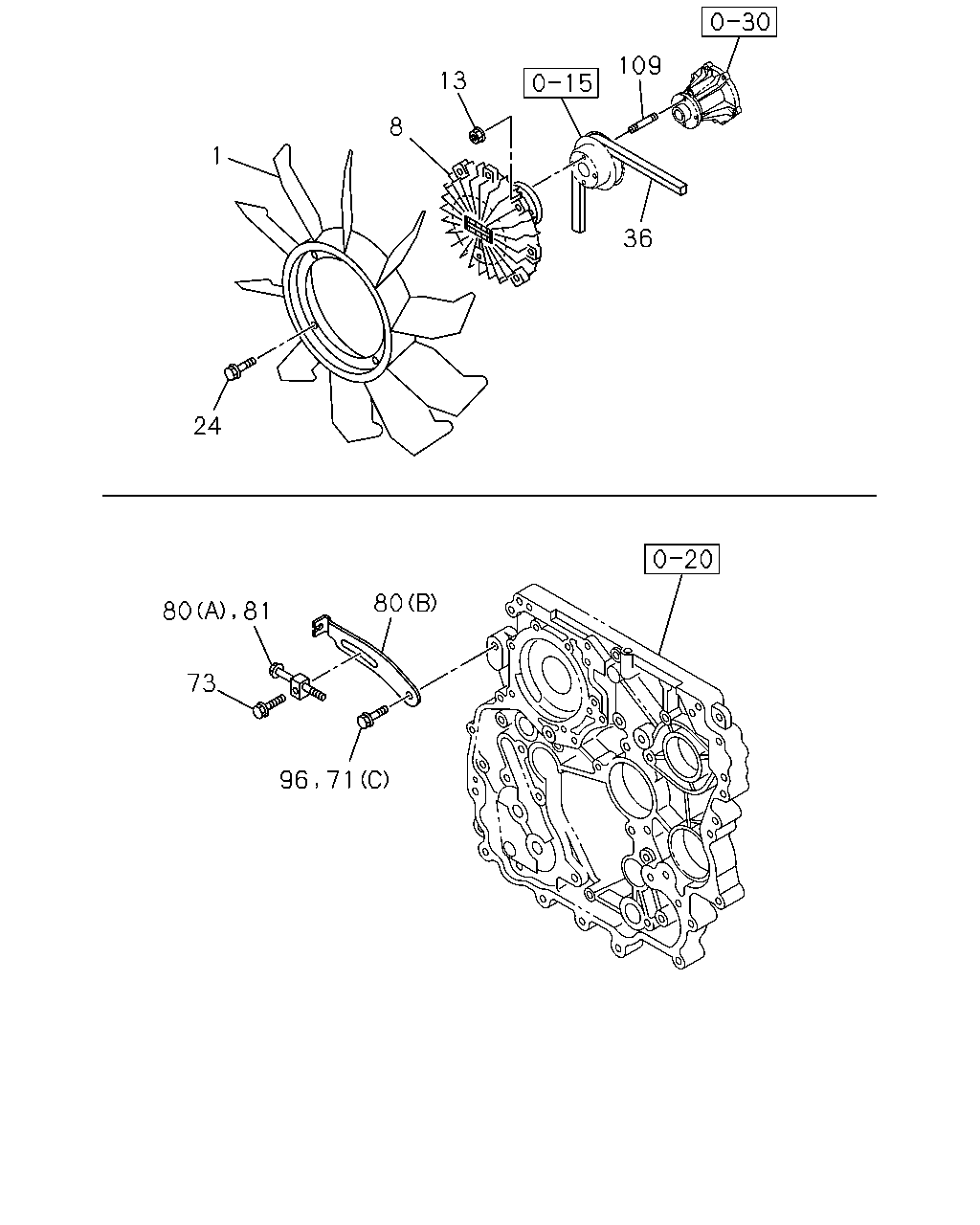

çizim 54641
109 13 8 1 36 24 80 80 81 73 96 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0307-0609 ● ● ●
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0610- ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0307- ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0610-0612 ● ● ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0701-0912 ● ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 1001- ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0307-0609 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0610- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0307- ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0610-0612 ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0701-0912 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1001- ● ● ● ●
13 01.062 NUT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) 16.320 M6 FLANGE 		8-98049-362-0 04 1 0710-0912 ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 0710-0912 ● ●
13 01.062 NUT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) 16.320 M6 FLANGE 		8-98049-362-0 04 1 1001- ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1001- ● ● ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-97943-101-0 04 1 0610-0611 ● ● ● ●
13 01.062 NUT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) 16.320 M6 FLANGE 		8-97943-101-0 04 1 0612-0612 ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-97943-101-0 04 1 0612-0612 ● ● ●
13 01.062 NUT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) 16.320 M6 FLANGE 		8-97943-101-0 04 1 0701-0704 ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-97943-101-0 04 1 0701-0704 ● ●
13 01.062 NUT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) 16.320 M6 FLANGE 		8-98049-362-0 04 1 0705-0709 ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 0705-0709 ● ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0610-0611 ● ●
13 01.062 NUT; COOLING FAN
KENYA EQUIPMENT(CL1) 07.829 M6 FLANGE 		5-09440-004-0 04 1 0612- ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 0610-0612 ● ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 0701-0912 ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1001- ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0307-0609 ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0307-0609 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0610-0611 ● ● ● ●
36 01.066 BELT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) L=1006 		8-97362-926-0 01 1 0612-0612 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-0612 ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-0612 ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0701-0912 ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1001- ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0307-0609 ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0307- ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0307-0609 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0610- ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0307-0609 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0610- ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0612-0612 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0701-0912 ● ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1001- ● ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0610-0612 ● ● ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0701-0912 ● ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1001- ● ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0307-0609 ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0610- ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-0 01 1 0610-0612 ● ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 0701-0912 ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 1001- ● ● ● ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-0 01 1 0610-0611 ● ● ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-0 01 1 0612-0612 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-0 01 1 0612-0612 ● ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 0701-0912 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 0701-0912 ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 1001- ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1001- ● ● ●
81 02.317 PIECE; SLIDING
KENYA EQUIPMENT(CL1) 		8-97944-144-1 01 1 0612-0612 ● ● ●
81 02.317 PIECE; SLIDING
KENYA EQUIPMENT(CL1) 		8-97944-144-1 01 1 0701-0912 ● ●
81 02.317 PIECE; SLIDING
KENYA EQUIPMENT(CL1) 		8-97944-144-1 01 1 1001- ● ● ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0610-0611 ● ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. KENYA EQUIPMENT(CL1) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612-0612 ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612-0612 ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. KENYA EQUIPMENT(CL1) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0701-0912 ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0701-0912 ● ●
96 02.317 BOLT; ADJ PLATE
EXC. KENYA EQUIPMENT(CL1) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1001- ● ● ●
96 02.317 BOLT; ADJ PLATE
KENYA EQUIPMENT(CL1) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612-0612 ● ● ●
96 02.317 BOLT; ADJ PLATE
KENYA EQUIPMENT(CL1) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0701-0709 ● ●
96 02.317 BOLT; ADJ PLATE
KENYA EQUIPMENT(CL1) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
109 01.062 STUD; FAN CLU
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0307-0604 ● ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0609 ● ● ●
109 01.062 STUD; FAN CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M6X18 L=27 		0-41010-618-0 04 1 0610-0611 ●
109 01.062 STUD; FAN CLU
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> M6X18 L=27 		0-41010-618-0 04 1 0610-0611 ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0612-0709 ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 0612-0709 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0710- ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 0710- ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0610-0611 ● ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 0612-0612 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0612-0612 ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 0701-0912 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0701-0912 ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 1001- ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1001- ● ● ●

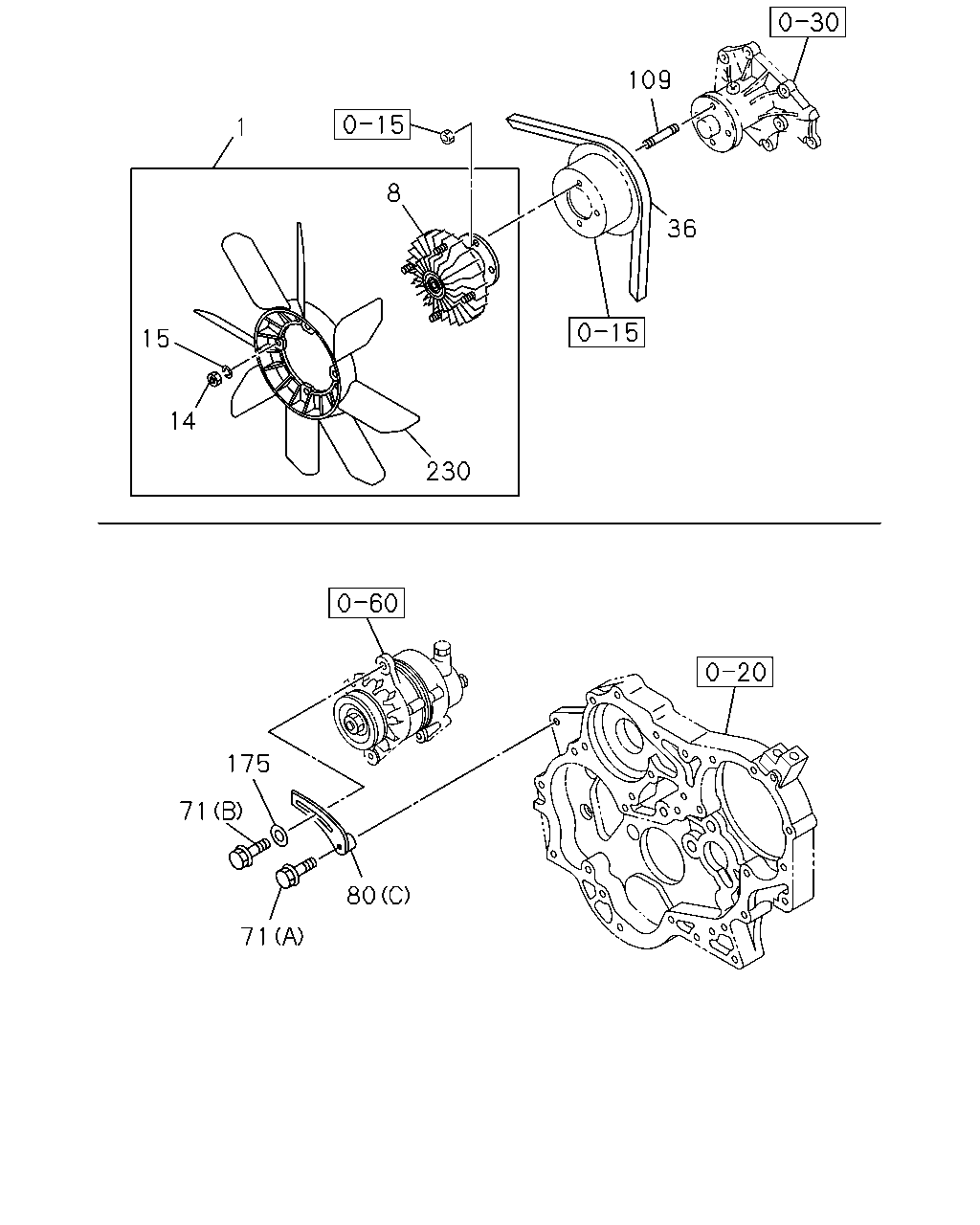

çizim 57878
109 1 8 36 15 14 230 175 71 80 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0307-0609 ● ● ●
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0610- ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0307- ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0610-0612 ● ● ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0701-0912 ● ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 1001- ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0307-0609 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0610- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0307- ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0610-0612 ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0701-0912 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1001- ● ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0509-0609 ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0610- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0307-0508 ● ● ● ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0509- ●
15 01.062 WASHER; LK,COOLING FAN
00.206 ID=6.1 		9-09150-506-0 04 1 0307-0508 ● ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0307-0609 ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0307-0609 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0610-0611 ● ● ● ●
36 01.066 BELT; COOLING FAN
EXC. KENYA EQUIPMENT(CL1) L=1006 		8-97362-926-0 01 1 0612-0612 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-0612 ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-0612 ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0701-0912 ● ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1001- ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0307-0609 ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0307- ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0307-0609 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0610- ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0307-0609 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0610- ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0612-0612 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0701-0912 ● ●
71 02.317 BOLT; ADJ PLATE,GEN
KENYA EQUIPMENT(CL1) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1001- ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0307-0609 ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0610- ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-0 01 1 0610-0612 ● ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 0701-0912 ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 1001- ● ● ● ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-0 01 1 0610-0611 ● ● ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-0 01 1 0612-0612 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-0 01 1 0612-0612 ● ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 0701-0912 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 0701-0912 ● ●
80 02.317 PLATE; ADJ
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97944-144-1 01 1 1001- ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1001- ● ● ●
109 01.062 STUD; FAN CLU
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0307-0604 ● ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0609 ● ● ●
109 01.062 STUD; FAN CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M6X18 L=27 		0-41010-618-0 04 1 0610-0611 ●
109 01.062 STUD; FAN CLU
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> M6X18 L=27 		0-41010-618-0 04 1 0610-0611 ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0612-0709 ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 0612-0709 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0710- ●
109 01.062 STUD; FAN CLU
KENYA EQUIPMENT(CL1) M6X18 L=27 		0-41010-618-0 04 1 0710- ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0610-0611 ● ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 0612-0612 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0612-0612 ● ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 0701-0912 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0701-0912 ● ●
109 01.062 STUD; FAN CLU
EXC. KENYA EQUIPMENT(CL1) M6X18 L=29 		8-97373-779-0 04 1 1001- ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1001- ● ● ●
175 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0307-0606 ● ● ●
175 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0607-0609 ● ● ●
175 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0610- ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0307-0609 ● ● ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0610- ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
