◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31B - THERMOSTAT AND HOUSING ▶
0-31B — THERMOSTAT AND HOUSING (#20081) — 47 parça

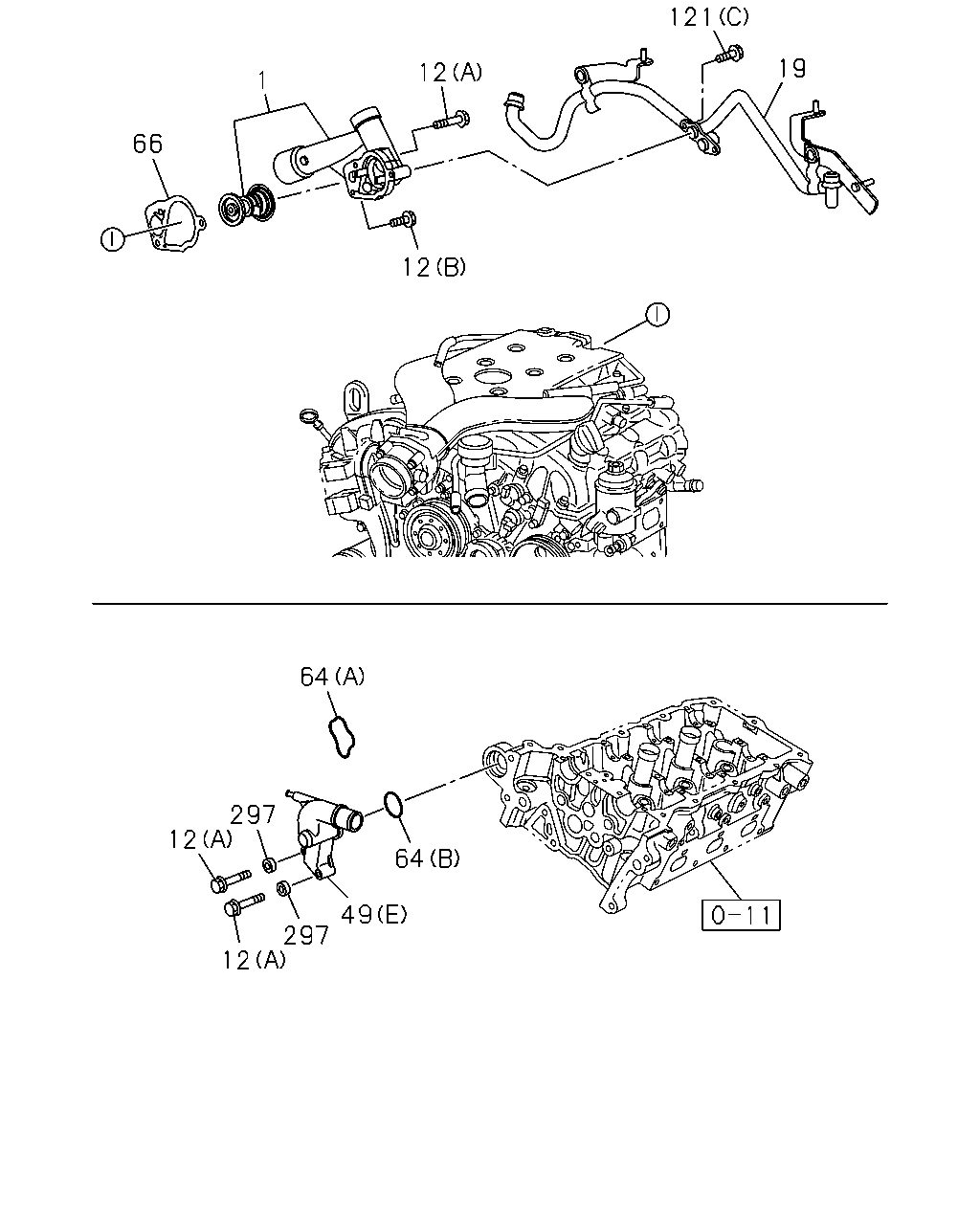

çizim 56696
121 19 12 1 66 12 64 297 12 64 49 297 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97362-894-0 01 1 0307-0609 ●
1 01.246 THERMOSTAT 8-92068-018-0 01 1 0509-0609 ●
1 01.246 THERMOSTAT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-018-0 01 1 0610- ●
12 01.252 BOLT; HSG
(A) 		8-11519-972-0 04 1 0509-0609 ●
12 01.252 BOLT; HSG
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-11519-972-0 04 1 0610- ●
12 01.252 BOLT; HSG
(B) 		8-11519-973-0 01 1 0509-0609 ●
12 01.252 BOLT; HSG
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-11519-973-0 01 1 0610- ●
19 01.252 PIPE; HSG TO HTR 8-92067-709-0 01 1 0509-0609 ●
19 01.252 PIPE; HSG TO HTR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-709-0 01 1 0610- ●
49 01.153 PIPE; WATER OUTLET
(E) 		8-92067-827-0 01 1 0509-0609 ●
49 01.153 PIPE; WATER OUTLET
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-92067-827-0 01 1 0610- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
(A) 		8-12566-429-0 01 1 0509-0609 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12566-429-0 01 1 0610- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
(B) 		8-12584-040-0 01 1 0509-0609 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12584-040-0 01 1 0610- ●
66 01.252 GASKET; THERMOSTAT HSG 8-12592-527-0 01 1 0509-0609 ●
66 01.252 GASKET; THERMOSTAT HSG
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12592-527-0 01 1 0610- ●
121 08.900 BOLT; HTR PIPE
(B) M8X12 FLANGE 		0-28080-812-0 04 1 0307-0512 ●
121 08.900 BOLT; HTR PIPE
02.343 (B) M8X12 FLANGE 		0-28050-812-0 04 1 0601-0609 ●
121 08.900 BOLT; HTR PIPE
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ●
121 08.900 BOLT; HTR PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
121 08.900 BOLT; HTR PIPE
04.197 (C) M6X20 FLANGE 		8-11588-712-0 02 1 0509-0609 ●
121 08.900 BOLT; HTR PIPE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 04.197 (C) M6X20 FLANGE 		8-11588-712-0 02 1 0610- ●
297 01.251 RETAINER; HOUSING 8-11518-792-0 02 1 0509-0609 ●
297 01.251 RETAINER; HOUSING
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11518-792-0 02 1 0610- ●

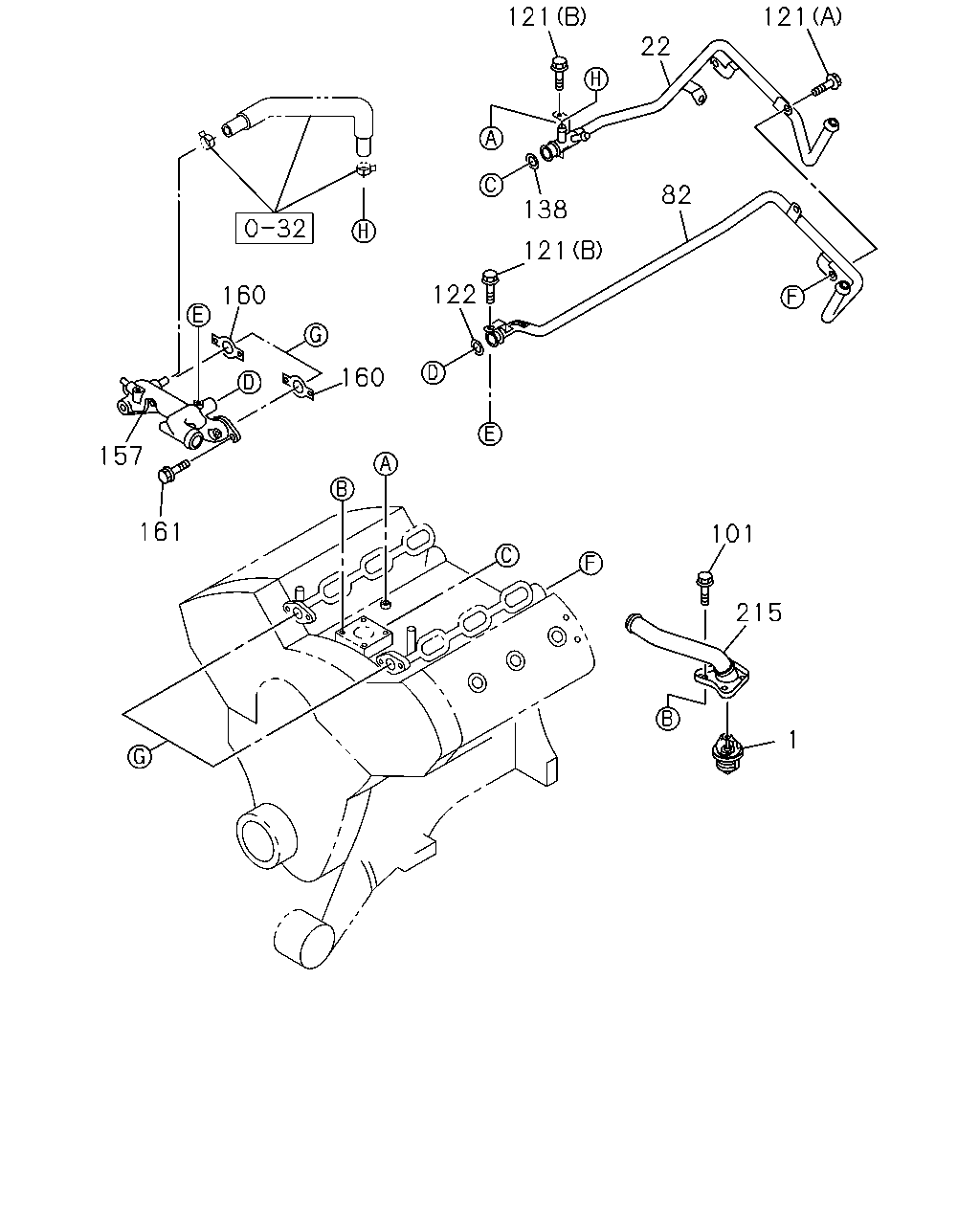

çizim 56734
121 121 22 82 138 121 122 160 160 157 161 101 215 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97362-894-0 01 1 0307-0609 ●
1 01.246 THERMOSTAT 8-92068-018-0 01 1 0509-0609 ●
1 01.246 THERMOSTAT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-018-0 01 1 0610- ●
22 03.278 PIPE; HTR,RETURN 8-97239-848-0 01 1 0307-0309 ●
22 03.278 PIPE; HTR,RETURN
08.845 		8-97239-849-2 01 1 0310-0609 ●
82 08.845 PIPE; WATER,HTR 8-97239-849-0 01 1 0307-0309 ●
82 08.845 PIPE; WATER,HTR
03.278 		8-97239-848-0 01 1 0310-0609 ●
101 01.251 BOLT; PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 04 1 0307-0512 ●
101 01.251 BOLT; PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 04 1 0601-0609 ●
121 08.900 BOLT; HTR PIPE
(B) M8X12 FLANGE 		0-28080-812-0 04 1 0307-0512 ●
121 08.900 BOLT; HTR PIPE
02.343 (B) M8X12 FLANGE 		0-28050-812-0 04 1 0601-0609 ●
121 08.900 BOLT; HTR PIPE
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ●
121 08.900 BOLT; HTR PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
121 08.900 BOLT; HTR PIPE
04.197 (C) M6X20 FLANGE 		8-11588-712-0 02 1 0509-0609 ●
121 08.900 BOLT; HTR PIPE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 04.197 (C) M6X20 FLANGE 		8-11588-712-0 02 1 0610- ●
122 03.602 GASKET; HSG TO PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.154 		9-09561-220-0 01 1 0307-0609 ●
138 01.252 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 06.021 		9-09561-225-0 01 1 0307-0609 ●
157 01.251 MANIFOLD; WATER 8-97136-345-3 01 1 0307-0609 ●
160 01.252 GASKET; WATER MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97136-346-0 02 1 0307-0609 ●
161 01.251 BOLT; MANIF TO HD
16.545 M8X40 FLANGE 		0-28690-840-0 04 1 0307-0512 ●
161 01.251 BOLT; MANIF TO HD
M8X40 FLANGE 		0-28660-840-0 04 1 0601-0609 ●
215 01.159 PIPE; WATER,INL 8-97131-884-2 01 1 0307-0609 ●
