0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#2008) — 182 parça

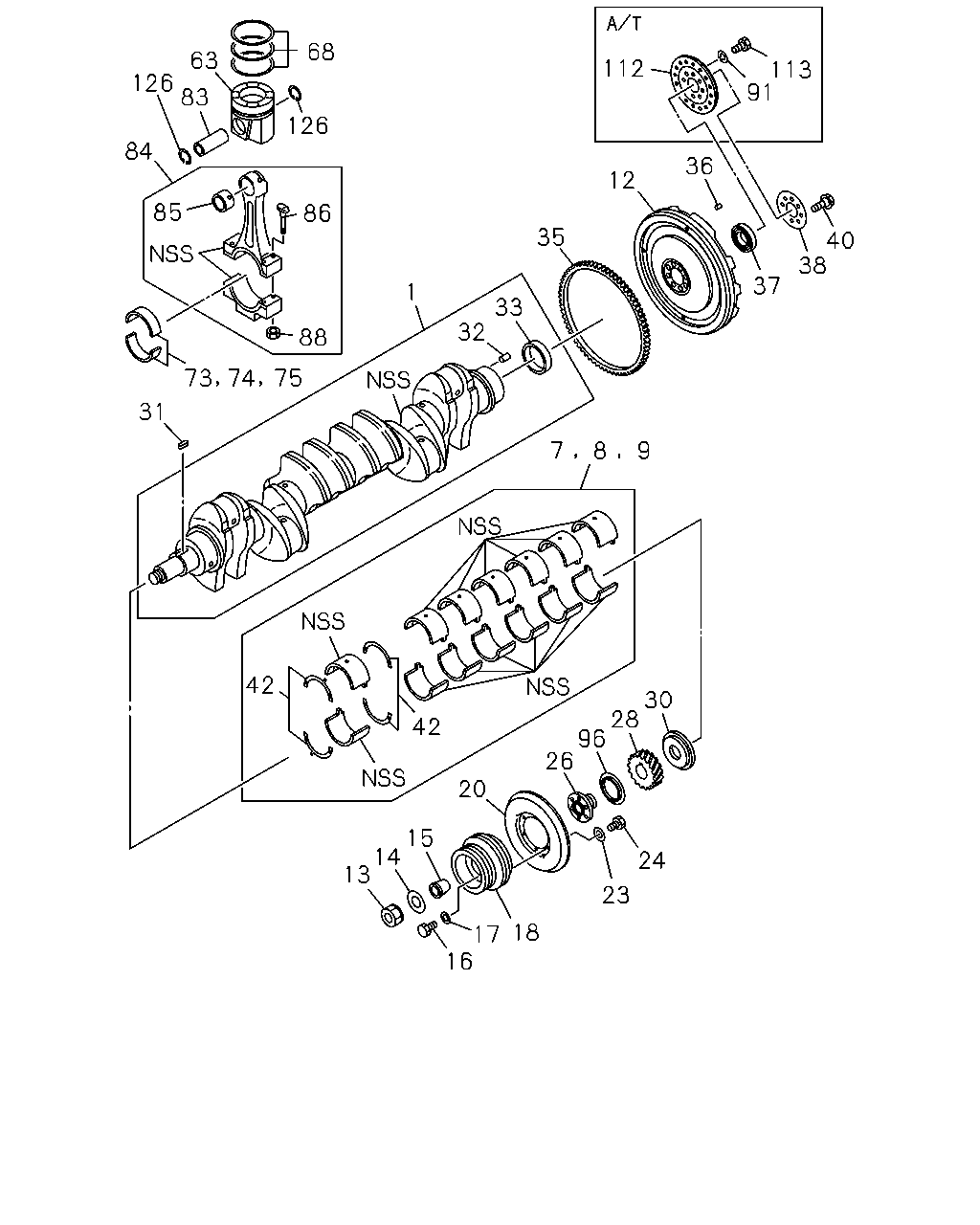

çizim 29688
68 63 112 113 91 126 83 126 84 36 12 85 86 35 40 38 37 1 33 32 88 73 75 31 7 8 9 42 30 28 96 26 42 20 15 14 13 24 23 18 17 16 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CRANKSHAFT 1-12310-386-4 01 1 9001-9303 ●
1 CRANKSHAFT 1-12310-500-4 01 1 9304- ●
1 CRANKSHAFT 1-12310-409-4 01 1 9001-9303 ●
1 CRANKSHAFT 1-12310-503-2 01 1 9304- ●
1 CRANKSHAFT 1-12310-392-6 01 1 9001- ●
1 CRANKSHAFT 1-12310-365-6 01 1 9101- ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-066-0 01 1 9001- ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-060-1 01 1 9001- ● ● ●
8 METAL KIT; CRANKSHAFT,U/S=0.25 1-11530-066-0 01 1 9001- ●
9 METAL KIT; CRANKSHAFT,U/S=0.50 1-11540-066-0 01 1 9001- ●
12 FLYWHEEL
A/T<X9D> 		1-32211-001-2 01 1 9001- ●
12 FLYWHEEL
M/T<X9C> 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-12331-043-6 01 1 9001-9106 ●
12 FLYWHEEL
M/T<X9C> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-12331-120-4 01 1 9001- ●
12 FLYWHEEL
M/T<X9C> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-12331-127-4 01 1 9001- ●
12 FLYWHEEL
M/T<X9C> 		1-12331-127-4 01 1 9001- ●
12 FLYWHEEL 1-12331-127-4 01 1 9001- ●
12 FLYWHEEL
A/T<X9D> 		1-12331-042-6 01 1 9001- ● ●
12 FLYWHEEL
M/T<X9C> 		1-12331-141-2 01 1 9001-9106 ●
12 FLYWHEEL
M/T<X9C> 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-12331-141-2 01 1 9107- ● ●
13 NUT; STARTING HANDLE 9-12378-039-0 01 1 9001- ● ● ● ●
14 WASHER; PULLEY DAMPER 9-09851-431-0 01 1 9001- ● ● ● ●
15 BUSHING; TAPER,CR/SHF PULLEY 9-12379-061-0 01 1 9001- ● ● ● ●
16 BOLT; PULLEY TO CENTER
M12X30 		9-92061-230-0 06 1 9001- ● ● ● ●
17 WASHER; PULLEY CENTER 1-09503-111-0 06 1 9001- ● ● ● ●
18 PULLEY; CR/SHF
4-GROOVE 		1-12371-180-2 01 1 9001- ● ● ● ●
20 DAMPER; CR/SHF 1-12375-075-3 01 1 9001- ● ● ● ●
23 WASHER; DAMPER
ID=10 		1-09503-033-1 06 1 9001- ● ● ● ●
24 BOLT; DAMPER
M10X22 		9-02361-022-0 06 1 9001- ● ● ● ●
26 PULLEY; CENTER 1-12371-292-0 01 1 9001- ● ● ● ●
28 GEAR; CR/SHF 9-12521-045-2 01 1 9001- ● ● ● ●
30 COLLAR; THRUST 9-12361-012-2 01 1 9001- ●
30 COLLAR; THRUST 9-12361-024-2 01 1 9001- ● ● ●
31 KEY; FEATHER,CR/SHF 9-08031-225-0 01 1 9001- ● ● ● ●
32 PIN; FLYWHEEL
OD=12 L=20 		9-08151-220-0 01 1 9001- ● ● ● ●
33 RING; WEAR,CR/SHF
D=22 		1-12319-010-0 01 1 9001- ● ● ● ●
35 GEAR; RING
A/T<X9D> 		1-12333-014-0 01 1 9001- ●
35 GEAR; RING
M/T<X9C> Z=139 		1-12333-013-0 01 1 9001- ●
35 GEAR; RING
Z=139 		1-12333-013-0 01 1 9001- ● ● ●
36 PIN; FLYWHEEL 9-08151-020-0 02 1 9001-9010 ● ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 9011- ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
M/T<X9C> 		1-09800-195-0 01 1 9001-9412 ● ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
M/T<X9C> 		1-09800-257-0 01 1 9501- ● ● ● ●
38 WASHER; FLYWHEEL
A/T<X9D> 		1-12336-004-1 01 1 9001- ● ●
38 WASHER; FLYWHEEL
M/T<X9C> 		9-12336-025-1 01 1 9001- ● ●
38 WASHER; FLYWHEEL 9-12336-025-1 01 1 9001- ● ●
40 BOLT; FLYWHEEL 1-09070-017-1 08 1 9001- ● ● ● ●
42 WASHER; THRUST,CR/SHF 1-11515-038-0 02 1 9001- ●
42 WASHER; THRUST,CR/SHF 1-11515-040-0 02 1 9001- ● ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		1-12111-869-0 06 1 9001- ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		1-12111-870-0 06 1 9001- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-873-0 06 1 9001-9304 ●
63 PISTON
ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL> NON GRADE 		1-12111-873-0 06 1 9305- ●
63 PISTON
ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL> NON GRADE 		1-12111-820-0 06 1 9305- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-823-0 06 1 9001- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-824-0 06 1 9101- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-046-0 06 1 9001- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL> 		1-12121-068-1 06 1 9305- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-078-2 06 1 9001-9304 ● ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. 		1-12121-078-3 06 1 9305- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-078-3 06 1 9305- ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-047-0 06 1 9001- ●
73 METAL SET; CONN ROD,STANDARD 1-12271-048-0 06 1 9001- ●
73 METAL SET; CONN ROD,STANDARD 1-12271-055-0 06 1 9001-9012 ●
73 METAL SET; CONN ROD,STANDARD 1-12271-055-0 06 1 9101-9303 ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-073-0 06 1 9304-9304 ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-055-0 06 1 9305- ● ●
74 METAL SET; CONN ROD,U/S=0.25 1-12273-047-0 06 1 9001- ●
74 METAL SET; CONN ROD,U/S=0.25 1-12273-048-0 06 1 9001- ●
74 METAL SET; CONN ROD,U/S=0.25 1-12273-055-0 06 1 9001- ● ●
75 METAL SET; CONN ROD,U/S=0.50 1-12274-047-0 06 1 9001- ●
75 METAL SET; CONN ROD,U/S=0.50 1-12274-048-0 06 1 9001- ●
75 METAL SET; CONN ROD,U/S=0.50 1-12274-055-0 06 1 9001- ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-068-0 06 1 9001- ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-078-0 06 1 9001- ● ● ●
84 ROD ASM; CONN 1-12230-126-1 06 1 9001- ●
84 ROD ASM; CONN 1-12230-118-0 06 1 9001-9303 ●
84 ROD ASM; CONN 1-12230-109-1 06 1 9304- ●
84 ROD ASM; CONN 1-12230-120-1 06 1 9001- ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		9-12251-073-0 06 1 9001- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		9-12251-088-0 06 1 9001- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-012-0 06 1 9001- ● ●
86 BOLT; CONNROD 9-12235-047-1 12 1 9001- ●
86 BOLT; CONNROD 1-12235-026-1 24 1 9001- ●
86 BOLT; CONNROD 1-12235-030-1 24 1 9001- ● ●
88 NUT; CONNROD 9-09840-313-0 12 1 9001- ●
88 NUT; CONNROD 9-09840-316-0 24 1 9001- ● ● ●
91 WASHER; PL,ADAPTER
A/T<X9D> ID=12.2 		9-09851-933-0 16 1 9001- ●
96 THROWER; DUST,CR/SHF 1-12379-020-0 01 1 9001- ● ● ● ●
112 ADAPTER; FLEX PLATE
A/T<X9D> 		1-32213-025-1 01 1 9001-9205 ●
112 ADAPTER; FLEX PLATE
A/T<X9D> 		1-32213-034-0 01 1 9206- ●
113 BOLT; ADAPTER FIX
A/T<X9D> M12X45 		9-91066-245-0 16 1 9001-9205 ●
113 BOLT; ADAPTER FIX
A/T<X9D> M12X40 		9-92061-240-0 16 1 9206- ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		9-09950-195-1 12 1 9001- ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-051-0 12 1 9001- ● ● ●

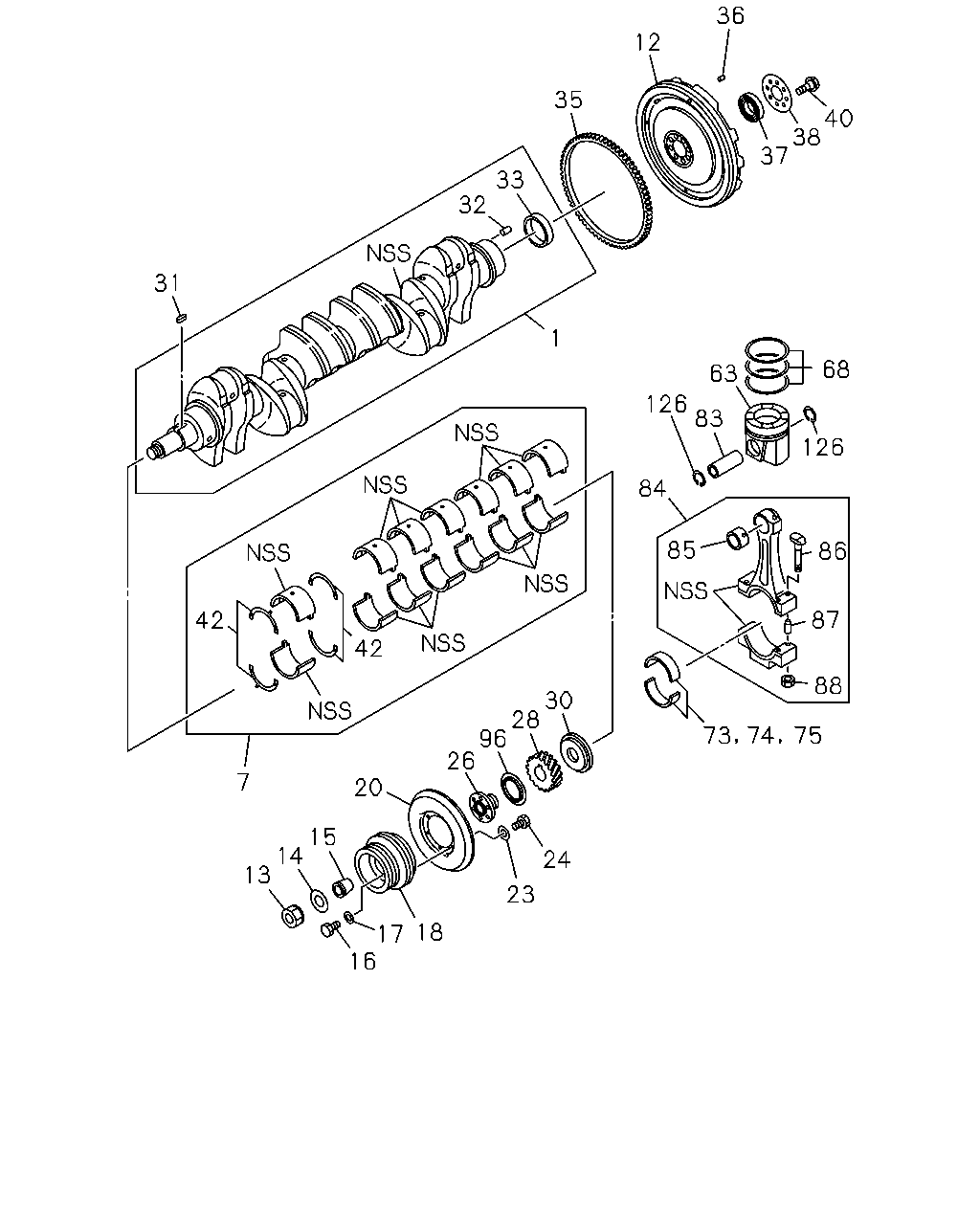

çizim 29796
36 12 35 40 38 37 33 32 31 1 68 63 126 83 126 84 85 86 87 42 42 88 30 28 96 26 73 75 7 20 15 14 13 24 23 18 17 16 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CRANKSHAFT 1-12310-386-4 01 1 9001-9303 ●
1 CRANKSHAFT 1-12310-500-4 01 1 9304- ●
1 CRANKSHAFT 1-12310-409-4 01 1 9001-9303 ●
1 CRANKSHAFT 1-12310-503-2 01 1 9304- ●
1 CRANKSHAFT 1-12310-392-6 01 1 9001- ●
1 CRANKSHAFT 1-12310-365-6 01 1 9101- ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-066-0 01 1 9001- ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-060-1 01 1 9001- ● ● ●
12 FLYWHEEL
A/T<X9D> 		1-32211-001-2 01 1 9001- ●
12 FLYWHEEL
M/T<X9C> 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-12331-043-6 01 1 9001-9106 ●
12 FLYWHEEL
M/T<X9C> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-12331-120-4 01 1 9001- ●
12 FLYWHEEL
M/T<X9C> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-12331-127-4 01 1 9001- ●
12 FLYWHEEL
M/T<X9C> 		1-12331-127-4 01 1 9001- ●
12 FLYWHEEL 1-12331-127-4 01 1 9001- ●
12 FLYWHEEL
A/T<X9D> 		1-12331-042-6 01 1 9001- ● ●
12 FLYWHEEL
M/T<X9C> 		1-12331-141-2 01 1 9001-9106 ●
12 FLYWHEEL
M/T<X9C> 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-12331-141-2 01 1 9107- ● ●
13 NUT; STARTING HANDLE 9-12378-039-0 01 1 9001- ● ● ● ●
14 WASHER; PULLEY DAMPER 9-09851-431-0 01 1 9001- ● ● ● ●
15 BUSHING; TAPER,CR/SHF PULLEY 9-12379-061-0 01 1 9001- ● ● ● ●
16 BOLT; PULLEY TO CENTER
M12X30 		9-92061-230-0 06 1 9001- ● ● ● ●
17 WASHER; PULLEY CENTER 1-09503-111-0 06 1 9001- ● ● ● ●
18 PULLEY; CR/SHF
4-GROOVE 		1-12371-180-2 01 1 9001- ● ● ● ●
20 DAMPER; CR/SHF 1-12375-075-3 01 1 9001- ● ● ● ●
23 WASHER; DAMPER
ID=10 		1-09503-033-1 06 1 9001- ● ● ● ●
24 BOLT; DAMPER
M10X22 		9-02361-022-0 06 1 9001- ● ● ● ●
26 PULLEY; CENTER 1-12371-292-0 01 1 9001- ● ● ● ●
28 GEAR; CR/SHF 9-12521-045-2 01 1 9001- ● ● ● ●
30 COLLAR; THRUST 9-12361-012-2 01 1 9001- ●
30 COLLAR; THRUST 9-12361-024-2 01 1 9001- ● ● ●
31 KEY; FEATHER,CR/SHF 9-08031-225-0 01 1 9001- ● ● ● ●
32 PIN; FLYWHEEL
OD=12 L=20 		9-08151-220-0 01 1 9001- ● ● ● ●
33 RING; WEAR,CR/SHF
D=22 		1-12319-010-0 01 1 9001- ● ● ● ●
35 GEAR; RING
A/T<X9D> 		1-12333-014-0 01 1 9001- ●
35 GEAR; RING
M/T<X9C> Z=139 		1-12333-013-0 01 1 9001- ●
35 GEAR; RING
Z=139 		1-12333-013-0 01 1 9001- ● ● ●
36 PIN; FLYWHEEL 9-08151-020-0 02 1 9001-9010 ● ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 9011- ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
M/T<X9C> 		1-09800-195-0 01 1 9001-9412 ● ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
M/T<X9C> 		1-09800-257-0 01 1 9501- ● ● ● ●
38 WASHER; FLYWHEEL
A/T<X9D> 		1-12336-004-1 01 1 9001- ● ●
38 WASHER; FLYWHEEL
M/T<X9C> 		9-12336-025-1 01 1 9001- ● ●
38 WASHER; FLYWHEEL 9-12336-025-1 01 1 9001- ● ●
40 BOLT; FLYWHEEL 1-09070-017-1 08 1 9001- ● ● ● ●
42 WASHER; THRUST,CR/SHF 1-11515-038-0 02 1 9001- ●
42 WASHER; THRUST,CR/SHF 1-11515-040-0 02 1 9001- ● ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		1-12111-869-0 06 1 9001- ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		1-12111-870-0 06 1 9001- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-873-0 06 1 9001-9304 ●
63 PISTON
ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL> NON GRADE 		1-12111-873-0 06 1 9305- ●
63 PISTON
ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL> NON GRADE 		1-12111-820-0 06 1 9305- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-823-0 06 1 9001- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-824-0 06 1 9101- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-046-0 06 1 9001- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL> 		1-12121-068-1 06 1 9305- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-078-2 06 1 9001-9304 ● ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. 		1-12121-078-3 06 1 9305- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-078-3 06 1 9305- ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-047-0 06 1 9001- ●
73 METAL SET; CONN ROD,STANDARD 1-12271-048-0 06 1 9001- ●
73 METAL SET; CONN ROD,STANDARD 1-12271-055-0 06 1 9001-9012 ●
73 METAL SET; CONN ROD,STANDARD 1-12271-055-0 06 1 9101-9303 ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-073-0 06 1 9304-9304 ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-055-0 06 1 9305- ● ●
74 METAL SET; CONN ROD,U/S=0.25 1-12273-047-0 06 1 9001- ●
74 METAL SET; CONN ROD,U/S=0.25 1-12273-048-0 06 1 9001- ●
74 METAL SET; CONN ROD,U/S=0.25 1-12273-055-0 06 1 9001- ● ●
75 METAL SET; CONN ROD,U/S=0.50 1-12274-047-0 06 1 9001- ●
75 METAL SET; CONN ROD,U/S=0.50 1-12274-048-0 06 1 9001- ●
75 METAL SET; CONN ROD,U/S=0.50 1-12274-055-0 06 1 9001- ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-068-0 06 1 9001- ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-078-0 06 1 9001- ● ● ●
84 ROD ASM; CONN 1-12230-126-1 06 1 9001- ●
84 ROD ASM; CONN 1-12230-118-0 06 1 9001-9303 ●
84 ROD ASM; CONN 1-12230-109-1 06 1 9304- ●
84 ROD ASM; CONN 1-12230-120-1 06 1 9001- ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		9-12251-073-0 06 1 9001- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		9-12251-088-0 06 1 9001- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-012-0 06 1 9001- ● ●
86 BOLT; CONNROD 9-12235-047-1 12 1 9001- ●
86 BOLT; CONNROD 1-12235-026-1 24 1 9001- ●
86 BOLT; CONNROD 1-12235-030-1 24 1 9001- ● ●
87 PIN; CONNROD BIG END 9-09878-610-1 12 1 9001- ● ● ●
88 NUT; CONNROD 9-09840-313-0 12 1 9001- ●
88 NUT; CONNROD 9-09840-316-0 24 1 9001- ● ● ●
96 THROWER; DUST,CR/SHF 1-12379-020-0 01 1 9001- ● ● ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		9-09950-195-1 12 1 9001- ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-051-0 12 1 9001- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
