0-30B — WATER PUMP AND CORROSION RESISTOR (#20079) — 26 parça

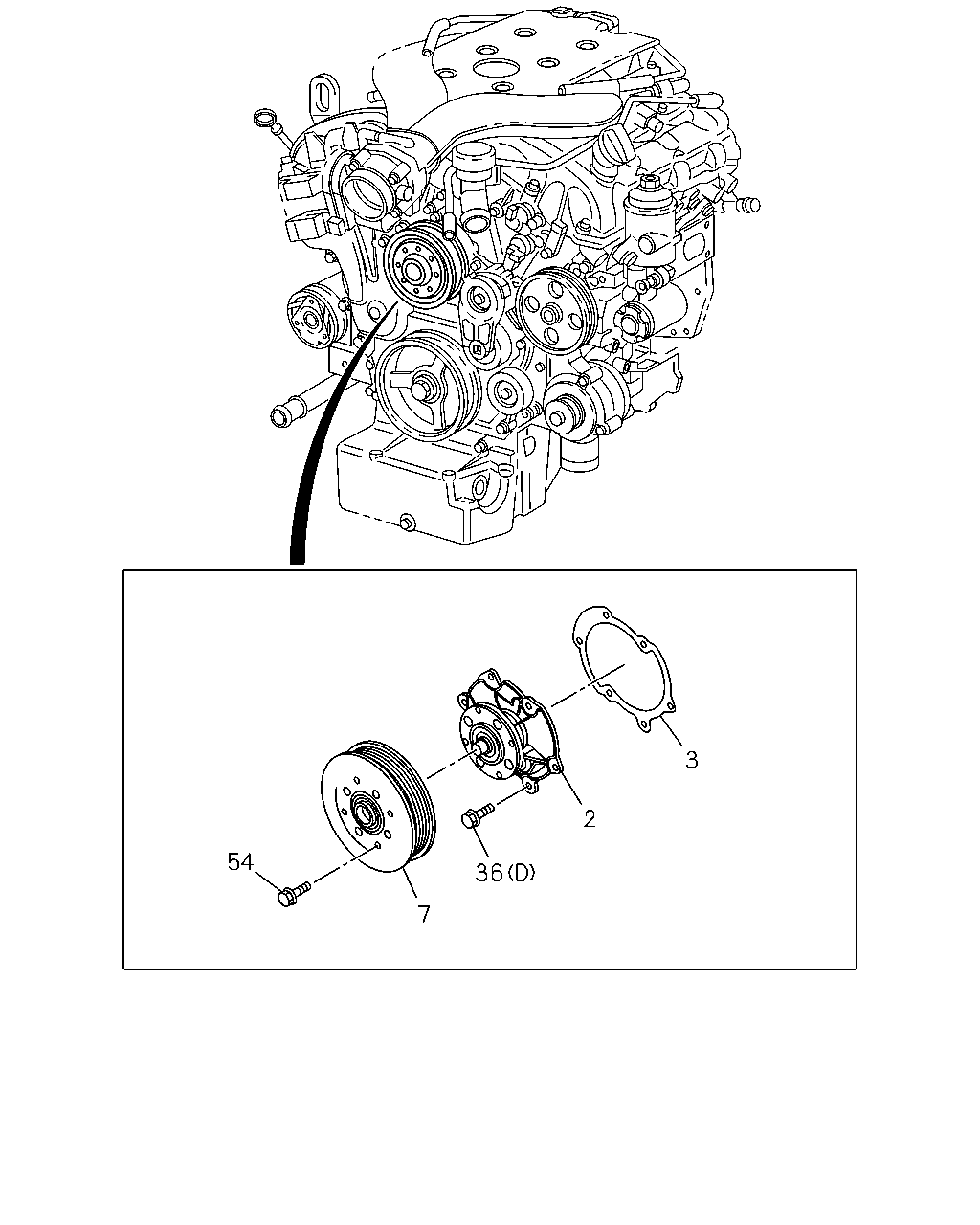

çizim 13967
3 2 54 36 7
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.069 PUMP ASM; WATER 8-12566-029-0 01 1 0509-0609 ●
2 01.069 PUMP ASM; WATER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-029-0 01 1 0610- ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97148-736-0 01 1 0307-0609 ●
3 01.079 GASKET; PUMP TO C/BL 8-12576-326-0 01 1 0509-0609 ●
3 01.079 GASKET; PUMP TO C/BL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12576-326-0 01 1 0610- ●
7 01.062 PULLEY; WATER PUMP 8-12574-518-0 01 1 0509-0609 ●
7 01.062 PULLEY; WATER PUMP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12574-518-0 01 1 0610- ●
36 00.386 BOLT; WATER PUMP TO C/BL
07.010 (B) M8X20 FLANGE 		0-28080-820-0 04 1 0307-0512 ●
36 00.386 BOLT; WATER PUMP TO C/BL
04.338 (B) M8X20 FLANGE 		0-28050-820-0 04 1 0601-0609 ●
36 00.386 BOLT; WATER PUMP TO C/BL
04.686 (A) M8X30 FLANGE 		0-28680-830-0 04 1 0307-0512 ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.403 (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-0609 ●
36 00.386 BOLT; WATER PUMP TO C/BL
04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE 		8-97021-210-0 01 1 0307-0609 ●
36 00.386 BOLT; WATER PUMP TO C/BL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.430 (D) 		8-11588-713-0 06 1 0610- ●
54 01.062 BOLT; PULLEY 8-11588-940-0 04 1 0509-0609 ●
54 01.062 BOLT; PULLEY
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11588-940-0 04 1 0610- ●

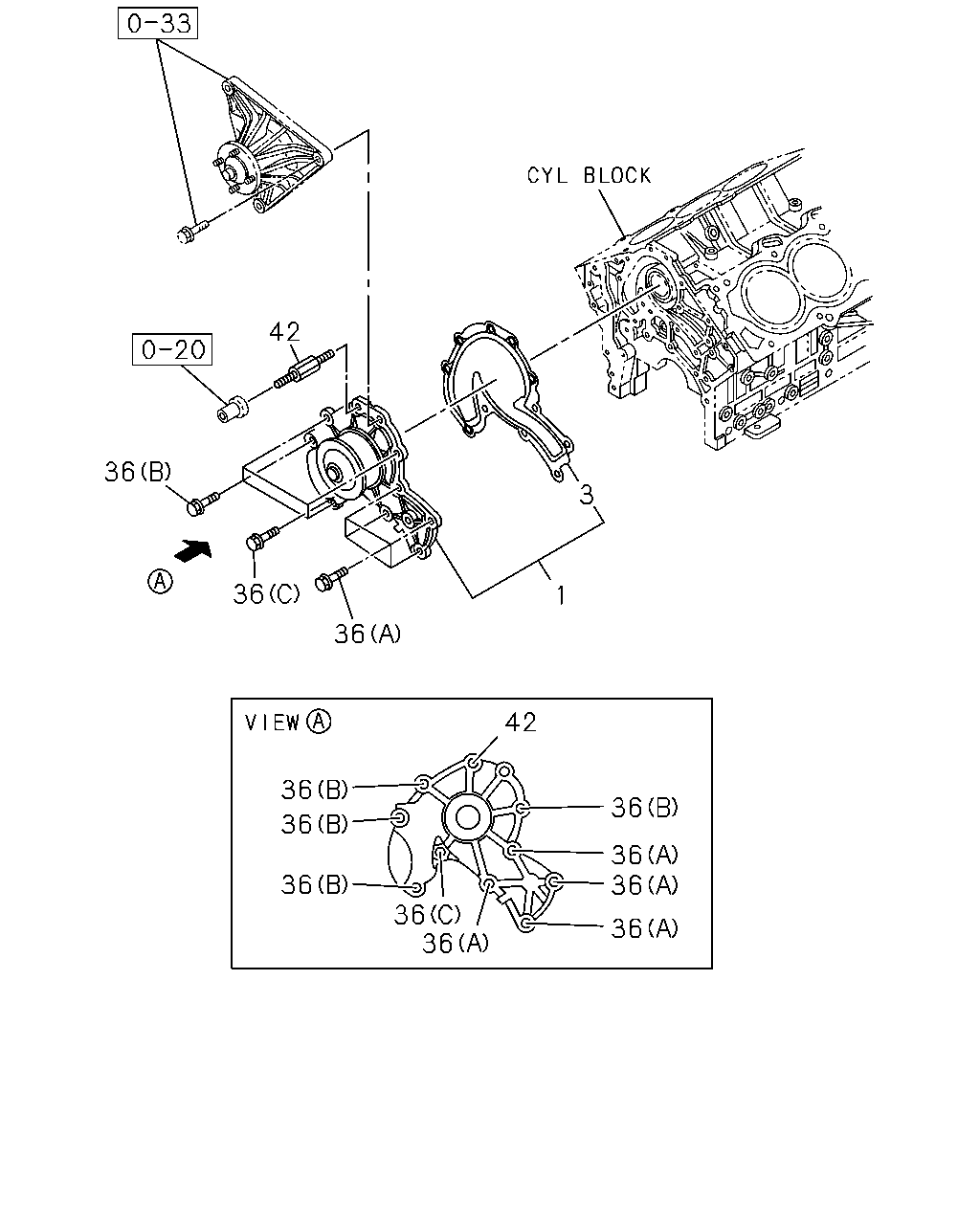

çizim 56634
42 36 3 36 1 36 42 36 36 36 36 36 36 36 36 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.069 PUMP ASM; WATER,W/GASKET 8-97167-554-0 01 1 0307-0609 ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97148-736-0 01 1 0307-0609 ●
3 01.079 GASKET; PUMP TO C/BL 8-12576-326-0 01 1 0509-0609 ●
3 01.079 GASKET; PUMP TO C/BL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12576-326-0 01 1 0610- ●
36 00.386 BOLT; WATER PUMP TO C/BL
07.010 (B) M8X20 FLANGE 		0-28080-820-0 04 1 0307-0512 ●
36 00.386 BOLT; WATER PUMP TO C/BL
04.338 (B) M8X20 FLANGE 		0-28050-820-0 04 1 0601-0609 ●
36 00.386 BOLT; WATER PUMP TO C/BL
04.686 (A) M8X30 FLANGE 		0-28680-830-0 04 1 0307-0512 ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.403 (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-0609 ●
36 00.386 BOLT; WATER PUMP TO C/BL
04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE 		8-97021-210-0 01 1 0307-0609 ●
36 00.386 BOLT; WATER PUMP TO C/BL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.430 (D) 		8-11588-713-0 06 1 0610- ●
42 01.073 STUD; WATER PUMP 8-97136-226-0 01 1 0307-0609 ●
