◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28B - VENTILATION SYSTEM ▶
0-28B — VENTILATION SYSTEM (#20077) — 11 parça

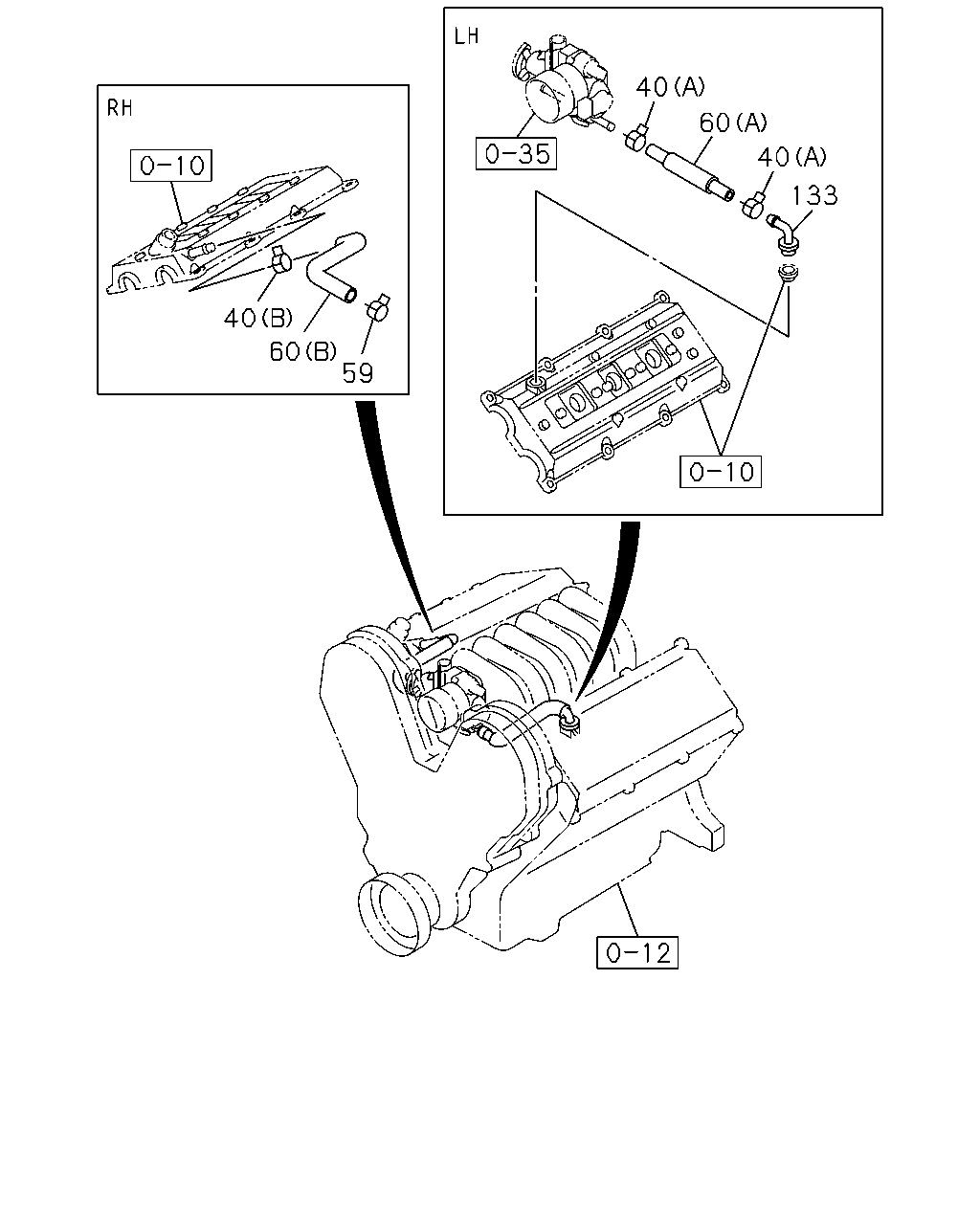

çizim 12988
40 60 40 133 40 60 59
BalonParca AdiParca NoAdetTipApplied Date A B
40 03.680 CLIP; PCV HOSE
04.128 (A) ID=15 		8-94140-431-0 02 1 0307-0609 ●
40 03.680 CLIP; PCV HOSE
01.762 (B) ID=19 		8-94238-569-0 01 1 0307-0609 ●
59 08.846 CLIP; HOSE
01.762 ID=19 		8-94238-569-0 01 1 0307-0508 ●
60 03.278 HOSE; RUBBER,PCV
(A) 		8-97136-216-1 01 1 0307-0308 ●
60 03.278 HOSE; RUBBER,PCV
(A) 		8-97302-459-0 01 1 0309-0609 ●
60 03.278 HOSE; RUBBER,PCV
(B) 		8-97234-461-1 01 1 0307-0609 ●
133 01.750 VALVE; PCV 8-97118-860-0 01 1 0307-0609 ●

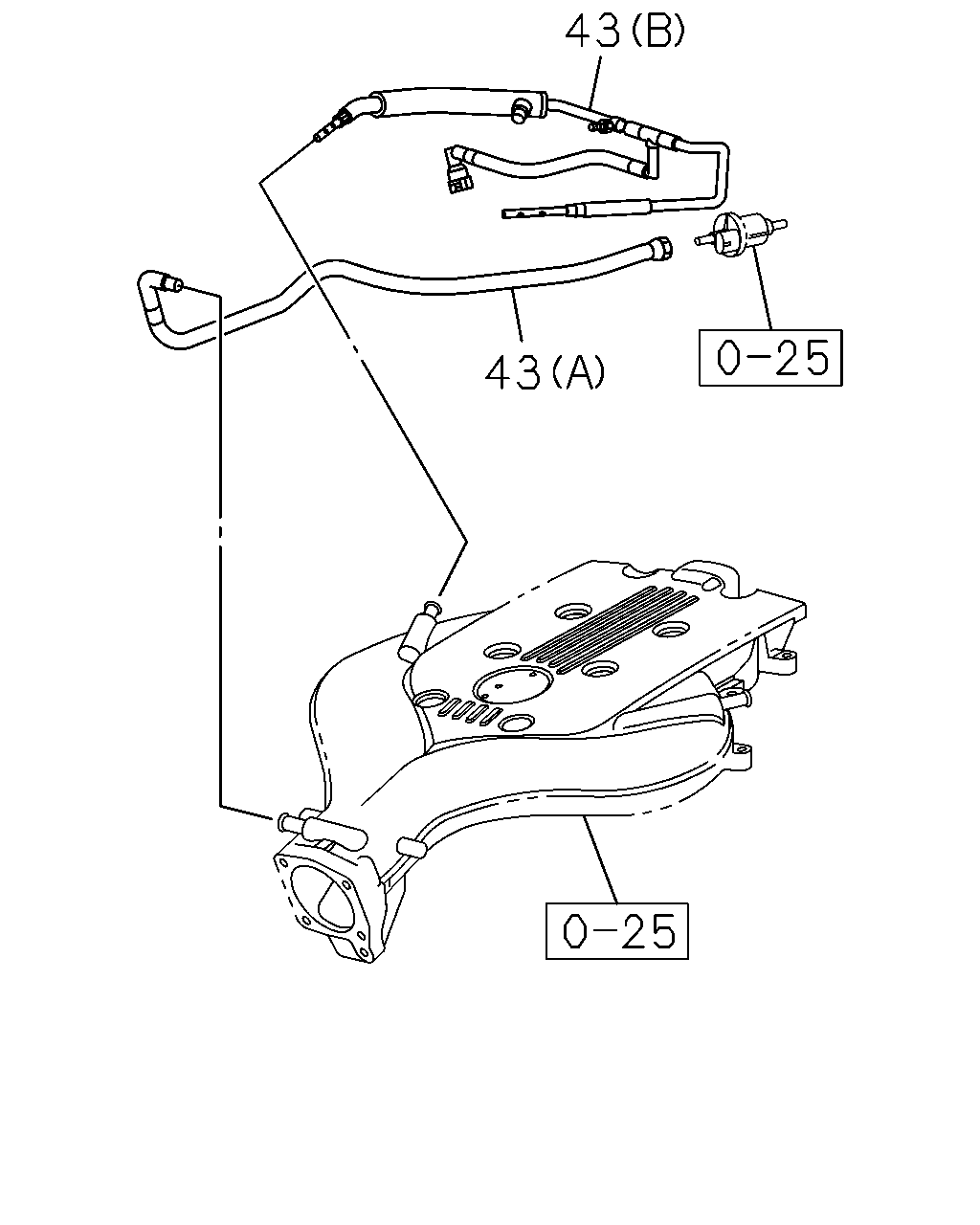

çizim 13041
43 43
BalonParca AdiParca NoAdetTipApplied Date A B
43 03.278 HOSE; PCV
(B) 		8-92066-741-0 01 1 0509-0609 ●
43 03.278 HOSE; PCV
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-92066-741-0 01 1 0610- ●
43 03.278 HOSE; PCV
(A) 		8-92066-997-0 01 1 0509-0609 ●
43 03.278 HOSE; PCV
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-92066-997-0 01 1 0610- ●
