Isuzu WW
▶
PICKUP
▶
TFR
▶
50965 - TFR/TFS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28A - VENTILATION SYSTEM
▶
0-28A — VENTILATION SYSTEM
(#20076) — 22 parça
Tümü
A - 4JA1-TC ENG
B - 4JA1-T ENG
C - 4JH1-TC ENG
D - C24SE ENG
◀

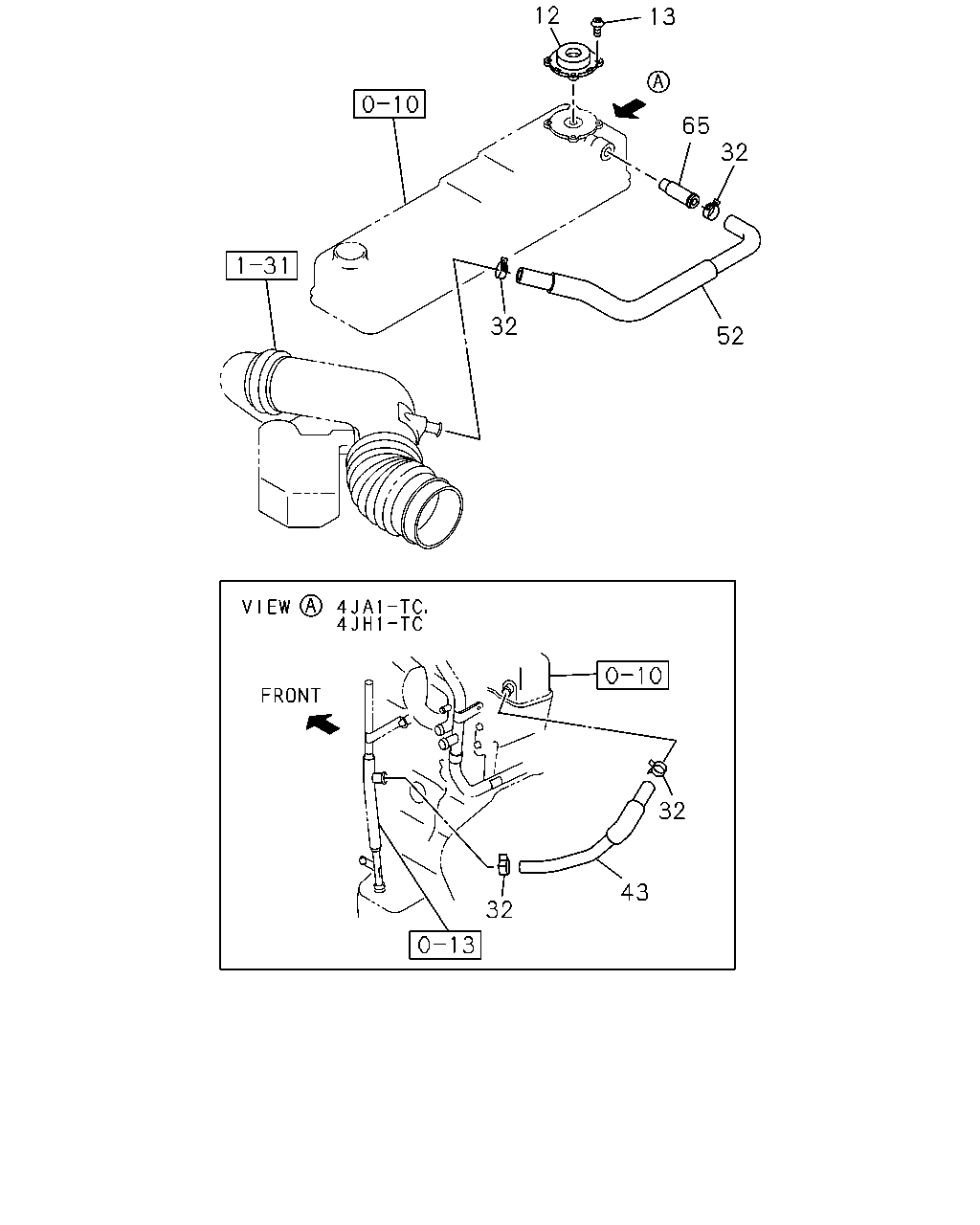

[028A] 4JA1,4JH1 (13 parça)

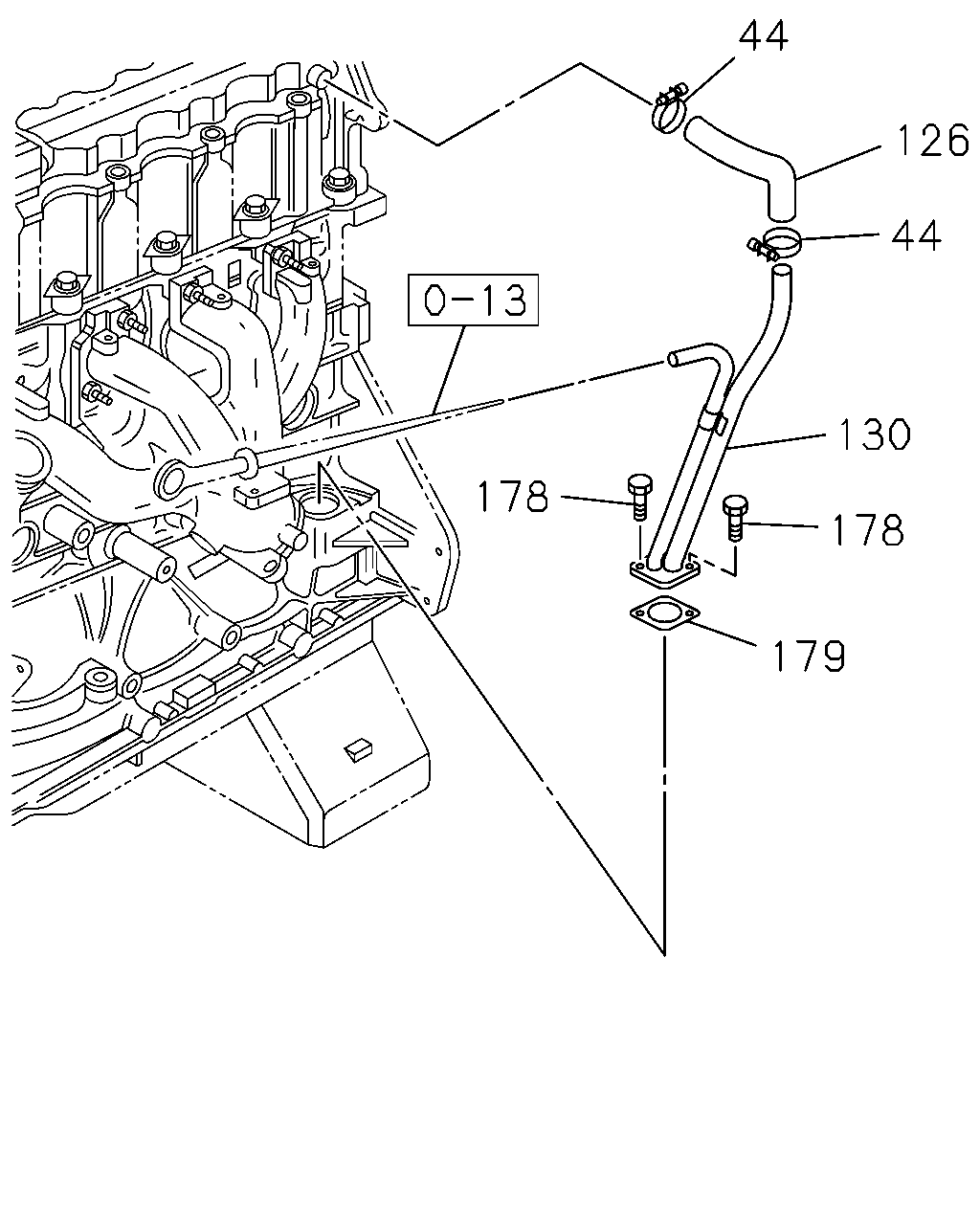

[028A] C24SE (9 parça)
▶
12
13
65
32
32
52
32
43
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0307-0609
●
●
●
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0610-
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0307-0604
●
●
●
13
00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER
0-36220-408-0
04
1
0605-0609
●
●
●
13
00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER
0-36220-408-0
04
1
0610-
●
32
03.417 CLIP; VENT HOSE
03.265 ID=20.4
8-94121-113-0
02
1
0307-
●
32
03.417 CLIP; VENT HOSE
03.265 ID=20.4
8-94121-113-0
04
1
0307-0609
●
●
43
03.278 HOSE; PCV
8-97249-210-2
01
1
0307-0609
●
43
03.278 HOSE; PCV
8-97304-253-1
01
1
0307-0609
●
52
03.278 HOSE; PCV
8-97306-435-2
01
1
0307-
●
52
03.278 HOSE; PCV
8-97349-608-0
01
1
0307-0609
●
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0307-0609
●
●
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0610-
●
44
126
44
130
178
178
179
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
44
03.278 CLIP; HOSE,PCV
8-90467-971-0
02
1
0307-
●
126
01.762 HOSE; RUBBER,PCV
8-90409-617-0
01
1
0307-
●
130
03.278 PIPE; PCV
8-92062-793-0
01
1
0307-
●
178
03.278 BOLT; PIPE
EXC. AUSTRALIA EQUIPMENT(B13) 04.054
8-92138-813-0
02
1
1010-
●
178
03.278 BOLT; PIPE
8-11052-954-0
02
1
0307-1009
●
178
03.278 BOLT; PIPE
AUSTRALIA EQUIPMENT(B13)
8-11052-954-0
02
1
1010-
●
179
03.278 GASKET; PIPE
EXC. AUSTRALIA EQUIPMENT(B13)
8-92067-502-0
01
1
1010-
●
179
03.278 GASKET; PIPE
8-90500-571-0
01
1
0307-1009
●
179
03.278 GASKET; PIPE
AUSTRALIA EQUIPMENT(B13)
8-90500-571-0
01
1
1010-
●
