0-27B — EXHAUST MANIFOLD (#20075) — 60 parça

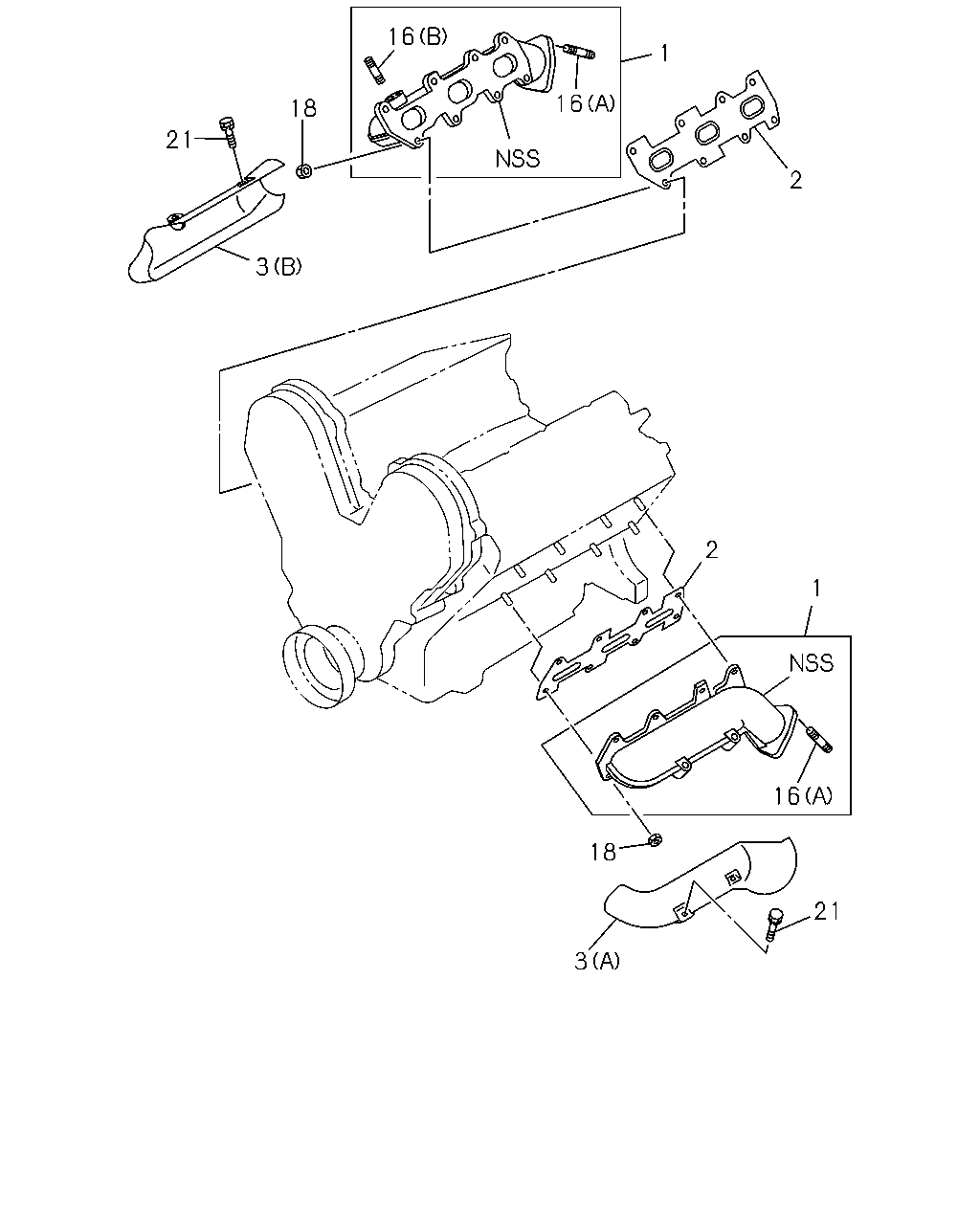

çizim 53881
16 1 16 18 21 2 3 2 1 16 18 21 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.601 MANIFOLD; EXHAUST 8-97239-854-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-97245-268-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92067-695-0 01 1 0509-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92067-691-0 01 1 0509-0609 ●
1 03.601 MANIFOLD; EXHAUST
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-695-0 01 1 0610- ●
1 03.601 MANIFOLD; EXHAUST
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-691-0 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97148-717-0 02 1 0307-0609 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-12566-831-0 02 1 0509-0609 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-831-0 02 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97234-940-0 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97234-939-0 01 1 0307-0307 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97361-310-0 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-92067-697-0 01 1 0509-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(F) 		8-92068-634-0 01 1 0509-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-92068-613-0 01 1 0509-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-92068-614-0 01 1 0509-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-92067-697-0 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-92068-634-0 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) 		8-92068-613-0 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-92068-614-0 01 1 0610- ●
16 03.604 STUD; EXH PIPE TO MANIF
(A) M12X15 L=46.6 		8-97115-132-0 06 1 0307-0609 ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M8X18 L=29 		8-97061-377-1 01 1 0307-0408 ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M8X18 L=29 		8-97378-059-0 01 1 0409-0609 ●
16 03.604 STUD; EXH PIPE TO MANIF
(C) 		8-92065-437-0 06 1 0509-0609 ●
16 03.604 STUD; EXH PIPE TO MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-92065-437-0 06 1 0610- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 0307-0602 ●
18 03.604 NUT; EXH MANIF
04.085 M10 FLANGE 		0-91180-210-0 16 1 0603-0609 ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 0307-0609 ●
21 03.604 BOLT; HEAT PROTECTOR 8-92138-940-0 12 1 0509-0609 ●
21 03.604 BOLT; HEAT PROTECTOR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92138-940-0 12 1 0610- ●

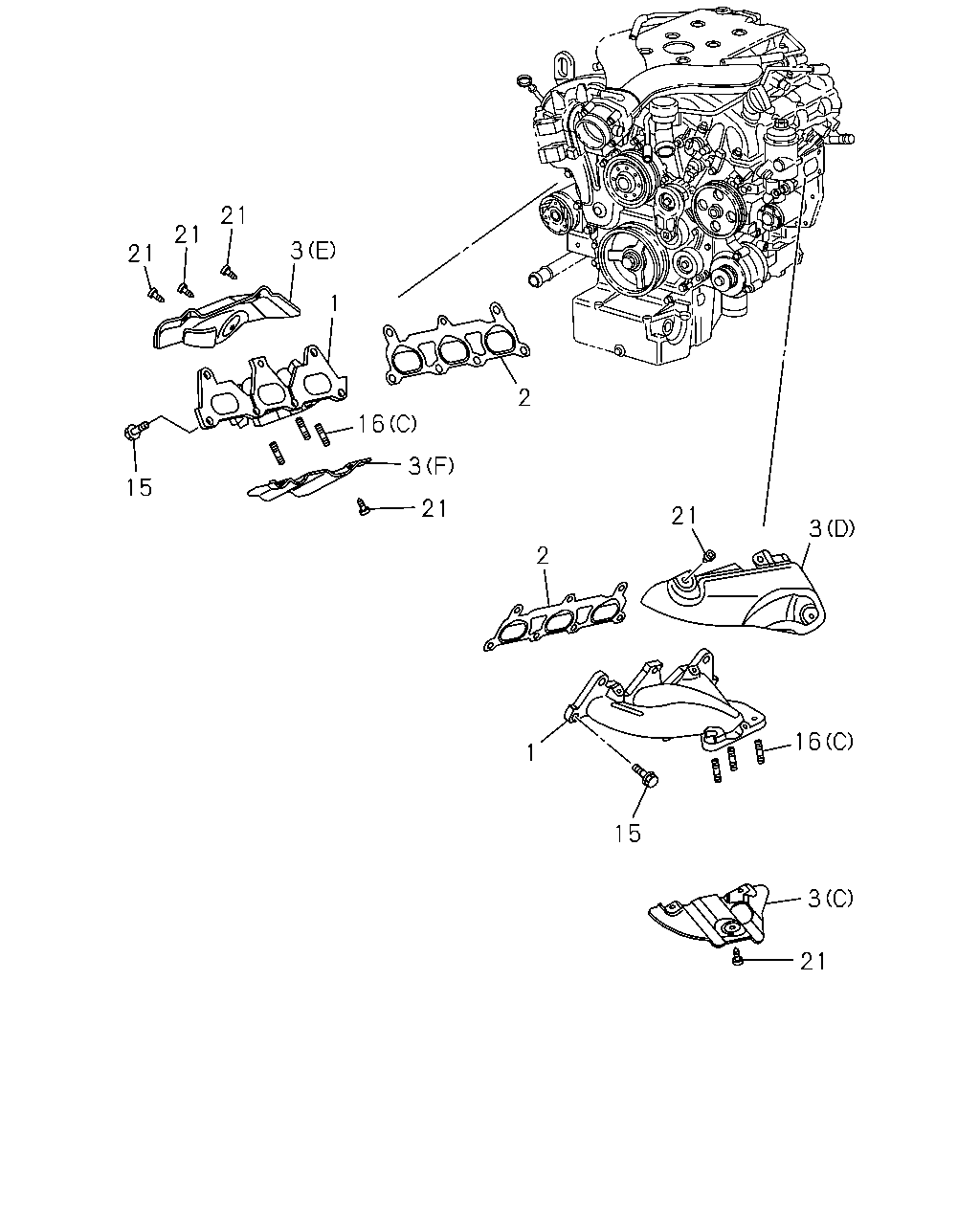

çizim 54710
21 21 3 21 1 2 16 3 15 21 21 3 2 16 1 15 3 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.601 MANIFOLD; EXHAUST 8-97239-854-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-97245-268-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92067-695-0 01 1 0509-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92067-691-0 01 1 0509-0609 ●
1 03.601 MANIFOLD; EXHAUST
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-695-0 01 1 0610- ●
1 03.601 MANIFOLD; EXHAUST
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-691-0 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97148-717-0 02 1 0307-0609 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-12566-831-0 02 1 0509-0609 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-831-0 02 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97234-940-0 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97234-939-0 01 1 0307-0307 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97361-310-0 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-92067-697-0 01 1 0509-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(F) 		8-92068-634-0 01 1 0509-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-92068-613-0 01 1 0509-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-92068-614-0 01 1 0509-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-92067-697-0 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-92068-634-0 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) 		8-92068-613-0 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-92068-614-0 01 1 0610- ●
15 03.604 BOLT; EXH MANIF 8-11518-860-0 14 1 0509-0609 ●
15 03.604 BOLT; EXH MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11518-860-0 14 1 0610- ●
16 03.604 STUD; EXH PIPE TO MANIF
(A) M12X15 L=46.6 		8-97115-132-0 06 1 0307-0609 ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M8X18 L=29 		8-97061-377-1 01 1 0307-0408 ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M8X18 L=29 		8-97378-059-0 01 1 0409-0609 ●
16 03.604 STUD; EXH PIPE TO MANIF
(C) 		8-92065-437-0 06 1 0509-0609 ●
16 03.604 STUD; EXH PIPE TO MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-92065-437-0 06 1 0610- ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 0307-0609 ●
21 03.604 BOLT; HEAT PROTECTOR 8-92138-940-0 12 1 0509-0609 ●
21 03.604 BOLT; HEAT PROTECTOR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92138-940-0 12 1 0610- ●
