◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27A - EXHAUST MANIFOLD ▶
0-27A — EXHAUST MANIFOLD (#20074) — 513 parça

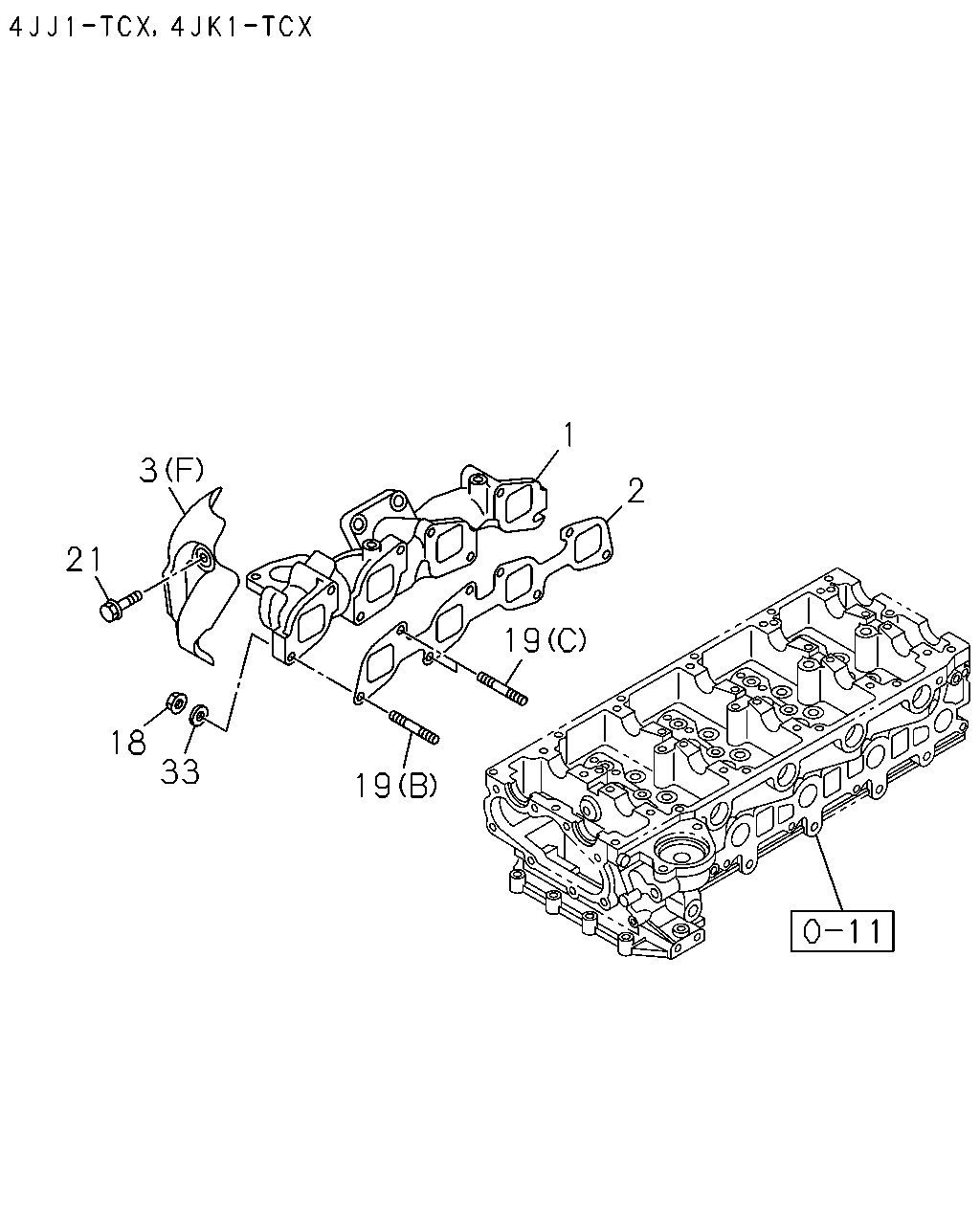

çizim 11261
1 3 2 21 19 18 33 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92067-685-0 01 1 1010- ●
1 03.601 MANIFOLD; EXHAUST
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-265-0 01 1 0807- ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97183-453-0 01 1 0307- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97188-177-0 01 1 0307-1103 ●
1 03.601 MANIFOLD; EXHAUST 8-97289-434-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97313-257-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0610-0612 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0701-0709 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97372-786-1 01 1 0710-0806 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 0807-0912 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97324-153-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-98011-522-3 01 1 0610- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION<NT3> 		8-97329-583-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0307-1009 ●
1 03.601 MANIFOLD; EXHAUST
AUSTRALIA EQUIPMENT(B13) 		8-92063-670-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-90409-644-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-0 01 1 0307-0609 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-2 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 0307-1009 ●
2 03.270 GASKET; EXH MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0610-0612 ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0701-0912 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 1001- ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) (D) 		8-93259-380-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0307-0609 ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION<NT3> (C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-90500-963-0 01 1 0307-1009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
AUSTRALIA EQUIPMENT(B13) (D) 		8-90500-963-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-2 01 1 0610-0612 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 0701-0912 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 1001- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(F) 		8-98011-523-0 01 1 0610- ● ●
18 03.604 NUT; EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 03.275 		8-93252-009-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0307-1009 ●
18 03.604 NUT; EXH MANIF
AUSTRALIA EQUIPMENT(B13) 		8-11082-413-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0610-0612 ● ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0701-0912 ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1001- ● ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 04 1 0710- ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97048-055-1 02 1 0307-0408 ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97378-065-0 02 1 0409-0609 ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97378-065-0 02 1 0610- ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 0610-0612 ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 06 1 0610-0612 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 0701-0912 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 1001- ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 06 1 1001- ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 02 1 0610-0610 ● ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-94391-665-0 02 1 0611-0612 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 02 1 0611-0612 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-94391-665-0 02 1 0701-0704 ●
19 03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48 		8-97307-075-2 06 1 0610-0611 ●
19 03.604 STUD; MANIF TO CYL HD
KENYA EQUIPMENT(CL1) 03.275 (B) M10X33 L=48 		8-97307-075-2 06 1 0612- ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 0611-0611 ●
19 03.604 STUD; MANIF TO CYL HD
KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-98048-446-0 02 1 0612-0704 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 0705-0709 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-98048-446-0 02 1 0710-0912 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 1001- ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 04 1 0610-0704 ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 04 1 0705-0709 ● ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 04 1 0610- ● ●
19 03.604 STUD; MANIF TO CYL HD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> 03.275 (B) M10X33 L=48 		8-97307-075-2 04 1 0610-0611 ●
19 03.604 STUD; MANIF TO CYL HD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> (C) M10X70 L=83 		8-98048-446-0 04 1 0611-0611 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93218-701-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0307-1009 ●
21 03.604 BOLT; HEAT PROTECTOR
AUSTRALIA EQUIPMENT(B13) 		8-11073-032-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0610-0612 ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0701-0912 ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 1001- ● ●
33 03.604 WASHER; EXH MANIF
03.613 ID=10.5 		5-09500-013-0 08 1 0610-0612 ● ● ● ●
33 03.604 WASHER; EXH MANIF
03.613 ID=10.5 		5-09500-013-0 08 1 0701-0912 ● ● ●
33 03.604 WASHER; EXH MANIF
03.613 ID=10.5 		5-09500-013-0 08 1 1001- ● ● ● ●

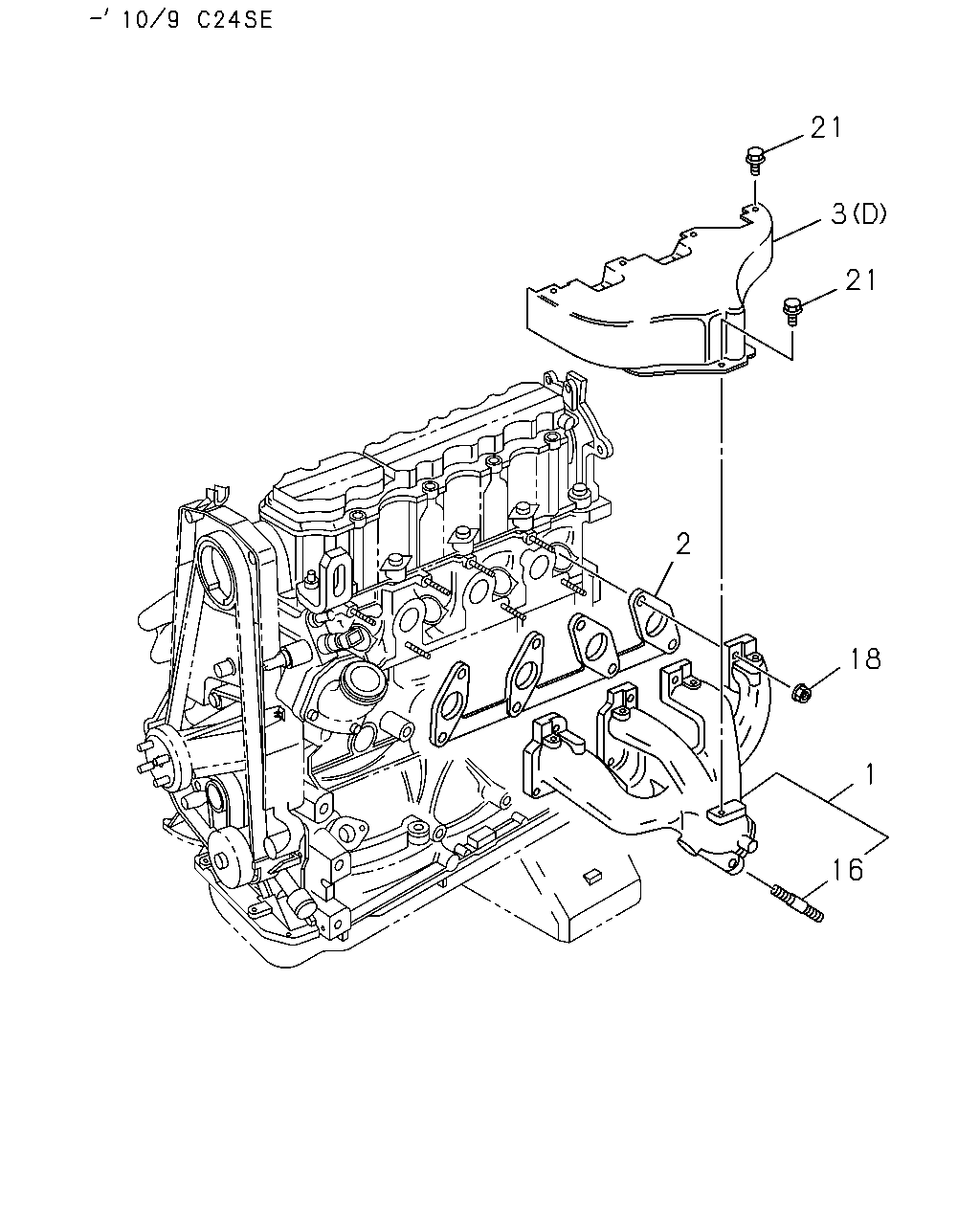

çizim 13414
21 3 21 2 18 1 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92067-685-0 01 1 1010- ●
1 03.601 MANIFOLD; EXHAUST
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-265-0 01 1 0807- ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97183-453-0 01 1 0307- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97188-177-0 01 1 0307-1103 ●
1 03.601 MANIFOLD; EXHAUST 8-97289-434-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97313-257-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0610-0612 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0701-0709 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97372-786-1 01 1 0710-0806 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 0807-0912 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97324-153-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-98011-522-3 01 1 0610- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION<NT3> 		8-97329-583-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0307-1009 ●
1 03.601 MANIFOLD; EXHAUST
AUSTRALIA EQUIPMENT(B13) 		8-92063-670-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-90409-644-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-0 01 1 0307-0609 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-2 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 0307-1009 ●
2 03.270 GASKET; EXH MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0610-0612 ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0701-0912 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 1001- ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) (D) 		8-93259-380-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0307-0609 ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION<NT3> (C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-90500-963-0 01 1 0307-1009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
AUSTRALIA EQUIPMENT(B13) (D) 		8-90500-963-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-2 01 1 0610-0612 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 0701-0912 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 1001- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(F) 		8-98011-523-0 01 1 0610- ● ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 0307- ●
18 03.604 NUT; EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 03.275 		8-93252-009-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0307-1009 ●
18 03.604 NUT; EXH MANIF
AUSTRALIA EQUIPMENT(B13) 		8-11082-413-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0610-0612 ● ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0701-0912 ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1001- ● ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93218-701-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0307-1009 ●
21 03.604 BOLT; HEAT PROTECTOR
AUSTRALIA EQUIPMENT(B13) 		8-11073-032-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0610-0612 ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0701-0912 ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 1001- ● ●

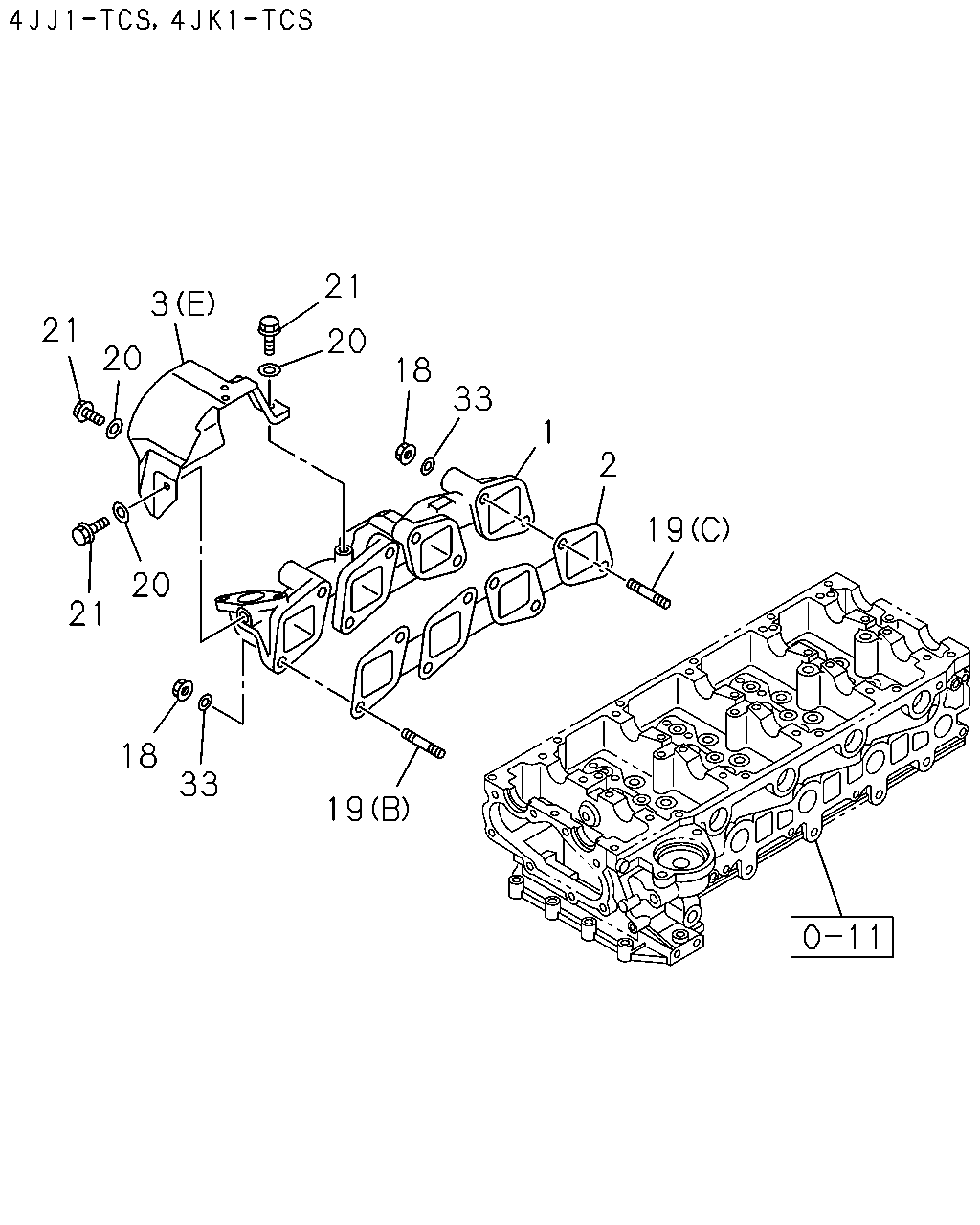

çizim 54365
21 3 21 20 20 18 33 1 2 19 20 21 18 33 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92067-685-0 01 1 1010- ●
1 03.601 MANIFOLD; EXHAUST
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-265-0 01 1 0807- ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97183-453-0 01 1 0307- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97188-177-0 01 1 0307-1103 ●
1 03.601 MANIFOLD; EXHAUST 8-97289-434-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97313-257-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0610-0612 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0701-0709 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97372-786-1 01 1 0710-0806 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 0807-0912 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97324-153-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-98011-522-3 01 1 0610- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION<NT3> 		8-97329-583-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0307-1009 ●
1 03.601 MANIFOLD; EXHAUST
AUSTRALIA EQUIPMENT(B13) 		8-92063-670-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-90409-644-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-0 01 1 0307-0609 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-2 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 0307-1009 ●
2 03.270 GASKET; EXH MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0610-0612 ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0701-0912 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 1001- ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) (D) 		8-93259-380-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0307-0609 ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION<NT3> (C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-90500-963-0 01 1 0307-1009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
AUSTRALIA EQUIPMENT(B13) (D) 		8-90500-963-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-2 01 1 0610-0612 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 0701-0912 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 1001- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(F) 		8-98011-523-0 01 1 0610- ● ●
18 03.604 NUT; EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 03.275 		8-93252-009-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0307-1009 ●
18 03.604 NUT; EXH MANIF
AUSTRALIA EQUIPMENT(B13) 		8-11082-413-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0610-0612 ● ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0701-0912 ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1001- ● ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 04 1 0710- ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97048-055-1 02 1 0307-0408 ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97378-065-0 02 1 0409-0609 ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97378-065-0 02 1 0610- ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 0610-0612 ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 06 1 0610-0612 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 0701-0912 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 1001- ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 06 1 1001- ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 02 1 0610-0610 ● ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-94391-665-0 02 1 0611-0612 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 02 1 0611-0612 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-94391-665-0 02 1 0701-0704 ●
19 03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48 		8-97307-075-2 06 1 0610-0611 ●
19 03.604 STUD; MANIF TO CYL HD
KENYA EQUIPMENT(CL1) 03.275 (B) M10X33 L=48 		8-97307-075-2 06 1 0612- ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 0611-0611 ●
19 03.604 STUD; MANIF TO CYL HD
KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-98048-446-0 02 1 0612-0704 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 0705-0709 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-98048-446-0 02 1 0710-0912 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 1001- ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 04 1 0610-0704 ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 04 1 0705-0709 ● ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 04 1 0610- ● ●
19 03.604 STUD; MANIF TO CYL HD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> 03.275 (B) M10X33 L=48 		8-97307-075-2 04 1 0610-0611 ●
19 03.604 STUD; MANIF TO CYL HD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> (C) M10X70 L=83 		8-98048-446-0 04 1 0611-0611 ●
20 00.413 WASHER; PL,HEAT PROTECTOR
ID=6.4 		0-91610-606-0 03 1 0610-0612 ● ●
20 00.413 WASHER; PL,HEAT PROTECTOR
ID=6.4 		0-91610-606-0 03 1 0701-0912 ●
20 00.413 WASHER; PL,HEAT PROTECTOR
ID=6.4 		0-91610-606-0 03 1 1001- ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93218-701-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0307-1009 ●
21 03.604 BOLT; HEAT PROTECTOR
AUSTRALIA EQUIPMENT(B13) 		8-11073-032-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0610-0612 ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0701-0912 ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 1001- ● ●
33 03.604 WASHER; EXH MANIF
03.613 ID=10.5 		5-09500-013-0 08 1 0610-0612 ● ● ● ●
33 03.604 WASHER; EXH MANIF
03.613 ID=10.5 		5-09500-013-0 08 1 0701-0912 ● ● ●
33 03.604 WASHER; EXH MANIF
03.613 ID=10.5 		5-09500-013-0 08 1 1001- ● ● ● ●

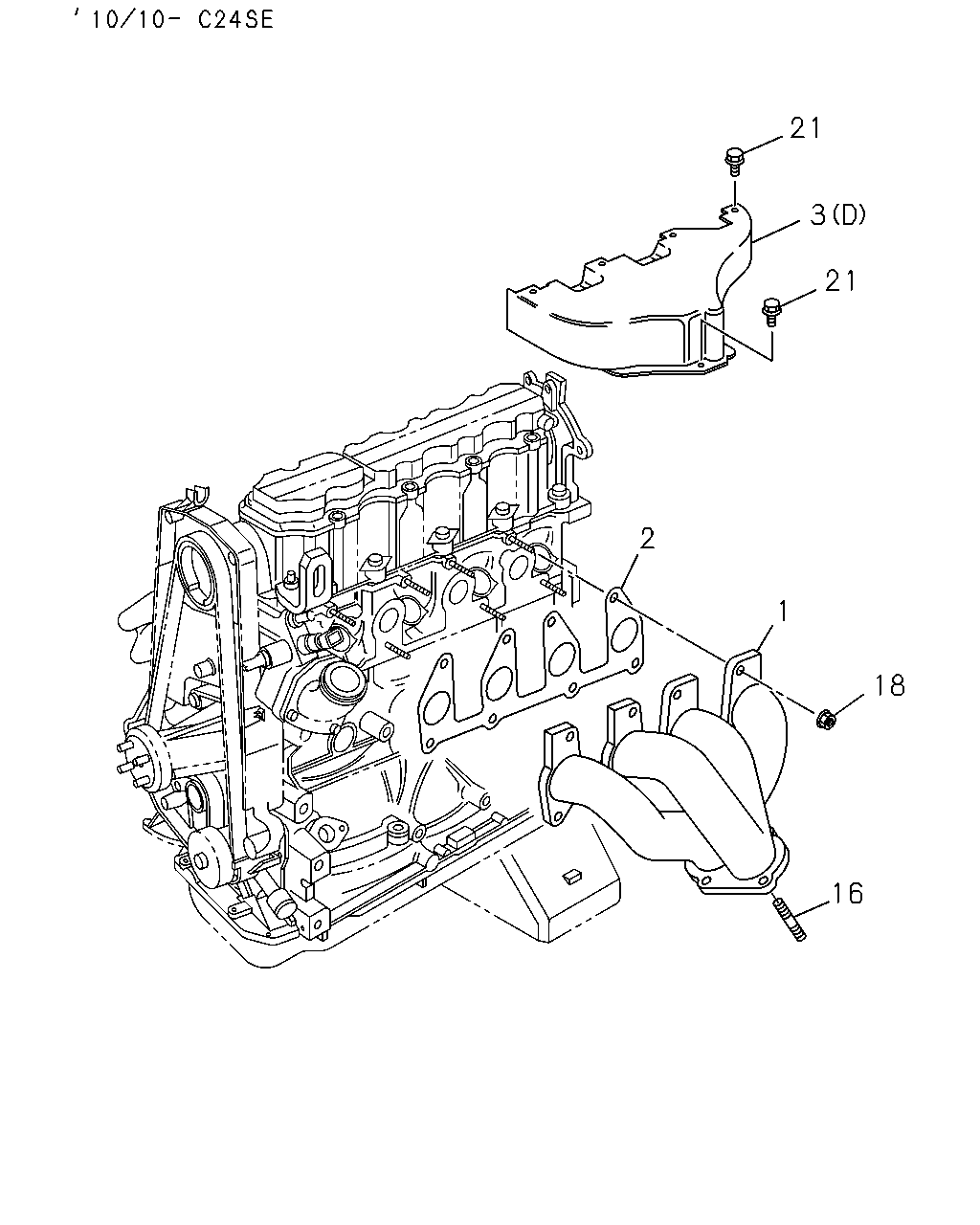

çizim 56123
21 3 21 2 1 18 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92067-685-0 01 1 1010- ●
1 03.601 MANIFOLD; EXHAUST
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-265-0 01 1 0807- ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97183-453-0 01 1 0307- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97188-177-0 01 1 0307-1103 ●
1 03.601 MANIFOLD; EXHAUST 8-97289-434-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97313-257-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0610-0612 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0701-0709 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97372-786-1 01 1 0710-0806 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 0807-0912 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97324-153-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-98011-522-3 01 1 0610- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION<NT3> 		8-97329-583-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0307-1009 ●
1 03.601 MANIFOLD; EXHAUST
AUSTRALIA EQUIPMENT(B13) 		8-92063-670-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-90409-644-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-0 01 1 0307-0609 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-2 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 0307-1009 ●
2 03.270 GASKET; EXH MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0610-0612 ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0701-0912 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 1001- ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) (D) 		8-93259-380-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0307-0609 ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION<NT3> (C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-90500-963-0 01 1 0307-1009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
AUSTRALIA EQUIPMENT(B13) (D) 		8-90500-963-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-2 01 1 0610-0612 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 0701-0912 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 1001- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(F) 		8-98011-523-0 01 1 0610- ● ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 0307- ●
18 03.604 NUT; EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 03.275 		8-93252-009-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0307-1009 ●
18 03.604 NUT; EXH MANIF
AUSTRALIA EQUIPMENT(B13) 		8-11082-413-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0610-0612 ● ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0701-0912 ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1001- ● ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93218-701-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0307-1009 ●
21 03.604 BOLT; HEAT PROTECTOR
AUSTRALIA EQUIPMENT(B13) 		8-11073-032-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0610-0612 ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0701-0912 ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 1001- ● ●

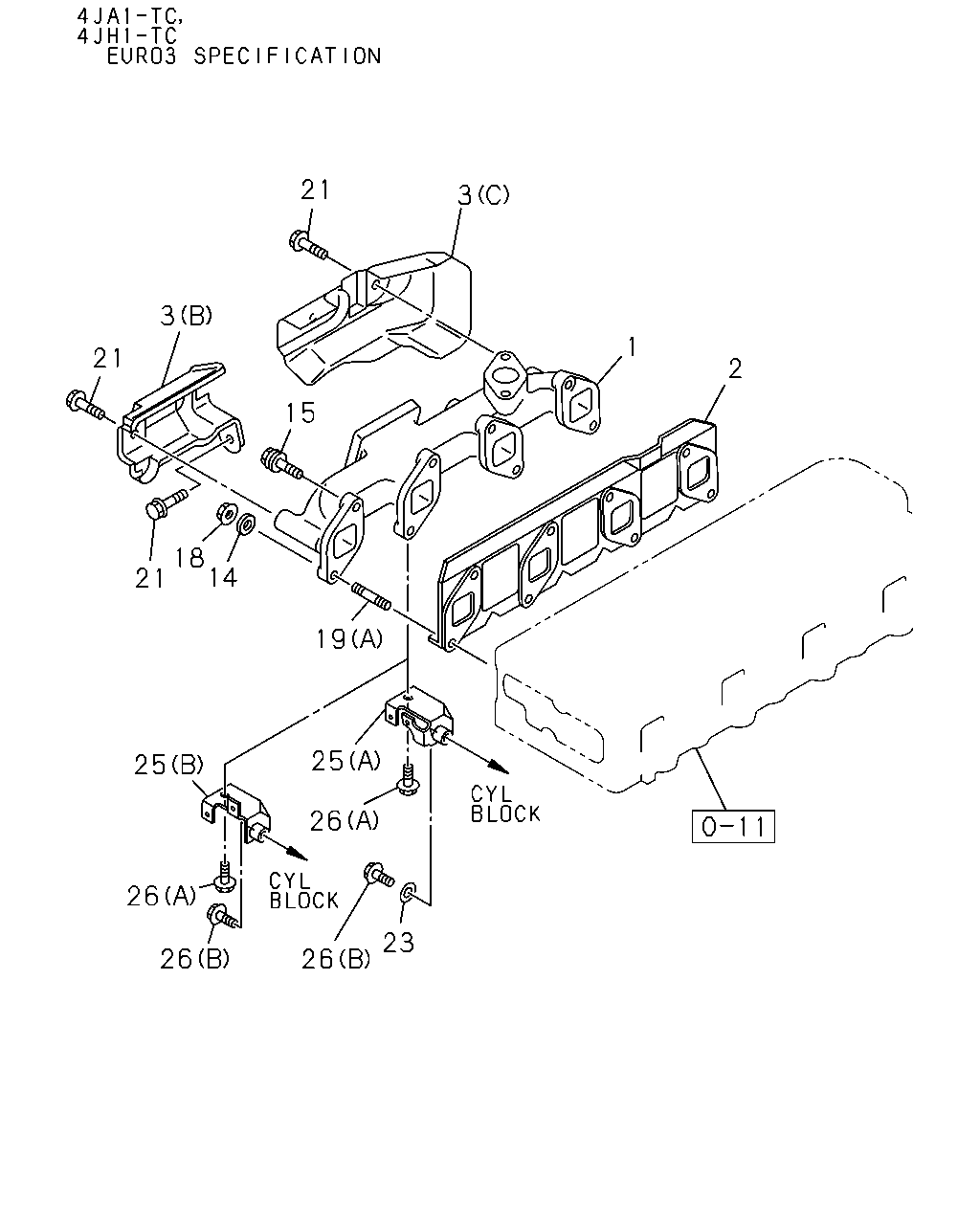

çizim 56163
21 3 3 1 21 2 15 18 14 21 19 25 25 26 26 23 26 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92067-685-0 01 1 1010- ●
1 03.601 MANIFOLD; EXHAUST
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-265-0 01 1 0807- ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97183-453-0 01 1 0307- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97188-177-0 01 1 0307-1103 ●
1 03.601 MANIFOLD; EXHAUST 8-97289-434-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97313-257-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0610-0612 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0701-0709 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97372-786-1 01 1 0710-0806 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 0807-0912 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97324-153-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-98011-522-3 01 1 0610- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION<NT3> 		8-97329-583-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0307-1009 ●
1 03.601 MANIFOLD; EXHAUST
AUSTRALIA EQUIPMENT(B13) 		8-92063-670-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-90409-644-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-0 01 1 0307-0609 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-2 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 0307-1009 ●
2 03.270 GASKET; EXH MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0610-0612 ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0701-0912 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 1001- ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) (D) 		8-93259-380-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0307-0609 ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION<NT3> (C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-90500-963-0 01 1 0307-1009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
AUSTRALIA EQUIPMENT(B13) (D) 		8-90500-963-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-2 01 1 0610-0612 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 0701-0912 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 1001- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(F) 		8-98011-523-0 01 1 0610- ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0307-0609 ● ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0610- ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0307-0609 ● ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0610- ●
18 03.604 NUT; EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 03.275 		8-93252-009-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0307-1009 ●
18 03.604 NUT; EXH MANIF
AUSTRALIA EQUIPMENT(B13) 		8-11082-413-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0610-0612 ● ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0701-0912 ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1001- ● ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 04 1 0710- ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97048-055-1 02 1 0307-0408 ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97378-065-0 02 1 0409-0609 ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97378-065-0 02 1 0610- ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 0610-0612 ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 06 1 0610-0612 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 0701-0912 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 1001- ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 06 1 1001- ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 02 1 0610-0610 ● ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-94391-665-0 02 1 0611-0612 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 02 1 0611-0612 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-94391-665-0 02 1 0701-0704 ●
19 03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48 		8-97307-075-2 06 1 0610-0611 ●
19 03.604 STUD; MANIF TO CYL HD
KENYA EQUIPMENT(CL1) 03.275 (B) M10X33 L=48 		8-97307-075-2 06 1 0612- ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 0611-0611 ●
19 03.604 STUD; MANIF TO CYL HD
KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-98048-446-0 02 1 0612-0704 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 0705-0709 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-98048-446-0 02 1 0710-0912 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 1001- ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 04 1 0610-0704 ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 04 1 0705-0709 ● ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 04 1 0610- ● ●
19 03.604 STUD; MANIF TO CYL HD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> 03.275 (B) M10X33 L=48 		8-97307-075-2 04 1 0610-0611 ●
19 03.604 STUD; MANIF TO CYL HD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> (C) M10X70 L=83 		8-98048-446-0 04 1 0611-0611 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93218-701-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0307-1009 ●
21 03.604 BOLT; HEAT PROTECTOR
AUSTRALIA EQUIPMENT(B13) 		8-11073-032-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0610-0612 ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0701-0912 ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 1001- ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 0404-0407 ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 0408-0605 ● ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0609 ● ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0610- ●
25 03.602 BRACKET; EXH MANIF
(A) 		8-97188-069-0 02 1 0307-0402 ●
25 03.602 BRACKET; EXH MANIF
(A) 		8-97188-069-1 01 1 0403-0609 ● ●
25 03.602 BRACKET; EXH MANIF
(A) 		8-97188-069-1 01 1 0610- ●
25 03.602 BRACKET; EXH MANIF
(A) 		8-97188-069-0 01 1 0307-0402 ●
25 03.602 BRACKET; EXH MANIF
AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> (B) 		8-97161-202-0 02 1 0307-0609 ●
25 03.602 BRACKET; EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> (B) 		8-97161-202-1 01 1 0307-0609 ●
25 03.602 BRACKET; EXH MANIF
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-97161-202-1 01 1 0307-0609 ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.275 (A) M8X30 FLANGE 		0-28080-830-0 01 1 0307-0512 ● ● ●
26 03.602 BOLT; BRKT TO EXH MANIF
00.206 (A) M8X30 FLANGE 		0-28050-830-0 01 1 0601-0609 ● ● ●
26 03.602 BOLT; BRKT TO EXH MANIF
00.206 (A) M8X30 FLANGE 		0-28050-830-0 01 1 0610- ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.604 (B) M8X14 FLANGE 		8-94312-699-1 01 1 0307-0408 ● ● ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0409-0609 ● ● ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0610- ●

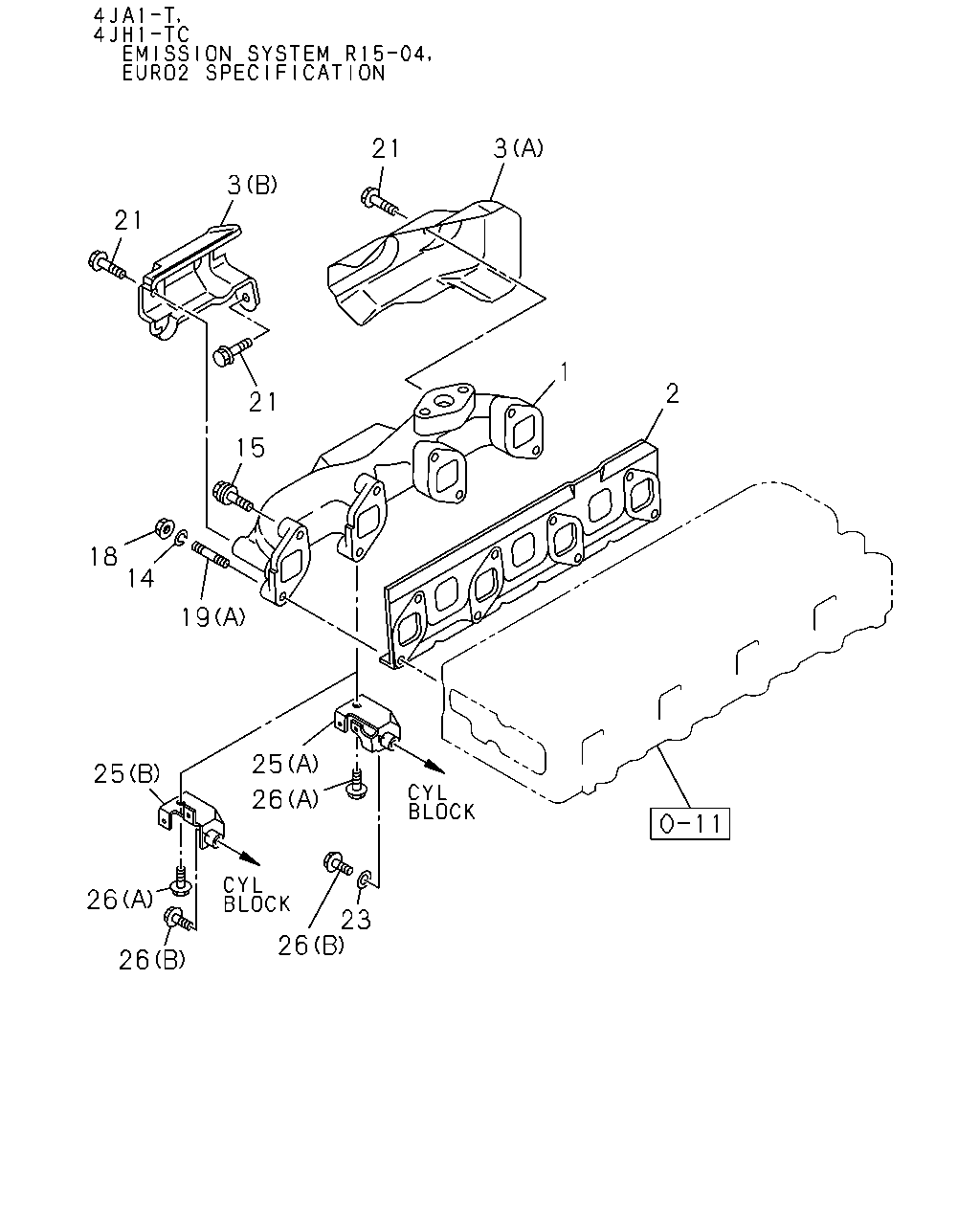

çizim 57057
21 3 3 21 1 2 21 15 18 14 19 25 25 26 26 23 26 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92067-685-0 01 1 1010- ●
1 03.601 MANIFOLD; EXHAUST
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-265-0 01 1 0807- ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97183-453-0 01 1 0307- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97188-177-0 01 1 0307-1103 ●
1 03.601 MANIFOLD; EXHAUST 8-97289-434-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST
EMISSION SYSTEM R15-04<K75> 		8-97313-257-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0610-0612 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 0701-0709 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97372-786-1 01 1 0710-0806 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 0807-0912 ●
1 03.601 MANIFOLD; EXHAUST
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST 8-97372-786-1 01 1 1001- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<NT2> 		8-97324-153-0 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-98011-522-3 01 1 0610- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION<NT3> 		8-97329-583-1 01 1 0307-0609 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0307-1009 ●
1 03.601 MANIFOLD; EXHAUST
AUSTRALIA EQUIPMENT(B13) 		8-92063-670-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-90409-644-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-0 01 1 0307-0609 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-317-2 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 0307-1009 ●
2 03.270 GASKET; EXH MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-515-0 01 1 1010- ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0610-0612 ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 0701-0912 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD 8-97356-028-2 01 1 1001- ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) (D) 		8-93259-380-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) 		8-97920-417-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97920-417-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0307-0609 ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97920-418-1 01 1 0610- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION<NT3> (C) 		8-97252-525-1 01 1 0307-0609 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-90500-963-0 01 1 0307-1009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
AUSTRALIA EQUIPMENT(B13) (D) 		8-90500-963-0 01 1 1010- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-2 01 1 0610-0612 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 0701-0912 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-97360-036-3 01 1 1001- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(F) 		8-98011-523-0 01 1 0610- ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0307-0609 ● ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0610- ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0307-0609 ● ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0610- ●
18 03.604 NUT; EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 03.275 		8-93252-009-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0307-1009 ●
18 03.604 NUT; EXH MANIF
AUSTRALIA EQUIPMENT(B13) 		8-11082-413-0 08 1 1010- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0610-0612 ● ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 0701-0912 ● ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1001- ● ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 04 1 0710- ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97048-055-1 02 1 0307-0408 ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97378-065-0 02 1 0409-0609 ● ● ●
19 03.604 STUD; MANIF TO CYL HD
(A) M8X35 L=46 		8-97378-065-0 02 1 0610- ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 0610-0612 ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 06 1 0610-0612 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 0701-0912 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (B) M10X33 L=48 		8-97379-383-0 06 1 1001- ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 06 1 1001- ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 02 1 0610-0610 ● ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-94391-665-0 02 1 0611-0612 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 02 1 0611-0612 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-94391-665-0 02 1 0701-0704 ●
19 03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48 		8-97307-075-2 06 1 0610-0611 ●
19 03.604 STUD; MANIF TO CYL HD
KENYA EQUIPMENT(CL1) 03.275 (B) M10X33 L=48 		8-97307-075-2 06 1 0612- ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 0611-0611 ●
19 03.604 STUD; MANIF TO CYL HD
KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-98048-446-0 02 1 0612-0704 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 0705-0709 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) (C) M10X70 L=83 		8-98048-446-0 02 1 0710-0912 ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 02 1 1001- ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-94391-665-0 04 1 0610-0704 ● ●
19 03.604 STUD; MANIF TO CYL HD
(C) M10X70 L=83 		8-98048-446-0 04 1 0705-0709 ● ●
19 03.604 STUD; MANIF TO CYL HD
(B) M10X33 L=48 		8-97379-383-0 04 1 0610- ● ●
19 03.604 STUD; MANIF TO CYL HD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> 03.275 (B) M10X33 L=48 		8-97307-075-2 04 1 0610-0611 ●
19 03.604 STUD; MANIF TO CYL HD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> (C) M10X70 L=83 		8-98048-446-0 04 1 0611-0611 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93218-701-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0307-0512 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0601-0609 ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0307-1009 ●
21 03.604 BOLT; HEAT PROTECTOR
AUSTRALIA EQUIPMENT(B13) 		8-11073-032-0 05 1 1010- ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0610-0612 ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 0701-0912 ●
21 03.604 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 03 1 1001- ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 0404-0407 ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 0408-0605 ● ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0609 ● ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0610- ●
25 03.602 BRACKET; EXH MANIF
(A) 		8-97188-069-0 02 1 0307-0402 ●
25 03.602 BRACKET; EXH MANIF
(A) 		8-97188-069-1 01 1 0403-0609 ● ●
25 03.602 BRACKET; EXH MANIF
(A) 		8-97188-069-1 01 1 0610- ●
25 03.602 BRACKET; EXH MANIF
(A) 		8-97188-069-0 01 1 0307-0402 ●
25 03.602 BRACKET; EXH MANIF
AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> (B) 		8-97161-202-0 02 1 0307-0609 ●
25 03.602 BRACKET; EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> (B) 		8-97161-202-1 01 1 0307-0609 ●
25 03.602 BRACKET; EXH MANIF
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-97161-202-1 01 1 0307-0609 ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.275 (A) M8X30 FLANGE 		0-28080-830-0 01 1 0307-0512 ● ● ●
26 03.602 BOLT; BRKT TO EXH MANIF
00.206 (A) M8X30 FLANGE 		0-28050-830-0 01 1 0601-0609 ● ● ●
26 03.602 BOLT; BRKT TO EXH MANIF
00.206 (A) M8X30 FLANGE 		0-28050-830-0 01 1 0610- ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.604 (B) M8X14 FLANGE 		8-94312-699-1 01 1 0307-0408 ● ● ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0409-0609 ● ● ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
