0-25B — INLET MANIFOLD (#20073) — 39 parça

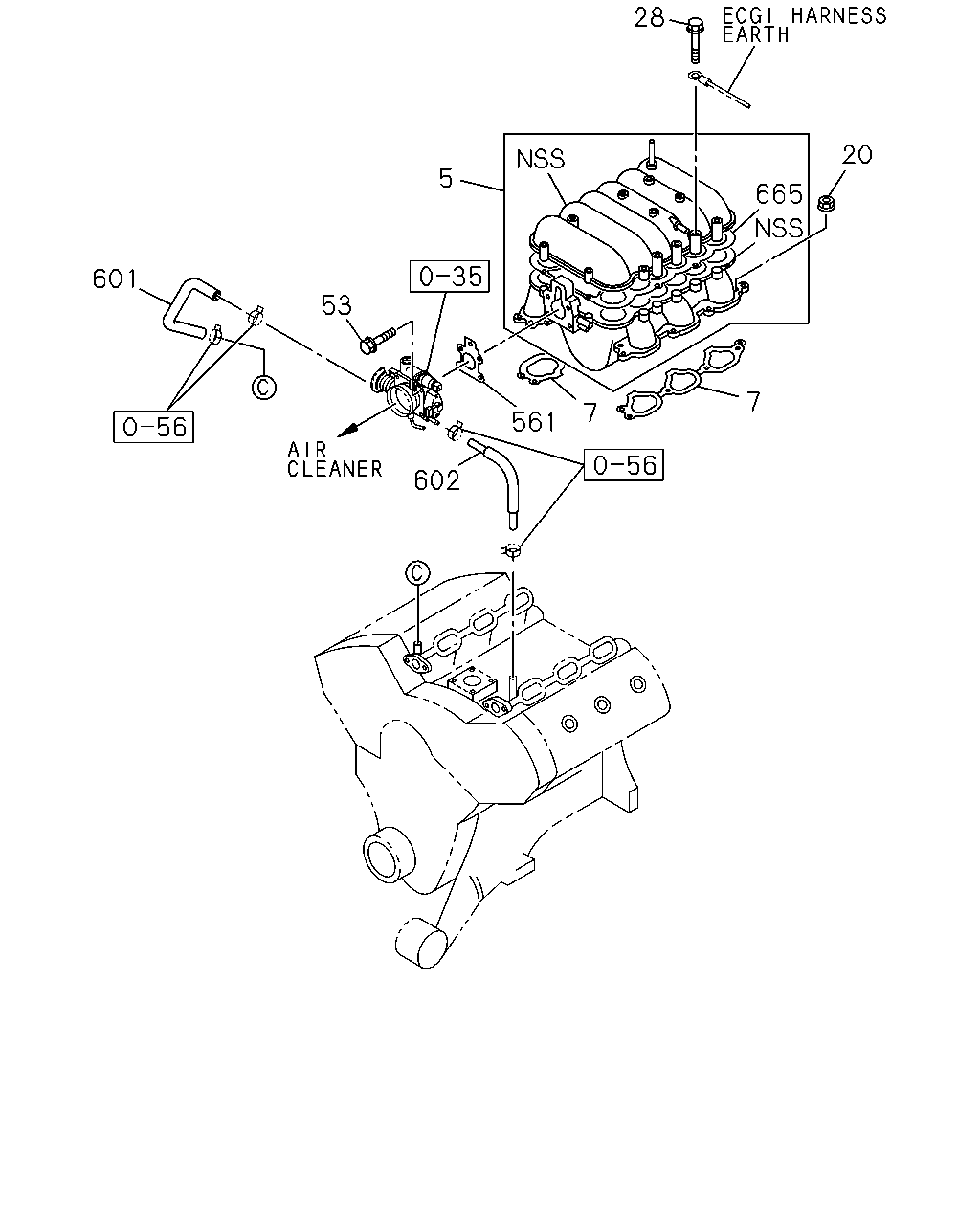

çizim 53832
28 20 5 665 601 53 7 7 561 602
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.278 CHAMBER; COMMON 8-97289-499-0 01 1 0307-0609 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97237-538-0 02 1 0307-0609 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-12595-102-0 01 1 0509-0609 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-028-0 01 1 0702-0702 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-028-0 01 1 0702- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12595-102-0 01 1 0610-0701 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12595-102-0 01 1 0702-0702 ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 04 1 0307-0602 ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ●
28 03.278 BOLT; CHAMBER
M8X150 FLANGE 		0-28085-815-0 04 1 0307-0512 ●
28 03.278 BOLT; CHAMBER
M8X150 FLANGE 		0-28055-815-0 04 1 0601-0609 ●
53 03.602 BOLT; INL PIPE
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 0307-0512 ●
53 03.602 BOLT; INL PIPE
02.277 M8X40 FLANGE 		0-28050-840-0 04 1 0601-0609 ●
561 03.724 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94389-939-0 01 1 0307-0609 ●
601 01.097 HOSE; WATER,T/V FEED 8-97231-680-0 01 1 0307-0609 ●
602 01.097 HOSE; WATER,T/V RETURN 8-97136-219-2 01 1 0307-0609 ●
665 03.270 GASKET; COMMON CHAMBER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97254-448-0 01 1 0307-0609 ●

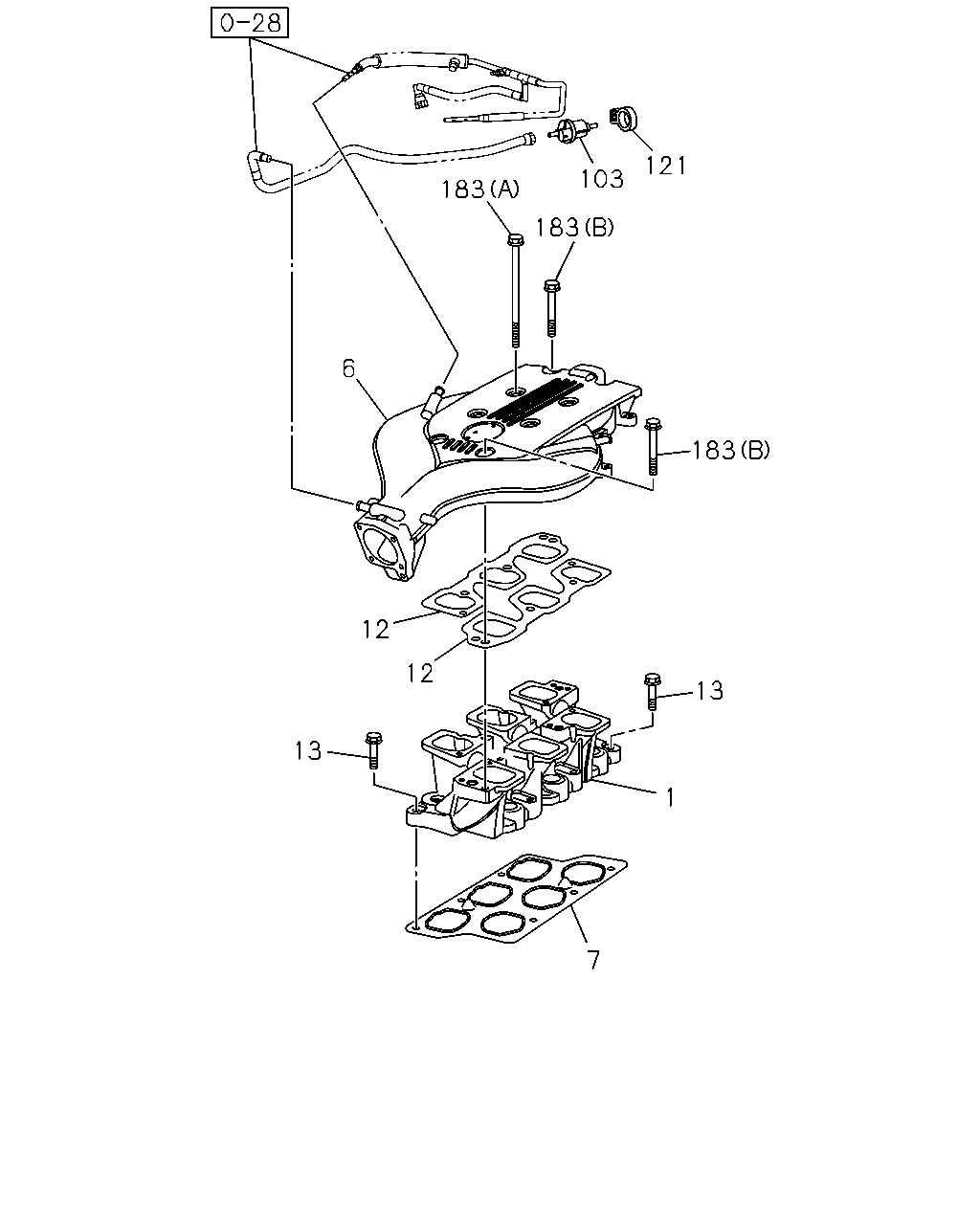

çizim 54601
121 103 183 183 6 183 12 12 13 13 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL 8-12579-780-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12579-780-0 01 1 0610- ●
6 03.265 MANIFOLD; INL,UPR 8-92068-425-0 01 1 0509-0609 ●
6 03.265 MANIFOLD; INL,UPR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-425-0 01 1 0610- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97237-538-0 02 1 0307-0609 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-12595-102-0 01 1 0509-0609 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-028-0 01 1 0702-0702 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-028-0 01 1 0702- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12595-102-0 01 1 0610-0701 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12595-102-0 01 1 0702-0702 ●
12 03.270 GASKET; INL MANIF,UPR TO LWR 8-12565-878-0 02 1 0509-0609 ●
12 03.270 GASKET; INL MANIF,UPR TO LWR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12565-878-0 02 1 0610- ●
13 03.275 BOLT; INL MANIF 8-11519-170-0 02 1 0509-0609 ●
13 03.275 BOLT; INL MANIF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-170-0 02 1 0610- ●
103 03.415 VALVE; INT AIR CONT 8-12587-093-0 01 1 0509-0609 ●
103 03.415 VALVE; INT AIR CONT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12587-093-0 01 1 0610- ●
121 03.682 BRACKET 8-92067-015-0 01 1 0509-0609 ●
121 03.682 BRACKET
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-015-0 01 1 0610- ●
183 03.265 BOLT; INL MANIF,UPR
(A) 		8-11518-906-0 04 1 0509-0609 ●
183 03.265 BOLT; INL MANIF,UPR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-11518-906-0 04 1 0610- ●
183 03.265 BOLT; INL MANIF,UPR
(B) 		8-11519-175-0 02 1 0509-0609 ●
183 03.265 BOLT; INL MANIF,UPR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-11519-175-0 02 1 0610- ●
