◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25A - INLET MANIFOLD ▶
0-25A — INLET MANIFOLD (#20072) — 672 parça

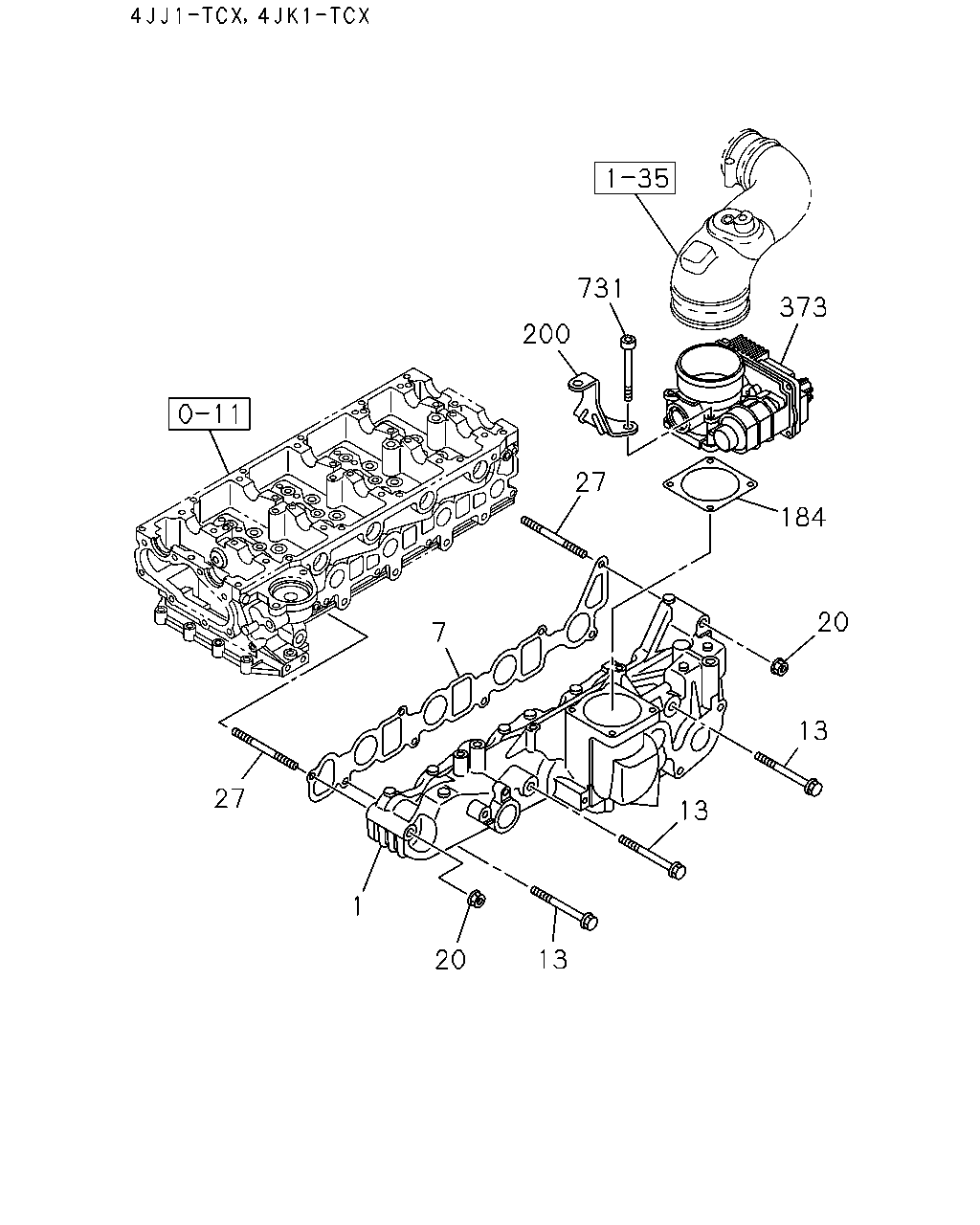

çizim 53783
731 373 200 27 184 20 7 13 27 13 1 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-503-0 01 1 1010- ●
1 03.265 MANIFOLD; INL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-264-0 01 1 0807- ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97350-916-0 01 1 0307- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2> 		8-97253-952-0 01 1 0307-1103 ●
1 03.265 MANIFOLD; INL 8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL 8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL 8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0610-0612 ● ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0701-0709 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97312-063-5 01 1 0710-0806 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 0807-0912 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97324-152-2 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97382-588-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98028-254-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0610- ● ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0307-1009 ●
1 03.265 MANIFOLD; INL
AUSTRALIA EQUIPMENT(B13) 		8-92066-733-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93255-173-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
KENYA EQUIPMENT(CL1) 		8-98063-396-0 01 1 0903- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0307-0609 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0610- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 0307-1009 ●
7 03.270 GASKET; INL MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0610-0612 ● ● ● ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0701-0902 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) 		8-97312-067-0 01 1 0903-0912 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0903-0912 ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ● ● ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 02 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0307-0512 ● ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 06 1 0601-0609 ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 1001- ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 1001- ● ● ● ●
20 03.275 NUT; INL MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93252-009-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0307-0609 ● ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ●
20 03.275 NUT; INL MANIF
03.604 		8-11082-413-0 09 1 0307-1009 ●
20 03.275 NUT; INL MANIF
AUSTRALIA EQUIPMENT(B13) 03.604 		8-11082-413-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0610- ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0610-0611 ● ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 1001- ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 1001- ● ● ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
KENYA EQUIPMENT(CL1) M8X71 L=83 		8-98017-063-0 02 1 0612- ●
184 03.275 GASKET; T/V
KENYA EQUIPMENT(CL1) 		8-98096-968-0 01 1 0903- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97214-127-0 02 1 0307-0609 ● ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0610-0612 ● ● ● ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0701-0902 ● ● ●
184 03.275 GASKET; T/V
EXC. KENYA EQUIPMENT(CL1) 		8-97366-784-1 01 1 0903-0912 ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0903-0912 ● ●
184 03.275 GASKET; T/V
EXC. KENYA EQUIPMENT(CL1) 		8-97366-784-1 01 1 1001- ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 1001- ● ● ●
200 03.407 BRACKET; AIR DUCT 8-98031-444-0 01 1 0610- ● ●
373 03.265 THROTTLE ASM; INT 8-97945-522-0 01 1 0610-0611 ● ● ● ●
373 03.265 THROTTLE ASM; INT
EXC. KENYA EQUIPMENT(CL1) 		8-97945-522-0 01 1 0612-0612 ●
373 03.265 THROTTLE ASM; INT 8-97945-522-0 01 1 0612-0612 ● ● ●
373 03.265 THROTTLE ASM; INT
EXC. KENYA EQUIPMENT(CL1) 		8-97945-522-3 01 1 0701-0912 ●
373 03.265 THROTTLE ASM; INT 8-97945-522-3 01 1 0701-0912 ● ●
373 03.265 THROTTLE ASM; INT
EXC. KENYA EQUIPMENT(CL1) 		8-97945-522-4 01 1 1001- ●
373 03.265 THROTTLE ASM; INT 8-97945-522-4 01 1 1001- ● ● ●
373 03.265 THROTTLE ASM; INT
03.440 		8-97312-210-2 01 1 0610-0611 ● ●
373 03.265 THROTTLE ASM; INT
KENYA EQUIPMENT(CL1) 03.440 		8-97312-210-3 01 1 0612-0811 ●
373 03.265 THROTTLE ASM; INT
KENYA EQUIPMENT(CL1) 		8-98128-921-2 01 1 0812- ●
731 02.559 BOLT; THROTTLE ASM
02.277 M8X130 FLANGE 		0-28085-813-0 02 1 0307-0512 ● ●
731 02.559 BOLT; THROTTLE ASM
01.428 M8X130 FLANGE 		0-28055-813-0 02 1 0601-0609 ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0610-0612 ● ● ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0701-0912 ● ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 1001- ● ● ● ●

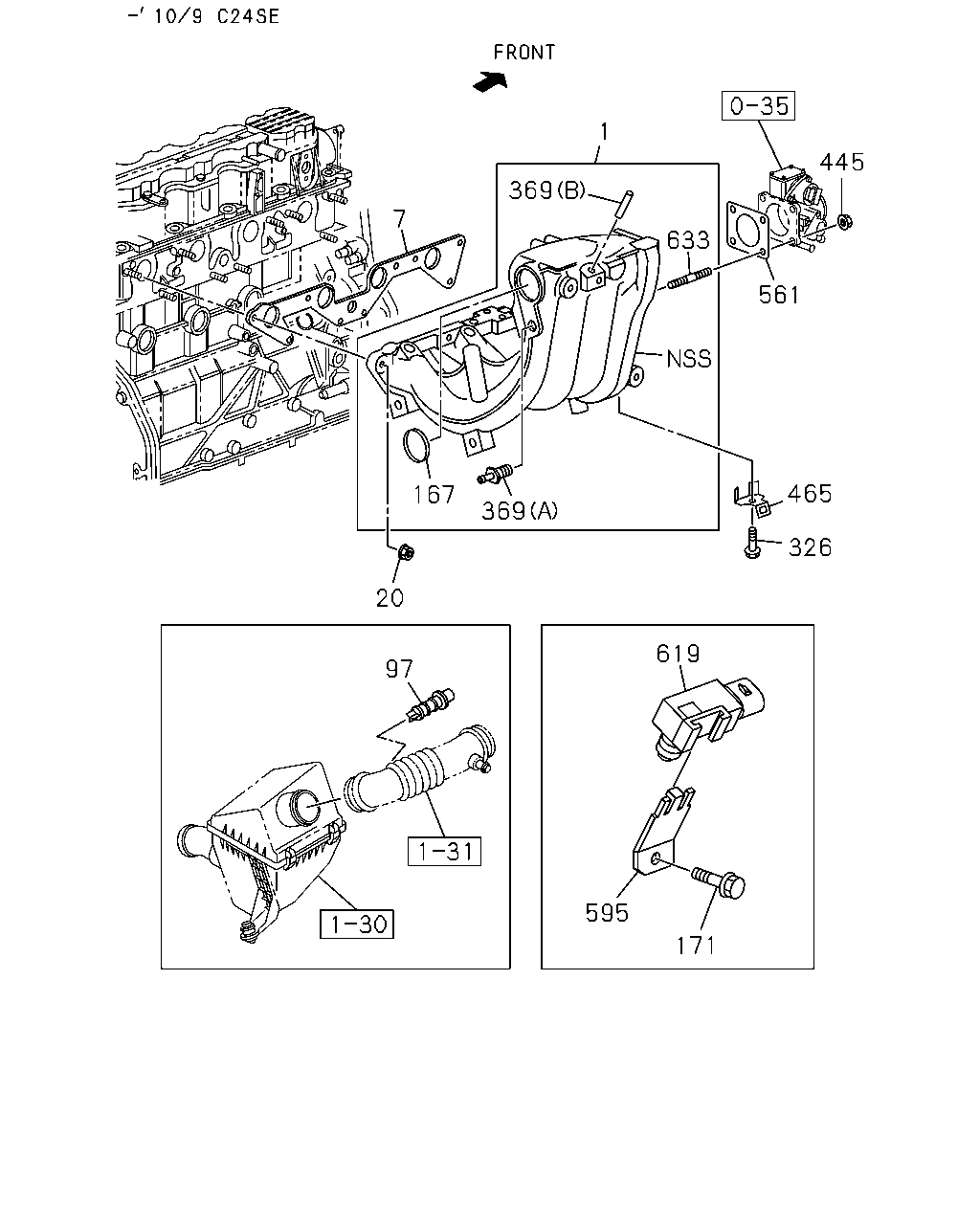

çizim 54359
1 445 369 7 633 561 465 167 369 326 20 619 97 595 171
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-503-0 01 1 1010- ●
1 03.265 MANIFOLD; INL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-264-0 01 1 0807- ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97350-916-0 01 1 0307- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2> 		8-97253-952-0 01 1 0307-1103 ●
1 03.265 MANIFOLD; INL 8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL 8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL 8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0610-0612 ● ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0701-0709 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97312-063-5 01 1 0710-0806 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 0807-0912 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97324-152-2 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97382-588-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98028-254-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0610- ● ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0307-1009 ●
1 03.265 MANIFOLD; INL
AUSTRALIA EQUIPMENT(B13) 		8-92066-733-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93255-173-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
KENYA EQUIPMENT(CL1) 		8-98063-396-0 01 1 0903- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0307-0609 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0610- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 0307-1009 ●
7 03.270 GASKET; INL MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0610-0612 ● ● ● ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0701-0902 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) 		8-97312-067-0 01 1 0903-0912 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0903-0912 ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ● ● ●
20 03.275 NUT; INL MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93252-009-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0307-0609 ● ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ●
20 03.275 NUT; INL MANIF
03.604 		8-11082-413-0 09 1 0307-1009 ●
20 03.275 NUT; INL MANIF
AUSTRALIA EQUIPMENT(B13) 03.604 		8-11082-413-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
97 03.682 SENSOR; INTAKE,AIR TEMPERATURE 8-12160-244-0 01 1 0307- ●
167 03.265 PLUG; INL MANIF 8-92066-322-0 01 1 0307-1009 ●
167 03.265 PLUG; INL MANIF
AUSTRALIA EQUIPMENT(B13) 		8-92066-322-0 01 1 1010- ●
171 02.559 BOLT; BRKT
02.510 		8-11093-971-0 01 1 0307- ●
326 02.559 BOLT; CLIP,HARNESS
02.510 		8-11093-971-0 01 1 0307-1009 ●
326 02.559 BOLT; CLIP,HARNESS
AUSTRALIA EQUIPMENT(B13) 02.510 		8-11093-971-0 01 1 1010- ●
369 02.559 CONNECTOR; BOOST SWITCH
(B) 		8-92065-407-0 01 1 0307- ●
369 02.559 CONNECTOR; BOOST SWITCH
(A) 		8-92066-317-0 01 1 0307-1009 ●
369 02.559 CONNECTOR; BOOST SWITCH
AUSTRALIA EQUIPMENT(B13) (A) 		8-92066-317-0 01 1 1010- ●
445 03.275 NUT; THROTTLE BODY TO MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0307-0602 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
02.042 M6 		8-11094-425-0 04 1 0307- ●
465 02.559 CLIP; HARNESS,INL MANIF 8-92065-417-0 01 1 0307-1009 ●
465 02.559 CLIP; HARNESS,INL MANIF
AUSTRALIA EQUIPMENT(B13) 		8-92065-417-0 01 1 1010- ●
561 03.724 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92060-513-0 01 1 0307- ●
595 02.559 BRACKET; MAP SENSOR 8-92065-524-0 01 1 0307- ●
619 01.150 SENSOR; MAP
EXC. AUSTRALIA EQUIPMENT(B13) 		8-12614-970-0 01 1 1010- ●
619 01.150 SENSOR; MAP
03.320 		8-16212-460-0 01 1 0307-1009 ●
619 01.150 SENSOR; MAP
AUSTRALIA EQUIPMENT(B13) 03.320 		8-16212-460-0 01 1 1010- ●
633 03.275 STUD; THROTTLE BODY
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92139-049-0 04 1 1010- ●
633 03.275 STUD; THROTTLE BODY
01.060 M8X55 L=71 		9-04020-855-0 02 1 0307-0604 ● ●
633 03.275 STUD; THROTTLE BODY
M8X55 L=71 		0-40210-855-0 02 1 0605-0609 ● ●
633 03.275 STUD; THROTTLE BODY 8-11075-291-0 04 1 0307-1009 ●
633 03.275 STUD; THROTTLE BODY
AUSTRALIA EQUIPMENT(B13) 		8-11075-291-0 04 1 1010- ●

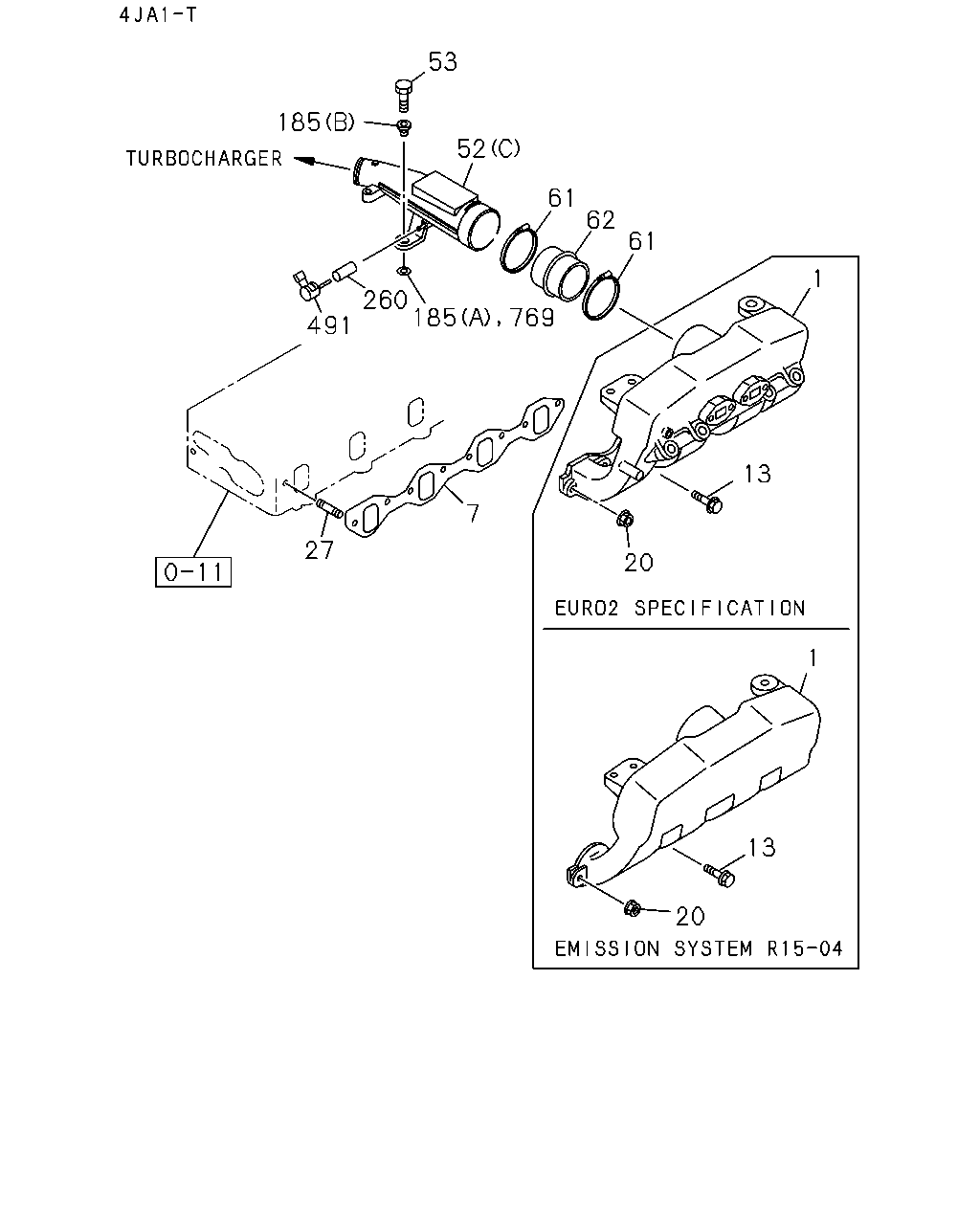

çizim 55150
53 185 52 61 62 61 1 260 185 769 491 13 7 27 20 1 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-503-0 01 1 1010- ●
1 03.265 MANIFOLD; INL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-264-0 01 1 0807- ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97350-916-0 01 1 0307- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2> 		8-97253-952-0 01 1 0307-1103 ●
1 03.265 MANIFOLD; INL 8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL 8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL 8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0610-0612 ● ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0701-0709 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97312-063-5 01 1 0710-0806 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 0807-0912 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97324-152-2 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97382-588-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98028-254-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0610- ● ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0307-1009 ●
1 03.265 MANIFOLD; INL
AUSTRALIA EQUIPMENT(B13) 		8-92066-733-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93255-173-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
KENYA EQUIPMENT(CL1) 		8-98063-396-0 01 1 0903- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0307-0609 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0610- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 0307-1009 ●
7 03.270 GASKET; INL MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0610-0612 ● ● ● ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0701-0902 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) 		8-97312-067-0 01 1 0903-0912 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0903-0912 ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ● ● ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 02 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0307-0512 ● ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 06 1 0601-0609 ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 1001- ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 1001- ● ● ● ●
20 03.275 NUT; INL MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93252-009-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0307-0609 ● ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ●
20 03.275 NUT; INL MANIF
03.604 		8-11082-413-0 09 1 0307-1009 ●
20 03.275 NUT; INL MANIF
AUSTRALIA EQUIPMENT(B13) 03.604 		8-11082-413-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0610- ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0610-0611 ● ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 1001- ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 1001- ● ● ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
KENYA EQUIPMENT(CL1) M8X71 L=83 		8-98017-063-0 02 1 0612- ●
52 01.097 PIPE; INL
(C) 		8-97188-068-1 01 1 0307-0401 ●
52 01.097 PIPE; INL
(C) 		8-97916-935-1 01 1 0402-0911 ●
52 01.097 PIPE; INL
(C) 		8-97942-925-0 01 1 0912- ●
52 01.097 PIPE; INL
(A) 		8-97311-685-2 01 1 0307-0609 ● ●
52 01.097 PIPE; INL
(B) 		8-97315-137-1 01 1 0307-0609 ● ●
53 03.602 BOLT; INL PIPE
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0307-0512 ● ● ●
53 03.602 BOLT; INL PIPE
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601-0609 ● ● ●
53 03.602 BOLT; INL PIPE
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0610- ●
61 03.273 CLIP; CONNECTOR HOSE
ID=65-82 		8-97131-942-0 02 1 0307- ●
61 03.273 CLIP; CONNECTOR HOSE
03.407 ID=50-69 		8-94316-991-0 02 1 0307-0403 ● ●
61 03.273 CLIP; CONNECTOR HOSE
03.407 ID=50-65 		1-09707-204-0 02 1 0404-0609 ● ●
62 03.265 HOSE; CONNECTOR 8-97137-018-1 01 1 0307-0404 ●
62 03.265 HOSE; CONNECTOR 8-94386-164-2 01 1 0405- ●
62 03.265 HOSE; CONNECTOR 8-97316-600-0 01 1 0307-0609 ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(A) ID=12 OD=24 T=4.5 		8-94403-670-0 02 1 0307-0402 ● ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(B) 		8-94434-927-0 02 1 0307-0609 ● ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(B) 		8-94434-927-0 02 1 0610- ●
260 03.278 CAP; RUBBER
01.780 ID=4 		8-94217-809-0 01 1 0307-0911 ●
491 01.152 CLIP; CONNECTOR
03.278 		8-97031-674-0 01 1 0307-0911 ●
769 03.273 RUBBER; MTG,INL MANIF,LWR
ID=12 OD=24 T=4.5 		8-94403-670-0 02 1 0403-0407 ● ● ●
769 03.273 RUBBER; MTG,INL MANIF,LWR
ID=11 OD=24 T=4.5 		8-97384-128-0 02 1 0408-0609 ● ● ●
769 03.273 RUBBER; MTG,INL MANIF,LWR
ID=11 OD=24 T=4.5 		8-97384-128-0 02 1 0610- ●

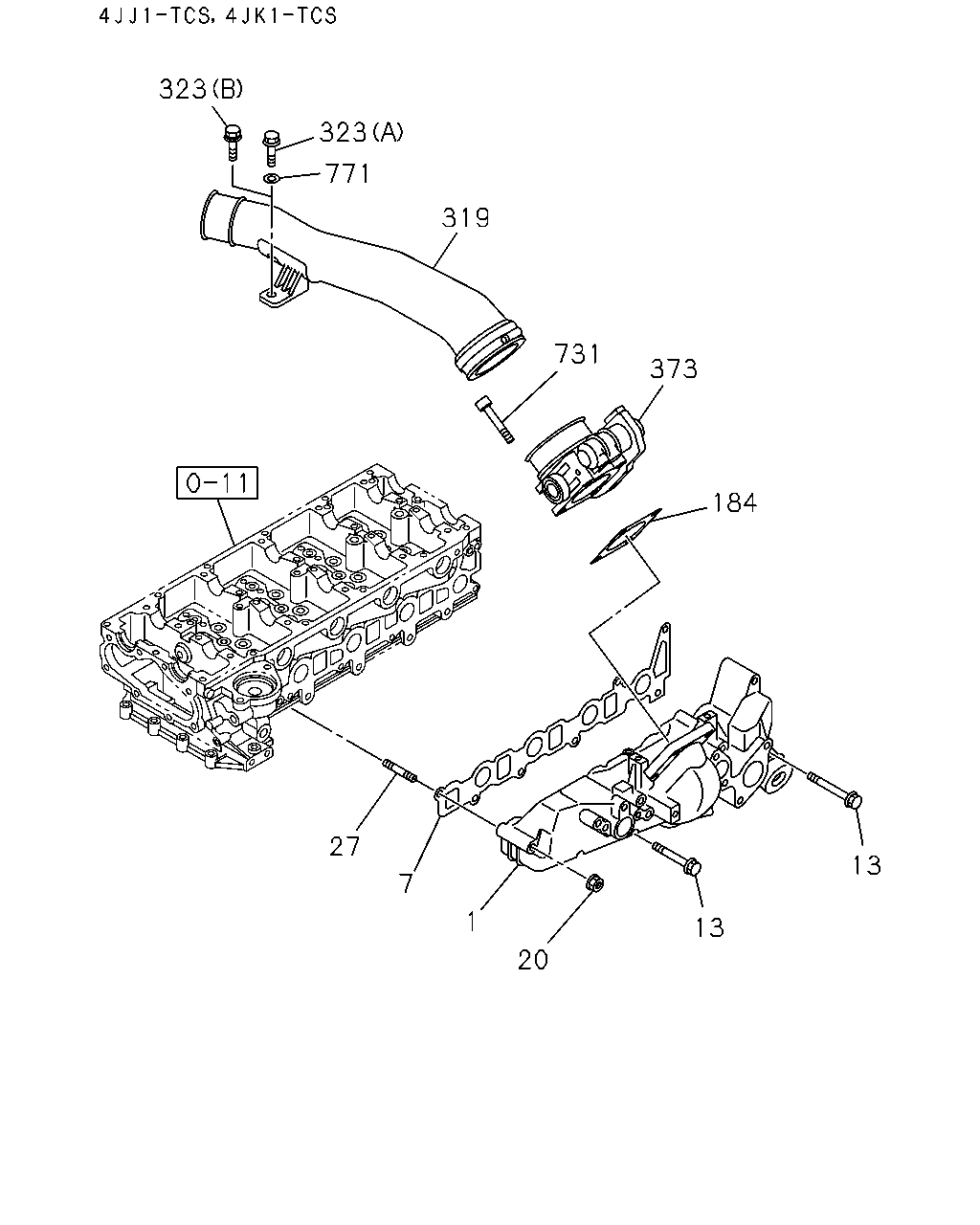

çizim 56183
323 323 771 319 731 373 184 27 13 7 1 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-503-0 01 1 1010- ●
1 03.265 MANIFOLD; INL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-264-0 01 1 0807- ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97350-916-0 01 1 0307- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2> 		8-97253-952-0 01 1 0307-1103 ●
1 03.265 MANIFOLD; INL 8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL 8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL 8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0610-0612 ● ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0701-0709 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97312-063-5 01 1 0710-0806 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 0807-0912 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97324-152-2 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97382-588-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98028-254-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0610- ● ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0307-1009 ●
1 03.265 MANIFOLD; INL
AUSTRALIA EQUIPMENT(B13) 		8-92066-733-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93255-173-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
KENYA EQUIPMENT(CL1) 		8-98063-396-0 01 1 0903- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0307-0609 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0610- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 0307-1009 ●
7 03.270 GASKET; INL MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0610-0612 ● ● ● ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0701-0902 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) 		8-97312-067-0 01 1 0903-0912 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0903-0912 ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ● ● ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 02 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0307-0512 ● ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 06 1 0601-0609 ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 1001- ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 1001- ● ● ● ●
20 03.275 NUT; INL MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93252-009-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0307-0609 ● ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ●
20 03.275 NUT; INL MANIF
03.604 		8-11082-413-0 09 1 0307-1009 ●
20 03.275 NUT; INL MANIF
AUSTRALIA EQUIPMENT(B13) 03.604 		8-11082-413-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0610- ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0610-0611 ● ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 1001- ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 1001- ● ● ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
KENYA EQUIPMENT(CL1) M8X71 L=83 		8-98017-063-0 02 1 0612- ●
184 03.275 GASKET; T/V
KENYA EQUIPMENT(CL1) 		8-98096-968-0 01 1 0903- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97214-127-0 02 1 0307-0609 ● ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0610-0612 ● ● ● ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0701-0902 ● ● ●
184 03.275 GASKET; T/V
EXC. KENYA EQUIPMENT(CL1) 		8-97366-784-1 01 1 0903-0912 ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0903-0912 ● ●
184 03.275 GASKET; T/V
EXC. KENYA EQUIPMENT(CL1) 		8-97366-784-1 01 1 1001- ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 1001- ● ● ●
319 03.341 DUCT; INL,TURBOCHARGER 8-97945-196-0 01 1 0610-0612 ● ●
319 03.341 DUCT; INL,TURBOCHARGER 8-97945-196-0 01 1 0701-0912 ●
319 03.341 DUCT; INL,TURBOCHARGER 8-97945-196-0 01 1 1001- ● ●
323 03.275 BOLT; DUCT
KENYA EQUIPMENT(CL1) 00.034 (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 02 1 0701- ●
323 03.275 BOLT; DUCT
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0610-0612 ● ●
323 03.275 BOLT; DUCT
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0701-0701 ●
323 03.275 BOLT; DUCT
EXC. KENYA EQUIPMENT(CL1) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0701-0912 ●
323 03.275 BOLT; DUCT
EXC. KENYA EQUIPMENT(CL1) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1001- ●
323 03.275 BOLT; DUCT
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1001- ●
373 03.265 THROTTLE ASM; INT 8-97945-522-0 01 1 0610-0611 ● ● ● ●
373 03.265 THROTTLE ASM; INT
EXC. KENYA EQUIPMENT(CL1) 		8-97945-522-0 01 1 0612-0612 ●
373 03.265 THROTTLE ASM; INT 8-97945-522-0 01 1 0612-0612 ● ● ●
373 03.265 THROTTLE ASM; INT
EXC. KENYA EQUIPMENT(CL1) 		8-97945-522-3 01 1 0701-0912 ●
373 03.265 THROTTLE ASM; INT 8-97945-522-3 01 1 0701-0912 ● ●
373 03.265 THROTTLE ASM; INT
EXC. KENYA EQUIPMENT(CL1) 		8-97945-522-4 01 1 1001- ●
373 03.265 THROTTLE ASM; INT 8-97945-522-4 01 1 1001- ● ● ●
373 03.265 THROTTLE ASM; INT
03.440 		8-97312-210-2 01 1 0610-0611 ● ●
373 03.265 THROTTLE ASM; INT
KENYA EQUIPMENT(CL1) 03.440 		8-97312-210-3 01 1 0612-0811 ●
373 03.265 THROTTLE ASM; INT
KENYA EQUIPMENT(CL1) 		8-98128-921-2 01 1 0812- ●
731 02.559 BOLT; THROTTLE ASM
02.277 M8X130 FLANGE 		0-28085-813-0 02 1 0307-0512 ● ●
731 02.559 BOLT; THROTTLE ASM
01.428 M8X130 FLANGE 		0-28055-813-0 02 1 0601-0609 ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0610-0612 ● ● ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0701-0912 ● ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 1001- ● ● ● ●
771 03.417 WASHER; DUCT
ID=8.4 OD=16 		0-91610-508-0 02 1 0610-0612 ● ●
771 03.417 WASHER; DUCT
ID=8.4 OD=16 		0-91610-508-0 02 1 0701-0701 ●
771 03.417 WASHER; DUCT
EXC. KENYA EQUIPMENT(CL1) ID=8.4 OD=16 		0-91610-508-0 02 1 0701-0912 ●
771 03.417 WASHER; DUCT
EXC. KENYA EQUIPMENT(CL1) ID=8.4 OD=16 		0-91610-508-0 02 1 1001- ●
771 03.417 WASHER; DUCT
ID=8.4 OD=16 		0-91610-508-0 02 1 1001- ●

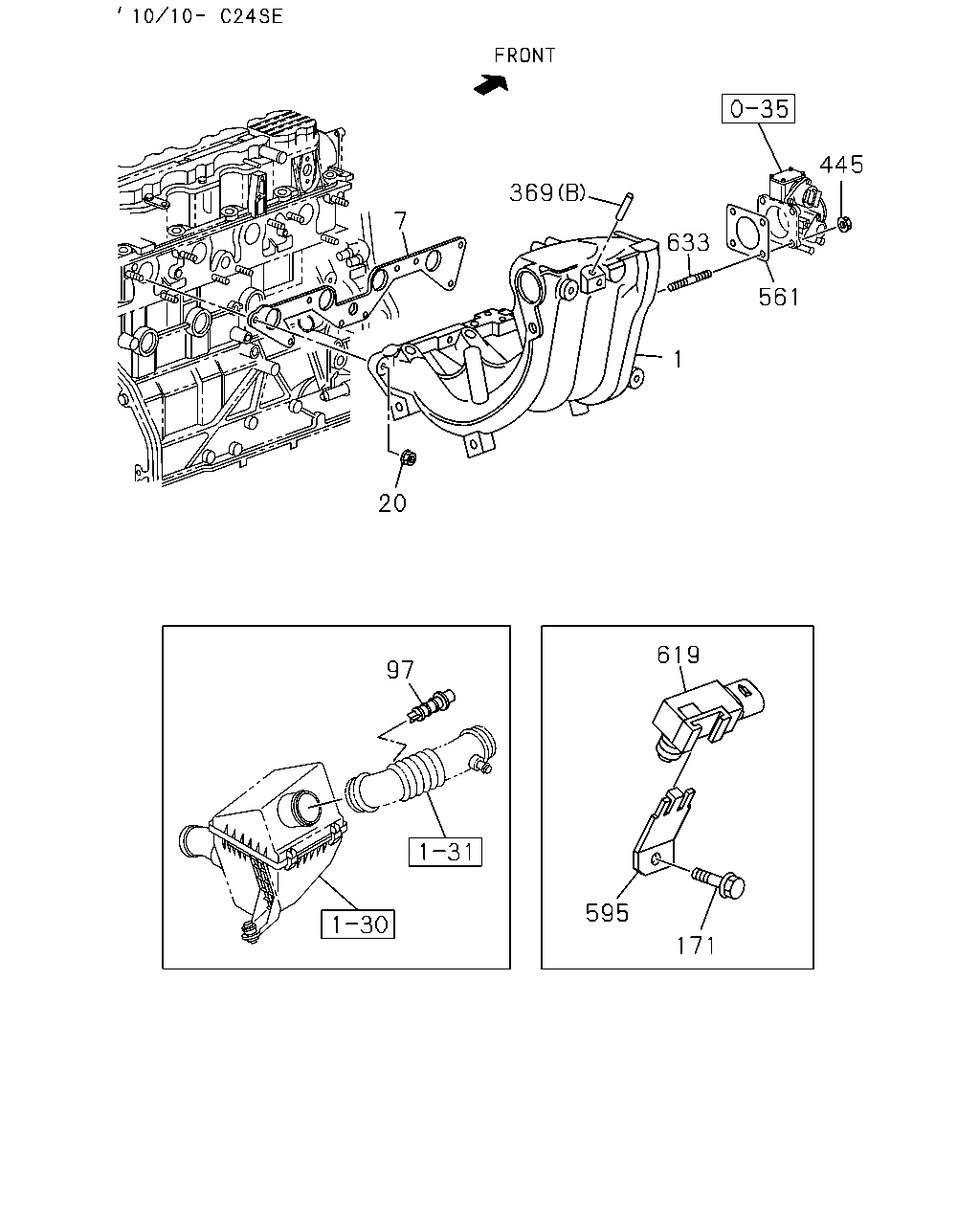

çizim 56205
445 369 7 633 561 1 20 619 97 595 171
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-503-0 01 1 1010- ●
1 03.265 MANIFOLD; INL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-264-0 01 1 0807- ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97350-916-0 01 1 0307- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2> 		8-97253-952-0 01 1 0307-1103 ●
1 03.265 MANIFOLD; INL 8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL 8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL 8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0610-0612 ● ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0701-0709 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97312-063-5 01 1 0710-0806 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 0807-0912 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97324-152-2 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97382-588-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98028-254-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0610- ● ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0307-1009 ●
1 03.265 MANIFOLD; INL
AUSTRALIA EQUIPMENT(B13) 		8-92066-733-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93255-173-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
KENYA EQUIPMENT(CL1) 		8-98063-396-0 01 1 0903- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0307-0609 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0610- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 0307-1009 ●
7 03.270 GASKET; INL MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0610-0612 ● ● ● ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0701-0902 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) 		8-97312-067-0 01 1 0903-0912 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0903-0912 ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ● ● ●
20 03.275 NUT; INL MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93252-009-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0307-0609 ● ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ●
20 03.275 NUT; INL MANIF
03.604 		8-11082-413-0 09 1 0307-1009 ●
20 03.275 NUT; INL MANIF
AUSTRALIA EQUIPMENT(B13) 03.604 		8-11082-413-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
97 03.682 SENSOR; INTAKE,AIR TEMPERATURE 8-12160-244-0 01 1 0307- ●
171 02.559 BOLT; BRKT
02.510 		8-11093-971-0 01 1 0307- ●
369 02.559 CONNECTOR; BOOST SWITCH
(B) 		8-92065-407-0 01 1 0307- ●
369 02.559 CONNECTOR; BOOST SWITCH
(A) 		8-92066-317-0 01 1 0307-1009 ●
369 02.559 CONNECTOR; BOOST SWITCH
AUSTRALIA EQUIPMENT(B13) (A) 		8-92066-317-0 01 1 1010- ●
445 03.275 NUT; THROTTLE BODY TO MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0307-0602 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
02.042 M6 		8-11094-425-0 04 1 0307- ●
561 03.724 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92060-513-0 01 1 0307- ●
595 02.559 BRACKET; MAP SENSOR 8-92065-524-0 01 1 0307- ●
619 01.150 SENSOR; MAP
EXC. AUSTRALIA EQUIPMENT(B13) 		8-12614-970-0 01 1 1010- ●
619 01.150 SENSOR; MAP
03.320 		8-16212-460-0 01 1 0307-1009 ●
619 01.150 SENSOR; MAP
AUSTRALIA EQUIPMENT(B13) 03.320 		8-16212-460-0 01 1 1010- ●
633 03.275 STUD; THROTTLE BODY
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92139-049-0 04 1 1010- ●
633 03.275 STUD; THROTTLE BODY
01.060 M8X55 L=71 		9-04020-855-0 02 1 0307-0604 ● ●
633 03.275 STUD; THROTTLE BODY
M8X55 L=71 		0-40210-855-0 02 1 0605-0609 ● ●
633 03.275 STUD; THROTTLE BODY 8-11075-291-0 04 1 0307-1009 ●
633 03.275 STUD; THROTTLE BODY
AUSTRALIA EQUIPMENT(B13) 		8-11075-291-0 04 1 1010- ●

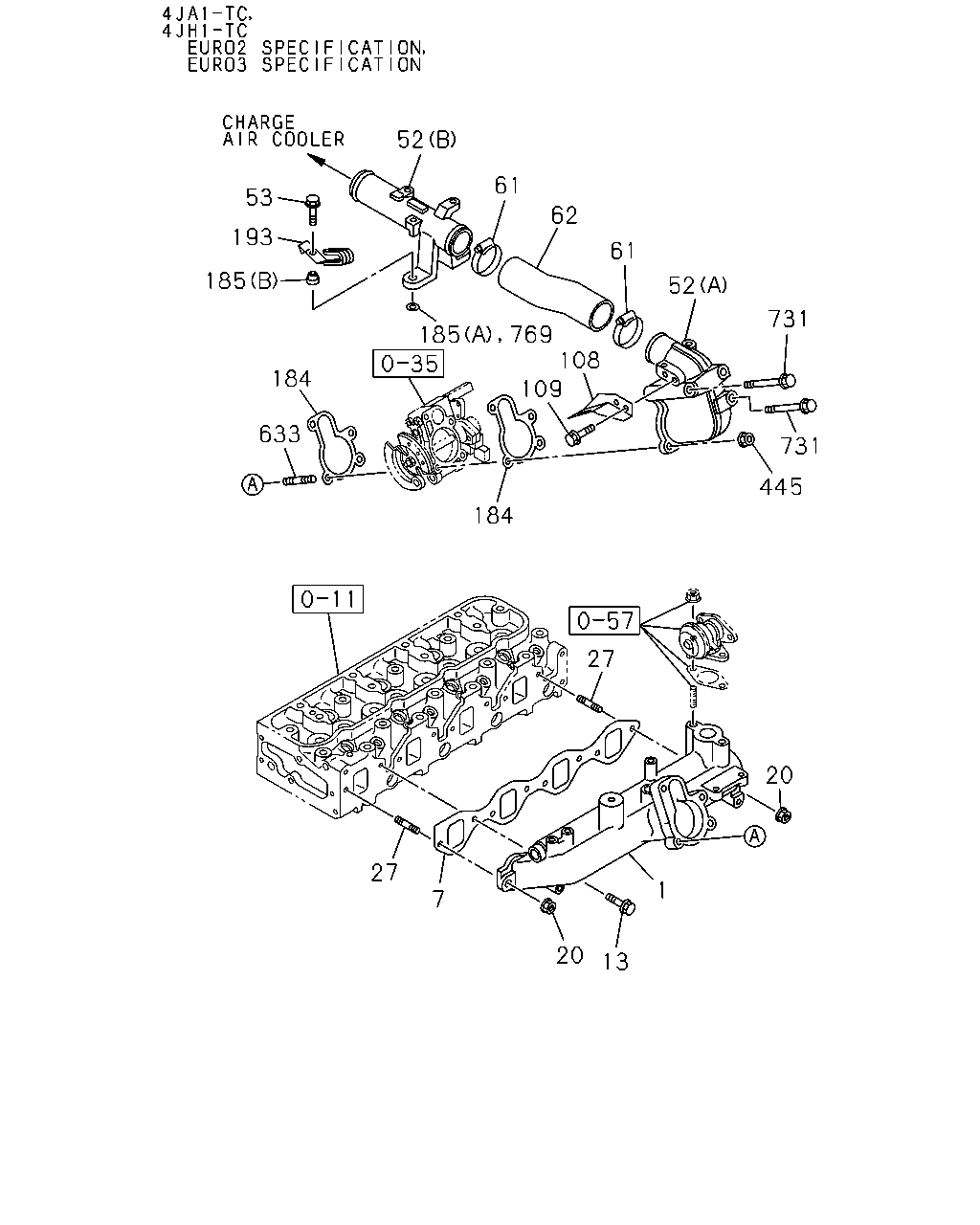

çizim 56239
52 61 53 62 193 61 185 52 731 185 769 108 109 184 633 731 445 184 27 20 27 1 7 20 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-503-0 01 1 1010- ●
1 03.265 MANIFOLD; INL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-264-0 01 1 0807- ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97350-916-0 01 1 0307- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2> 		8-97253-952-0 01 1 0307-1103 ●
1 03.265 MANIFOLD; INL 8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL 8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL 8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0610-0612 ● ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0701-0709 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97312-063-5 01 1 0710-0806 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 0807-0912 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97324-152-2 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97382-588-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98028-254-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0610- ● ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0307-1009 ●
1 03.265 MANIFOLD; INL
AUSTRALIA EQUIPMENT(B13) 		8-92066-733-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93255-173-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
KENYA EQUIPMENT(CL1) 		8-98063-396-0 01 1 0903- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0307-0609 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0610- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 0307-1009 ●
7 03.270 GASKET; INL MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0610-0612 ● ● ● ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0701-0902 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) 		8-97312-067-0 01 1 0903-0912 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0903-0912 ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ● ● ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 02 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0307-0512 ● ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 06 1 0601-0609 ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 1001- ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 1001- ● ● ● ●
20 03.275 NUT; INL MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93252-009-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0307-0609 ● ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ●
20 03.275 NUT; INL MANIF
03.604 		8-11082-413-0 09 1 0307-1009 ●
20 03.275 NUT; INL MANIF
AUSTRALIA EQUIPMENT(B13) 03.604 		8-11082-413-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0610- ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0610-0611 ● ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 1001- ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 1001- ● ● ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
KENYA EQUIPMENT(CL1) M8X71 L=83 		8-98017-063-0 02 1 0612- ●
52 01.097 PIPE; INL
(C) 		8-97188-068-1 01 1 0307-0401 ●
52 01.097 PIPE; INL
(C) 		8-97916-935-1 01 1 0402-0911 ●
52 01.097 PIPE; INL
(C) 		8-97942-925-0 01 1 0912- ●
52 01.097 PIPE; INL
(A) 		8-97311-685-2 01 1 0307-0609 ● ●
52 01.097 PIPE; INL
(B) 		8-97315-137-1 01 1 0307-0609 ● ●
53 03.602 BOLT; INL PIPE
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0307-0512 ● ● ●
53 03.602 BOLT; INL PIPE
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601-0609 ● ● ●
53 03.602 BOLT; INL PIPE
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0610- ●
61 03.273 CLIP; CONNECTOR HOSE
ID=65-82 		8-97131-942-0 02 1 0307- ●
61 03.273 CLIP; CONNECTOR HOSE
03.407 ID=50-69 		8-94316-991-0 02 1 0307-0403 ● ●
61 03.273 CLIP; CONNECTOR HOSE
03.407 ID=50-65 		1-09707-204-0 02 1 0404-0609 ● ●
62 03.265 HOSE; CONNECTOR 8-97137-018-1 01 1 0307-0404 ●
62 03.265 HOSE; CONNECTOR 8-94386-164-2 01 1 0405- ●
62 03.265 HOSE; CONNECTOR 8-97316-600-0 01 1 0307-0609 ● ●
108 03.444 BRACKET; ACCEL CABLE 8-97315-134-0 01 1 0307-0609 ● ●
109 03.444 BOLT; ACCEL CABLE BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0307-0512 ● ●
109 03.444 BOLT; ACCEL CABLE BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ● ●
184 03.275 GASKET; T/V
KENYA EQUIPMENT(CL1) 		8-98096-968-0 01 1 0903- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97214-127-0 02 1 0307-0609 ● ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0610-0612 ● ● ● ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0701-0902 ● ● ●
184 03.275 GASKET; T/V
EXC. KENYA EQUIPMENT(CL1) 		8-97366-784-1 01 1 0903-0912 ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0903-0912 ● ●
184 03.275 GASKET; T/V
EXC. KENYA EQUIPMENT(CL1) 		8-97366-784-1 01 1 1001- ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 1001- ● ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(A) ID=12 OD=24 T=4.5 		8-94403-670-0 02 1 0307-0402 ● ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(B) 		8-94434-927-0 02 1 0307-0609 ● ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(B) 		8-94434-927-0 02 1 0610- ●
193 03.265 CLIP; VAC HOSE 8-97367-981-0 01 1 0307-0609 ●
193 03.265 CLIP; VAC HOSE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97367-981-0 01 1 0307-0609 ●
445 03.275 NUT; THROTTLE BODY TO MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0307-0602 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
02.042 M6 		8-11094-425-0 04 1 0307- ●
633 03.275 STUD; THROTTLE BODY
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92139-049-0 04 1 1010- ●
633 03.275 STUD; THROTTLE BODY
01.060 M8X55 L=71 		9-04020-855-0 02 1 0307-0604 ● ●
633 03.275 STUD; THROTTLE BODY
M8X55 L=71 		0-40210-855-0 02 1 0605-0609 ● ●
633 03.275 STUD; THROTTLE BODY 8-11075-291-0 04 1 0307-1009 ●
633 03.275 STUD; THROTTLE BODY
AUSTRALIA EQUIPMENT(B13) 		8-11075-291-0 04 1 1010- ●
731 02.559 BOLT; THROTTLE ASM
02.277 M8X130 FLANGE 		0-28085-813-0 02 1 0307-0512 ● ●
731 02.559 BOLT; THROTTLE ASM
01.428 M8X130 FLANGE 		0-28055-813-0 02 1 0601-0609 ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0610-0612 ● ● ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0701-0912 ● ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 1001- ● ● ● ●
769 03.273 RUBBER; MTG,INL MANIF,LWR
ID=12 OD=24 T=4.5 		8-94403-670-0 02 1 0403-0407 ● ● ●
769 03.273 RUBBER; MTG,INL MANIF,LWR
ID=11 OD=24 T=4.5 		8-97384-128-0 02 1 0408-0609 ● ● ●
769 03.273 RUBBER; MTG,INL MANIF,LWR
ID=11 OD=24 T=4.5 		8-97384-128-0 02 1 0610- ●
çizim 56418
52 61 53 62 185 61 52 185 731 108 109 184 633 731 445 184 94 387 27 364 20 27 1 7 20 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-503-0 01 1 1010- ●
1 03.265 MANIFOLD; INL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-264-0 01 1 0807- ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97350-916-0 01 1 0307- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2> 		8-97253-952-0 01 1 0307-1103 ●
1 03.265 MANIFOLD; INL 8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97352-974-1 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL 8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-97382-590-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL 8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75> 		8-98028-255-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0610-0612 ● ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 0701-0709 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-97312-063-5 01 1 0710-0806 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 0807-0912 ●
1 03.265 MANIFOLD; INL
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL 8-97312-063-5 01 1 1001- ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97324-152-2 01 1 0307-0412 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97382-588-0 01 1 0501-0508 ●
1 03.265 MANIFOLD; INL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98028-254-0 01 1 0509-0609 ●
1 03.265 MANIFOLD; INL 8-98011-521-0 01 1 0610- ● ●
1 03.265 MANIFOLD; INL 8-92066-733-0 01 1 0307-1009 ●
1 03.265 MANIFOLD; INL
AUSTRALIA EQUIPMENT(B13) 		8-92066-733-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93255-173-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD
KENYA EQUIPMENT(CL1) 		8-98063-396-0 01 1 0903- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0307-0609 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97301-838-1 01 1 0610- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 0307-1009 ●
7 03.270 GASKET; INL MANIF TO HD
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92060-514-0 01 1 1010- ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0610-0612 ● ● ● ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0701-0902 ● ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) 		8-97312-067-0 01 1 0903-0912 ●
7 03.270 GASKET; INL MANIF TO HD 8-97312-067-0 01 1 0903-0912 ● ●
7 03.270 GASKET; INL MANIF TO HD
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97312-067-0 01 1 1001- ● ● ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 02 1 0307-0512 ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0307-0512 ● ●
13 03.275 BOLT; INL MANIF
M8X25 FLANGE 		0-28050-825-0 06 1 0601-0609 ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X110 FLANGE 		0-28055-811-0 02 1 1001- ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0610-0612 ● ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0701-0912 ● ● ●
13 03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD 		8-97101-065-0 04 1 1001- ● ● ● ●
20 03.275 NUT; INL MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93252-009-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0307-0609 ● ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ●
20 03.275 NUT; INL MANIF
03.604 		8-11082-413-0 09 1 0307-1009 ●
20 03.275 NUT; INL MANIF
AUSTRALIA EQUIPMENT(B13) 03.604 		8-11082-413-0 09 1 1010- ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M8X25 L=37 		0-41010-825-0 02 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0610- ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 03.901 M8X25 L=37 		9-04110-825-0 01 1 0307-0604 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0610-0611 ● ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0612-0612 ● ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0701-0912 ● ●
27 03.275 STUD; INL MANIF
EXC. KENYA EQUIPMENT(CL1) M8X71 L=83 		8-97367-083-0 02 1 1001- ●
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 1001- ● ● ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
EURO3 SPECIFICATION<NT3> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0307-0609 ●
27 03.275 STUD; INL MANIF
KENYA EQUIPMENT(CL1) M8X71 L=83 		8-98017-063-0 02 1 0612- ●
52 01.097 PIPE; INL
(C) 		8-97188-068-1 01 1 0307-0401 ●
52 01.097 PIPE; INL
(C) 		8-97916-935-1 01 1 0402-0911 ●
52 01.097 PIPE; INL
(C) 		8-97942-925-0 01 1 0912- ●
52 01.097 PIPE; INL
(A) 		8-97311-685-2 01 1 0307-0609 ● ●
52 01.097 PIPE; INL
(B) 		8-97315-137-1 01 1 0307-0609 ● ●
53 03.602 BOLT; INL PIPE
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0307-0512 ● ● ●
53 03.602 BOLT; INL PIPE
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601-0609 ● ● ●
53 03.602 BOLT; INL PIPE
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0610- ●
61 03.273 CLIP; CONNECTOR HOSE
ID=65-82 		8-97131-942-0 02 1 0307- ●
61 03.273 CLIP; CONNECTOR HOSE
03.407 ID=50-69 		8-94316-991-0 02 1 0307-0403 ● ●
61 03.273 CLIP; CONNECTOR HOSE
03.407 ID=50-65 		1-09707-204-0 02 1 0404-0609 ● ●
62 03.265 HOSE; CONNECTOR 8-97137-018-1 01 1 0307-0404 ●
62 03.265 HOSE; CONNECTOR 8-94386-164-2 01 1 0405- ●
62 03.265 HOSE; CONNECTOR 8-97316-600-0 01 1 0307-0609 ● ●
94 02.559 BOLT
EMISSION SYSTEM R15-04<K75> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0307-0512 ●
94 02.559 BOLT
EMISSION SYSTEM R15-04<K75> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ●
108 03.444 BRACKET; ACCEL CABLE 8-97315-134-0 01 1 0307-0609 ● ●
109 03.444 BOLT; ACCEL CABLE BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0307-0512 ● ●
109 03.444 BOLT; ACCEL CABLE BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ● ●
184 03.275 GASKET; T/V
KENYA EQUIPMENT(CL1) 		8-98096-968-0 01 1 0903- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97214-127-0 02 1 0307-0609 ● ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0610-0612 ● ● ● ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0701-0902 ● ● ●
184 03.275 GASKET; T/V
EXC. KENYA EQUIPMENT(CL1) 		8-97366-784-1 01 1 0903-0912 ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 0903-0912 ● ●
184 03.275 GASKET; T/V
EXC. KENYA EQUIPMENT(CL1) 		8-97366-784-1 01 1 1001- ●
184 03.275 GASKET; T/V 8-97366-784-1 01 1 1001- ● ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(A) ID=12 OD=24 T=4.5 		8-94403-670-0 02 1 0307-0402 ● ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(B) 		8-94434-927-0 02 1 0307-0609 ● ● ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(B) 		8-94434-927-0 02 1 0610- ●
364 03.270 GASKET
EMISSION SYSTEM R15-04<K75> 03.665 		8-97192-765-0 01 1 0307-0609 ●
387 03.265 PLATE; EGR,INL MANIF
EMISSION SYSTEM R15-04<K75> 		8-97255-029-0 01 1 0307-0609 ●
445 03.275 NUT; THROTTLE BODY TO MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0307-0602 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
02.042 M6 		8-11094-425-0 04 1 0307- ●
633 03.275 STUD; THROTTLE BODY
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92139-049-0 04 1 1010- ●
633 03.275 STUD; THROTTLE BODY
01.060 M8X55 L=71 		9-04020-855-0 02 1 0307-0604 ● ●
633 03.275 STUD; THROTTLE BODY
M8X55 L=71 		0-40210-855-0 02 1 0605-0609 ● ●
633 03.275 STUD; THROTTLE BODY 8-11075-291-0 04 1 0307-1009 ●
633 03.275 STUD; THROTTLE BODY
AUSTRALIA EQUIPMENT(B13) 		8-11075-291-0 04 1 1010- ●
731 02.559 BOLT; THROTTLE ASM
02.277 M8X130 FLANGE 		0-28085-813-0 02 1 0307-0512 ● ●
731 02.559 BOLT; THROTTLE ASM
01.428 M8X130 FLANGE 		0-28055-813-0 02 1 0601-0609 ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0610-0612 ● ● ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0701-0912 ● ● ●
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 1001- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
