0-22B — ENGINE MOUNTING (#20071) — 102 parça

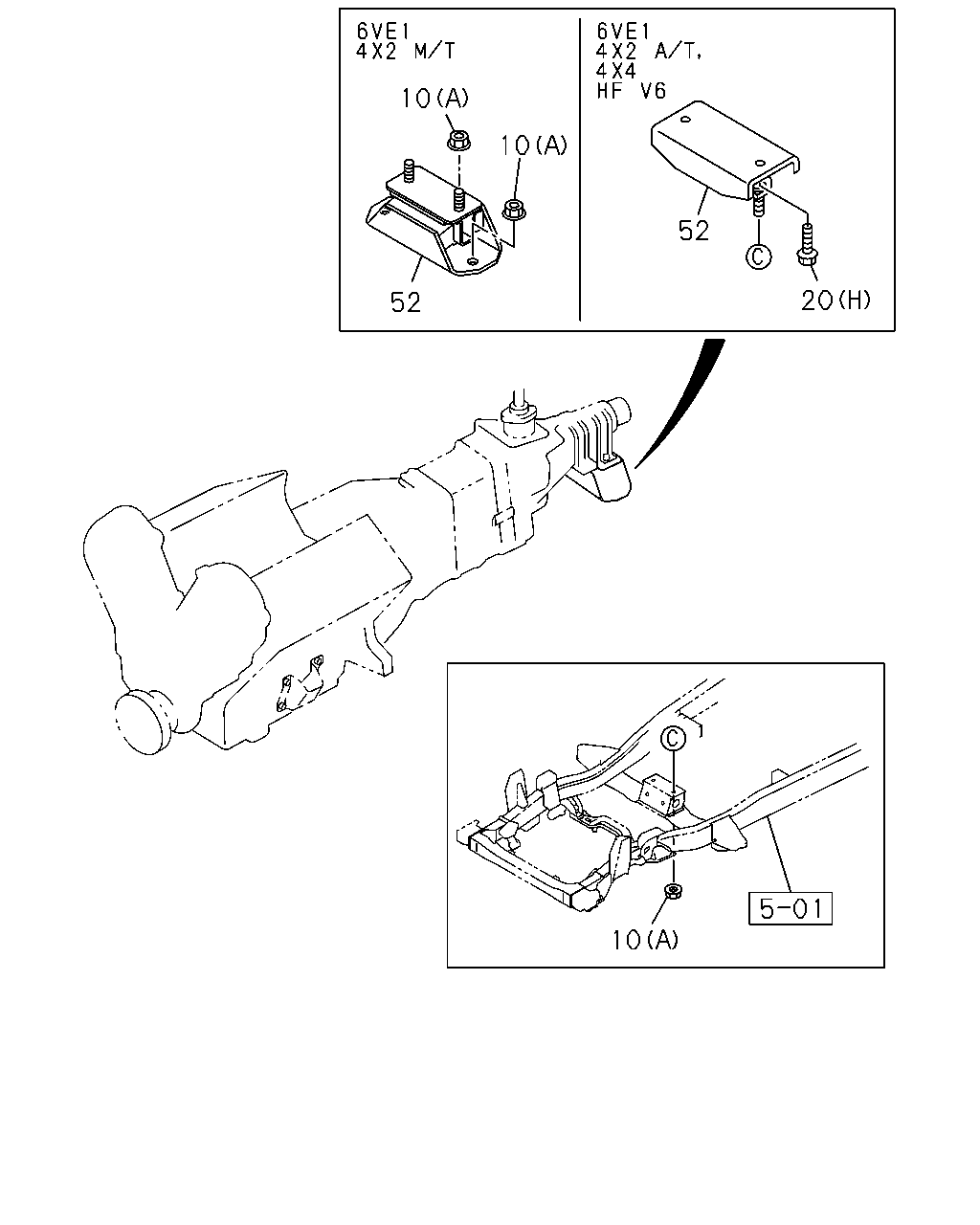

çizim 13044
10 10 52 20 52 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0307-0508 ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M10 FLANGE 		0-91180-210-0 02 1 0307-0508 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0610-0612 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0701-0912 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1001- ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0307-0508 ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0509-0609 ● ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0610- ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0307-0508 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0307-0508 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(I) M10X40 FLANGE 		0-28751-040-0 01 1 0307-0609 ●
20 00.029 BOLT; ENG FOOT
(I) M10X25 FLANGE 		0-28751-025-0 06 1 0307-0609 ●
20 00.029 BOLT; ENG FOOT
(I) M10X35 FLANGE 		0-28751-035-0 01 1 0307-0609 ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0610-0612 ●
20 00.029 BOLT; ENG FOOT
(H) M10X35 FLANGE 		0-28751-035-0 02 1 0701-0912 ●
20 00.029 BOLT; ENG FOOT
(H) M10X35 FLANGE 		0-28751-035-0 02 1 1001- ●
20 00.029 BOLT; ENG FOOT
(N) 		8-92138-751-0 06 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(N) 		8-92138-751-0 06 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(N) 		8-92138-751-0 06 1 0610- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) 00.724 (H) M10X50 FLANGE 		0-28191-050-0 02 1 0509-0606 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) 00.724 (H) M10X50 FLANGE 		0-28161-050-0 02 1 0607- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) 		8-97367-277-0 01 1 0307-0405 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T AISIN(RMD) 		8-97367-277-0 01 1 0307-0405 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) 		8-97367-631-0 01 1 0406-0508 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T AISIN(RMD) 		8-97367-631-0 01 1 0406-0508 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T AISIN(RMD) 		8-97367-631-0 01 1 0509-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T AISIN(RMD) 		8-97367-280-0 01 1 0307-0404 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T AISIN(RMD) 		8-97373-163-0 01 1 0405-0508 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T AISIN 5 SPEED(MA5) 		8-98000-997-0 01 1 0509-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T AISIN 5 SPEED(MA5) 		8-98051-345-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) 		8-97367-279-0 01 1 0307-0410 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) 		8-97373-162-0 01 1 0411-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-HMD,ELEC(M30) 		8-98004-976-0 01 1 0509-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-HMD,ELEC(M30) 		8-98051-346-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-98004-977-0 01 1 0509-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-98004-977-0 01 1 0610-0708 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-98051-347-0 01 1 0709- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T AISIN 5 SPEED(MA5) 		8-98000-996-0 01 1 0509-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T AISIN 5 SPEED(MA5) 		8-98051-343-0 01 1 0610- ●

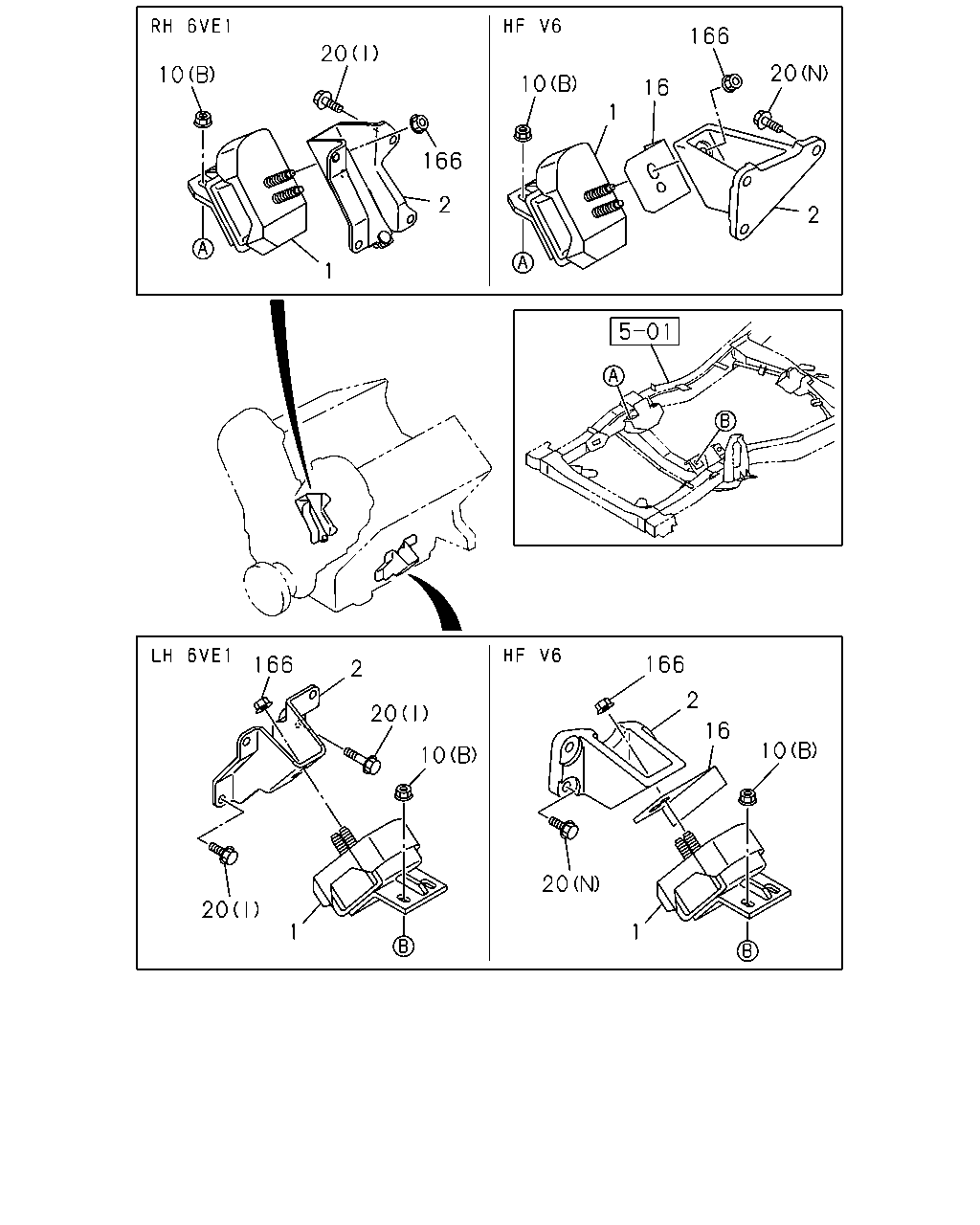

çizim 53924
166 20 20 10 10 16 1 166 2 2 1 166 166 2 2 20 16 10 10 20 20 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-268-0 01 1 0307-0508 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-268-0 01 1 0509-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-332-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-267-0 01 1 0307-0508 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-267-0 01 1 0509-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-331-0 01 1 0610- ●
2 00.029 FOOT; ENG 8-97250-246-0 01 1 0307-0609 ●
2 00.029 FOOT; ENG 8-97250-415-0 01 1 0307-0609 ●
2 00.029 FOOT; ENG 8-92211-475-0 01 1 0509- ●
2 00.029 FOOT; ENG 8-92211-476-0 01 1 0509- ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0307-0508 ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M10 FLANGE 		0-91180-210-0 02 1 0307-0508 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0610-0612 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0701-0912 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1001- ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0307-0508 ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0509-0609 ● ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0610- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98056-323-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0307-0508 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0307-0508 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(I) M10X40 FLANGE 		0-28751-040-0 01 1 0307-0609 ●
20 00.029 BOLT; ENG FOOT
(I) M10X25 FLANGE 		0-28751-025-0 06 1 0307-0609 ●
20 00.029 BOLT; ENG FOOT
(I) M10X35 FLANGE 		0-28751-035-0 01 1 0307-0609 ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0610-0612 ●
20 00.029 BOLT; ENG FOOT
(H) M10X35 FLANGE 		0-28751-035-0 02 1 0701-0912 ●
20 00.029 BOLT; ENG FOOT
(H) M10X35 FLANGE 		0-28751-035-0 02 1 1001- ●
20 00.029 BOLT; ENG FOOT
(N) 		8-92138-751-0 06 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(N) 		8-92138-751-0 06 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(N) 		8-92138-751-0 06 1 0610- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) 00.724 (H) M10X50 FLANGE 		0-28191-050-0 02 1 0509-0606 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) 00.724 (H) M10X50 FLANGE 		0-28161-050-0 02 1 0607- ●
166 00.002 NUT; SUPPORT RUBBER
04.085 M10 FLANGE 		0-91180-210-0 04 1 0307-0508 ●
166 00.002 NUT; SUPPORT RUBBER
04.085 M10 FLANGE 		0-91180-210-0 04 1 0509-0609 ● ●
166 00.002 NUT; SUPPORT RUBBER
04.085 M10 FLANGE 		0-91180-210-0 04 1 0610- ●

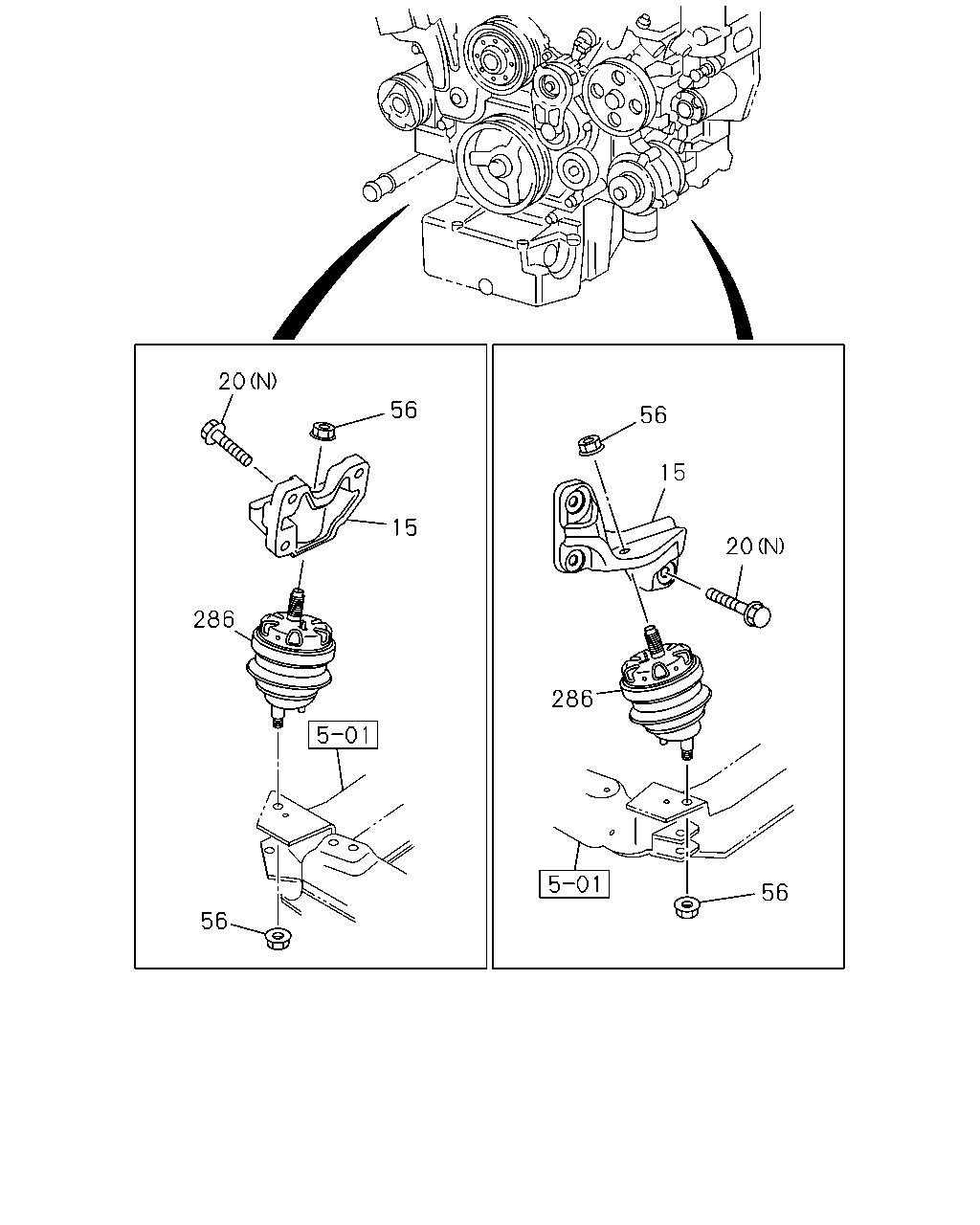

çizim 53925
20 56 56 15 15 20 286 286 56 56
BalonParca AdiParca NoAdetTipApplied Date A B
15 00.029 BRACKET; ENG MTG 8-92122-595-0 01 1 0509-0609 ●
15 00.029 BRACKET; ENG MTG 8-92122-594-0 01 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0307-0508 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0307-0508 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(I) M10X40 FLANGE 		0-28751-040-0 01 1 0307-0609 ●
20 00.029 BOLT; ENG FOOT
(I) M10X25 FLANGE 		0-28751-025-0 06 1 0307-0609 ●
20 00.029 BOLT; ENG FOOT
(I) M10X35 FLANGE 		0-28751-035-0 01 1 0307-0609 ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0610-0612 ●
20 00.029 BOLT; ENG FOOT
(H) M10X35 FLANGE 		0-28751-035-0 02 1 0701-0912 ●
20 00.029 BOLT; ENG FOOT
(H) M10X35 FLANGE 		0-28751-035-0 02 1 1001- ●
20 00.029 BOLT; ENG FOOT
(N) 		8-92138-751-0 06 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(N) 		8-92138-751-0 06 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
(N) 		8-92138-751-0 06 1 0610- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) 00.724 (H) M10X50 FLANGE 		0-28191-050-0 02 1 0509-0606 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) 00.724 (H) M10X50 FLANGE 		0-28161-050-0 02 1 0607- ●
56 00.002 NUT; ENG MTG
08.917 		8-11516-078-0 04 1 0509-0609 ●
286 00.027 MOUNTING ASM; ENGINE 8-92122-590-0 01 1 0509-0609 ●
286 00.027 MOUNTING ASM; ENGINE 8-92122-591-0 01 1 0509-0609 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
