Sayfa 0-20B - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20B - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶

0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#20069) — 38 parça

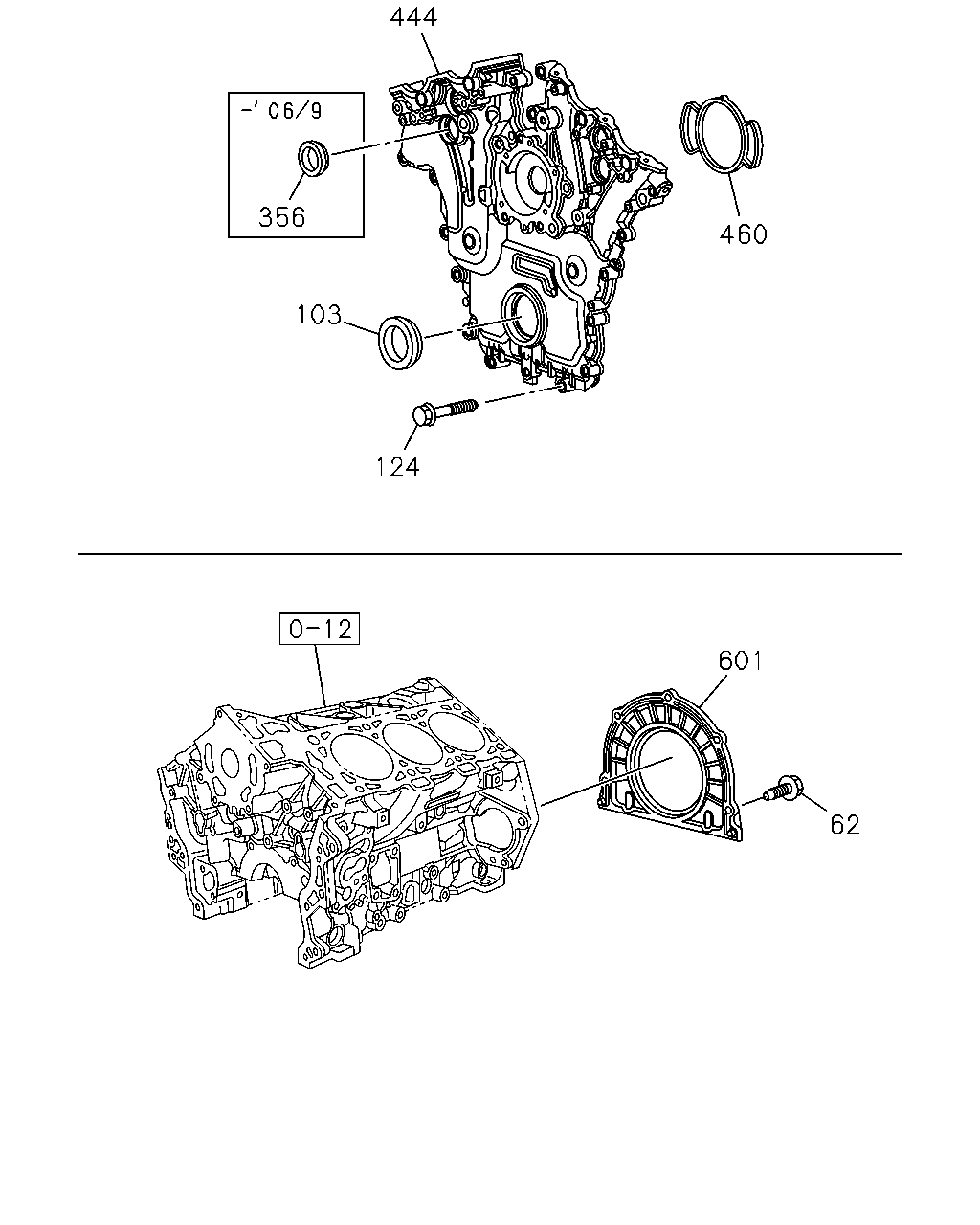

444 356 460 103 124 601 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	00.206 BOLT; COVER 01.430	8-11588-713-0	05	1	0509-0609	●
62	00.206 BOLT; COVER M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.430	8-11588-713-0	05	1	0610-	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-12592-355-0	01	1	0509-0609	●
103	00.213 SEAL; OIL,CR/SHF,FRT M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12592-355-0	01	1	0610-	●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	0307-0512		●
124	00.206 BOLT; TIMING COVER M8X30 FLANGE	0-28050-830-0	09	1	0601-0609		●
124	00.206 BOLT; TIMING COVER	8-11519-171-0	22	1	0509-0609	●
124	00.206 BOLT; TIMING COVER M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-11519-171-0	22	1	0610-	●
356	00.207 GASKET; COVER	8-12565-962-0	04	1	0509-0609	●
444	00.206 COVER; TIMING CASE	8-12598-360-0	01	1	0509-0609	●
444	00.206 COVER; TIMING CASE M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12601-269-0	01	1	0702-0702	●
444	00.206 COVER; TIMING CASE M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12601-269-0	01	1	0702-	●
444	00.206 COVER; TIMING CASE M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12598-360-0	01	1	0610-0701	●
444	00.206 COVER; TIMING CASE A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12598-360-0	01	1	0702-0702	●
460	01.079 SEAL; OIL,WATER PUMP	8-12593-045-0	01	1	0509-0609	●
460	01.079 SEAL; OIL,WATER PUMP M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12593-045-0	01	1	0610-	●
601	00.206 COVER; REAR	8-12592-243-0	01	1	0509-0609	●
601	00.206 COVER; REAR M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12592-243-0	01	1	0610-	●

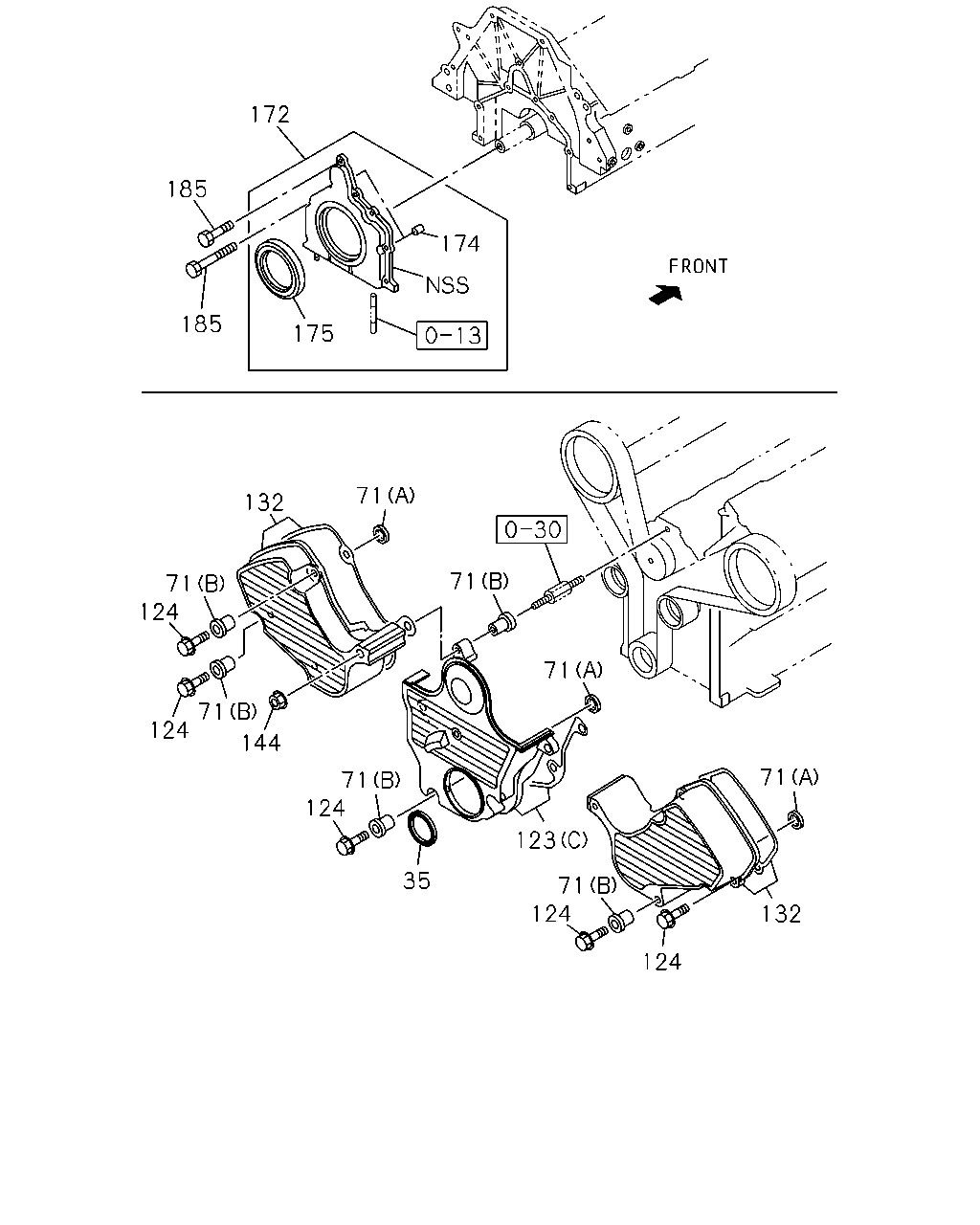

172 185 174 185 175 71 132 71 71 124 71 71 124 144 71 71 124 123 35 71 124 132 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	0307-0609		●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	0307-0609		●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	0307-0512		●
71	00.206 RUBBER; MTG,COVER (B)	8-97372-221-0	11	1	0601-0609		●
123	00.206 COVER; TIMING,LWR (C)	8-97131-872-3	01	1	0307-0609		●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	0307-0512		●
124	00.206 BOLT; TIMING COVER M8X30 FLANGE	0-28050-830-0	09	1	0601-0609		●
124	00.206 BOLT; TIMING COVER	8-11519-171-0	22	1	0509-0609	●
124	00.206 BOLT; TIMING COVER M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-11519-171-0	22	1	0610-	●
132	00.206 COVER; TIMING,UPR	8-97131-882-3	01	1	0307-0609		●
132	00.206 COVER; TIMING,UPR	8-97131-883-2	01	1	0307-0609		●
144	00.206 NUT; COVER 07.633 M8 FLANGE	0-91150-108-0	01	1	0307-0602		●
144	00.206 NUT; COVER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609		●
172	00.137 RETAINER; CR/SHF	8-97149-390-1	01	1	0307-0609		●
174	00.683 DOWEL; RET TO C/BL	8-97103-336-0	02	1	0307-0609		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	0307-0609		●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	0307-0512		●
185	00.727 BOLT; RET TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	06	1	0601-0609		●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0307-0512		●
185	00.727 BOLT; RET TO C/BL 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-0609		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
